Attention to detailThese hoods are constructed in a heat moulded material with soft curved and unbroken corners without joins, to give a very pleasing effect really practical to keep clean. The silver bar at the front coordinates with the ‘Victoria’ style and finishes the design of the hood. |
Intensitive FunctionThe intensive function allows to operate the hood at maximum power, to speed up the elimination of the most persistent odors and to have a purified environment. |
|
-

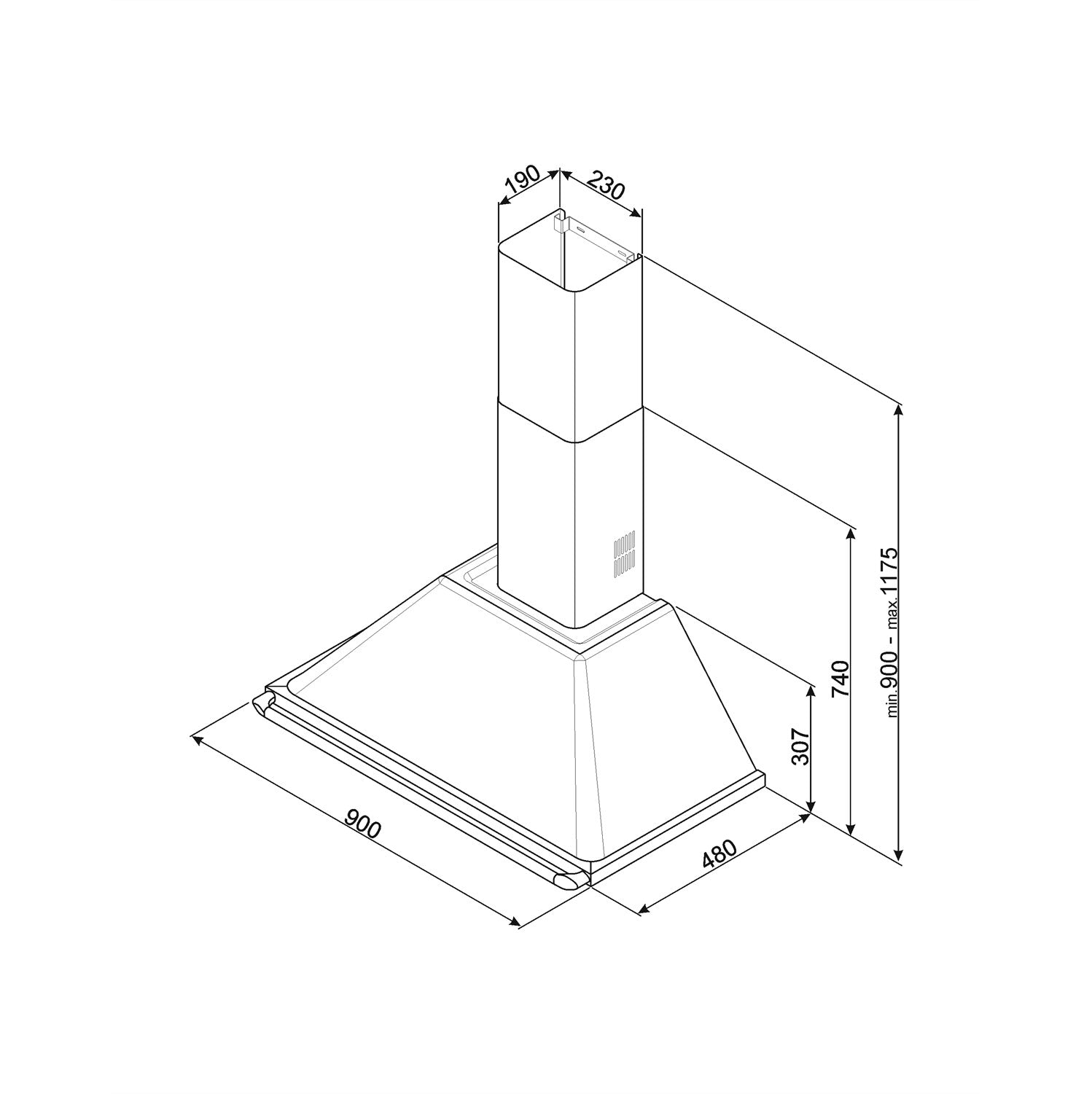

Height (mm)740 mm
-
Width (mm)895 mm
-
Depth (mm)530 mm
-
MpnKT90GRE
-
Model numberKT90GRE
-
ColourSlate Grey
-
Optional accessories✓ KITALLFC: Accessories, Type: Charcoal filter, Hoods ✓ FLT6: Accessories, Type: Charcoal filter, Hoods
-
Lights2 x 1 LED
-
LightingLED
-
Size range90cm
-
Features✓ Decorative wall hood ✓ Painted material ✓ Knobs Control ✓ Anti-grease filters: Aluminium ✓ No. of speeds: 3 ✓ Aesthetic: Victoria ✓ 2 x 1W LED Light
-
Manufacturer warranty2 Years
-
InstallationCanopy
-
More SpecsType
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Extraction
- EAN code: 8017709303785
- Colour: Slate Grey
- Finishing: Glossy
- Aesthetic: Victoria
- Design: Chimney
- Material: Painted material
- Type of steel: Brushed
- No. of speeds: 3
- Intensive speed: Yes
- Control setting: Control knobs
- Control knobs: Victoria
- No. of controls: 2
- Controls colour: Steel effect
- Light color temperature scale (°K): 3000 °K
- Free outlet maximum capacity: 820 m³/h
- Motor power: 275 W
- No. of filters: 3
- Anti-grease filters: Aluminium
- Minimum distance from GAS hob: 750 mm
- Minimum distance from ELECTRIC hob: 650 mm
- Vent outlet: 150 mm
- Non return valve: Yes
- Energy efficicency class ( EEC): A
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): C
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 59 kWh/a
- Fluid Dynamic Efficiency (FDE): 30
- Lighting Efficiency (LE): 102.3 lux/W
- Grease Filtering Efficiency (GFE): 76.6 %
- Air flow at minumum speed (Qmin): 334 m³/h
- Air flow at maximum speed (Qmax): 567 m³/h
- Air flow at boost speed (Qboost): 788 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 49 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 62 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 69 dB(A)
- Time increase factor (F): 0.9
- Energy Efficiency Index: 52.4
- Measured air flow rate at best efficiency point (Qbep): 438 m³/h
- Measured air pressure at best efficiency point (Pbep): 434 Pa
- Measured electric power input at best efficiency point (Wbep): 176 W
- Nominal Power consumption of the light system (WL): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 225 lux
- Sound power level at highest setting (Lwa): 62 dB(A)
- Electrical connection rating: 278 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
- Extraction rate IEC 61591: 334 m³/h
- Noise level IEC 60704-2-13: 49 dB(A)
- Power: 199 W
- Extraction rate IEC 61591: 439 m³/h
- Noise level IEC 60704-2-13: 57 dB(A)
- Power: 231 W
- Extraction rate IEC 61591: 567 m³/h
- Noise level IEC 60704-2-13: 62 dB(A)
- Power: 260 W
- Extraction rate (IEC 61591): 788 m³/h
- Noise level IEC 60704-2-13: 69 dB(A)
- Power: 280 W
