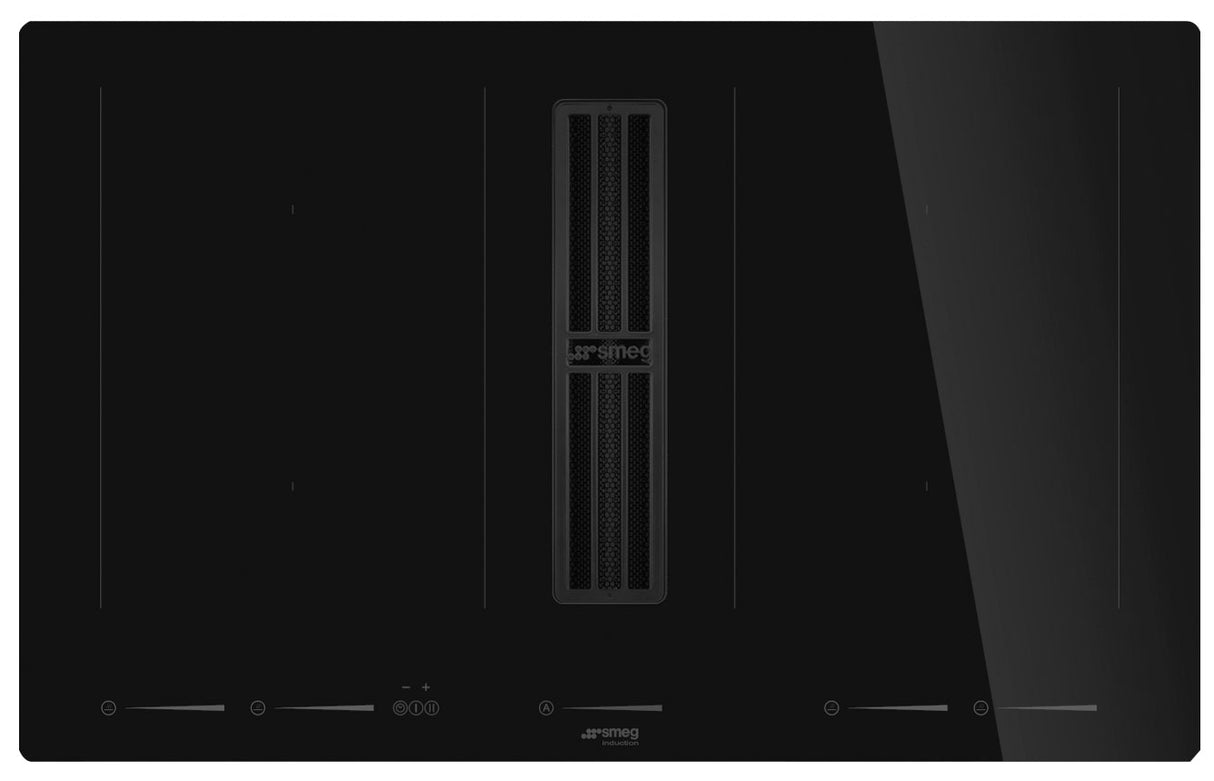

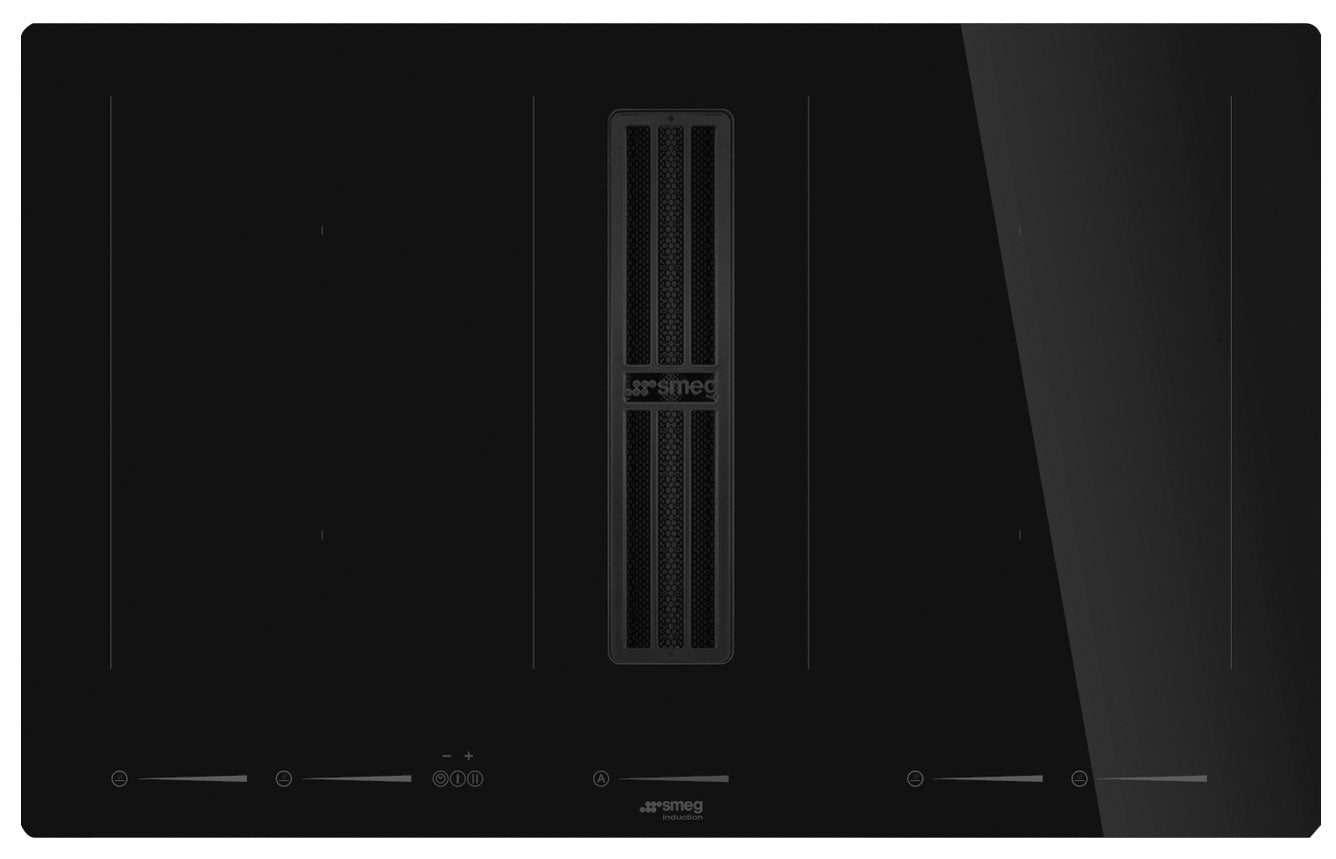

The HOBD682D2 is a 83cm Induction Cooktop With Integrated Extractor from Smeg.
-

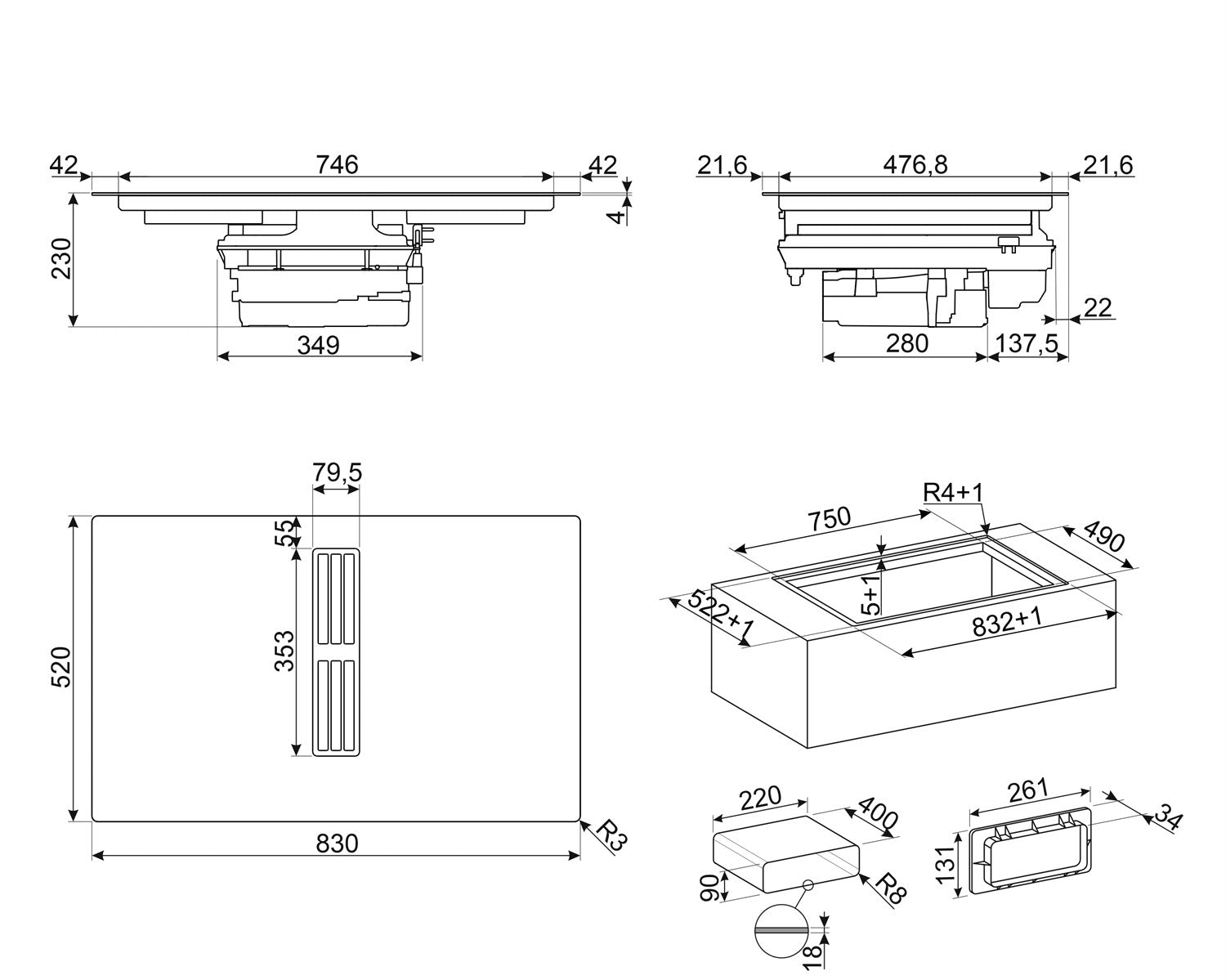

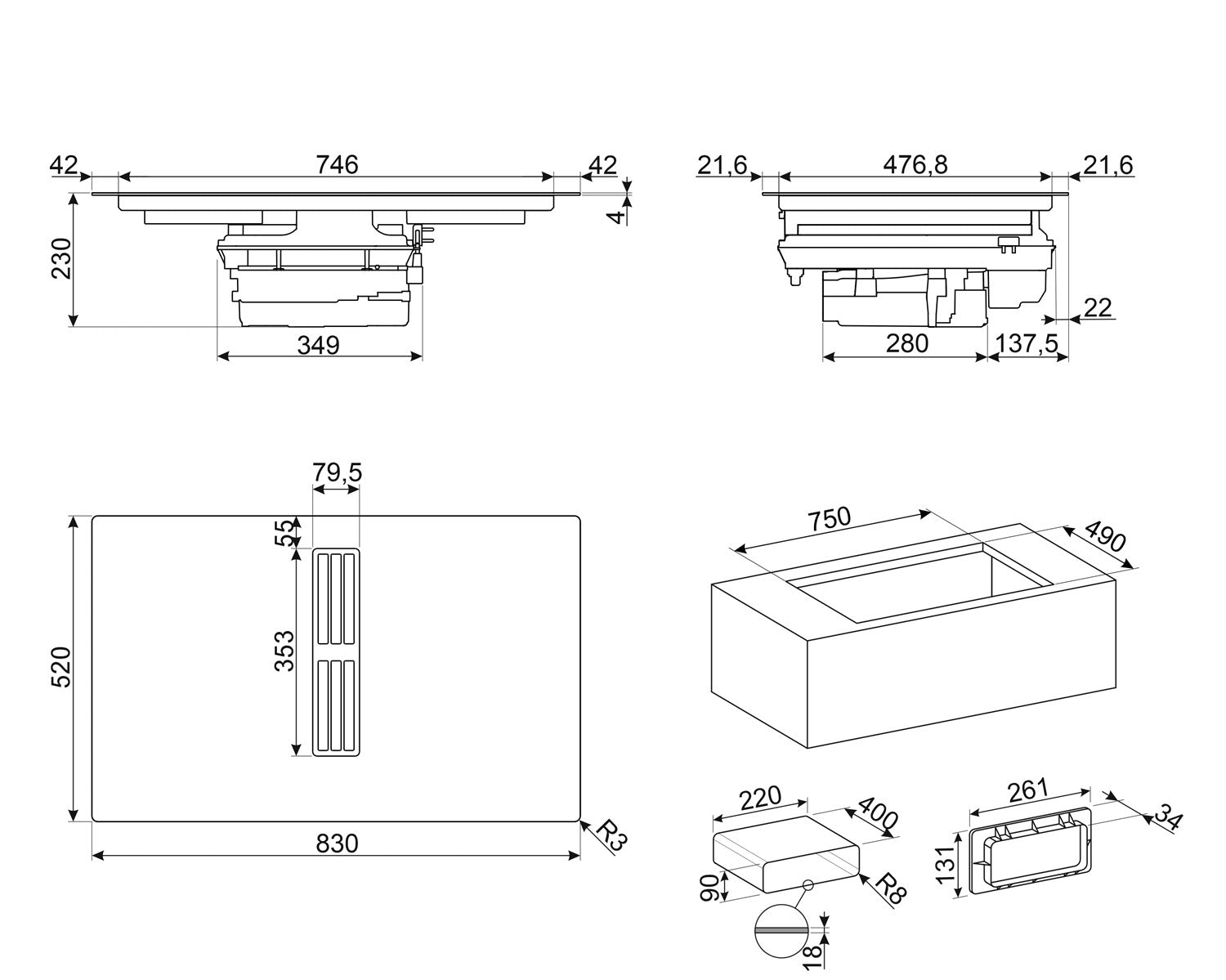

Height (mm)210 mm
-
Width (mm)830 mm
-
Depth (mm)520 mm
-
MpnHOBD682D2
-
Model numberHOBD682D2
-
ColourBlack
-
Cooking zones4
-
Product fuelElectric
-
Size range70cm to 86cm
-
Features✓ Total no. of cook zones: 4 ✓ Time-setting options: Automatic Shutdown ✓ Power levels: 9 ✓ Rapid level selection ✓ Residual heat indicator ✓ Hood control setting: Touch Capacitive ✓ Anti-grease filters: Inox
-
Manufacturer warranty5 Years
-
InstallationStandard
-
More SpecsProgram / Functions
- No. of induction cook zones: 4
- Time-setting options: Automatic Shutdown
- No. of cooking zones with booster: 4
- No. of Flexible zones: 2
- Main on/off switch: Yes
- Product Family: Hob
- Type: Induction with integrated hood
- Extraction: Extraction
- Built-in type: Ultra-low profile or Fully Flushed
- Power supply: Electric
- Electronic control: Yes
- Finishing: Glass
- Aesthetic: Universale
- Glass type: Ceramic
- Material: Glass
- Type of control setting: Multi Slider
- Control knob position: Front
- Slider: Yes
- Slider: White
- Glass edge: Straight edge
- Pan stands: Stainless steel
- Serigraphy colour: Grey
- Multizone Option: Yes
- Flexible Zone Type: MultiZone
- End cooking timer: 4
- Pause option: Yes
- Minute minder: 1
- End of cooking alarm: Yes
- Residual time indicator: Yes
- Control Lock / Child Safety: Yes
- Keep warm automatic function: Yes
- Quick start: Yes
- Simmering Function: Yes
- Melting/Low temperature cooking function: Yes
- Rapid level selection: Yes
- 1st zone position: Front-left
- 2nd zone position: Rear-left
- 3rd zone position: Rear-right
- 4th zone position: Front-right
- 1st zone type: Induction - Multizone
- 2nd zone type: Induction - Multizone
- 3rd zone type: Induction - Multizone
- 4th zone tipe: Induction - Multizone
- 1st zone dimensions: 21.0x19.0 cm
- 2nd zone dimensions: 21.0x19.0 cm
- 3rd zone dimensions: 21.0x19.0 cm
- 4th zone dimensions: 21.0x19.0 cm
- Left Multizone dimension: 46.0x21.0 cm
- Right Multizone dimension: 46.0x21.0 cm
- 1st zone power: 2.10 kW
- 2nd zone power: 2.10 kW
- 3rd zone power: 2.10 kW
- 4th zone power: 2.10 kW
- 1st zone booster power: 3.00 kW
- 2nd zone booster power: 3.00 kW
- 3rd zone booster power: 3.00 kW
- 4th zone booster power: 3.00 kW
- Booster power left Multizone: 3.70 kW
- Booster power right Multizone: 3.70 kW
- Automatic setting according to pan dimension: Yes
- Permanent Automatic Pot Detection with indication of the relative control: Yes
- pan detection: Yes, min 9 cm
- Automatic switch off when overflow: Yes
- Residual heat indicator: Yes
- Protection against accidental start up: Yes
- Electrical connection rating (W): 7620 W
- Current: 33 A
- Voltage (V): 220-240 V
- Voltage 2 (V): 380-415 V
- Frequency (Hz): 50/60 Hz
- Type of electric cable supplied: Yes, Single and Double phase
- Power supply cable length: 120 cm
- Hood control setting: Touch Capacitive
- Led color: Bianco
- Display: Yes
- No. of speeds: 8
- Intensive speed: 2
- Auto-Vent: yes
- Free outlet maximum capacity: 650 m³/h
- Motor power: 220 W
- No. of filters: 1
- Anti-grease filters: Inox
- Charcoal filters included: YES, regenerable
- Filter replacement indicator: Yes
- Extraction rate IEC 61591: 230 m³/h
- Noise level IEC 60704-2-13: 49 dBA
- Power: 40 W
- Extraction rate IEC 61591: 270 m³/h
- Noise level IEC 60704-2-13: 51 dBA
- Power: 50 W
- Extraction rate IEC 61591: 340 m³/h
- Noise level IEC 60704-2-13: 55 dBA
- Power: 90 W
- Extraction rate IEC 61591: 370 m³/h
- Noise level IEC 60704-2-13: 60 dBA
- Power: 90 W
- Extraction rate IEC 61591: 400 m³/h
- Noise level IEC 60704-2-13: 62 dBA
- Pressure: 500 Pa
- Power: 100 W
- Extraction rate IEC 61591: 435 m³/h
- Noise level IEC 60704-2-13: 63 dBA
- Pressure: 550 Pa
- Power: 120 W
- Extraction rate IEC 61591: 460 m³/h
- Noise level IEC 60704-2-13: 65 dBA
- Pressure: 600 Pa
- Power: 150 W
- Extraction rate IEC 61591: 500 m³/h
- Noise level IEC 60704-2-13: 68 dBA
- Pressure: 620 Pa
- Power: 170 W
- Extraction rate (IEC 61591): 540 m³/h
- Noise level IEC 60704-2-13: 70 dBA
- Power: 180 W
- Extraction rate IEC 61591: 630 m³/h
- Noise level IEC 60704-2-13: 73 dBA
- Pressure: 630 Pa
- Power: 220 W
- Energy efficicency class ( EEC): A+
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): B
- Fluid Dynamic Efficiency (FDE): 32.10
- Lighting Efficiency (LE): 0.0 lux/W
- Grease Filtering Efficiency (GFE): 85.1 %
- Air flow at minumum speed (Qmin): 230 m³/h
- Air flow at maximum speed (Qmax): 500 m³/h
- Air flow at boost speed (Qboost): 630 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 49 dBA
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 68 dBA
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 73 dBA
- Power Consumption in Off mode (Po): 0.49 W
- Time increase factor (F): 0.8
- Energy Efficiency Index: 44.2
- Measured air flow rate at best efficiency point (Qbep): 359 m³/h
- Measured air pressure at best efficiency point (Pbep): 549 Pa
- Measured electric power input at best efficiency point (Wbep): 139 W
- Sound power level at highest setting (Lwa): 68 dBA
- Frequenza cappa: 50-60 Hz
