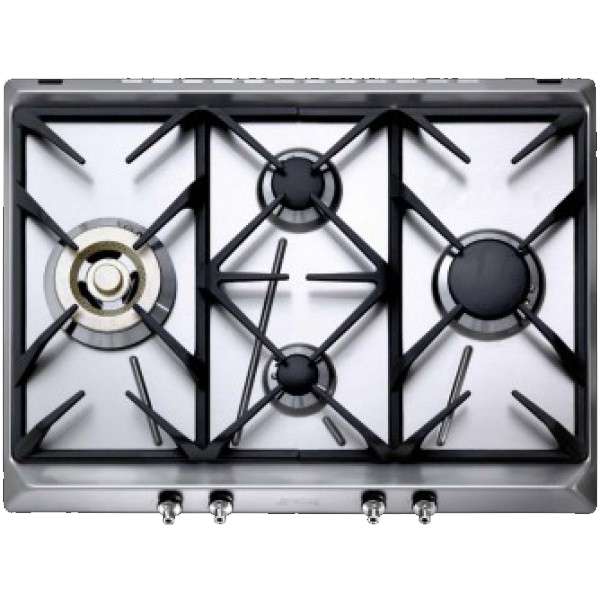

The CIR574XS3 is a 70cm Gas Cooktop from Smeg.
60cm InstallationDespite occupying nearly 70cm bench space, the installed specification into the bench is only 56cm. This allows easy fitment into predesigned standard 60cm cabinetry and is suitable for much of the replacement gas cooktop market.
Ultra-rapid Wok BurnerConveniently and ergonomically positioned oh the left, this versatile burner, while being designed for perfect wok cooking, also suits the larger stock pots, saucepans and griddles.
Auxiliary BurnerAlso ideally situated, this small multipurpose burner is designed to accommodate even the smallest of utensils, such as a coffee percolator or one-cup espresso maker.
Simmer ControlAll burners, including the ultra-rapid triple burner, can be adjusted down to a very low, safe flame for the gentlest of low heat simmers
Electronic IgnitionThe cooktop is connected with a power cord of 1.3 metre length to be plugged into a GPO located according to installation needs below the benchline. This supplies a continuous stored charge to spark the gas supply to the individual burner of your choice. Simply depress and turn the control of the desired cooking zone for flame ignition.
Low MaintenanceThe seamless hob design allows for easy wipe-over cleaning and generous catchment of spills and accidental boilovers. The control knobs, also, are removable for cleaning access. Trivets, burner assemblies and wok stand can be washed in warm soapy water.

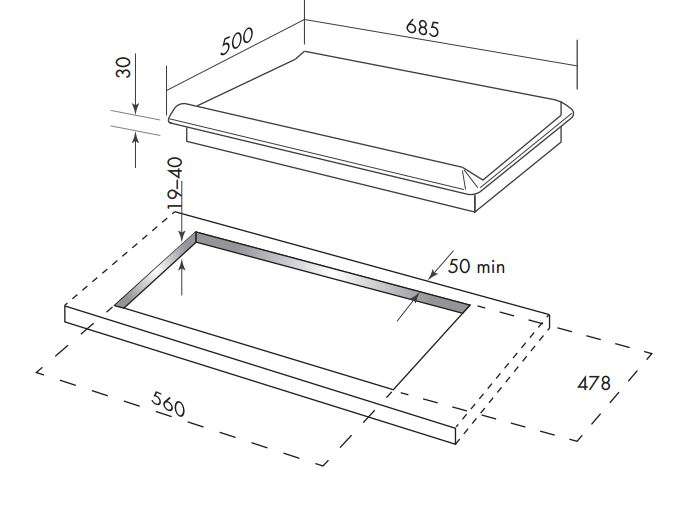

InstallationWith only a 32mm displacement into the benchtop, the cooktop allows for easy installation underbench of either oven, dishwasher, cupboards or drawers.
-
Height (mm)60 mm
-
Width (mm)685 mm
-
Depth (mm)500 mm
-
Cut Out Depth (mm)478
-
Cut Out Width (mm)560
-
MpnCIR574XS3
-
Model numberCIR574XS3
-
ColourStainless Steel
-
MaterialStainless Steel
-
Cooking zones4
-
Product fuelNatural Gas (LPG Kit Included)
-
Cut out depth mm478
-
Size range70cm to 86cm
-
Features
✓ Satin stainless steel ✓ Built-in one-piece hob, topmount ✓ Automatic electronic ignition ✓ Heavy-duty cast-iron trivets & burner caps
-
Manufacturer warranty2 Years
-
InstallationStandard
-
More Specs
- Capacity
- 38mj/hour max over four burners —
- Ultra rapid triple burner (15mj/hr)
- Rapid (12.2mj/hr)
- Semi rapid (6mj/hr)
- Auxiliary (4.8mj/hr)
- >Gas input set for natural gas: regulator supplied adaptable for ULPG: no regulator required
- ½” BSP gas inlet connection
- Gas connection located right-hand rear corner
- ½” BSP 1.0 kPa natural gas regulator is supplied with natural gas hobs
- Installation topmount
- Power cord: 1.3 metre length connected, suitable for standard 10 amp GPO
