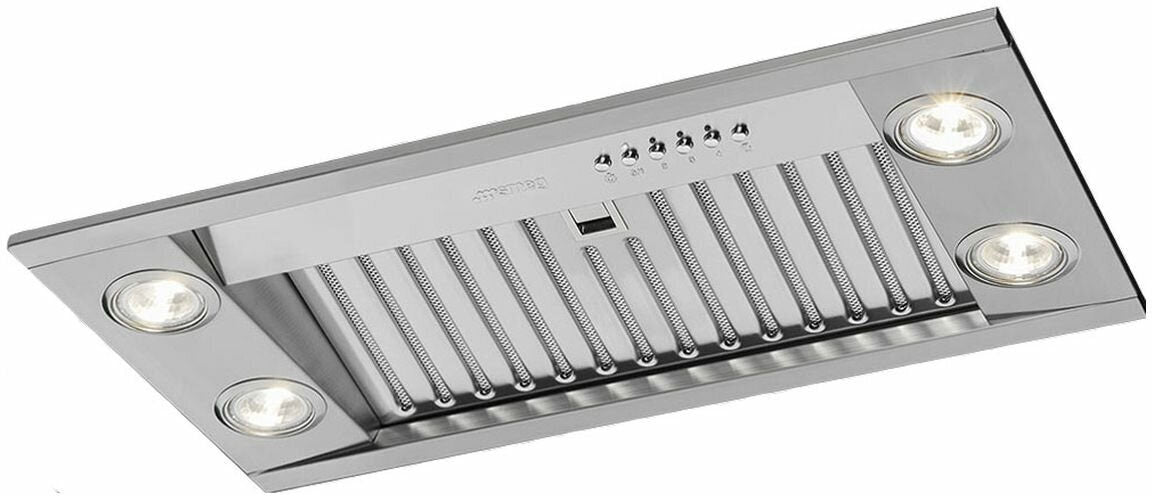

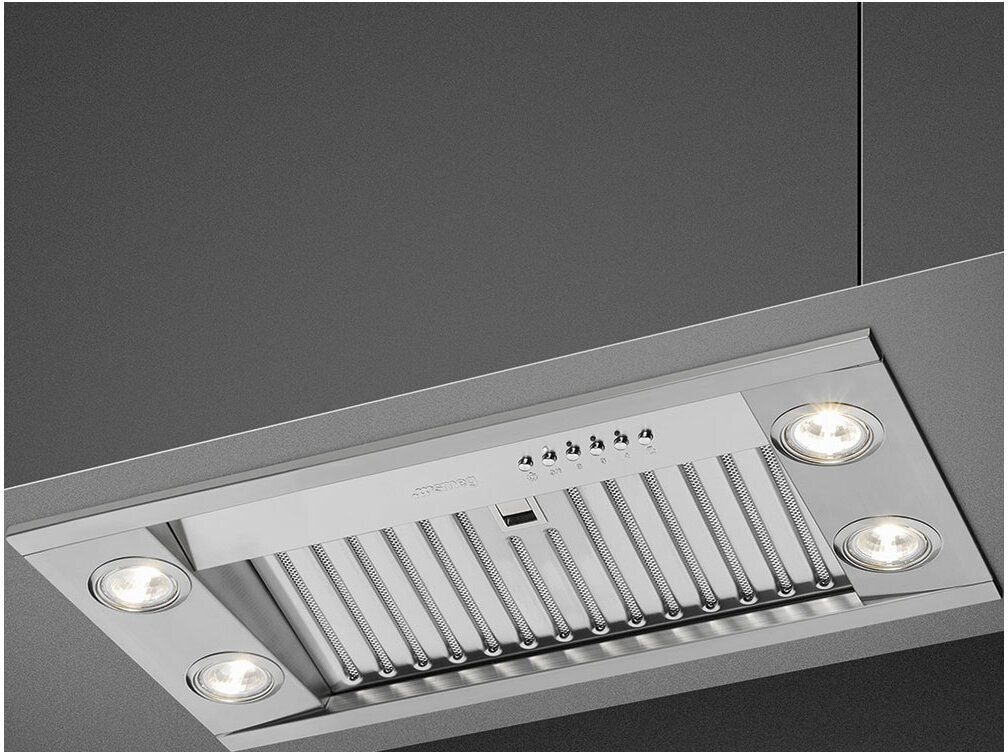

The Smeg KDIAM60AX is a 60cm integrated rangehood from the Universale range, designed to sit inside your overhead cabinetry so only its brushed stainless steel underside is on show. It suits kitchens where you want strong extraction without a visible canopy above a 60cm cooktop.
A 275W motor gives three fan speeds plus an intensive boost, reaching 679 m³/h at intensive speed (IEC 61591), with noise from 50dBA on the lowest setting. Four 1W LED lights with a warm 3000K tone light the cooking area, and baffle-style grease filtering traps fat before it reaches the motor.
Electronic push buttons control the fan and lights, a filter replacement indicator reminds you when the filters need attention, and the automatic switch-off timer lets the hood keep clearing the air after you finish cooking. It can be ducted outside through a 150mm outlet with a non-return valve, or set up to recirculate with optional FLT6 charcoal filters.
-

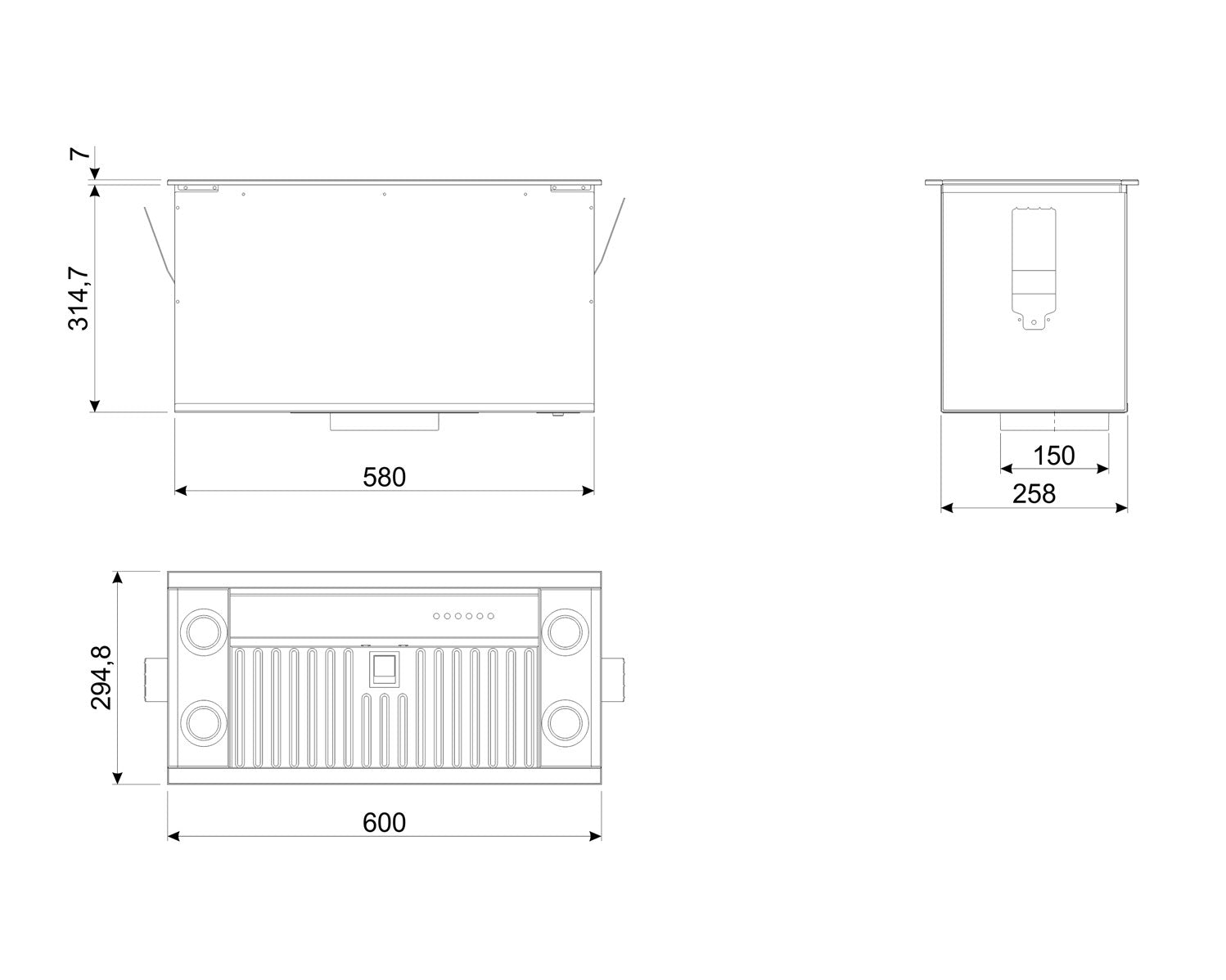

Height (mm)315 mm
-
Width (mm)600 mm
-
Depth (mm)295 mm
-
MpnKDIAM60AX
-
Model numberKDIAM60AX
-
ColourStainless Steel
-
Lights4 x 1W LED
-
LightingLED
-
Size range60cm
-
Features✓ 60cm fully integrated undermount rangehood ✓ Powerful extraction up to 820m³/h ✓ 3 speeds plus intensive boost ✓ 2 baffle grease filters with replacement indicator ✓ 4 LED lights with warm 3000K light ✓ Automatic switch-off ✓ Electronic button controls ✓ Brushed stainless steel finish
-
Manufacturer warranty5 Years
-
InstallationUndermount
-
More SpecsGeneral
- Brand: Smeg
- Type: Integrated (insert)
- Nominal width: 60cm
- Max extraction: 679 m³/h
- Fan speeds: 3 + intensive
- Noise level: 50–72dBA
- Motor: Internal, 1 x 275W
- Controls: Electronic push buttons
- Filters: Baffle
- Auto shut-off: Yes
- Net weight: 12.7kg
- Venting: Ducted or recirculating
- Duct size: 150mm
- Min height above cooktop: 650mm gas / 650mm electric
- Electrical: Plug-in (Australian plug, 1.5m cable)
- Recirculation kit: Optional, sold separately (FLT6 charcoal filters)
