The Smeg AIRKITDIAM is a 2-into-1 outlet adaptor for Smeg rangehoods that run two motors. Each motor exhausts through its own 150mm outlet; this air conveyor kit collects the air from both and sends it out through a single 200mm outlet, so only one duct needs to run from the hood to the outside.

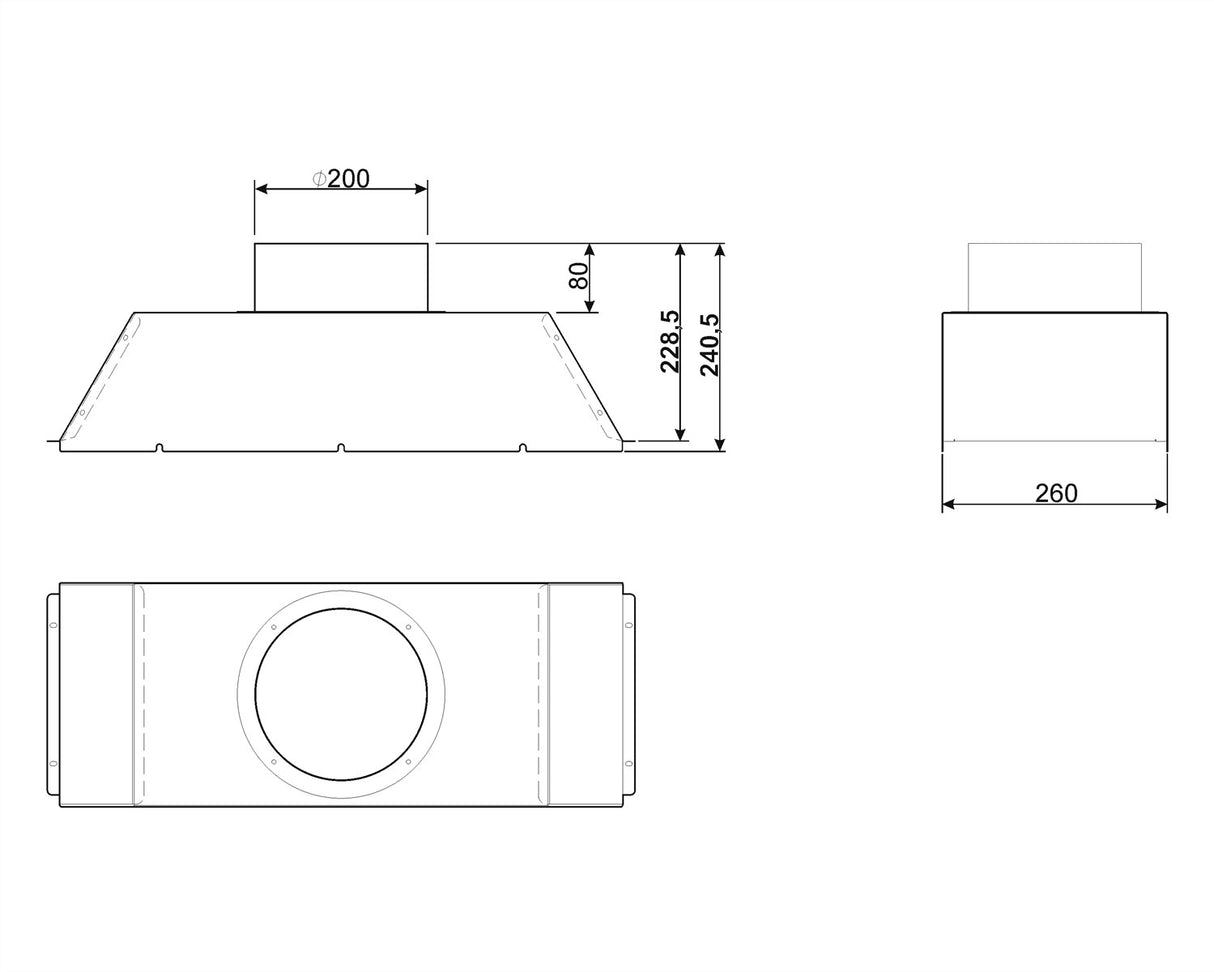

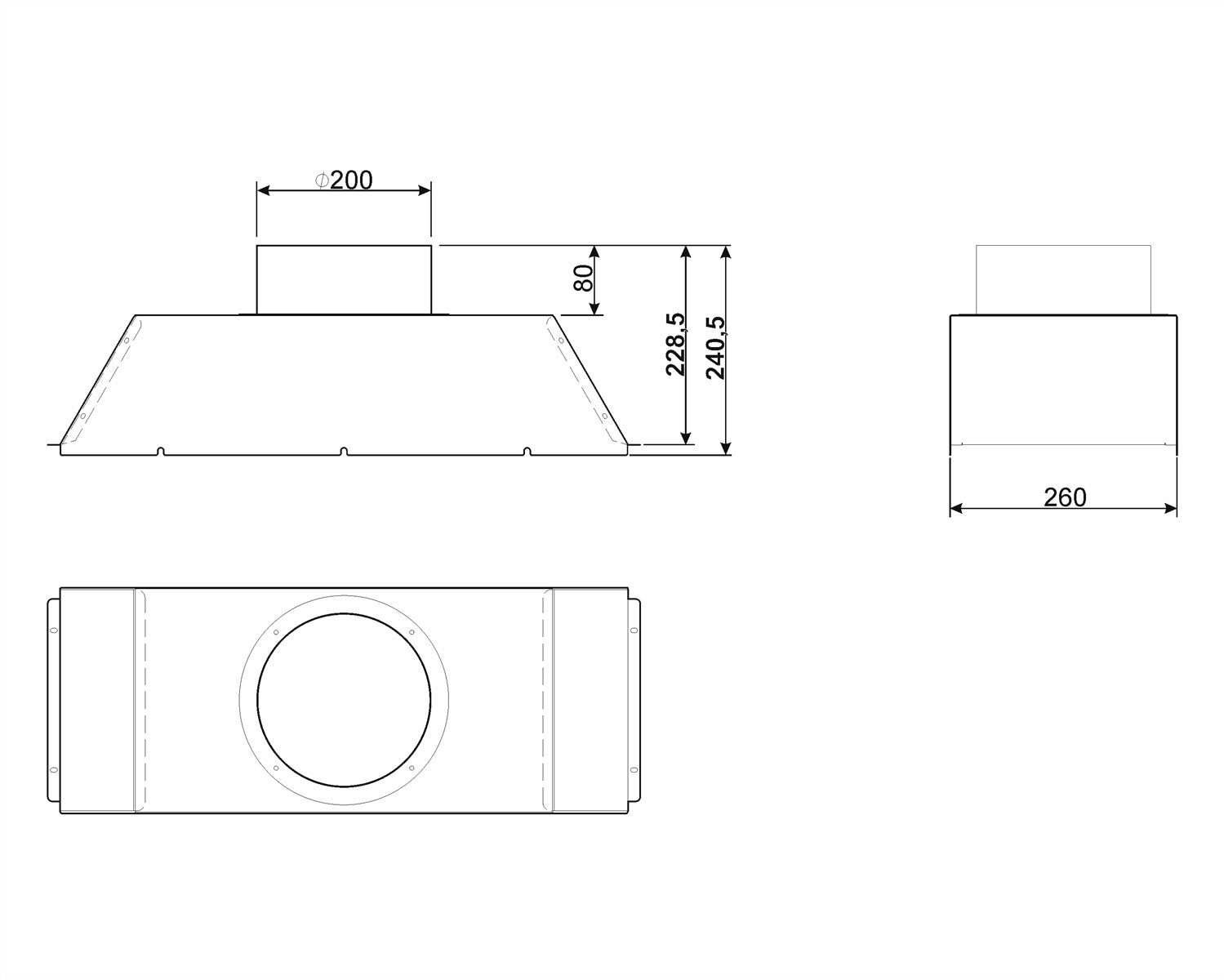

It suits installations where one larger duct run is preferred to two separate 150mm runs. The adaptor stands 240.5mm high overall and is 260mm deep, with a round 80mm-high spigot on top that takes 200mm ducting.
Before ordering, check that your Smeg rangehood has two motors with 150mm outlets, and plan the rest of the duct run in 200mm to match the adaptor outlet. Smeg's specification sheet with the full dimension drawing is linked below.
The AIRKITDIAM is a 2-1 Outlet Adaptor AIRKITDIAM from Smeg. Air conveyor kit from the two hood motors in a single outlet with a diameter of 200 mm (the motors come out at 150 mm).
-
Height (mm)241 mm
-
Width (mm)220 mm
-
Depth (mm)260 mm
-
Model numberAIRKITDIAM
-
ColourStainless Steel
-
Features✓ 2-into-1 outlet adaptor for Smeg twin-motor rangehoods ✓ Joins two 150mm motor outlets into one 200mm outlet ✓ Lets both hood motors vent through a single 200mm duct ✓ Round 200mm outlet spigot, 80mm high ✓ Measures 240.5mm high and 260mm deep ✓ Stainless steel construction
-
Manufacturer warranty5 Years
-
InstallationStandard
-
More SpecsGeneral
- Brand: Smeg
- Type: Duct adaptor (2-into-1 outlet)
- Compatibility: Suits Smeg twin-motor rangehoods (2 x 150mm motor outlets)
- Duct size: 2 x 150mm in, 200mm out
