Undermount rangehoods have revolutionised the way we look at modern kitchen design. Hidden underneath the cabinetry, they are neither seen nor heard as they actively target and remove airborne grease and odours from your kitchen.

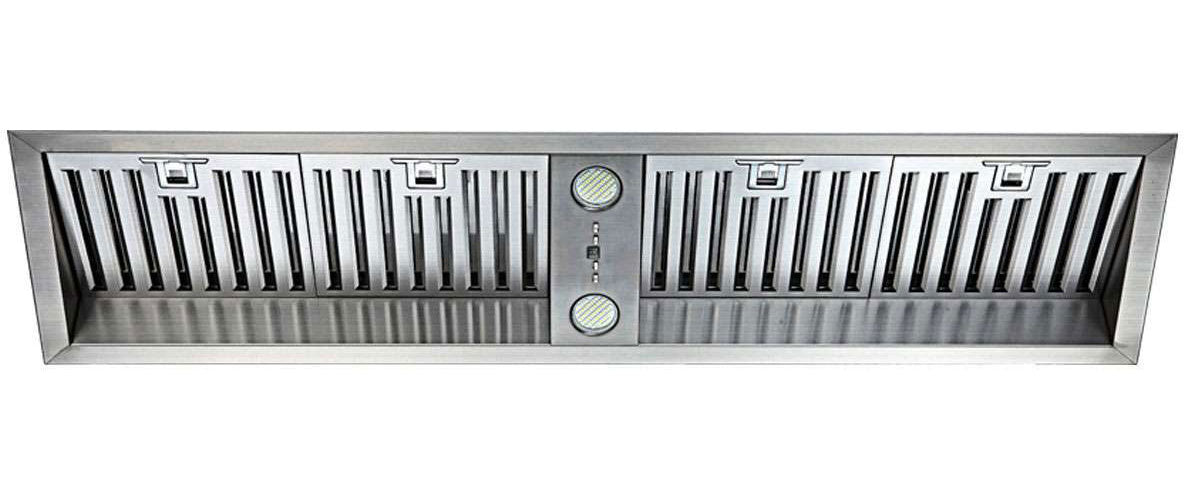

The UM-12UMS is perfect for those who desire a fully integrated kitchen, rather than the more traditional canopy option. Soft-touch controls operate the 5 speed settings and LED lighting, while dishwasher-safe baffles offer easy maintenance.
Powerful Silent Extraction

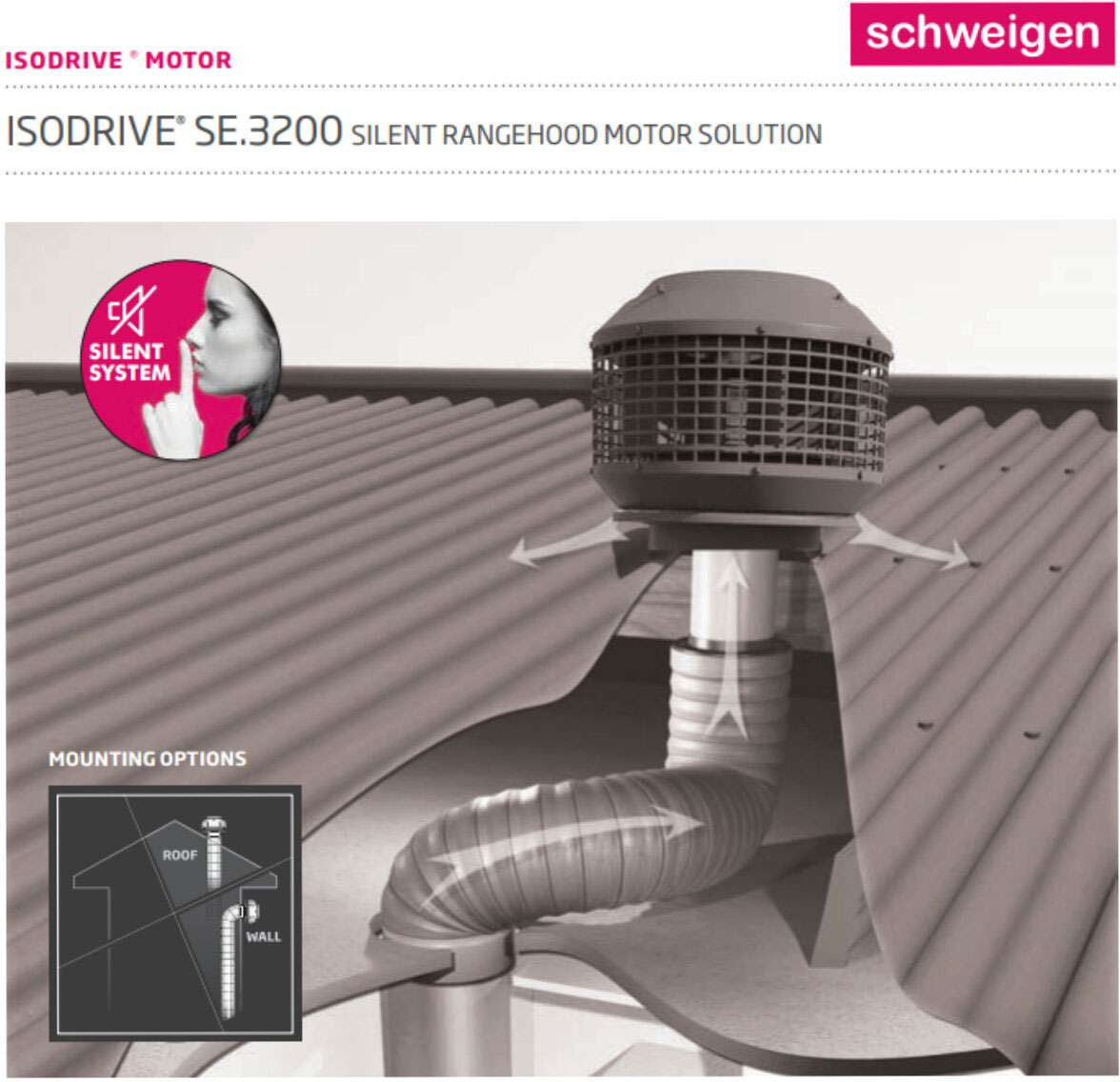

The German-engineered Isodrive motor delivers silent, efficient extraction of steam, smoke and odours - leaving your kitchen fresher for longer.
Energy-efficient
The Schweigen Isodrive motors are amongst the most energy-efficient in the market, requiring just 57 watts of power to run on some models.
Innovative Design
Integrates seamlessly into kitchen cabinetry to maintain clean design lines.
Convenient Features

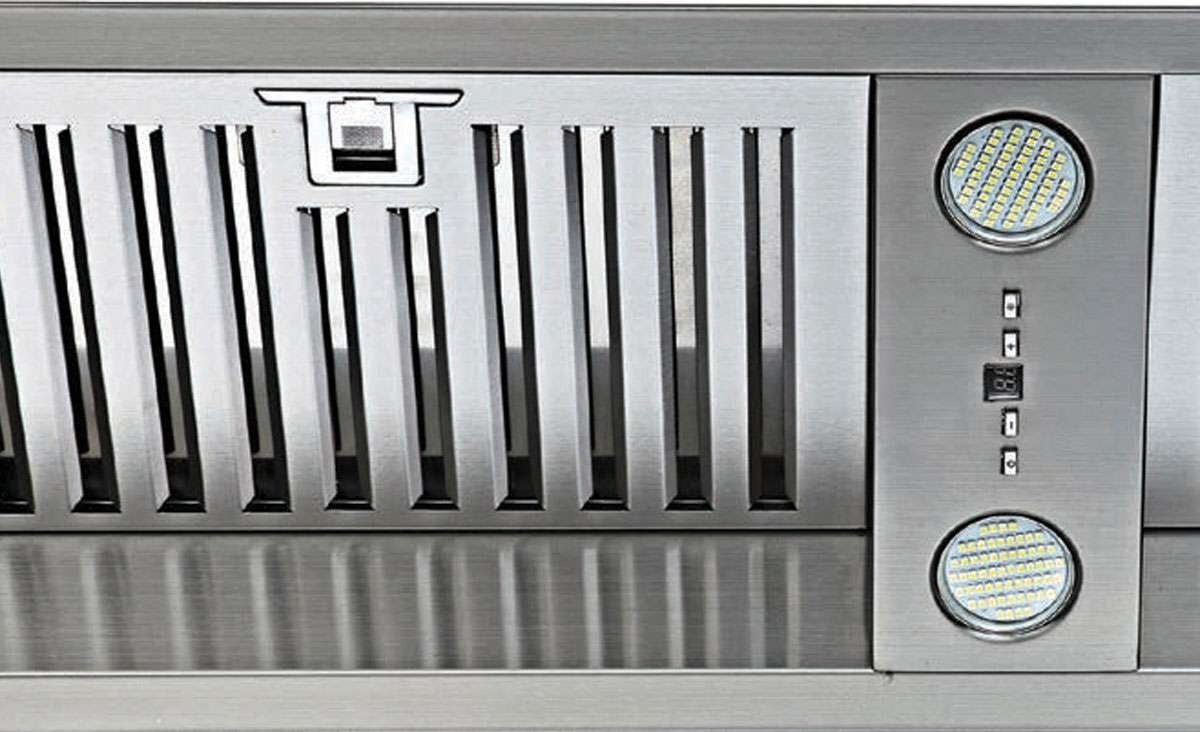

Soft-touch controls and digital display, 5 speed levels, 15-minute auto shut-off timer and LED lighting.
Flexible & Functional
With multiple motor options, there is a suitable extraction power for all cooking styles.
High-quality Baffles
Designed to minimise the edges where grease and oil can lodge, they are also easy to remove and dishwasher-safe.
Schweigen Steelflex Included
Comes with free Schweigen SteelFlex high-performance safety ducting - fire, pest and crush proof, guaranteed for life.
Warranties
Enjoy peace of mind with 10-year warranty on silent Isodrive system, 5-year warranty on canopy, plus lifetime warranty on filters and GU10 LED globes.*
Specification Sheet
User Manual Sheet
Isodrive SE Motor Specification Sheet
Isodrive SE Motor User Manual Sheet
-

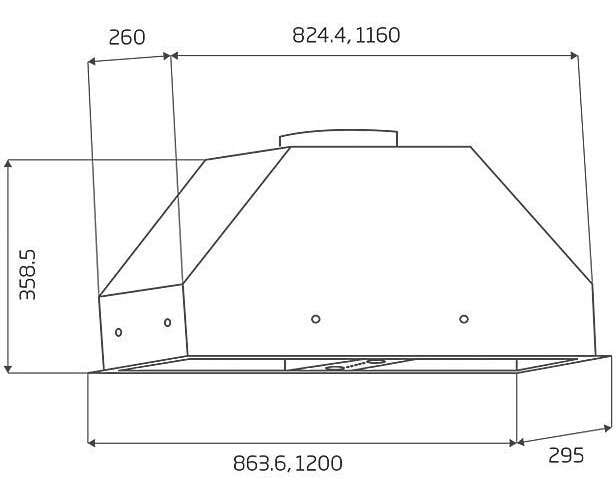

Height (mm)359 mm
-
Width (mm)1200 mm
-
Depth (mm)295 mm
-
Model numberUM-12UMSE
-
ColourStainless Steel
-
Lighting2 x LED
-
Features✓ Stainless steel finish ✓ Silent Isodrive motor system ✓ 5 x speed levels ✓ 15 minute delay timer with auto shut-off ✓ 2 x LED lights
-
Manufacturer warranty5 Years
-
Extended warranty10 Years on motor; Lifetime on filters and GU10 LED globes
-
InstallationTop Ducting
-
More SpecsCapacity & Performance
- Max extraction: 3200 m³/h
- Fan speeds: 5

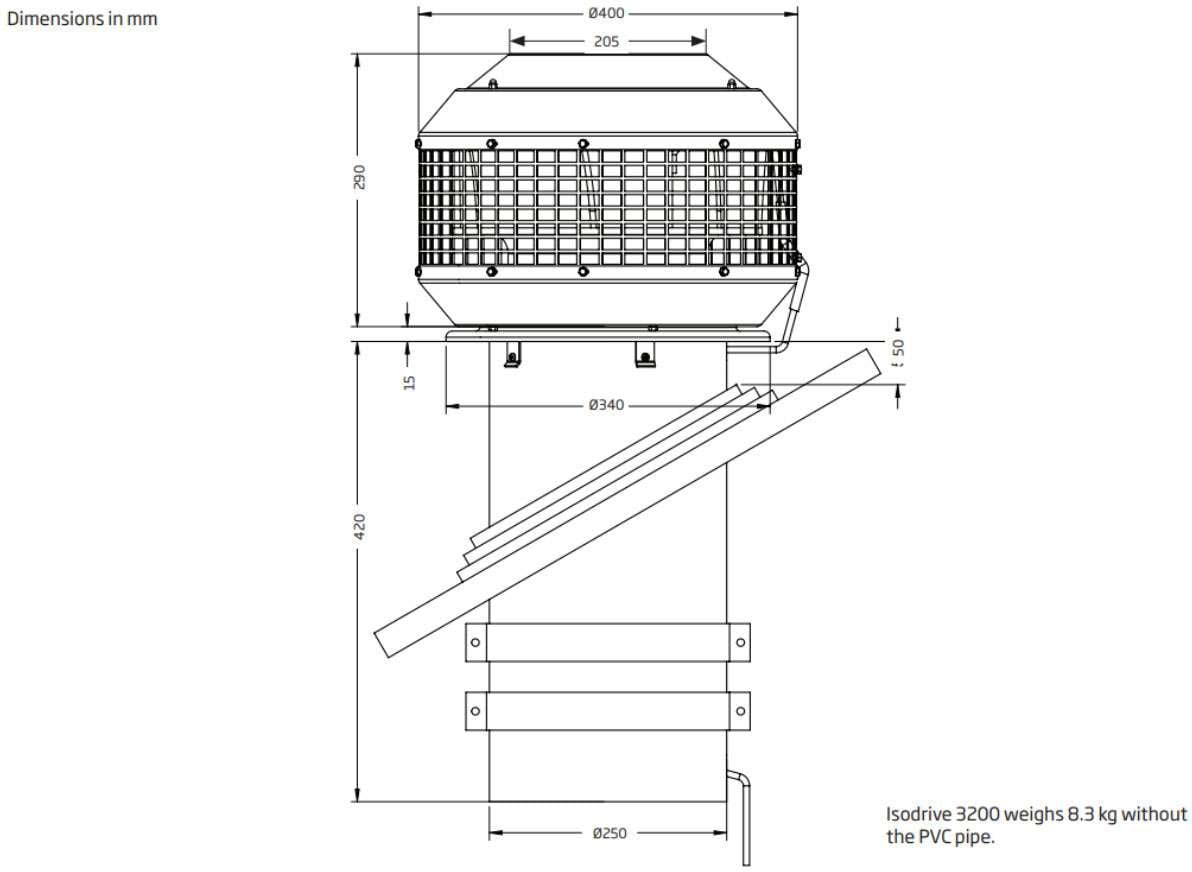

- Motor: Isodrive SE external, roof or wall mount (1 x 137W)
- Controls: Soft-touch with digital display
- Filters: 4 x stainless steel baffle, dishwasher safe
- Auto shut-off: Yes
- Venting: Ducted only
- Duct size: 200mm
- Min height above cooktop: 650mm gas / 600mm electric
- Electrical: 10A plug
- Ducting included: SteelFlex 250mm x 4m and 200mm x 2m
- Min duct run: 6m with 2 soft bends (for silent operation)
