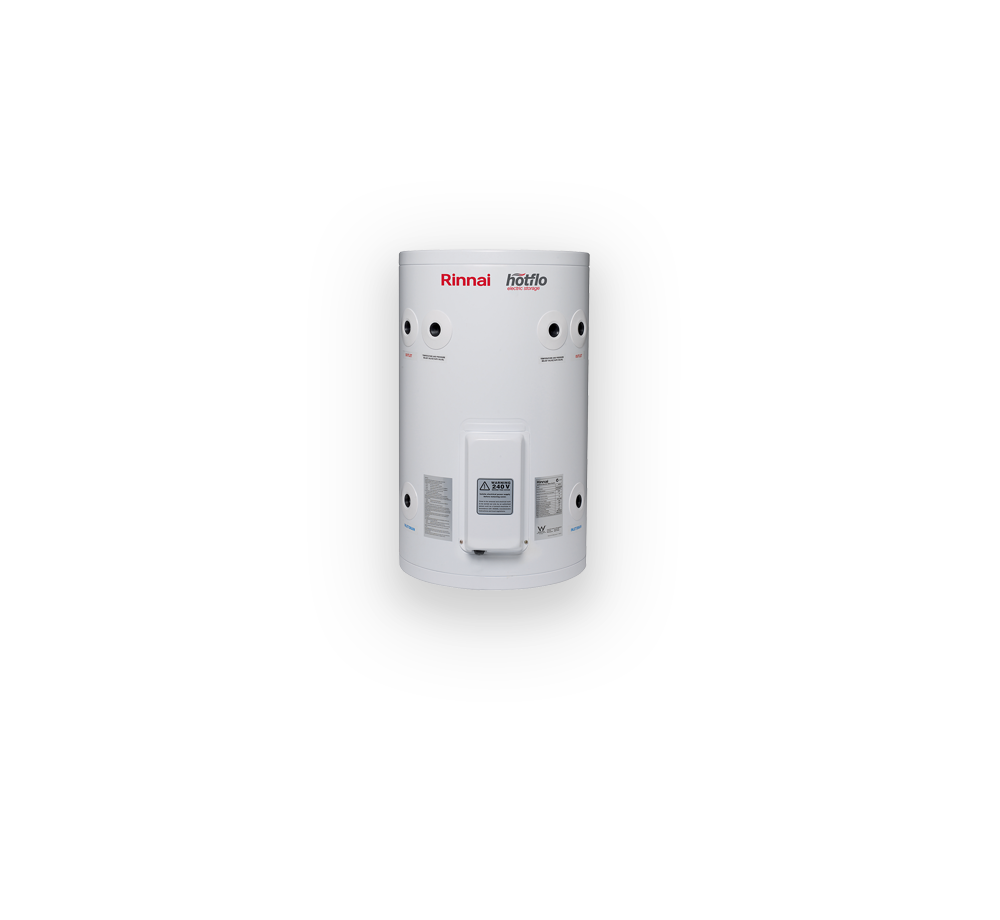

The Rinnai Hotflo EHF50S36 is a 50L mains pressure electric storage water heater, hardwired, with a single 3.6kW element. It stores 55 litres in a vitreous enamel lined steel tank and delivers 50 litres of hot water. At 694mm high and 415mm in diameter, the ultra compact tank is designed for tight spots such as under a bench.
Rinnai describes the 50L size as ideal for small houses and sizes it for one person on a continuous (peak) tariff; it is not recommended for off-peak supply. The tank is thermostatically controlled with a safety temperature shut-off, and an inbuilt anode helps protect the cylinder against corrosion.
Connections are dual handed for flexible installation, a pressure temperature relief valve is included and the tank is lead free. A hardwired unit connects to its own fused 240V supply with an isolating switch at the switchboard. Rinnai's domestic warranty covers the cylinder for 7 years (parts) and 3 years (labour), and other components for 1 year.
The Rinnai HotFlo 50L 3.6kW Electric Storage Tank EHF50S36 comes with the typically installed under benches or in cupboards, 50L capacity electric units are designed to fit into the tightest spaces.
-
Height (mm)694 mm
-
Width (mm)415 mm
-
Depth (mm)415 mm
-
Tank Capacity50L
-
kW Rating3.6kw
-
MpnEHF50S36
-
Model numberEHF50S36
-
Product fuelElectric
-
Features
✓ Vitreous enamel lined steel tank for added durability
✓ Inbuilt anode protection extends the life of the tank
✓ Dual handed, allows increased flexibility during installation
✓ Perfect for under bench applications
✓ Pressure temperature relief valve included
✓ Suitable for internal and external use
✓ Thermostatically controlled with safety temperature shut off for added peace of mind -
Manufacturer warranty7 Years Cylinder Parts & 3 Years Labour. 1 Year on Components.
-
InstallationHardwired
-
More SpecsGeneral
- Brand: Rinnai
- Type: Electric storage, mains pressure (single element)
- Colour: White
- Capacity: 50L (55L storage)
- Element: 3.6kW
- Install location: Indoor or outdoor (IPX4), under-bench suitable
- Electrical: Hardwired, 240V 50Hz
- Water connections: Rp 3/4 (20mm)
- Max inlet pressure: 680 kPa with ECV / 800 kPa without
- Valve settings: PTR 1000 kPa, ECV 850 kPa
- Connection heights: Inlet 158mm, outlet 524mm, electrical 80mm
- IP rating: IPX4
- Warranty note: Cylinder 7 Years parts, 3 Years labour
