Rheem Recess Boxes 299427
Check delivery cost to your area

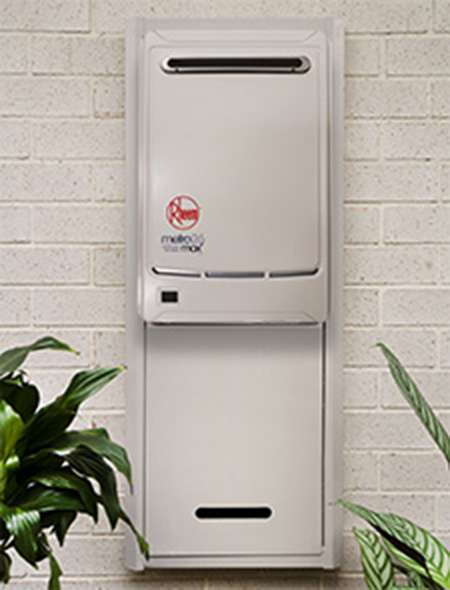

The Rheem 299427 is a galvanised steel recess box for Rheem continuous flow gas water heaters. It lets the water heater sit within the wall rather than on its surface, and suits the 874 series 812, T16, 820, T26 and 826 models and the 876 series 812, T16, 820 and T26 models (12L to 26L).
The fascia measures 1088mm high, 428mm wide and 35mm deep, and the box needs a wall cavity 1010mm high, 349mm wide and 128mm deep. Rheem designed it for standard double brick construction: in a new wall the four securing tabs are set into the mortar joints as the bricks are laid, and in an existing wall the box is fixed into a prepared opening with suitable anchors.
The kit includes the box body, a front cover and a security bracket, which fits over the water heater's bottom bracket and takes a padlock (not supplied) to help deter theft. A weatherproof power outlet can be fitted inside or outside the box. It must be installed by a qualified person.
-
Height (mm)1088 mm
-
Width (mm)428 mm
-
Depth (mm)128 mm
-
Mpn299427
-
Model number299427
-
Features
✓ Recess box for Rheem 874 and 876 series continuous flow units ✓ Suits 874 series 812, T16, 820, T26 and 826 models ✓ Suits 876 series 812, T16, 820 and T26 models ✓ Sets the water heater into the wall ✓ Built-in anti-theft bracket takes a padlock (not supplied) ✓ Galvanised steel, designed for double brick construction
-
Manufacturer warrantyN/A
-
InstallationStandard
-
More SpecsGeneral
- Brand: Rheem
- Type: Recess box
- Colour: Galvanised steel
- Compatibility: Suits Rheem continuous flow 874 series 812, T16, 820, T26, 826 and 876 series 812, T16, 820, T26
- Lockable: Yes - security bracket takes a padlock (not supplied)
- In the box: Recess box body, front cover, security bracket, installation instructions
