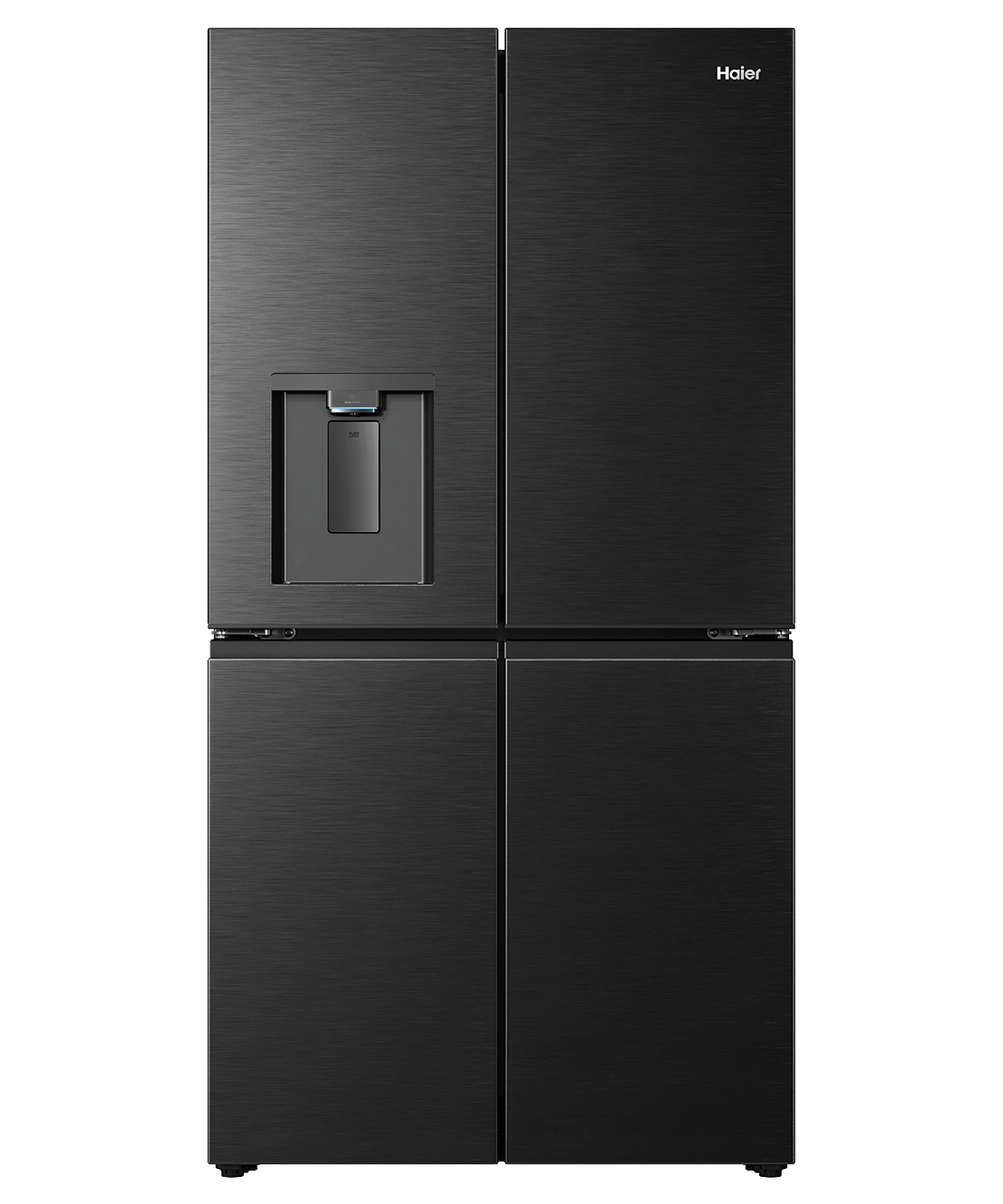

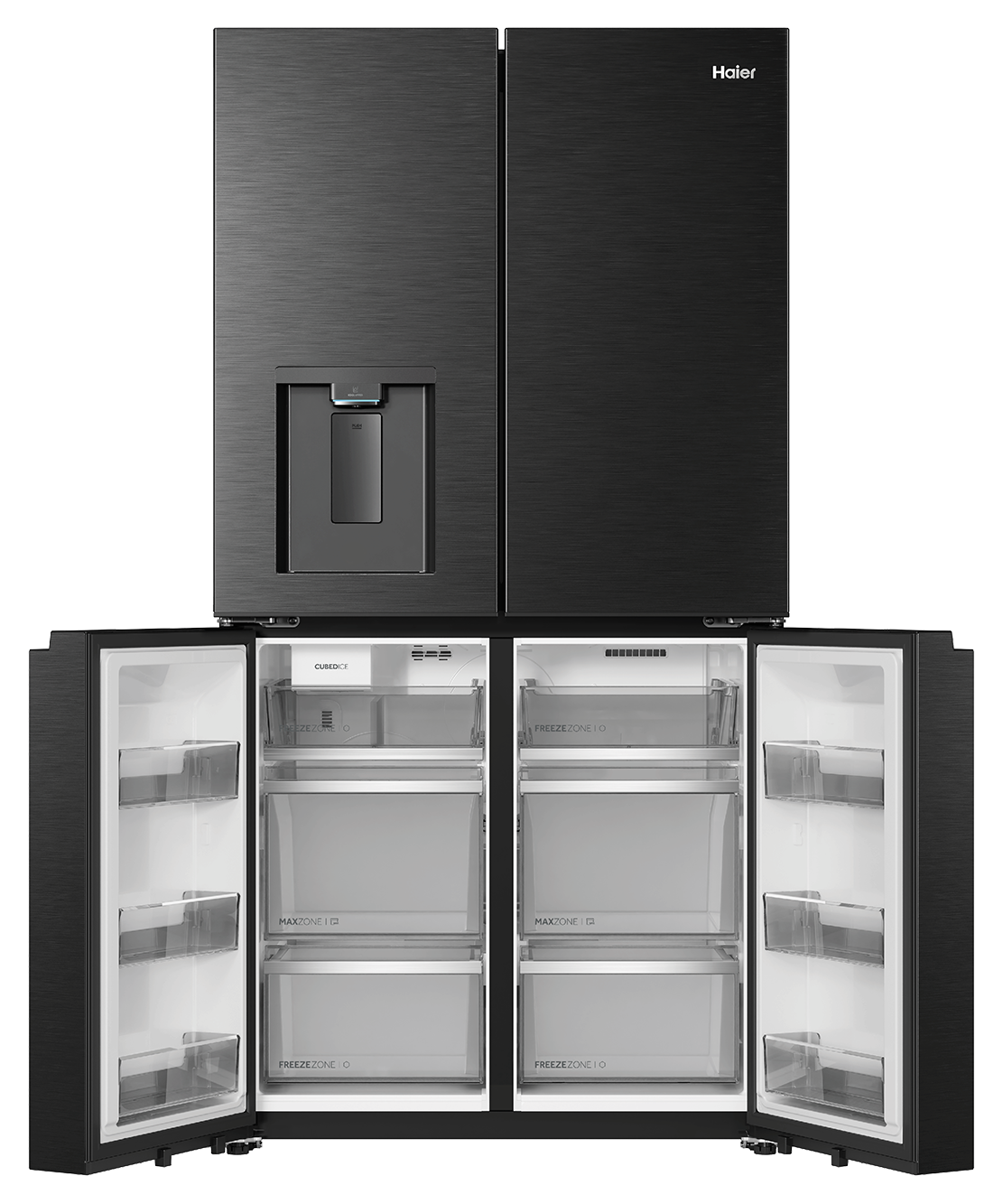

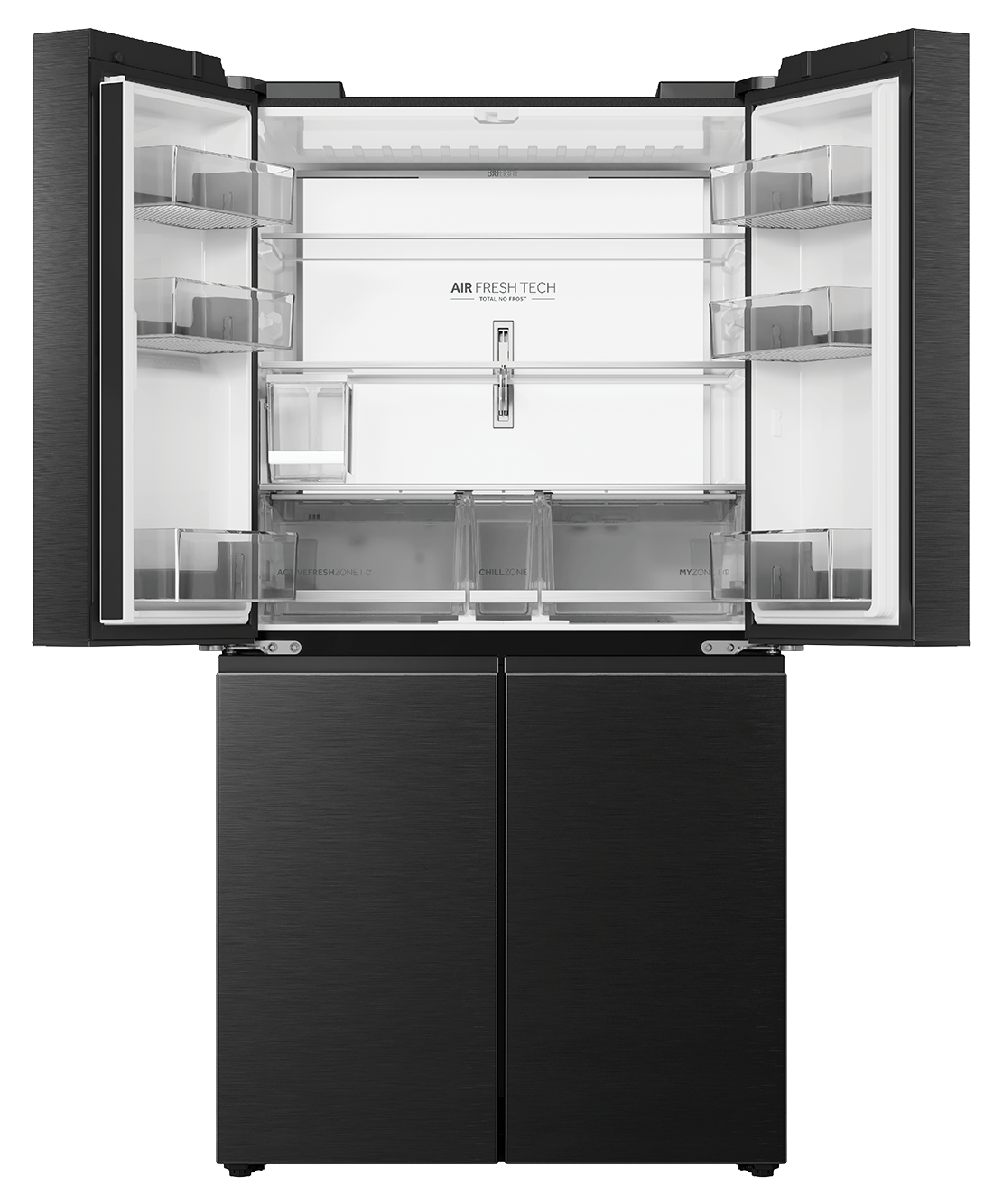

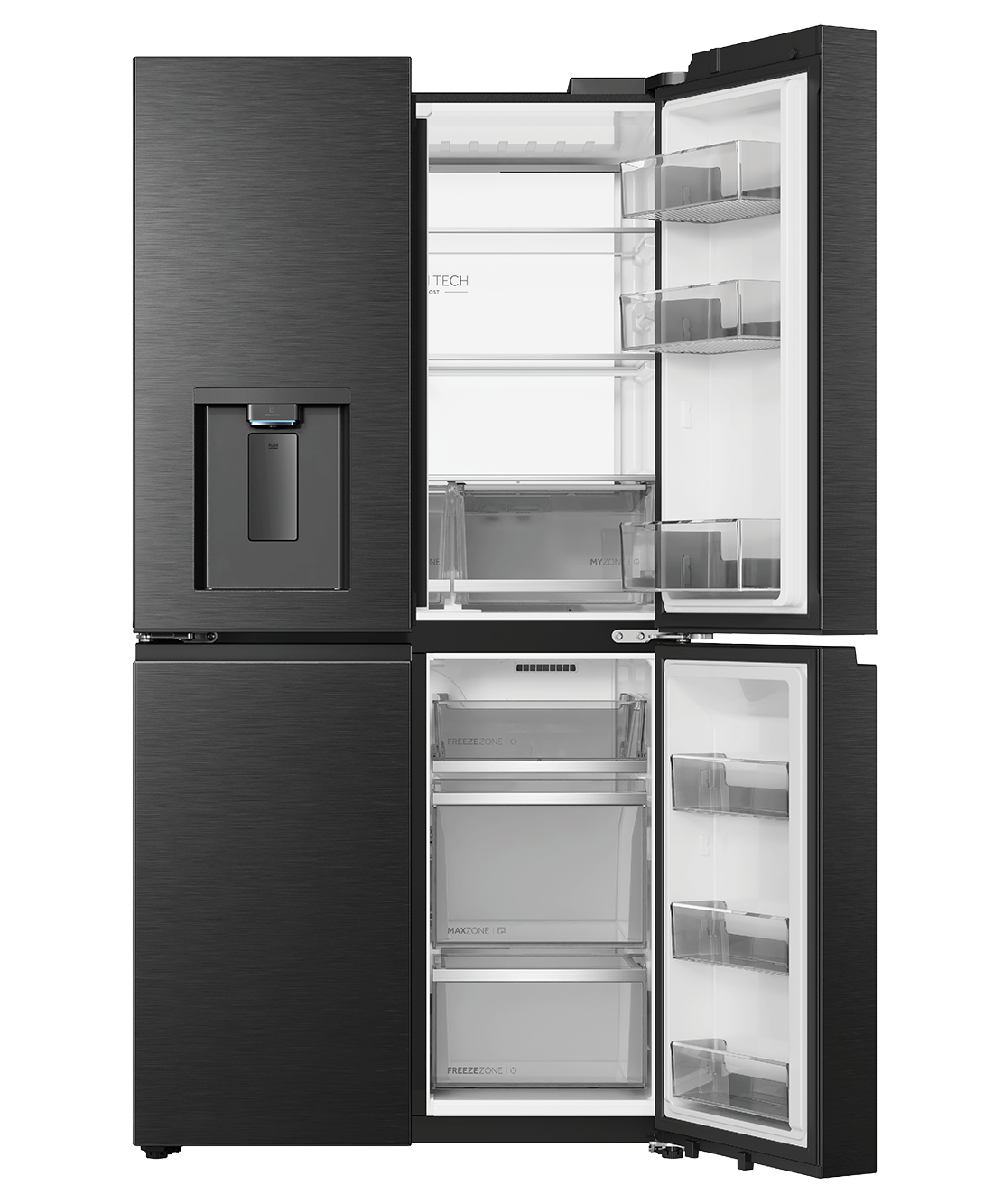

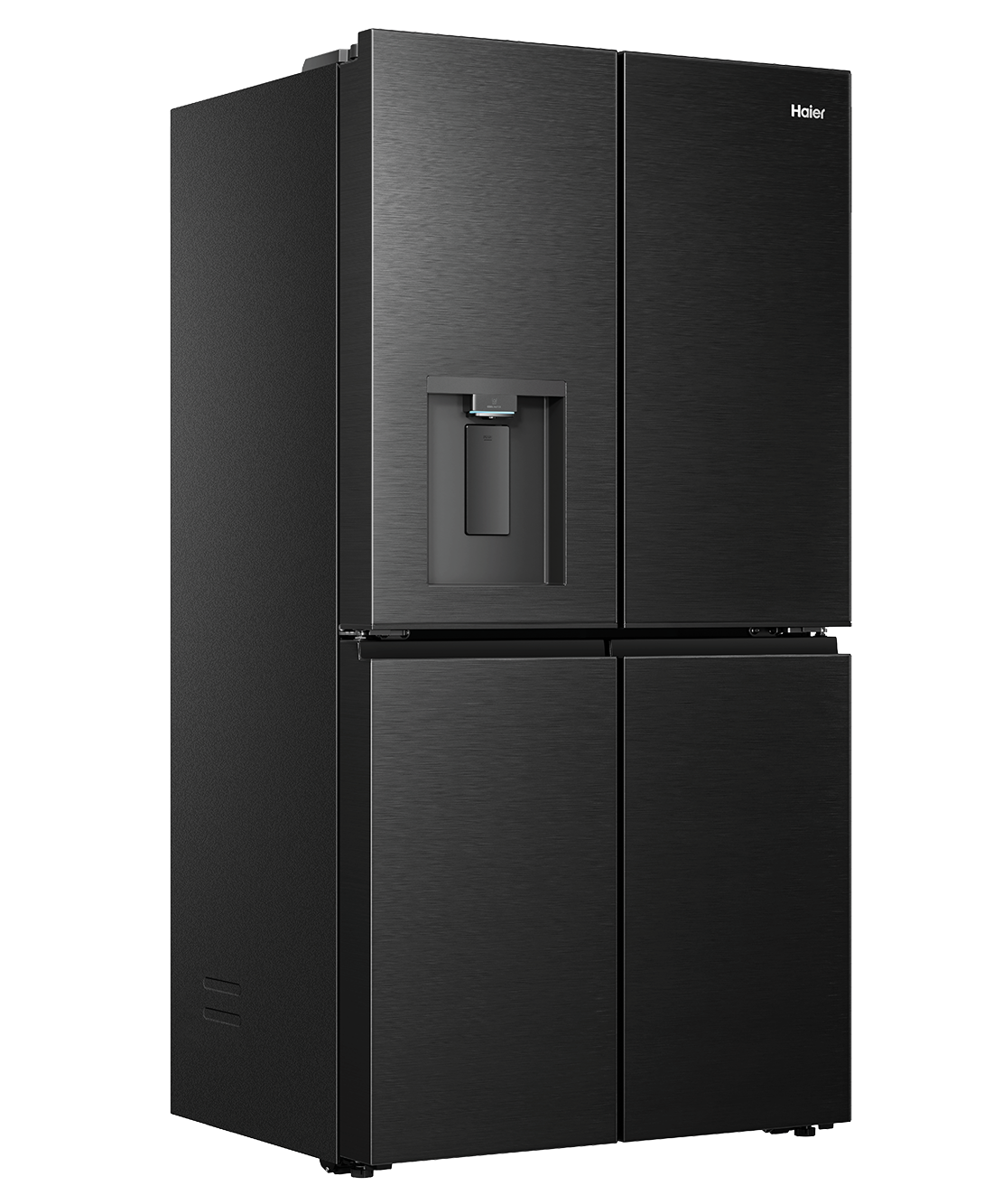

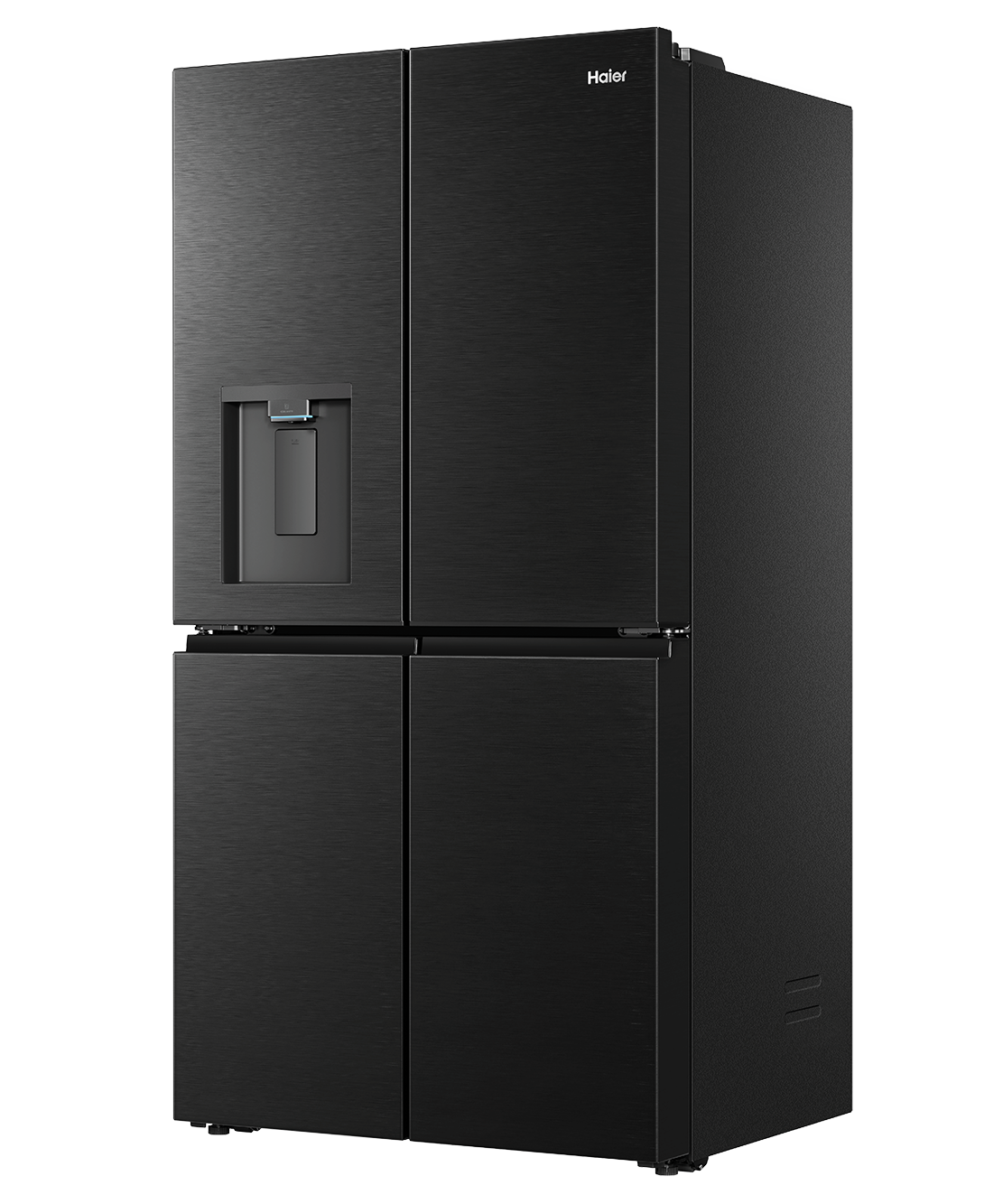

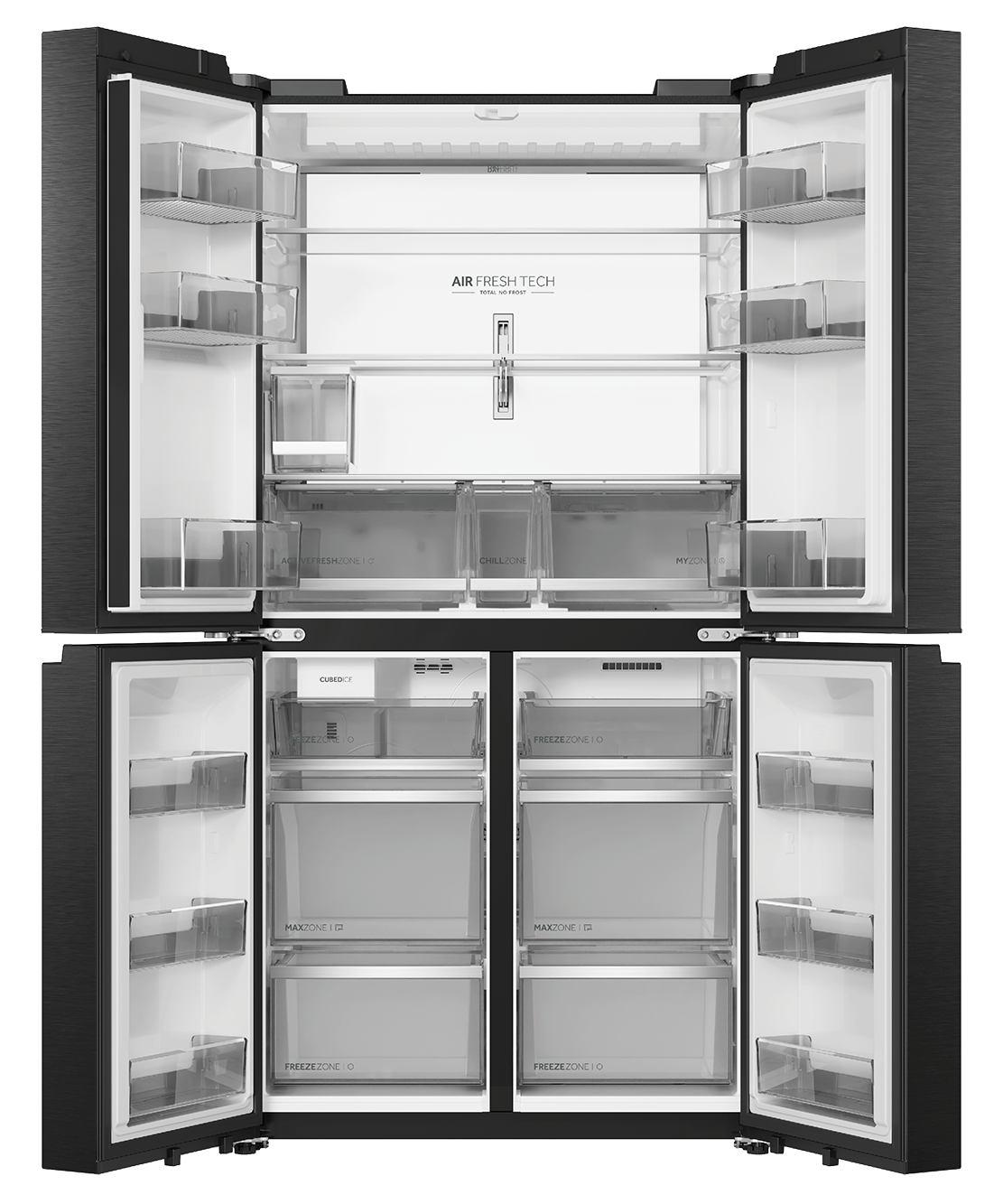

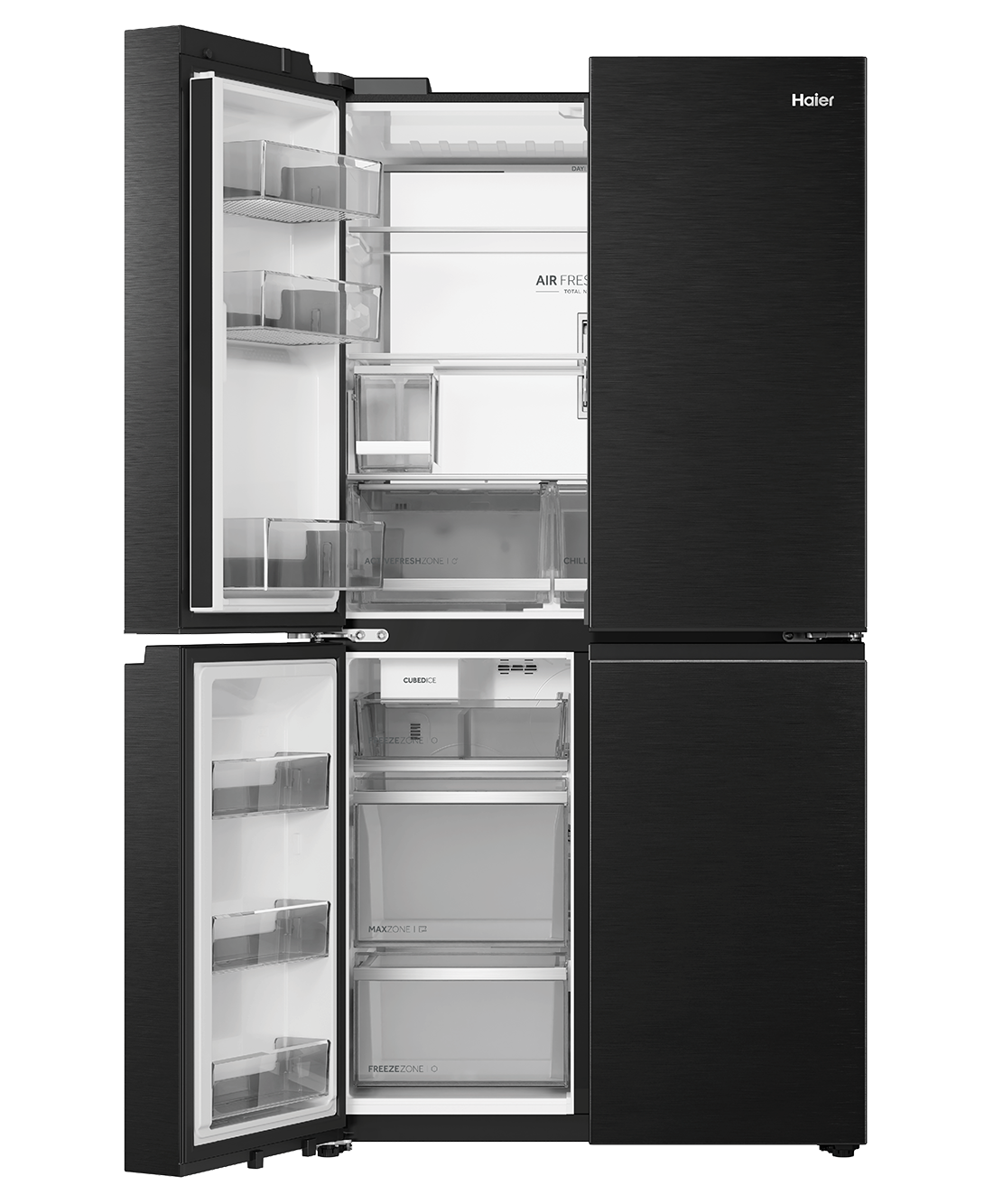

The Haier 672L 500 Series Quad Door Refrigerator in black suits larger households, with 385L of fridge and 287L of freezer space and a 5 star energy rating. Its door water dispenser and automatic ice maker both run from a refillable internal tank, so no plumbing is needed. Delivered to Sydney, Wollongong, Central Coast, Newcastle and the ACT.
![]() |
All in. All week.Built for the big shop and the days that follow. 672L of capacity gives fresh and frozen food their own organised space, so everything stays easy to find through the week. Cantilevered shelves adjust to suit a roast, a sheet pan, or a tall jug, while the non-plumbed dispenser keeps chilled filtered water within easy reach. Four flush doors in fingerprint-resistant black complete the look with a clean, streamlined finish. |
Cold water on tap, ice on handTop up the internal tank and pour cold water from the slimline door dispenser, while an automatic ice maker in the freezer keeps cubed ice ready between uses. It's an easy way to stay stocked for everyday drinks, family dinners and whatever the week brings. |
![]() |
![]() |
Energy-efficient cooling, built inWith a 5-star energy rating, it's designed to cool efficiently. The inverter compressor adjusts to the way your home changes through the day, working harder on a hot afternoon and easing back overnight to suit the rhythm of the day. |
Keep food fresh for longerThe right conditions make all the difference. A My Zone™ adjustable-temperature drawer offers three presets for tailored food care, ideal for fruit and vegetables, meat or seafood, or for storing drinks. Air Fresh Tech circulates cool air throughout the fridge, helping everyday food get more consistent cooling wherever it's stored. In the Active Fresh Zone, humidity is maintained up to 90%, helping preserve fresh produce for up to twice as long*. Fresh groceries are easier to manage through the week. *As certified by VDE N° ID.40046454 |
![]() |
![]() |
Lock in flavour, fastSuper Freeze™ rapidly lowers the freezer temperature, so food freezes faster and forms smaller ice crystals to help maintain texture once thawed. Super Cool helps chill newly added groceries quickly. And with Total No Frost preventing ice build-up, the freezer stays frost-free without the need to defrost. |
Clever with capacityA 2L bottle of milk. A leftover roast still in its dish. With cantilevered hybrid shelving, the fridge flexes around real life, letting you adjust the layout to fit taller bottles, wider dishes and everything in between. Interior LED lighting in the fridge makes every corner easy to see, so fewer leftovers get lost at the back. |
![]() |
![]() |
Connected with SmartHQ™With Wi-Fi connectivity, you can pre-cool the fridge before a big shop, get an alert if the door's been left open, or switch modes in the SmartHQ™ app. Whether you're at home or away, you can manage your fridge around your routine. |
-
Height (mm)1790 mm
-
Width (mm)905 mm
-
Depth (mm)738 mm
-
Volume672
-
Energy Use372
-
Fridge Volume385
-
Freezer Volume287
-
MpnHRF690YNC
-
Model numberHRF690YNC
-
ColourBlack
-
Energy efficiency5 Star
-
Features✓ 672L total capacity for organised fresh and frozen food ✓ Non-plumbed water dispenser and ice maker: refillable water tank, no water connection needed ✓ My Zone™ drawer with three presets: drinks, seafood, meat ✓ Air Fresh Tech and Active Fresh Zone keep produce fresher ✓ 5-star energy rating with inverter compressor, 372kWh/year ✓ Super Freeze, Super Cool and Total No Frost ✓ Wi-Fi connected with SmartHQ™ app control and alerts
-
Manufacturer warranty2 Years
-
InstallationFreestanding
-
More SpecsDimensions
- Height: 1790mm
- Width: 905mm
- Depth: 738mm
- Width with doors open: 1559mm
- Depth with doors open: 1101mm
- Total capacity: 672L
- Fridge capacity: 385L
- Freezer capacity: 287L (includes 37L two-star section)
- Energy rating: 5 star
- Annual energy consumption: 372kWh/year
- Non-plumbed water dispenser (refillable internal tank)
- Automatic ice maker (tank-fed, non-plumbed)
- Ice making capacity: approx. 0.85kg/24 hours
- Ice storage drawer: approx. 5L
- Flat door design
- Front levelling feet
- Recessed handle
- Smart appliance (Wi-Fi, SmartHQ™ app)
- Child lock
- Glass shelves: 4
- Half width door shelves: 6
- Interior light
- Hybrid cantilever shelving
- Humidity controlled crisper bins
- MyZone adjustable temperature drawer
- Air flow system for optimum food storage
- Eco friendly R600a refrigerant
- Frost free freezer
- Inverter controlled compressor
- Super Freeze function
- Super Cooling function
- Freezing capacity: 14kg/24h
- Climate class: T
- Noise: 35dB(A)
- Fingerprint resistant finish
- LED lighting
- MyZone bin
- Non-plumbed water dispenser
- Voltage/frequency: 220-240V~ / 50Hz
- Service: 10A
- Input current: 1.8A
- Product weight: 131kg
- Packaged weight: 141kg
- Manufacturer's warranty: 2 years
- Compressor parts only: additional 10 years
