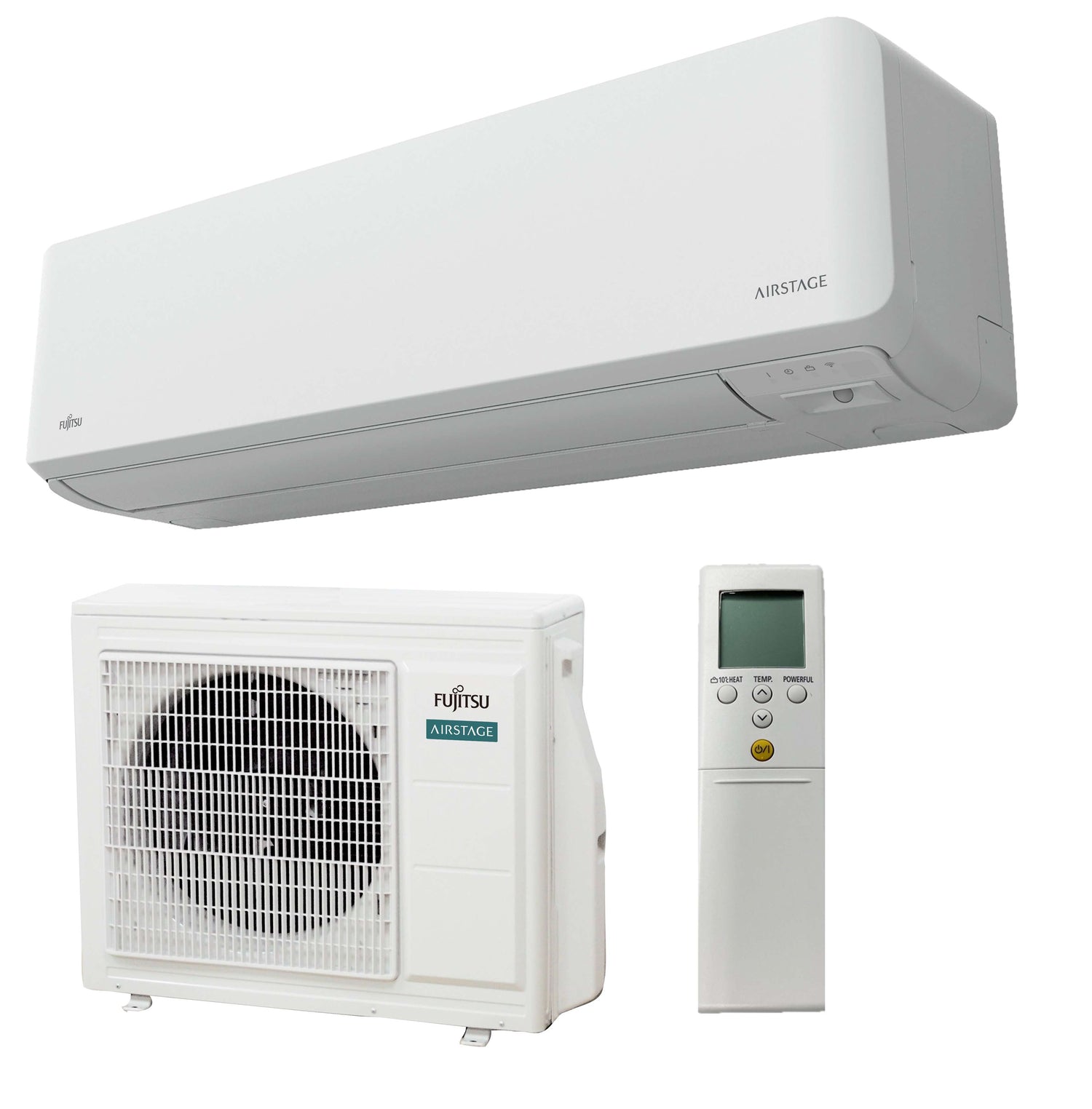

Fujitsu 7.1kW Cool / 8.0kW Heat Split System Air Conditioner ASTH24KMTD
SKU:
ASTH24KMTD
$2,079.00
Unit price
/
Unavailable
Fujitsu 7.1kW Cool / 8.0kW Heat Split System Air Conditioner ASTH24KMTD is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
With All DC, electricity loss is decreased and power consumption reduced. |
i-PAM inverter technology enables high output and high efficiency performance. |
Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples. |
The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic. |
Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored. |
The compressor speed and the outdoor unit fan speed are limited to reduce the operational noise. |
The auto shut louvres close or open automatically when the unit stops or starts. |
ON-OFF timer can be set to operate once every 24 hours. |
The unit automatically switches between operating modes based on the temperature setting and room temperature. |
Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable. |
The micro-processor automatically adjusts the air flow to follow changes in room temperature. |
This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON. |
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control. |
The right/left louvre automatically swings in either direction. |
Automatically stops the units operation when a fixed time has elapsed from the start of operation. |
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night. |
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger. |
The indoor units fan can operate at a low speed to produce quieter operation. |
This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation. |
The up/down louvre automatically swings up and down. |
Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions. |
v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency. |
Limits the maximum operation current, and performs operation with the power consumption suppressed. |
Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth. |
Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room. |
Different ON-OFF times can be set for up to 7 days. |
Human sensor detects movement of people within the conditioned room. |
The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied. |
-

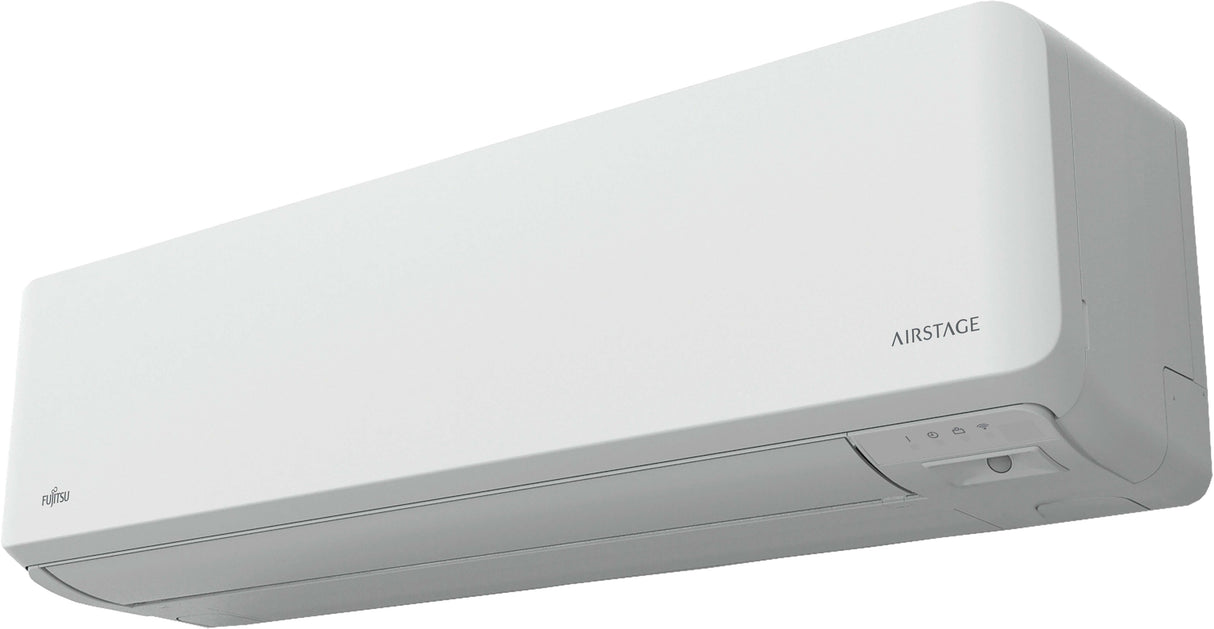

Indoor Product CodeASTH24KMTD
-

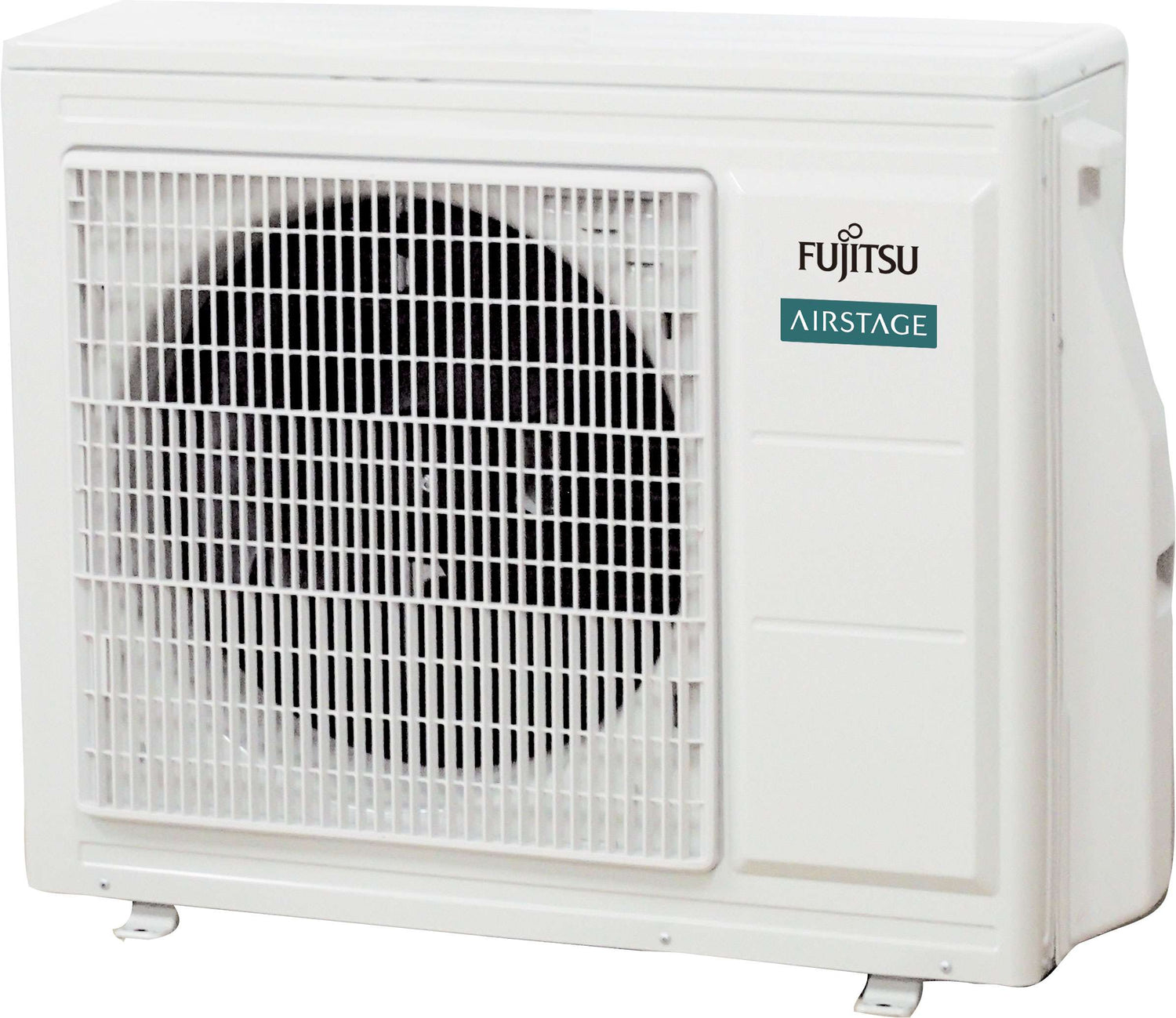

Outdoor Product CodeAOTH24KMTD
-
Indoor Unit Dimensions HxWxD (mm)280 x 980 x 240
-

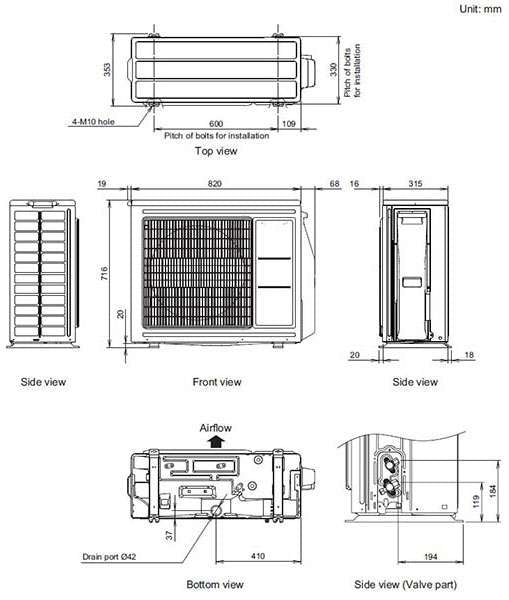

Outdoor Unit Dimensions HxWxD (mm)716 x 820 x 315
-
Moisture Removal2.7000
-
Cooling Capacity7.1kW
-
Heating Capacity8.0kW
-
MpnASTH24KMTD
-
Model numberASTH24KMTD
-
ColourWhite
-
Features✓ Automatic Air Flow Adjustment ✓ Blue Fin Heat Exchanger ✓ i-PAM inverter technology ✓ Super Quiet Mode ✓ Up/Down Swing Louvre ✓ Economy Mode ✓ Low Noise Mode ✓ Washable Panel
-
Manufacturer warranty5 Years
-
InstallationWall
-
More Specs
- Operation Type: Reverse Cycle
- Power Source V/Ph/Hz: 230 / 1 / 50
- Cooling Capacity kW (Rated (Min - Max)): 7.10 (1.1 - 8.3)
- Heating Capacity kW (Rated (Min - Max)): 8.00 (1.1 - 10.1)
- Input Power Cooling kW (Rated (Min - Max)): 2.08 (0.24 - 3.15)
- Input Power Heating kW (Rated (Min - Max)): 1.91 (0.14 - 3.17)
- EER Cooling kW/kW: 3.41
- COP Heating kW/kW: 4.19
- Star Rating Cooling (0-10) (Hot / Average / Cold): 3.5 / 3.5 / 3.5
- Star Rating Heating (0-10) (Hot / Average / Cold): 3 / 2.5 / 2
- Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold): 5.344 / 5.094 / 5.481
- Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold): 4.819 / 4.265 / 3.586
- Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 5.873 / 6.231 / 6.897
- Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 4.817 / 4.474 / 3.909
- Running Current amps (Cooling / Heating): 9.3 / 8.7
- Moisture Removal l/hr: 2.7
- Indoor Sound Pressure Cooling dBA (High / Quiet): 49 / 29
- Indoor Sound Pressure Heating dBA (High / Quiet): 49 / 29
- Outdoor Sound Pressure dBA (Cooling / Heating): 54 / 53
- Outdoor Sound Power dBA: 66
- Air Circulation (Indoor - High Fan) Cooling l/sec: 325
- Air Circulation (Indoor - High Fan) Heating l/sec: 331
- Indoor Unit Weight kg: 12.50
- Outdoor Unit Weight kg: 42.00
- Piping Connects mm Ø (Liquid / Gas): 6.35 / 12.7
- Pipe Length m (Max (Precharged)): 30 (15)
- Max Height Difference m: 25
- Operation Range Cooling °CDB (Min to Max): -10 to 50
- Operation Range Heating °CDB (Min to Max): -15 to 24
- Refrigerant Type: R32
