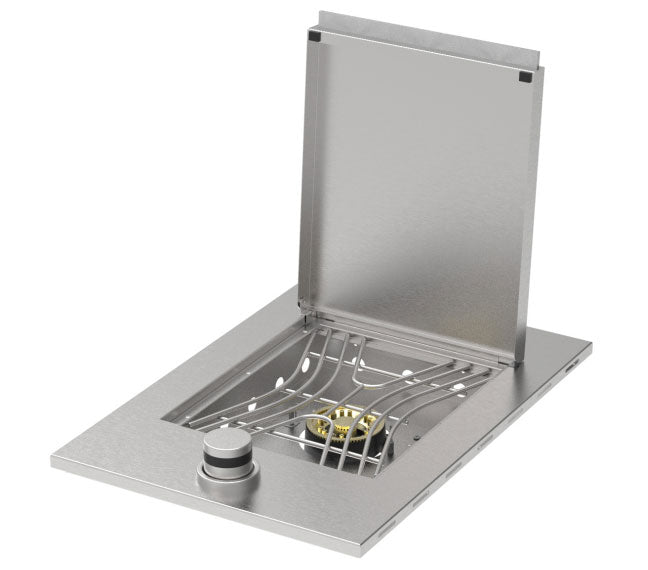

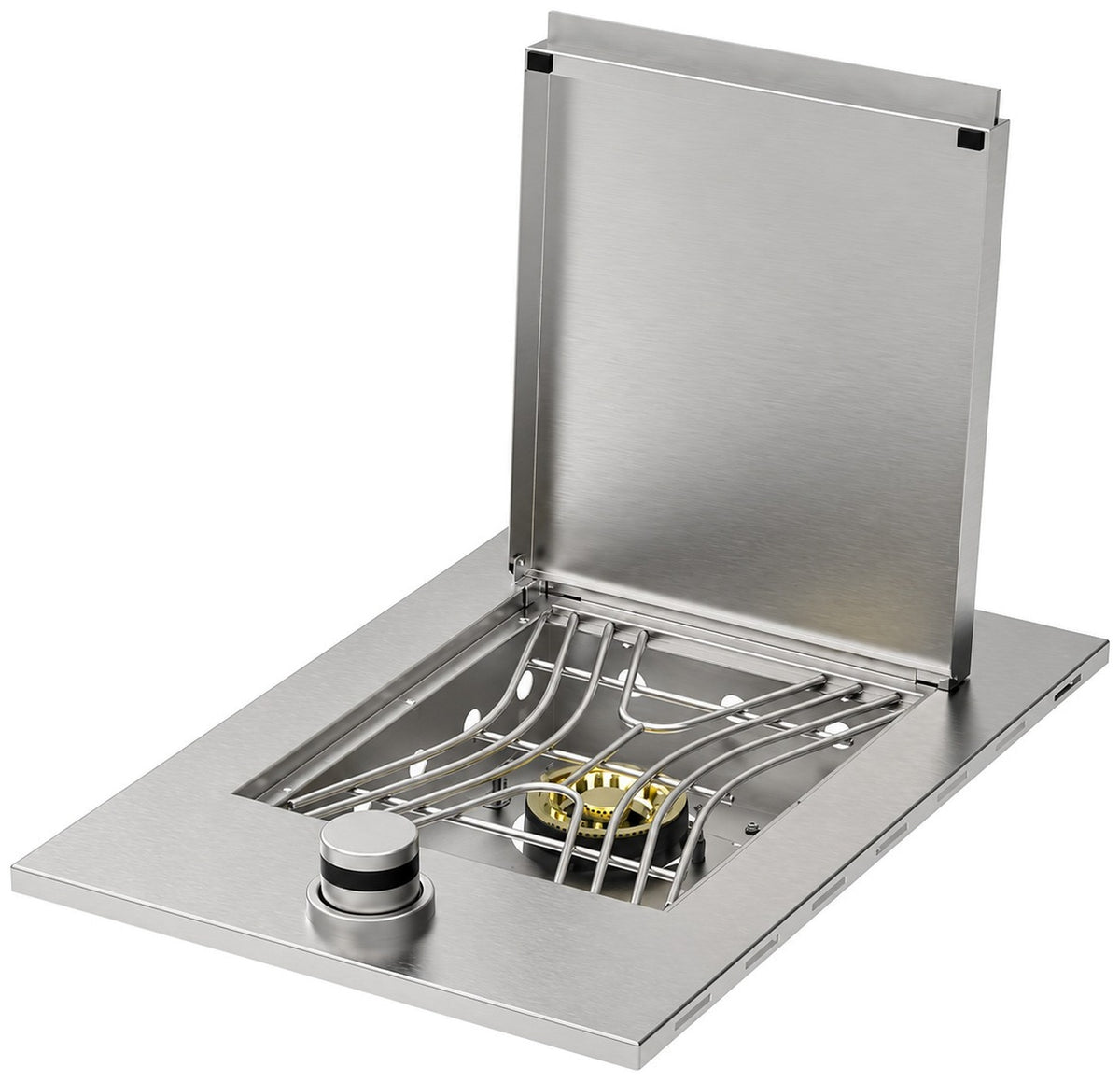

The GHS1CA Built-In BBQ Side Burner is designed to expand your outdoor cooking capabilities with a compact, premium-quality cooking station. Manufactured with a SUS304 stainless steel firebox and a powerful cast iron burner with copper distributor cap, it is ideal for preparing sauces, side dishes and boiling alongside your main grilling, and suits pots and pans from 180 to 260mm in diameter. Finished in brushed stainless steel with a flat lid that conceals the burner when not in use, it integrates seamlessly into any outdoor kitchen while offering reliable push-button ignition and thermocouple safety. Supplied ready for LPG and convertible to Natural Gas.
- Premium SUS304 stainless steel construction
- Powerful cast iron burner with copper distributor cap
- Stainless steel cooking rack
- Suits pots and pans 180-260mm in diameter
- Brushed stainless steel finish

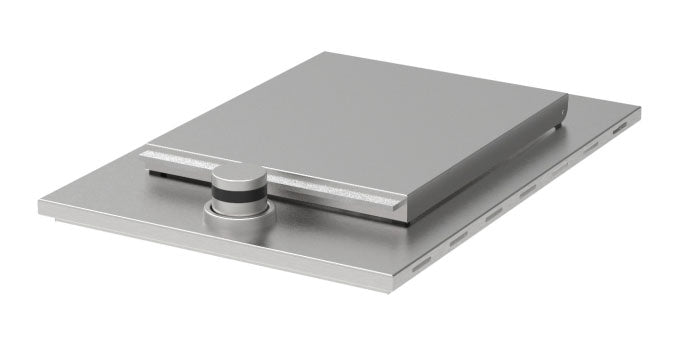

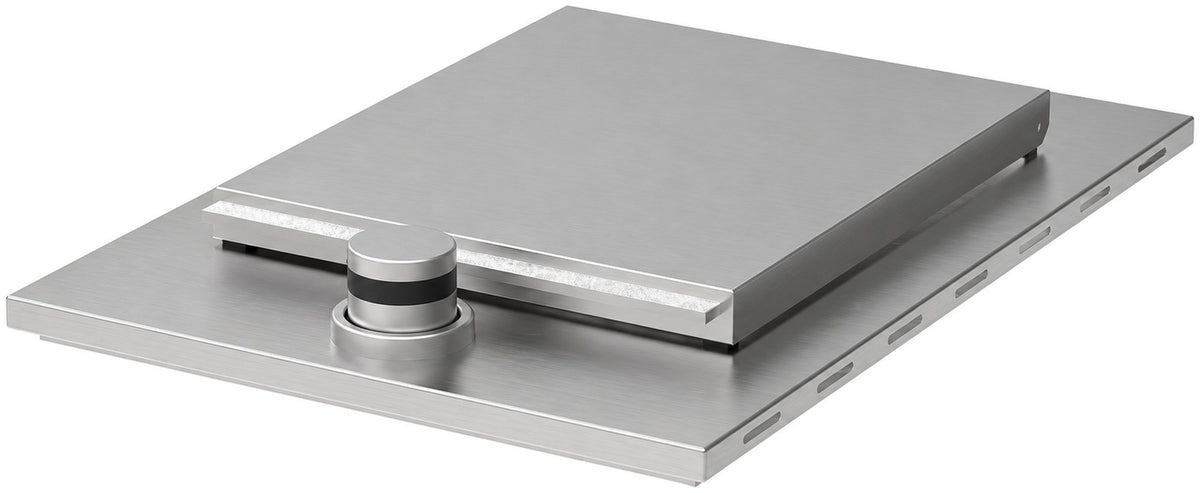

- Flat lid conceals the burner when not in use
- Push-button ignition with thermocouple flame failure safety
- Supplied for LPG, convertible to Natural Gas
- Australian gas hose and regulator included
- Perfect companion for built-in BBQs
Please note: Outdoor use only. Must be installed by a licensed gasfitter on fire-resistant material. Minimum cabinet cut-out 405 x 508mm (W x D), 164mm deep, with a 405 x 50mm ventilation opening. Ignition requires 1 x AA battery (not included). The lid is not to be used as a work surface.
-
Height (mm)175 mm
-
Width (mm)425 mm
-
Depth (mm)540 mm
-
MpnGHS1CA
-
Model numberGHS1CA
-
ColourBrushed Stainless Steel
-
Features✓ Powerful cast iron burner ✓ SUS304 stainless steel body ✓ Suits 180-260mm pots ✓ Brushed stainless finish ✓ Push-button ignition ✓ Flame failure safety ✓ LPG & NG compatible
-
Manufacturer warranty2 Years
-
InstallationStandard
-
More SpecsGeneral
- Product Type: Built-In BBQ Side Burner
- Model: GHS1CA
- Finish: Brushed Stainless Steel
- Burners: 1
- Installation: Built-In, Outdoor Use Only
- Firebox: SUS304 Stainless Steel
- Lid: Flat Lid, SUS304 Stainless Steel
- Control Panel: SUS304 Stainless Steel
- Burner: Cast Iron
- Distributor Cap: Copper
- Cooking Rack: Stainless Steel
- Lid Handle: Aluminium
- Control Knob: Zinc Alloy with Black Rubber Ring
- Gas Type: Supplied for Universal LPG, Convertible to Natural Gas
- LPG Heat Input: 11.5MJ/h
- Natural Gas Heat Input: 12.5MJ/h
- Gas Pressure: 2.75kPa ULPG / 1.0kPa NG
- Injector Size: 0.98mm LPG / 1.65mm NG
- Ignition: Push-Button Electronic Ignition (1 x AA Battery, Not Included)
- Flame Failure Protection: Thermocouple
- Cookware Size: 180-260mm Diameter
- Gas Cylinder: Up to 9kg (AS 2469)
- Australian Gas Hose & Regulator: Included
- Natural Gas Conversion: By Licensed Gasfitter

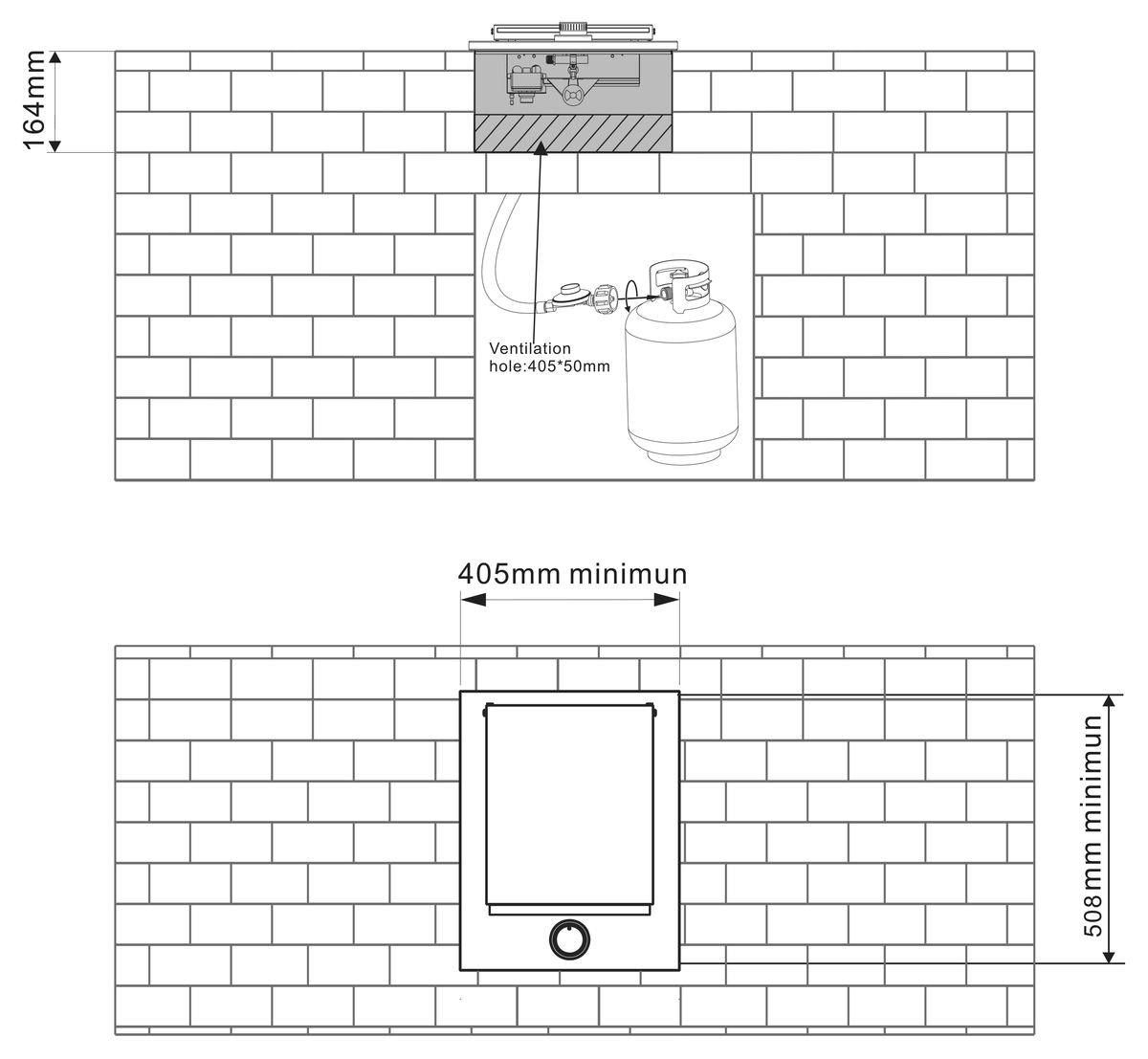

- Minimum Cut-Out (W x D): 405 x 508mm
- Cavity Depth Below Benchtop: 164mm
- Ventilation Opening: 405 x 50mm
- Mounting Surface: Fire-Resistant Material Only
- Clearance Above to Combustible Surface: 1500mm
- Clearance Above to Non-Combustible Surface: 600mm
- Clearance Above to Rangehood Grease Filter: 1200mm
- Clearance to Combustible Wall: 250mm Back / 350mm Side
- Cooking Area: 265 x 335mm

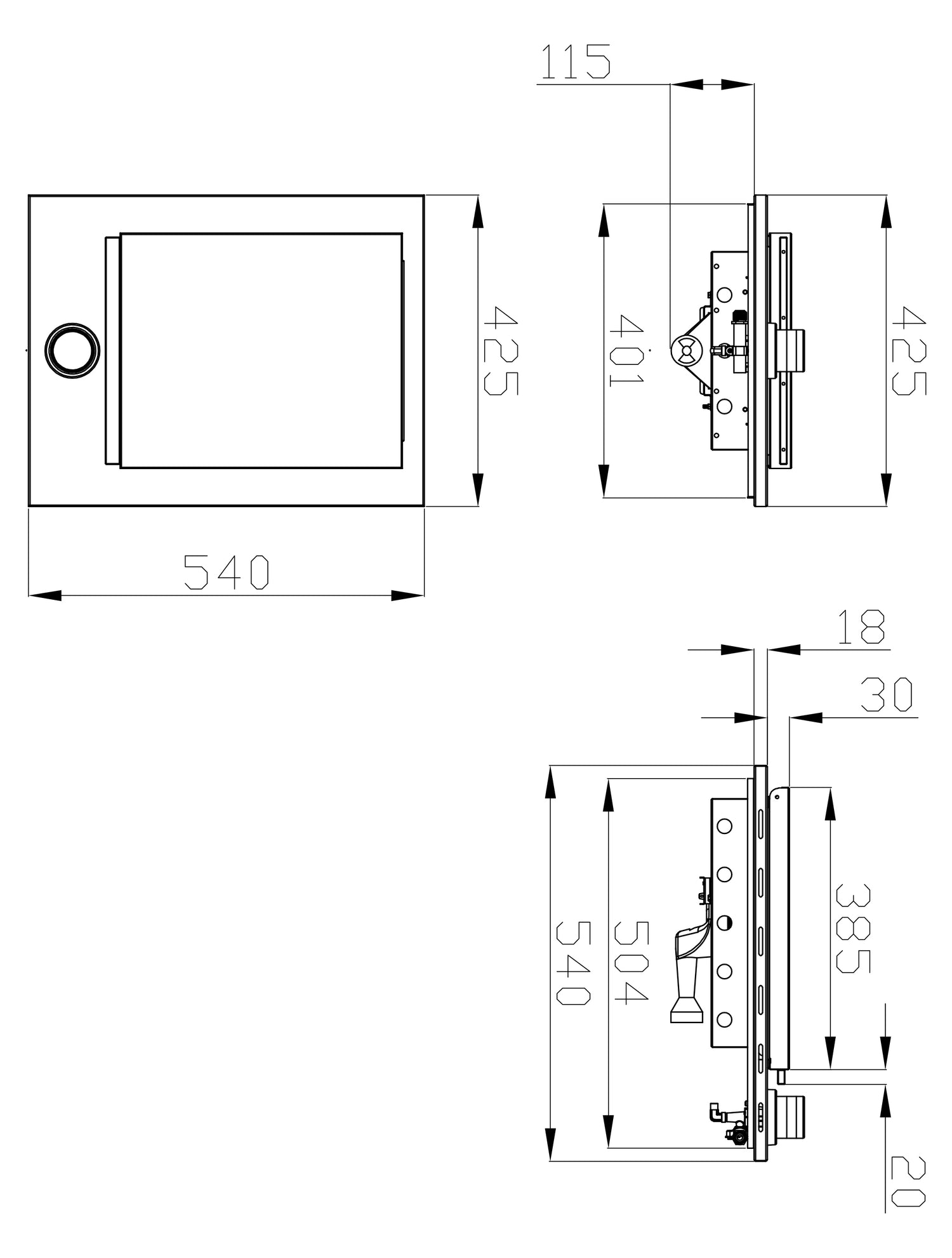

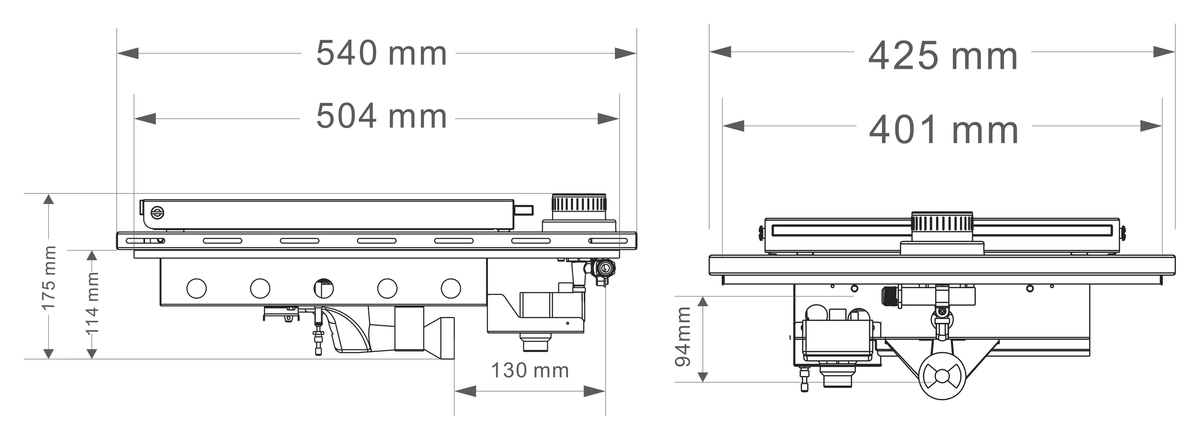

- Product Dimensions (W x D x H): 425 x 540 x 175mm
- Under-Bench Body (W x D): 401 x 504mm
- Height Below Top Panel: 114mm
