Casa 90cm Undermount Rangehood Black UDMCA90B

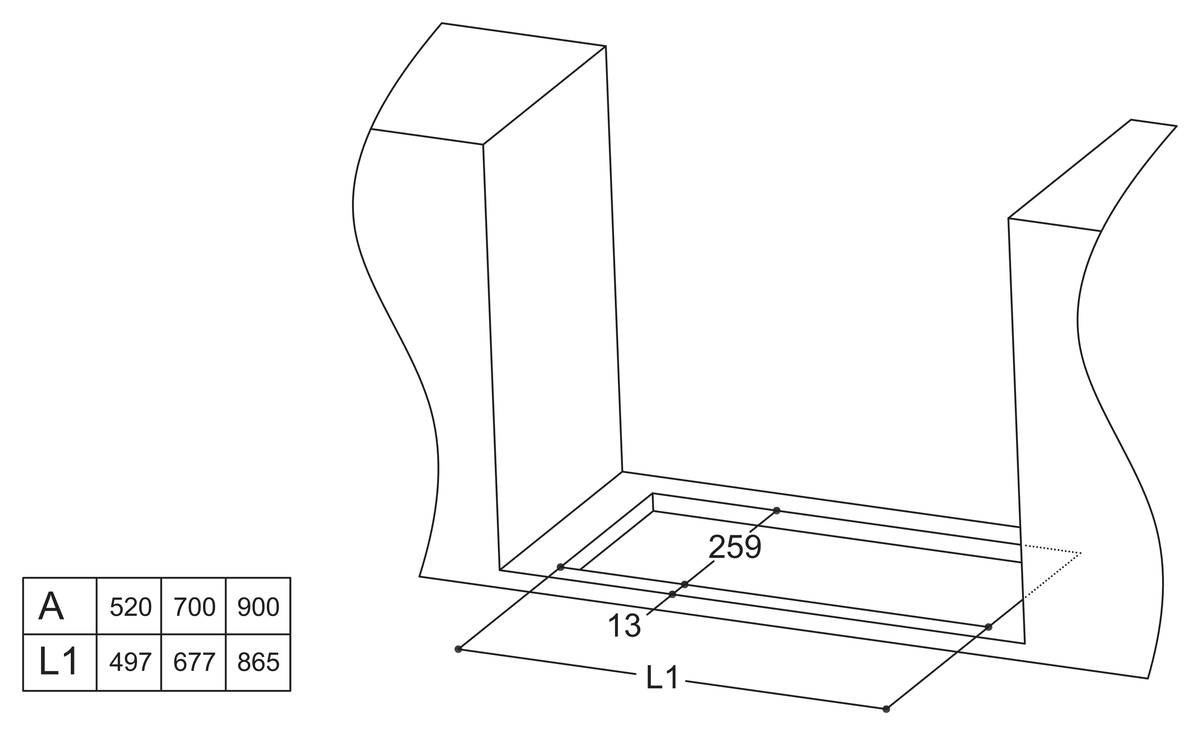

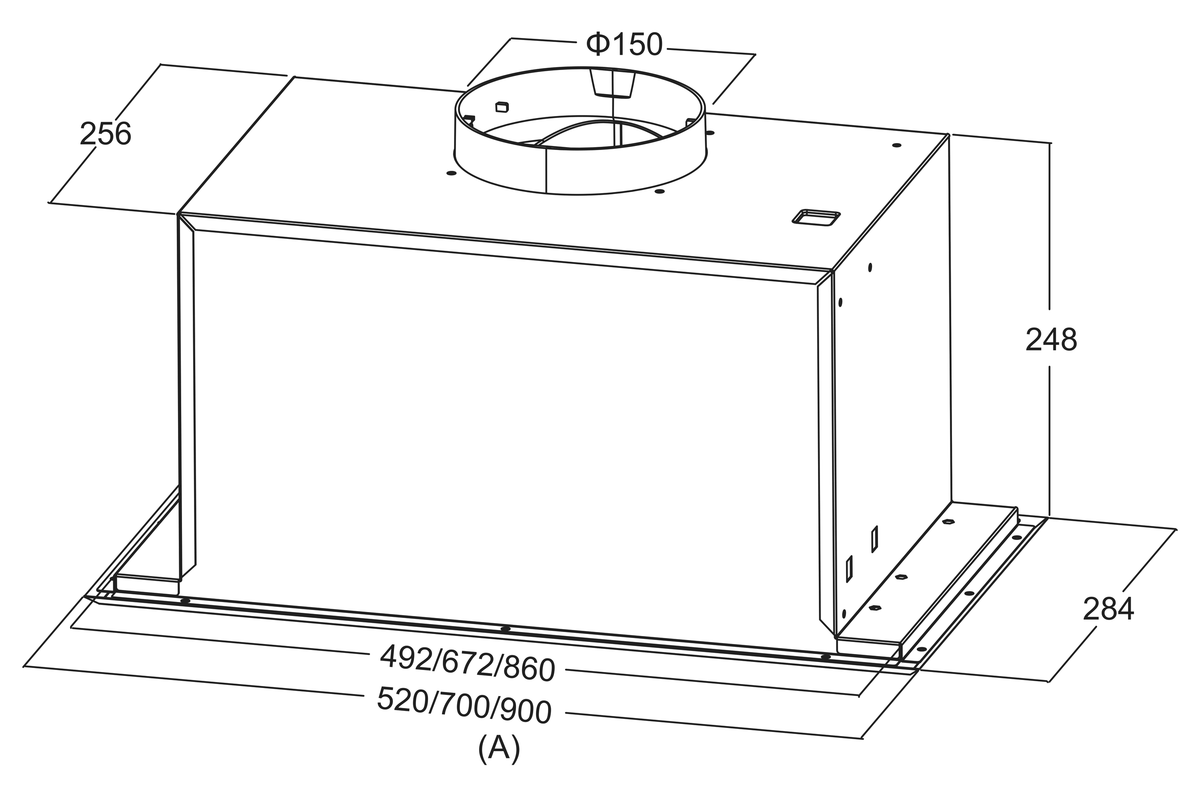

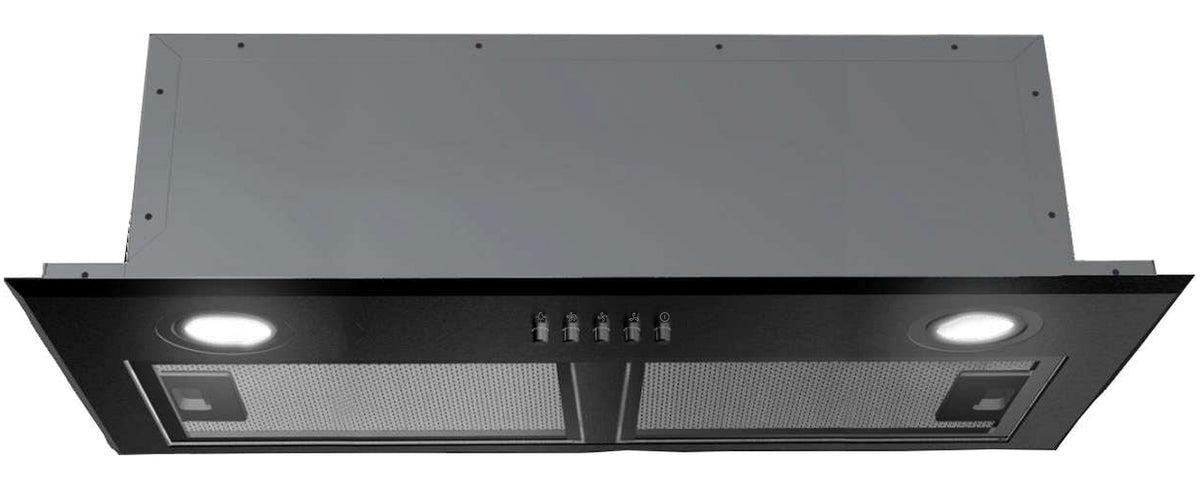

The Casa UDMCA90B is a 90cm undermount rangehood that installs inside an overhead cabinet, leaving only the black frame visible. It fits a 865 x 259mm cut-out and has a rated airflow of 400m³/h through a 150mm duct outlet.

Five push buttons control the light and three fan speeds, and two 1.5W LED lights illuminate the cooktop. The two dishwasher-safe aluminium grease filters are easy to remove and clean.

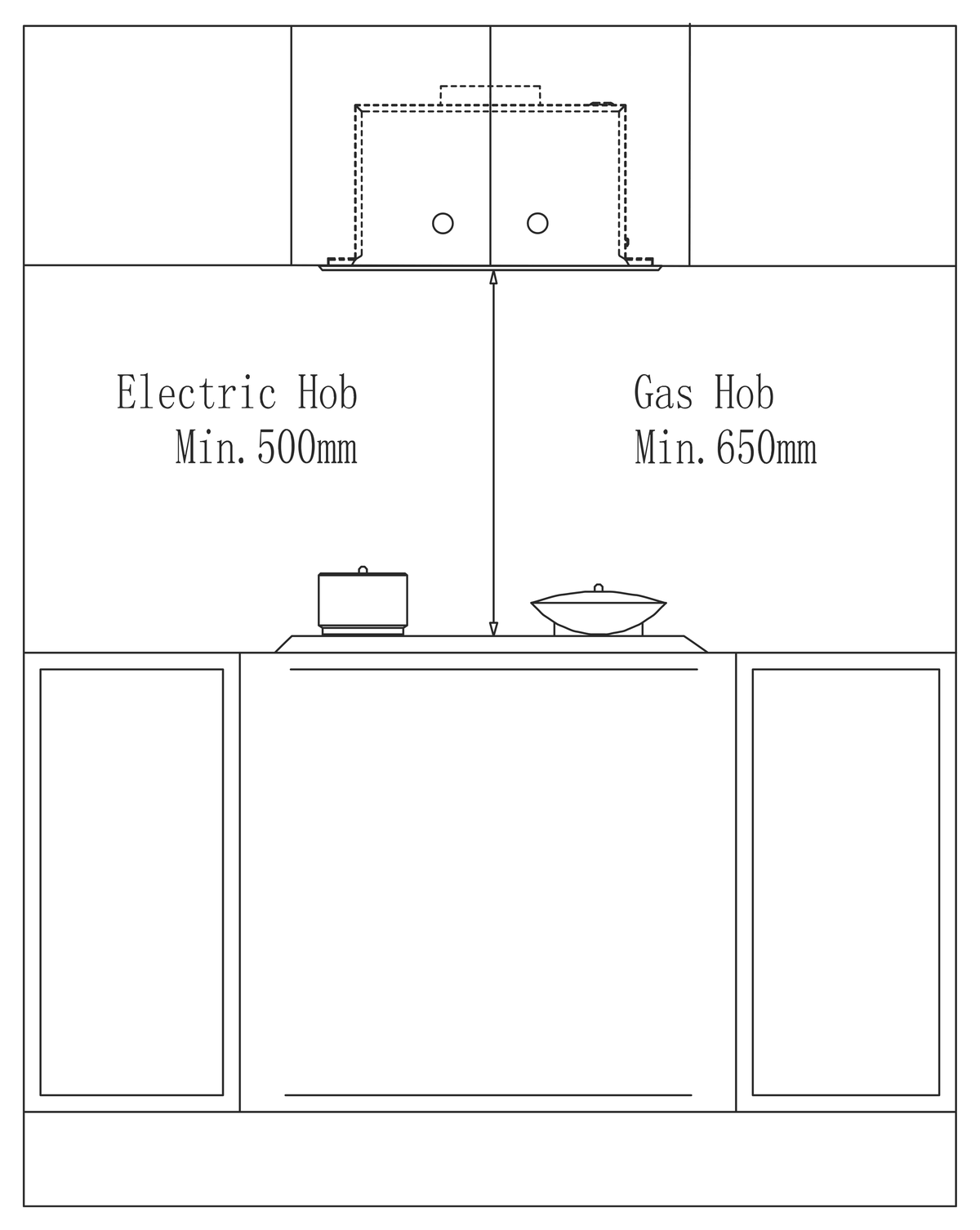

It can be ducted outside or run in recirculating mode with optional charcoal filters (not included). The manual lists 113W rated power and 67dB(A) noise, and specifies a minimum of 500mm above an electric hob or 650mm above a gas hob, with no more than four hob elements.

• 90cm undermount design with black frame
• 400m³/h airflow
• 3 fan speeds with push-button controls
• 2 x 1.5W LED lights
• 2 dishwasher-safe aluminium grease filters
• Ducted (Ø150mm) or recirculating with optional charcoal filters
• Cut-out 865 x 259mm
• Rated noise level of 67dB(A)

Specification Sheet
User Manual
