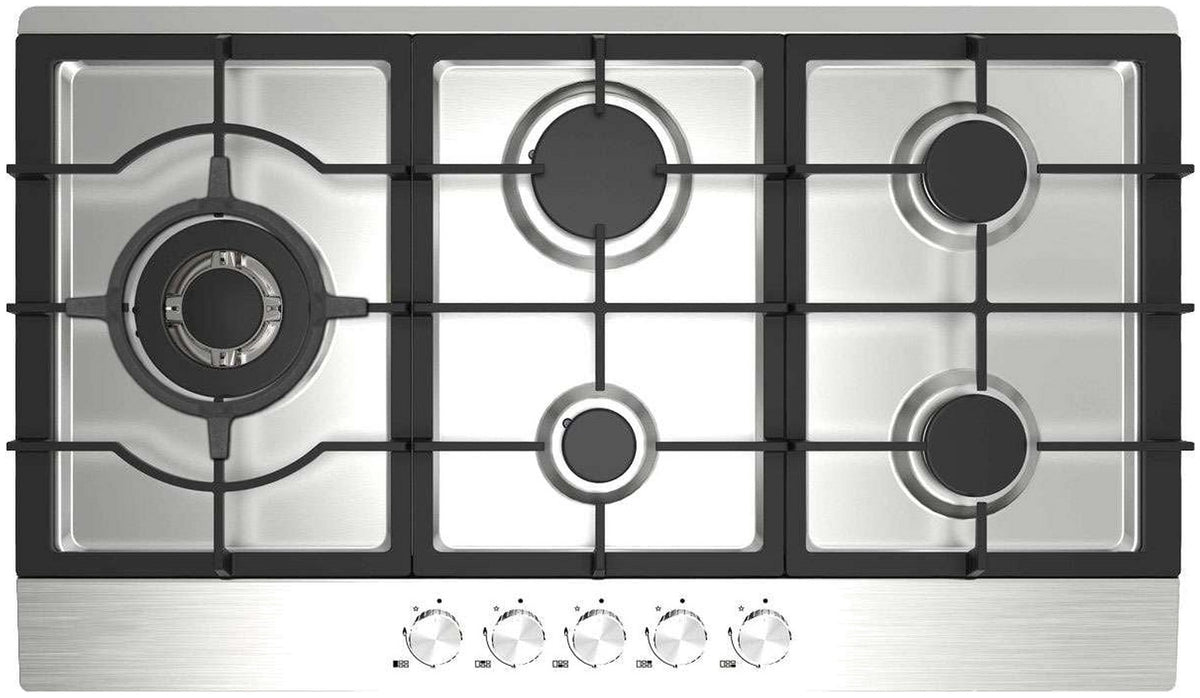

Casa 90cm Stainless Steel Gas Cooktop GHS90CA

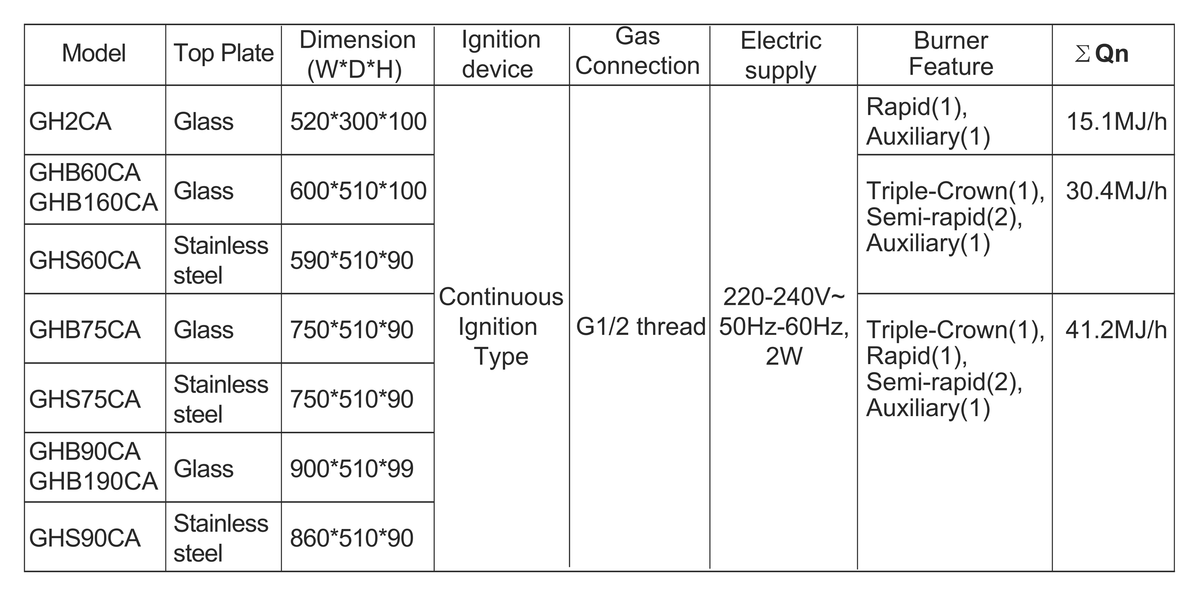

The Casa GHS90CA is a 90cm stainless steel gas cooktop with five burners: a 13.5 MJ/h triple-crown wok burner, a 10.8 MJ/h rapid burner, two 6.3 MJ/h semi-rapid burners and a 4.3 MJ/h auxiliary burner, for a total gas input of 41.2 MJ/h. It measures 860 x 510 x 90mm (W x D x H) and fits a 815 x 490mm benchtop cut-out.

Every burner has automatic electronic ignition and a flame failure device, which shuts off the gas if the flame goes out. To light a burner, press in and turn the knob, then keep it held in for 15 seconds once the flame has lit.

It suits natural gas (1.0 kPa) or Universal LPG (2.75 kPa), and comes with a gas regulator, a pressure test point and 5 injectors. The ignition runs from a power cord with a 10A plug, and the cooktop must be installed by a licensed gas fitter.

• 13.5 MJ/h (≈3.75 kW) triple-crown wok burner
• Rapid burner, two semi-rapid burners and one auxiliary burner
• Total gas input of 41.2 MJ/h
• Stainless steel top
• Automatic electronic ignition
• Flame failure device on every burner
• Natural gas or Universal LPG, with injectors and gas regulator supplied

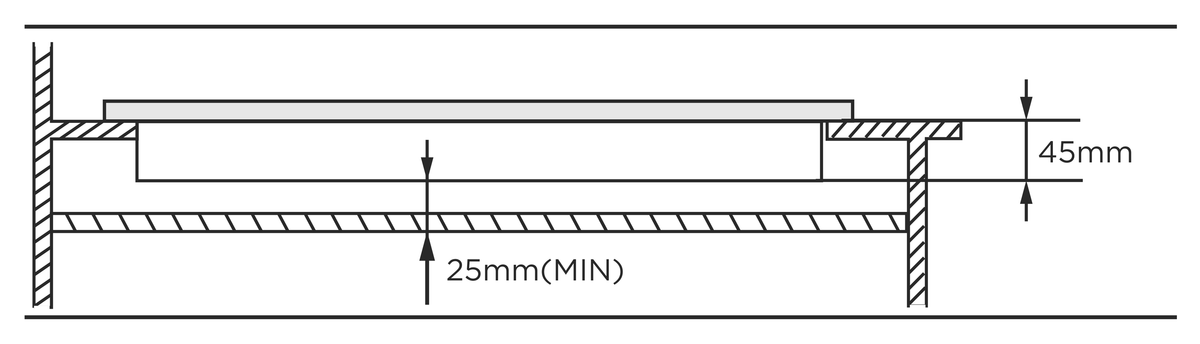

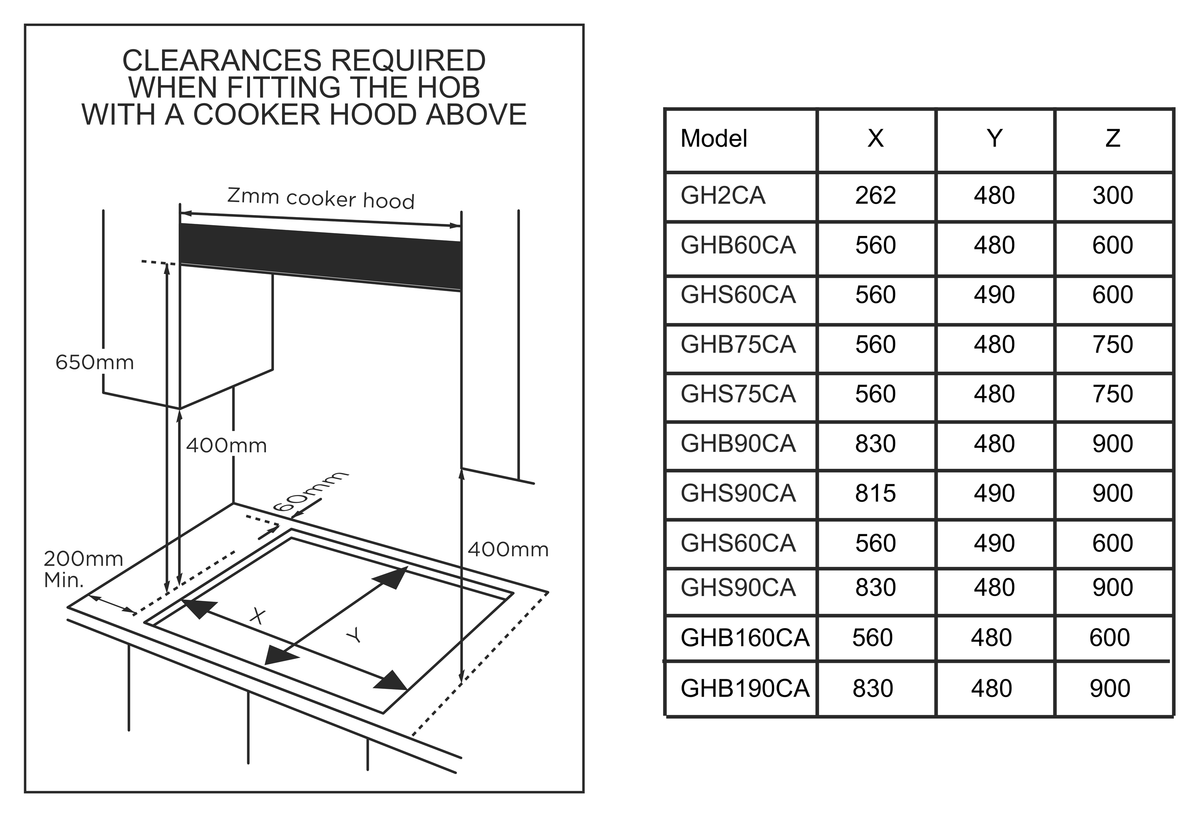

• Fits a 815 x 490mm benchtop cut-out
