Casa 90cm Hybrid Gas & Induction Cooktop Black Ceramic Glass GHEBH192CA
Check delivery cost to your area

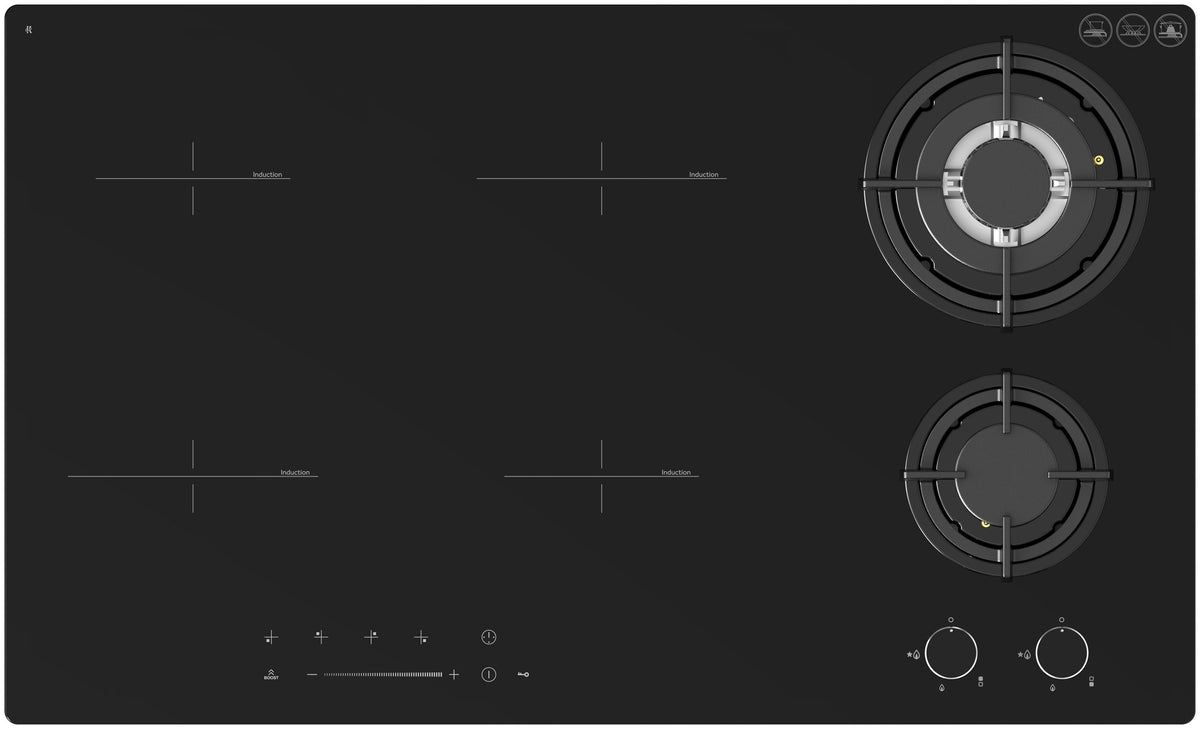

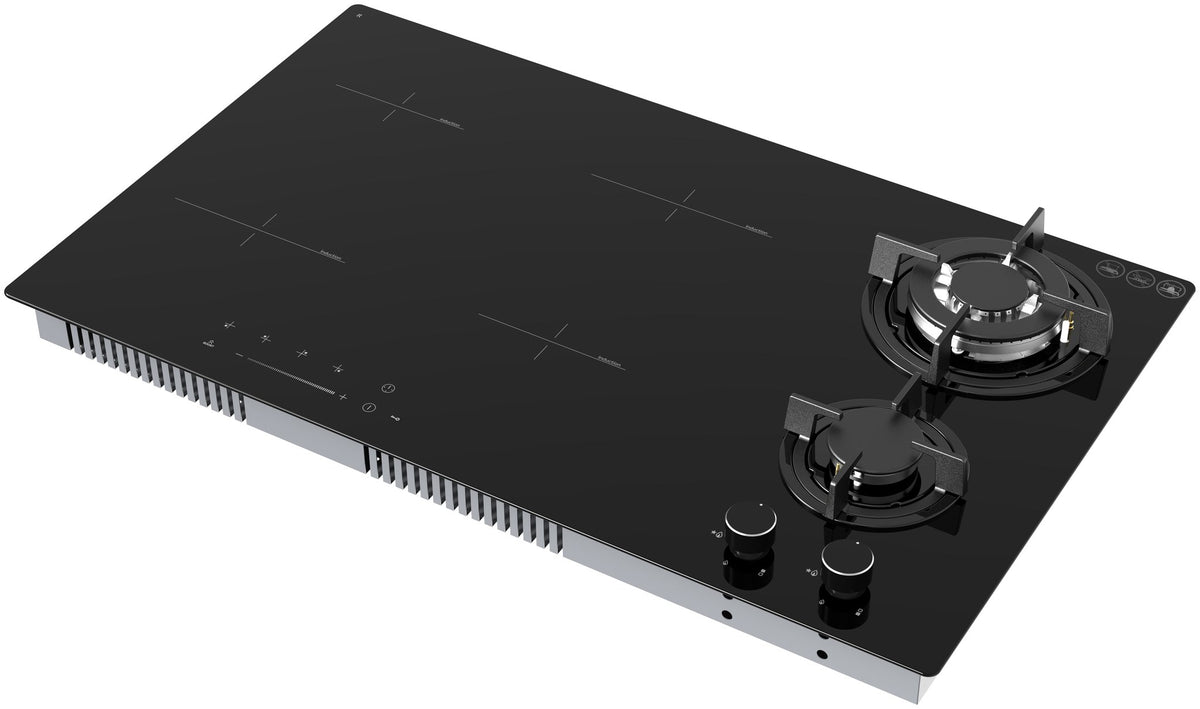

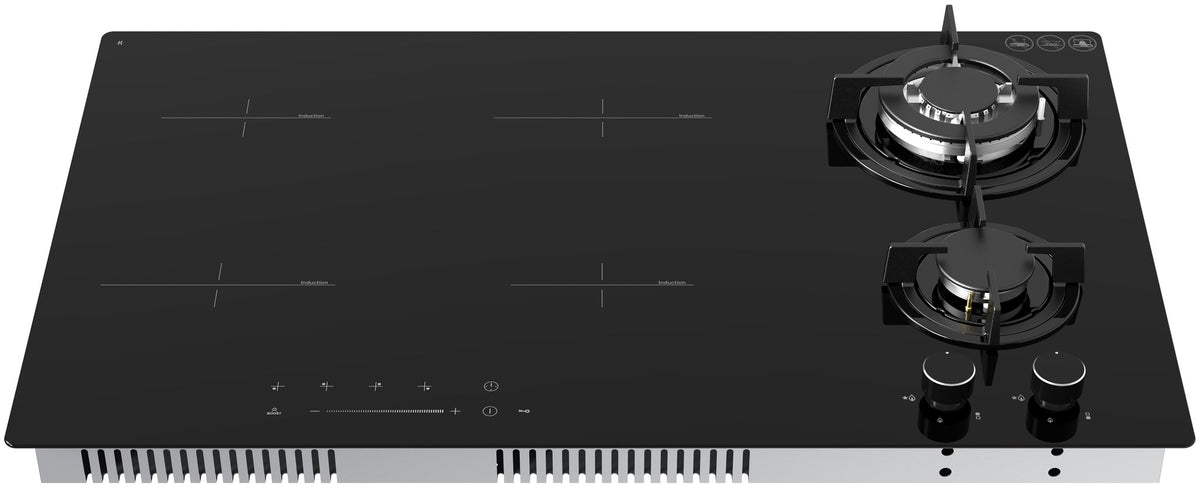

The Casa GHEBH192CA is a 90cm hybrid cooktop that pairs four induction zones with two gas burners on one black glass top. The gas side has a 13.7 MJ/h triple flame wok burner and a 6.3 MJ/h semi-rapid burner. The induction side has two 180mm zones (1500W, Boost 2000W) and two 140mm zones (1200W, Boost 1500W).
The induction zones are set with touch controls and a slider, with nine power levels plus Boost and a timer of up to 99 minutes per zone. Child lock, residual heat indicators, pan detection, overheating protection and automatic shut-off are built in.
The gas burners have metal control knobs, electronic ignition and a flame failure device. The cooktop suits natural gas or Universal LPG, with an NG regulator, LPG test point and ULPG nozzles supplied. It measures 860 x 520 x 105mm, fits an 835 x 490mm cut-out, and must be hard-wired and installed by a licensed gas fitter and electrician.
Key Functions & Features- Hybrid cooktop with 2 gas burners and 4 induction zones
- 13.7 MJ/h (≈3.8 kW) triple flame wok burner and 6.3 MJ/h semi-rapid burner
- Induction zones: 2 × 180mm (1500W, Boost 2000W) and 2 × 140mm (1200W, Boost 1500W)
- Touch controls with slider, 9 power levels plus Boost
- Timer up to 99 minutes per induction zone
- Child lock, residual heat indicator, pan detection and auto shut-off
- Flame failure device and electronic ignition on the gas burners
- Natural gas or Universal LPG, with NG regulator and ULPG nozzles supplied
- Black glass top with metal control knobs
-
Height (mm)105 mm
-
Width (mm)860 mm
-
Depth (mm)520 mm
-
Cut Out Depth (mm)490
-
Cut Out Width (mm)835
-
Model numberGHEBH192CA
-
ColourBlack
-
MaterialBlack Ceramic Glass
-
Cooking zones2 Gas Burner and 4 Induction Hob
-
Product fuelDual Fuel
-
Features✓ Four induction zones with Boost ✓ 13.7 MJ/h triple flame wok burner ✓ Plus a 6.3 MJ/h semi-rapid gas burner ✓ Touch slider controls with 9 power levels ✓ 99-minute timer for each induction zone ✓ Child lock, residual heat indicator and auto shut-off ✓ Flame failure device on the gas burners ✓ Natural gas or Universal LPG, nozzles supplied
-
Manufacturer warranty2 Years
-
InstallationBuilt-in
-
More SpecsGeneral
- Model: GHEBH192CA
- Type: 90cm Hybrid Gas & Induction Cooktop
- Installation: Built-In
- Top Plate: Black glass
- Control Knobs: Metal
- Pan Supports: Enamelled (dishwasher safe)
- Included: NG regulator, LPG test point adaptor, 2 ULPG nozzles, 4 fixing brackets, 4 screws, foam seal tape, user manual
- Gas Burners: 2
- Triple Flame (Wok) Burner: 13.7 MJ/h (≈3.8 kW)
- Semi-Rapid Burner: 6.3 MJ/h (1.75 kW)
- Ignition: Electronic (push in and turn)
- Flame Failure Device: Yes
- Recommended Pan Sizes: Triple flame 24–26cm; semi-rapid 12–16cm
- Gas Type: Natural gas 1.0 kPa or Universal LPG 2.75 kPa
- NG Injectors (mm): Triple flame 1.62, semi-rapid 1.11
- ULPG Injectors (mm): Triple flame 1.03, semi-rapid 0.68
- Cooking Zones: 4
- 180mm Zones (x2): 1500W (Boost 2000W)
- 140mm Zones (x2): 1200W (Boost 1500W)
- Controls: Touch controls with slider
- Power Levels: 1–9 plus Boost
- Boost: Runs for 5 minutes, then returns to the previous setting
- Timer: Up to 99 minutes per zone
- Safety: Child lock, residual heat indicator, pan detection, overheating protection, auto shut-off
- Supply: AC 220–240V, 50/60Hz
- Connection: Hard-wired via all-pole isolating switch (3mm contact gap)
- Product Dimensions (W x D x H): 860 x 520 x 105mm

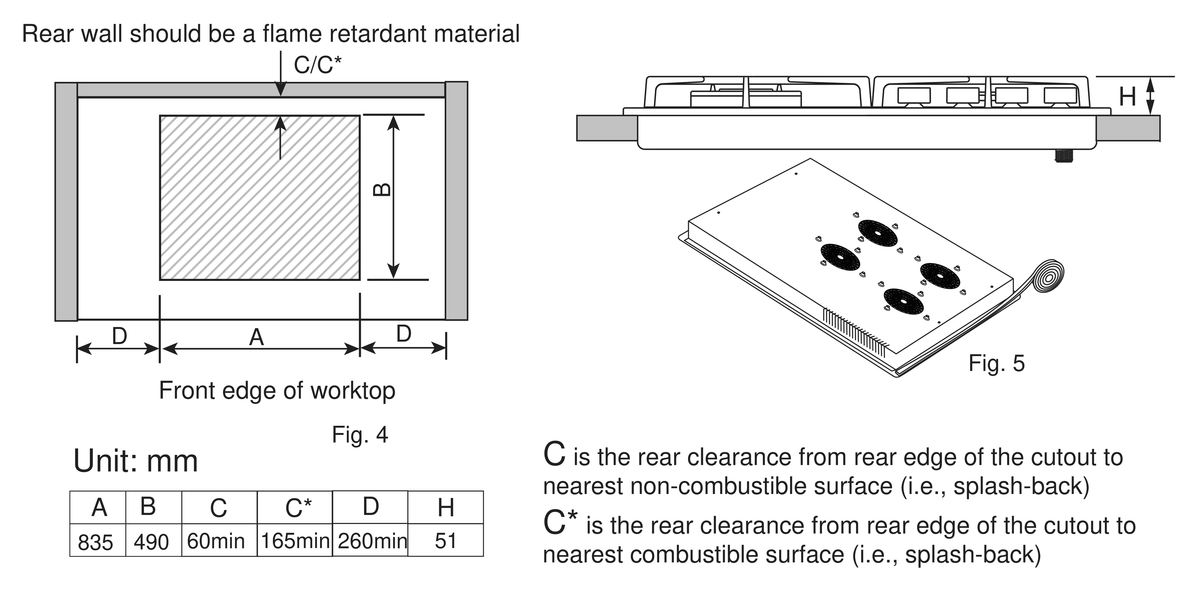

- Cut-Out (W x D): 835 x 490mm
- Height Above Worktop: 51mm
- Clearance Above: 650mm to range hood or cupboard
- Rear Clearance (Cut-Out to Wall): 60mm non-combustible; 165mm combustible
- Side Clearance (Cut-Out to Side): 260mm min.

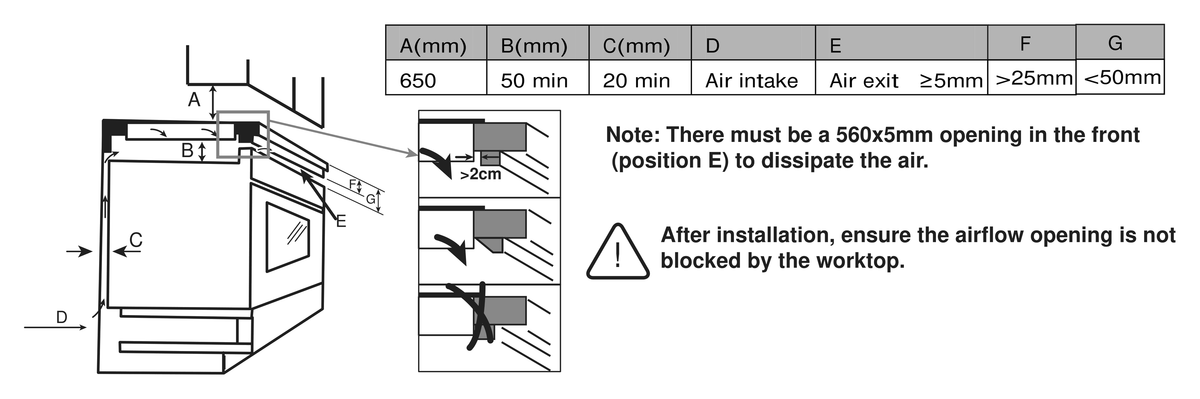

- Ventilation: 560 x 5mm opening at the front
