Casa 77cm Black Ceramic Glass Electric Cooktop CA77FEG
Check delivery cost to your area

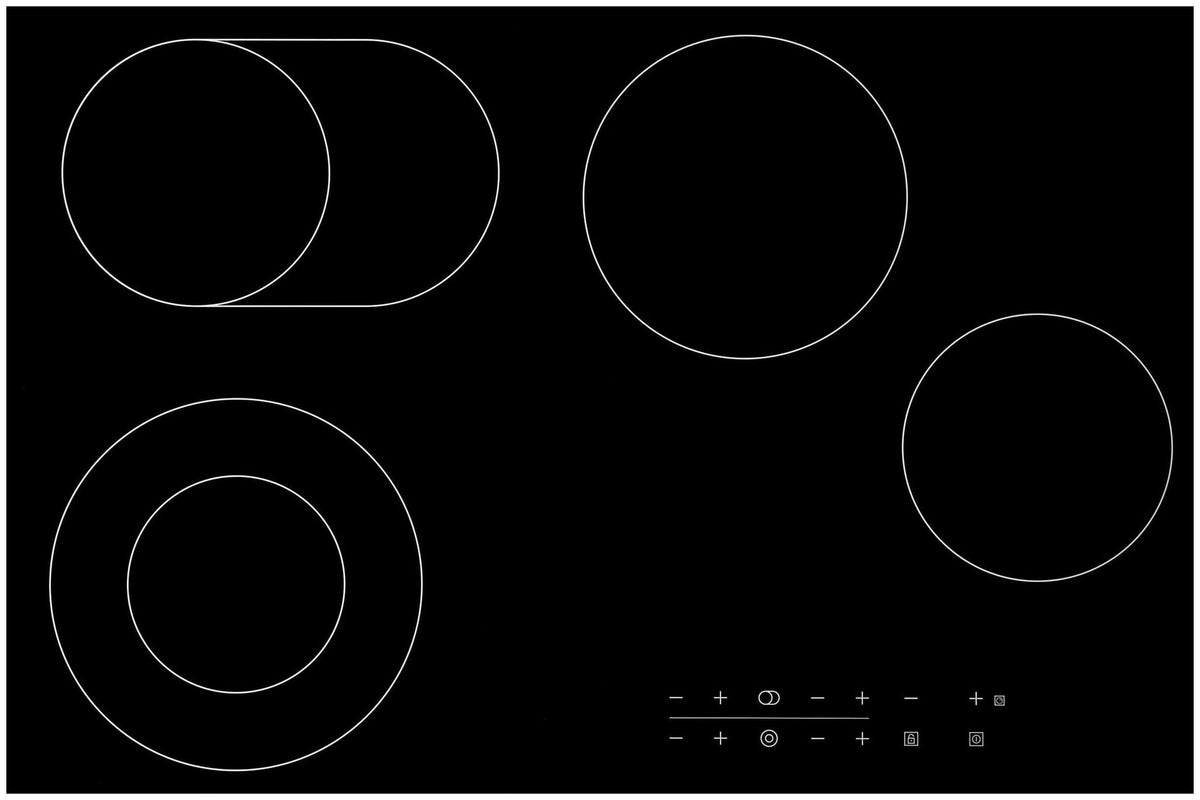

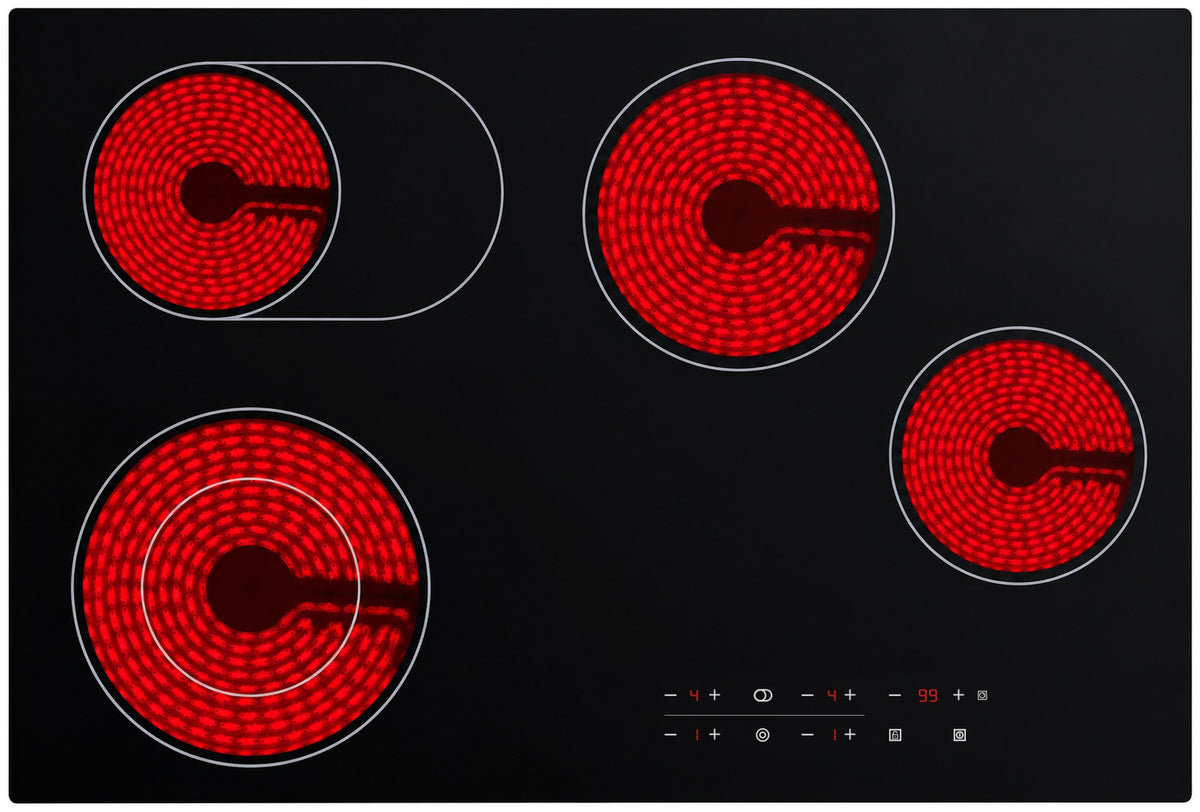

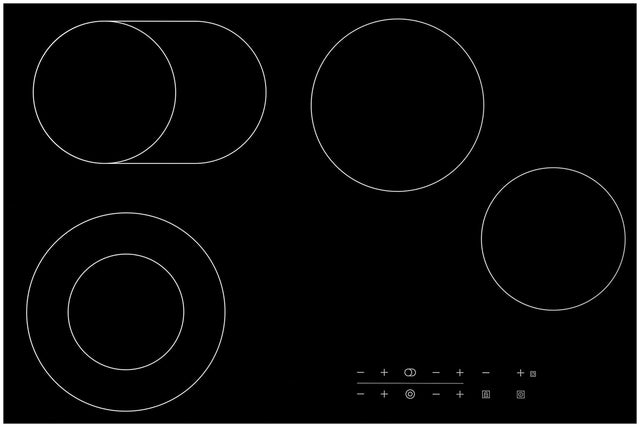

The Casa CA77FEG is a 77cm ceramic cooktop with four radiant zones, including two dual-function zones for different pan sizes: an extendable oval zone (1100/2000W) at the rear left and a dual-ring zone (1000/2200W) at the front left, plus 1800W and 1200W zones on the right.
Touch controls give each zone nine power levels. The 99-minute timer can switch one or more zones off automatically when the time is up, or run as a minute minder.
The key lock prevents unintended use, and the residual heat indicator shows "H" while a zone is still hot. Automatic shut-off and over-temperature protection add peace of mind. It can be connected to a 220–240V single-phase or 380–415V two-phase supply.
Key Functions & Features- 4 ceramic zones with 6500–7800W installed power
- Extendable oval zone (1100/2000W) and dual-ring zone (1000/2200W)
- 1800W and 1200W single zones
- Touch controls with 9 power levels per zone
- 99-minute timer with zone auto-off or minute minder
- Key lock (child lock) and residual heat indicator
- Automatic safety shut-off and over-temperature protection
-
Height (mm)55 mm
-
Width (mm)770 mm
-
Depth (mm)520 mm
-
Cut Out Depth (mm)495
-
Cut Out Width (mm)750
-
MpnCA77FEG
-
Model numberCA77FEG
-
ColourBlack
-
MaterialCeramic Glass
-
Cooking zones4
-
Product fuelElectric
-
Size range70cm to 86cm
-
Features✓ 4 ceramic zones, 6500–7800W installed power ✓ Extendable oval zone and dual-ring zone for larger pans ✓ Touch controls with 9 power levels per zone ✓ 99-minute timer with auto-off and minute minder ✓ Key lock to prevent unintended use ✓ Residual heat indicator on each zone ✓ Automatic shut-off and over-temperature protection
-
Manufacturer warranty2 Years
-
InstallationBuilt-In
-
More SpecsGeneral
- Model: CA77FEG
- Type: 77cm Ceramic Electric Cooktop
- Colour: Black ceramic glass
- Cooking Zones: 4
- Controls: Touch
- Power Levels: 1–9
- Rear Left: 1100/2000W extendable oval zone
- Front Left: 1000/2200W dual-ring zone
- Rear Right: 1800W
- Front Right: 1200W
- Timer: Up to 99 minutes – zone auto-off or minute minder
- Child Lock: Yes (key lock)
- Residual Heat Indicator: Yes ("H")
- Automatic Shut-Off: 8h (levels 1-3), 4h (4-6), 2h (7-9)
- Over-Temperature Protection: Yes
- Supply: 220–240V~ single phase or 380–415V~ two phase, 50/60Hz
- Installed Power: 6500–7800W
- Connection: 4-terminal block, hard-wired via all-pole isolator (3mm gap)
- Product Dimensions (W x D x H): 770 x 520 x 55mm
- Depth Below Worktop: 51mm

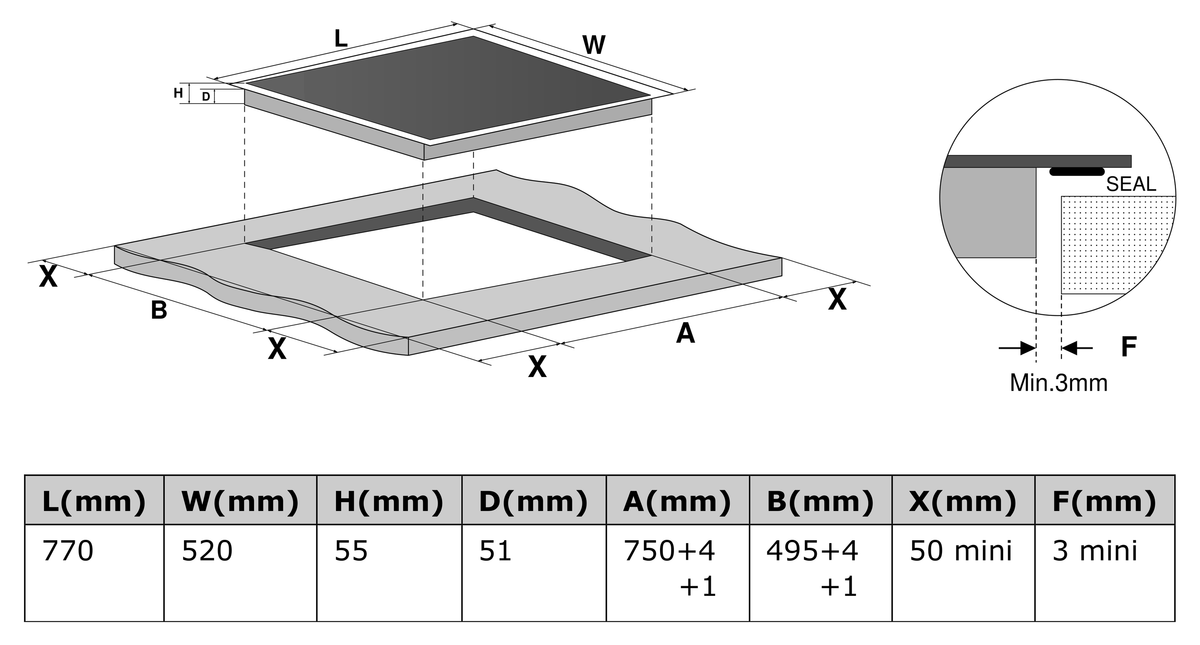

- Cut-Out (W x D): 750 x 495mm (+4/+1mm)
- Min. Worktop Thickness: 30mm

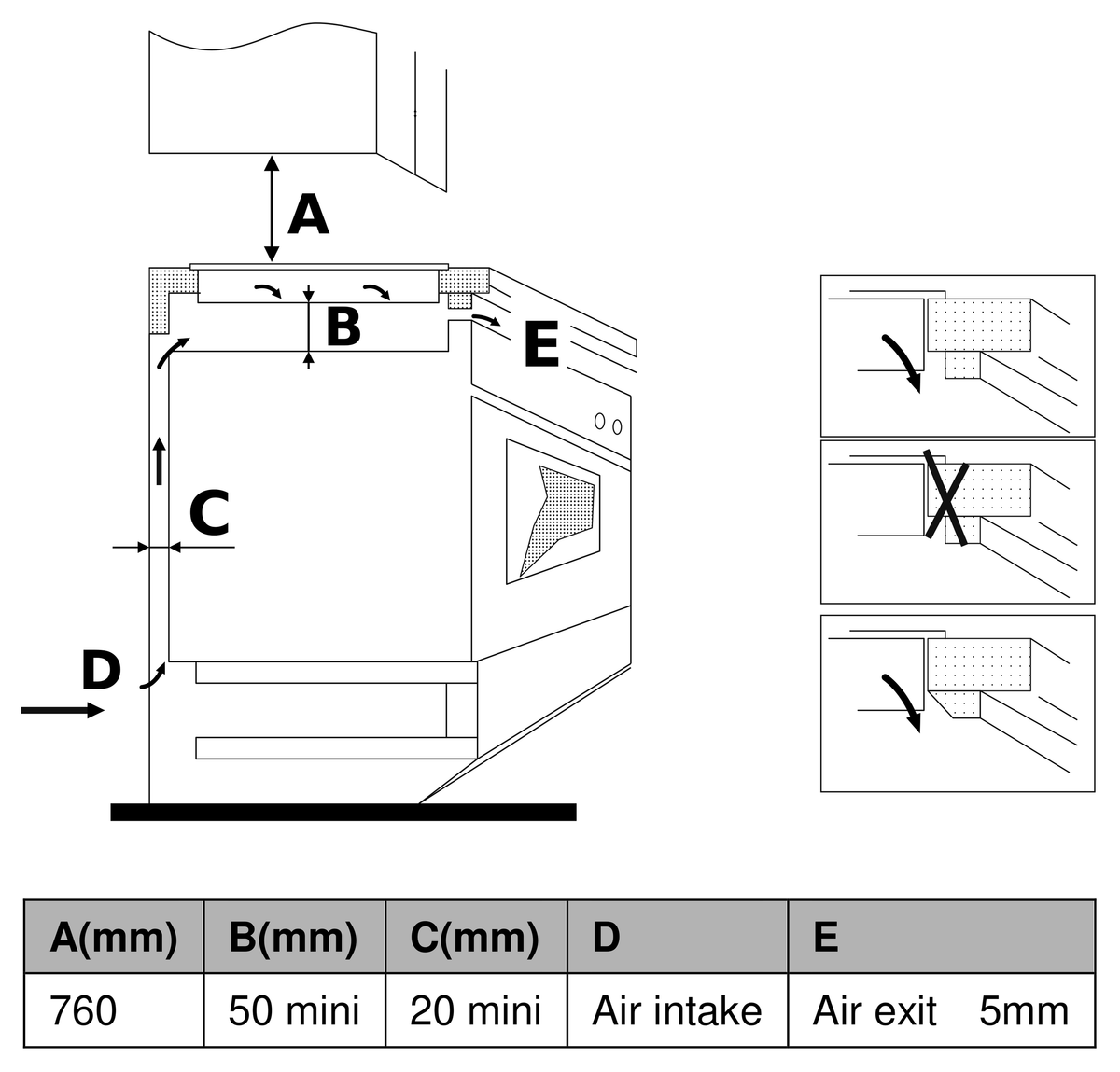

- Clearance Around Cut-Out: 50mm min.

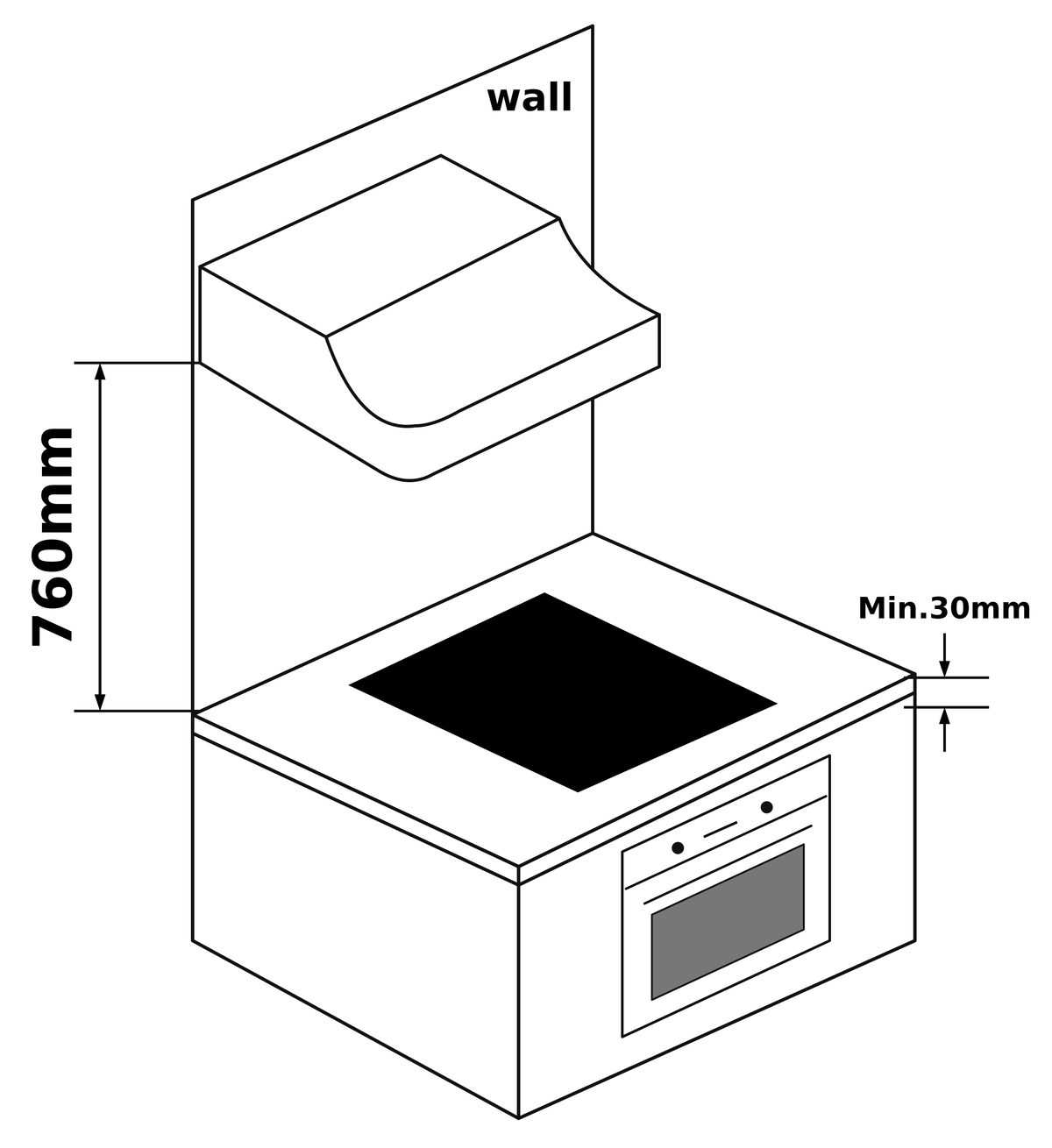

- Clearance to Cupboard Above: 760mm
