Casa 70cm Undermount Rangehood Stainless Steel UDMCA70
Check delivery cost to your area
The Casa UDMCA70 is a 70cm undermount rangehood that installs inside an overhead cabinet, leaving only the stainless steel frame visible. It fits a 677 x 259mm cut-out and has a rated airflow of 400m³/h through a 150mm duct outlet.
Five push buttons control the light and three fan speeds, and two 1.5W LED lights illuminate the cooktop. The dishwasher-safe aluminium grease filter is easy to remove and clean.
It can be ducted outside or run in recirculating mode with optional charcoal filters (not included). The manual lists 113W rated power and 67dB(A) noise, and specifies a minimum of 500mm above an electric hob or 650mm above a gas hob, with no more than four hob elements.
Key Functions & Features- 70cm undermount design with stainless steel frame
- 400m³/h airflow
- 3 fan speeds with push-button controls
- 2 x 1.5W LED lights
- 1 dishwasher-safe aluminium grease filter
- Ducted (Ø150mm) or recirculating with optional charcoal filters
- Cut-out 677 x 259mm
- Rated noise level of 67dB(A)
-
Height (mm)248 mm
-
Width (mm)700 mm
-
Depth (mm)284 mm
-
Cut Out Depth (mm)259
-
Cut Out Width (mm)677
-
Cut Out Height (mm)248
-
MpnUDMCA70
-
Model numberUDMCA70
-
ColourStainless Steel
-
Optional accessories✓ Carbon Filter - CM150
-
Lights2 × LED lights
-
LightingLED
-
Size range70cm to 86cm
-
Features✓ 70cm undermount design with stainless steel frame ✓ 400m³/h airflow with three fan speeds ✓ Simple push-button controls ✓ Twin 1.5W LED lights ✓ 1 dishwasher-safe aluminium grease filter ✓ Ducted or recirculating with optional charcoal filters
-
Manufacturer warranty2 Years
-
InstallationUndermount
-
More SpecsGeneral
- Model: UDMCA70
- Type: 70cm Undermount Rangehood
- Finish: Stainless steel frame
- Controls: 5 push buttons (light, high, mid, low, stop)
- Speed Settings: 3
- Airflow: 400m³/h
- Noise: 67dB(A)
- Grease Filters: 1 × aluminium, dishwasher-safe below 60°C
- Charcoal Filters: Optional (not included)
- Venting: Ducted or recirculating
- Rated Voltage: 220–240V~
- Frequency: 50Hz
- Rated Power: 113W
- Motor Power: 110W
- Lighting: 2 × 1.5W LED (DC 12V)

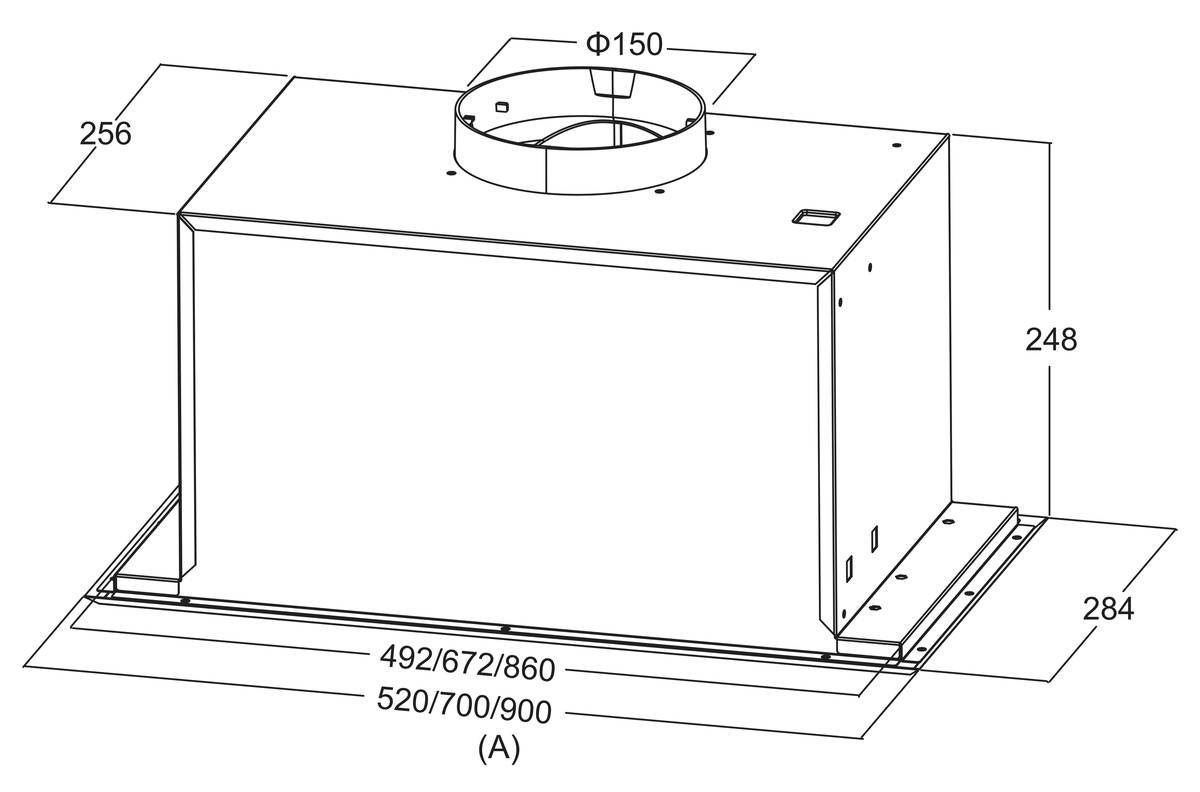

- Frame (W x D): 700 x 284mm
- Body (W x D x H): 672 x 256 x 248mm
- Duct Outlet: Ø150mm

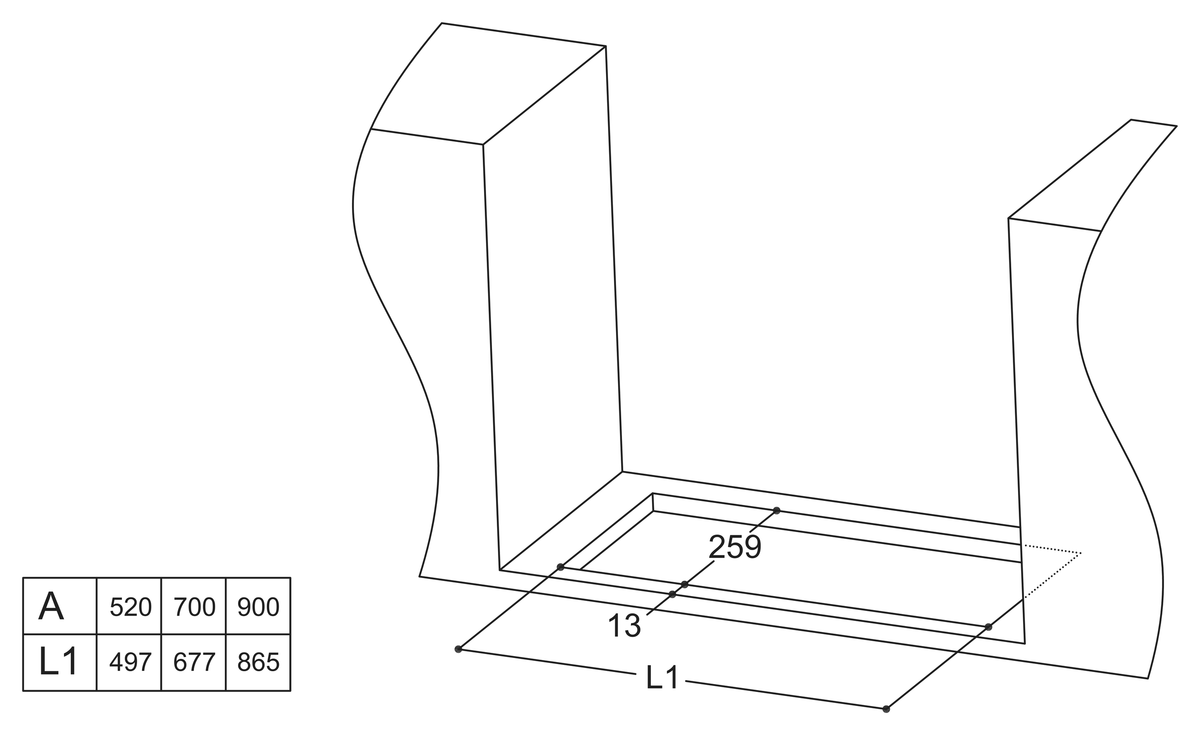

- Cut-Out (W x D): 677 x 259mm

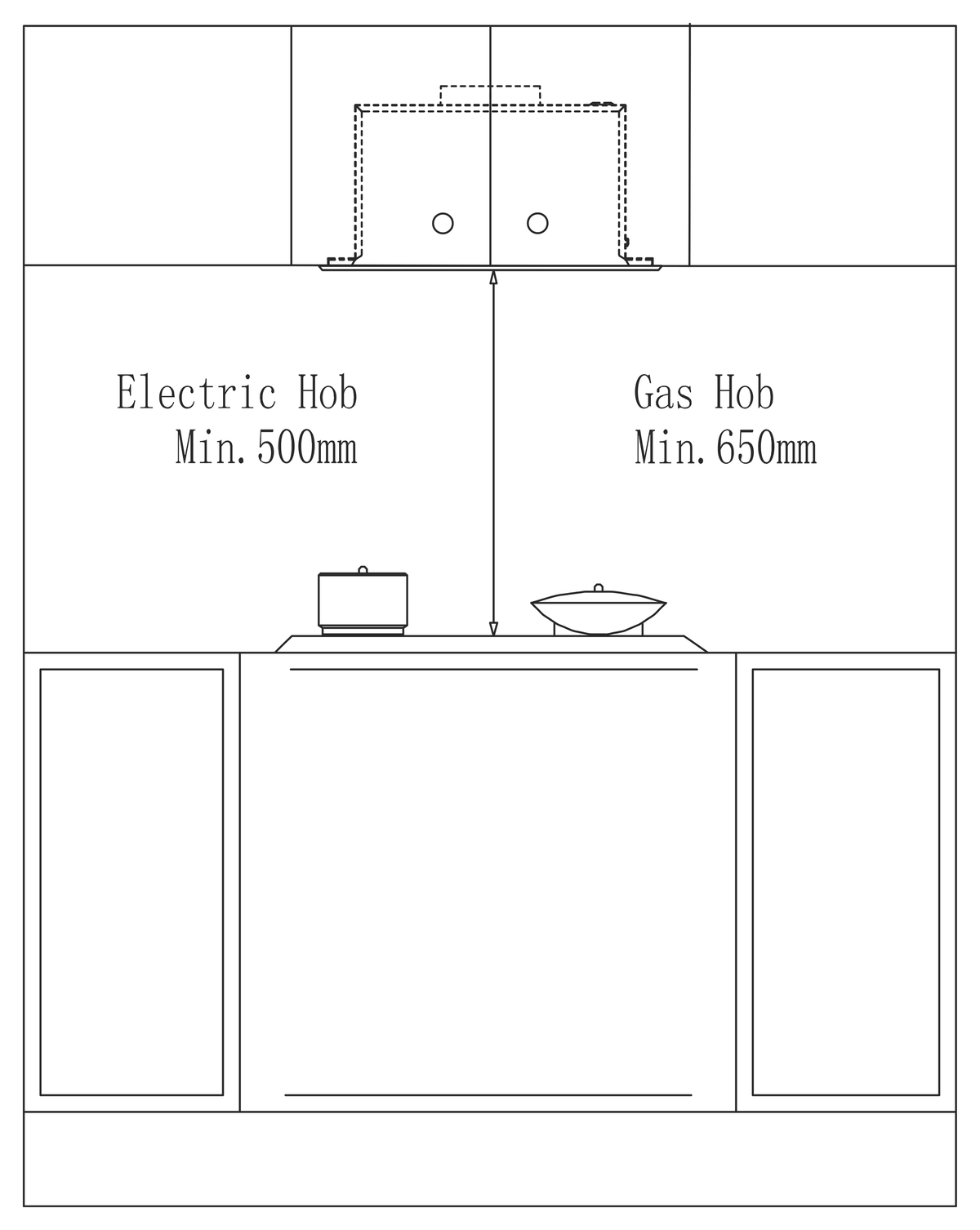

- Min. Height Above Hob: Electric 500mm, gas 650mm
- Hob Limit: No more than four hob elements
