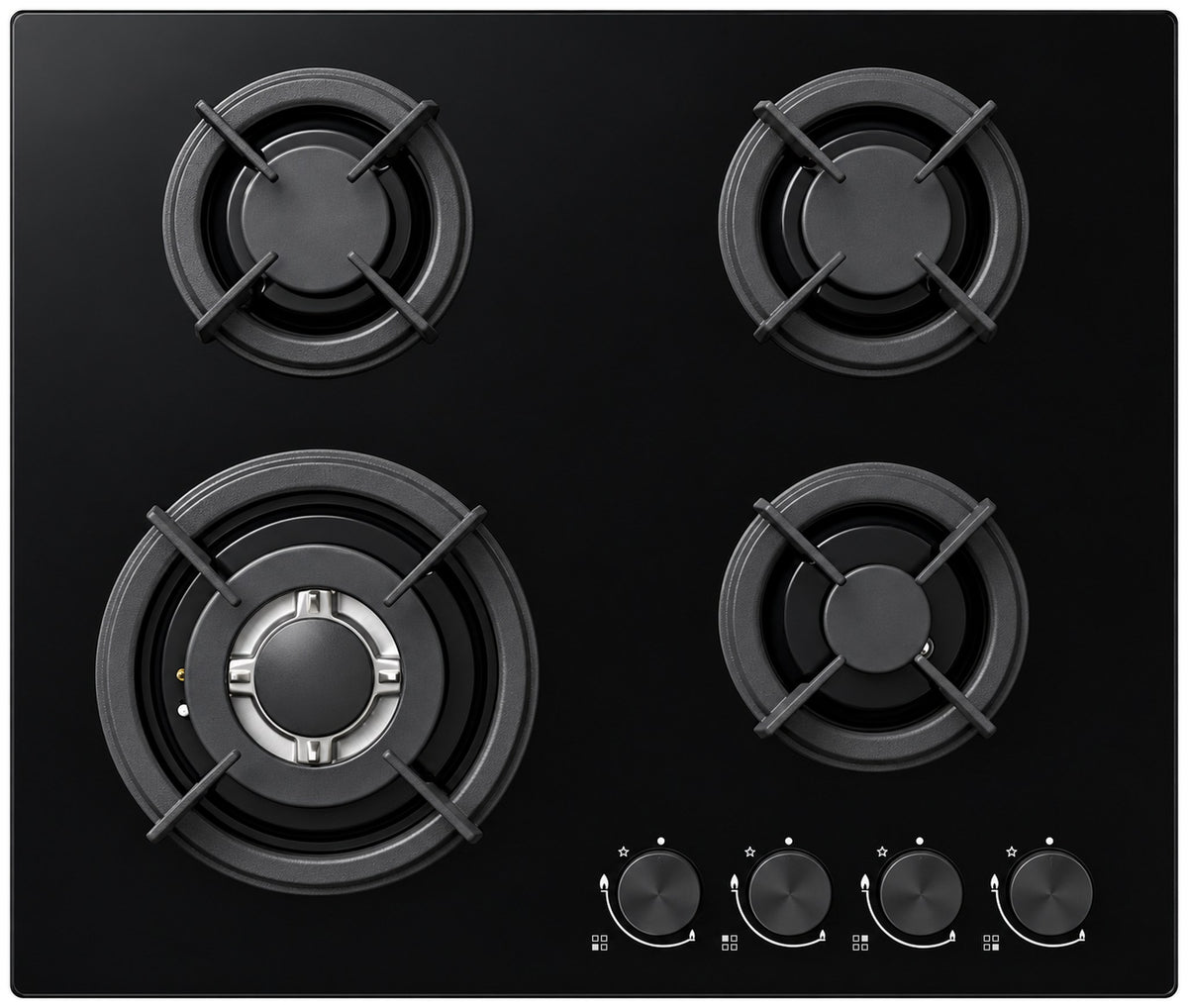

Casa 60cm Gas on Glass 4 Burners Cooktop GHB160CA

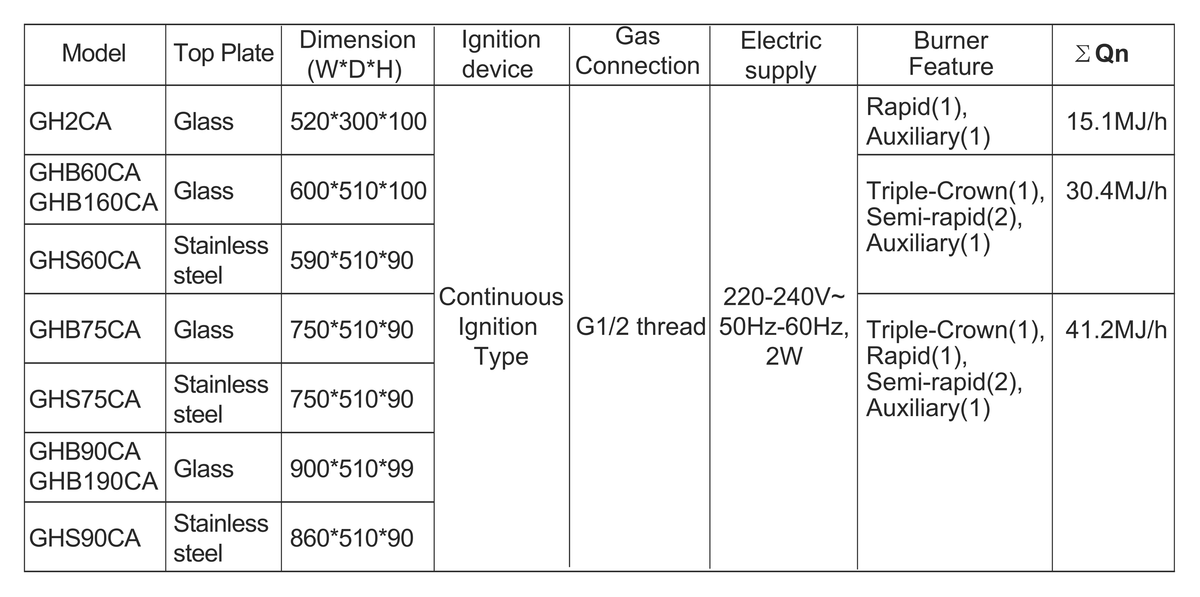

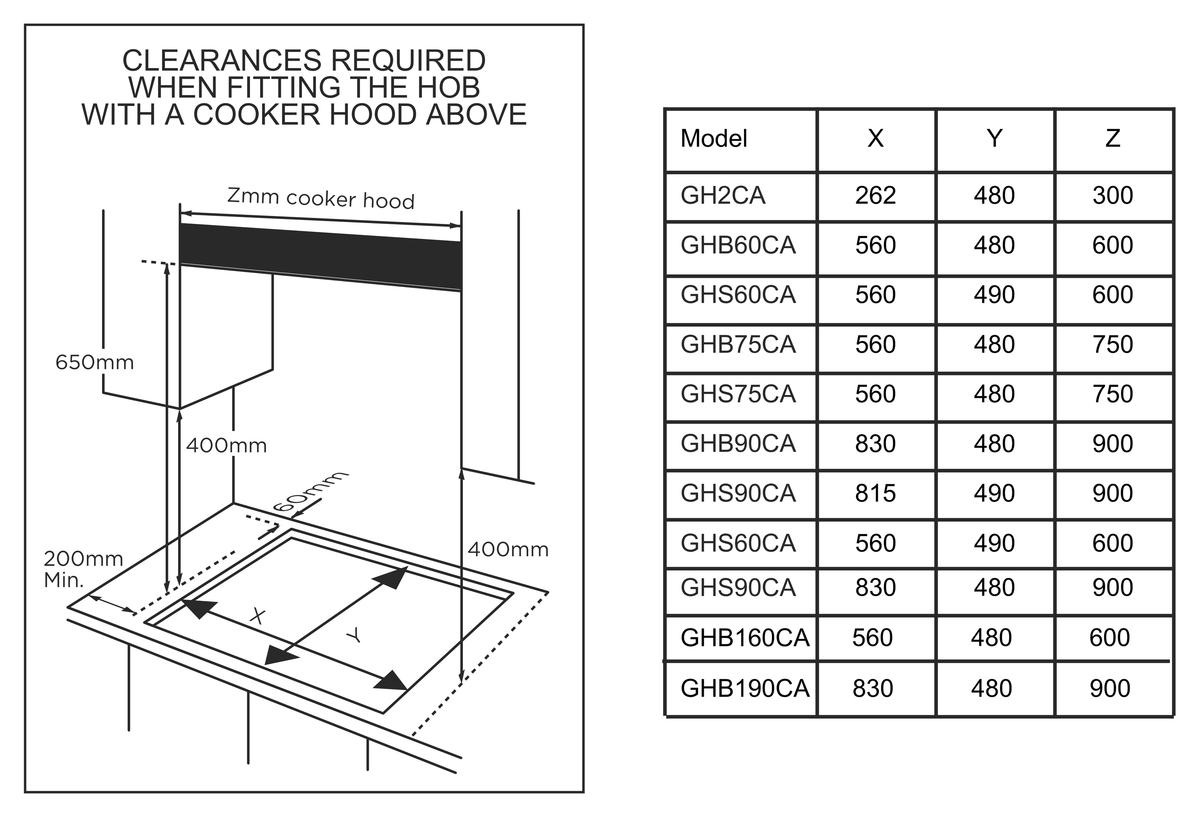

The Casa GHB160CA is a 60cm gas on glass cooktop with four burners: a 13.5 MJ/h triple-crown wok burner, two 6.3 MJ/h semi-rapid burners and a 4.3 MJ/h auxiliary burner, for a total gas input of 30.4 MJ/h. It measures 600 x 510 x 100mm (W x D x H) and fits a 560 x 480mm benchtop cut-out.

Every burner has automatic electronic ignition and a flame failure device, which shuts off the gas if the flame goes out. To light a burner, press in and turn the knob, then keep it held in for 15 seconds once the flame has lit.

It suits natural gas (1.0 kPa) or Universal LPG (2.75 kPa), and comes with a gas regulator, a pressure test point and 4 injectors. The ignition runs from a power cord with a 10A plug, and the cooktop must be installed by a licensed gas fitter.

• 13.5 MJ/h (≈3.75 kW) triple-crown wok burner
• Two semi-rapid burners and one auxiliary burner
• Total gas input of 30.4 MJ/h
• Black glass top
• Automatic electronic ignition
• Flame failure device on every burner
• Natural gas or Universal LPG, with injectors and gas regulator supplied
• Fits a 560 x 480mm benchtop cut-out
