Casa 52cm Undermount Rangehood Black UDMCAD52GB
Check delivery cost to your area
The Casa UDMCAD52GB is a 52cm undermount rangehood with a black glass panel, made to be built into an overhead cabinet so only the glass face shows. It fits a 500mm wide cabinet opening.
A 4-key touch control with digital speed display sets the fan speed and light. Pressing − and + together starts a 5-minute delay-off. Two 1.5W LED lights illuminate the cooktop, and the aluminium grease filters can go in the dishwasher (max. 65°C).
It can be ducted with 150mm ducting using the one-way valve, or 120mm ducting with the damper and converter, or run in recirculating mode with carbon filters. The manual recommends mounting 650–750mm above the cooktop, over a hob with no more than four elements.
Key Functions & Features- 52cm undermount design with black glass panel
- 4-key touch control with digital speed display
- 5-minute delay-off function
- 2 x 1.5W LED lights
- Dishwasher-safe aluminium grease filters
- Ducted (150mm, or 120mm with converter) or recirculating
- Cut-out width 500mm
-
Height (mm)275 mm
-
Width (mm)520 mm
-
Depth (mm)285 mm
-
MpnUDMCAD52GB
-
Model numberUDMCAD52GB
-
ColourBlack
-
Lights1.5W × 2
-
Size range52cm to 53cm
-
Features✓ 52cm undermount design with black glass panel ✓ 4-key touch control with digital display ✓ 5-minute delay-off for after cooking ✓ Twin 1.5W LED lights ✓ Dishwasher-safe aluminium grease filters ✓ Ducted (150mm or 120mm) or recirculating
-
Manufacturer warranty2 Years
-
InstallationUndermount
-
More SpecsGeneral
- Model: UDMCAD52GB
- Type: 52cm Undermount Rangehood
- Finish: Black glass panel
- Controls: 4-key touch with digital display
- Delay-Off: 5 minutes
- Grease Filters: Aluminium, dishwasher-safe (max. 65°C)
- Carbon Filters: For recirculation (replace about every 3 months)
- Venting: Ducted or recirculating
- Lamps: 2 × 1.5W LED (DC 12V)
- Cut-Out Width: 500mm

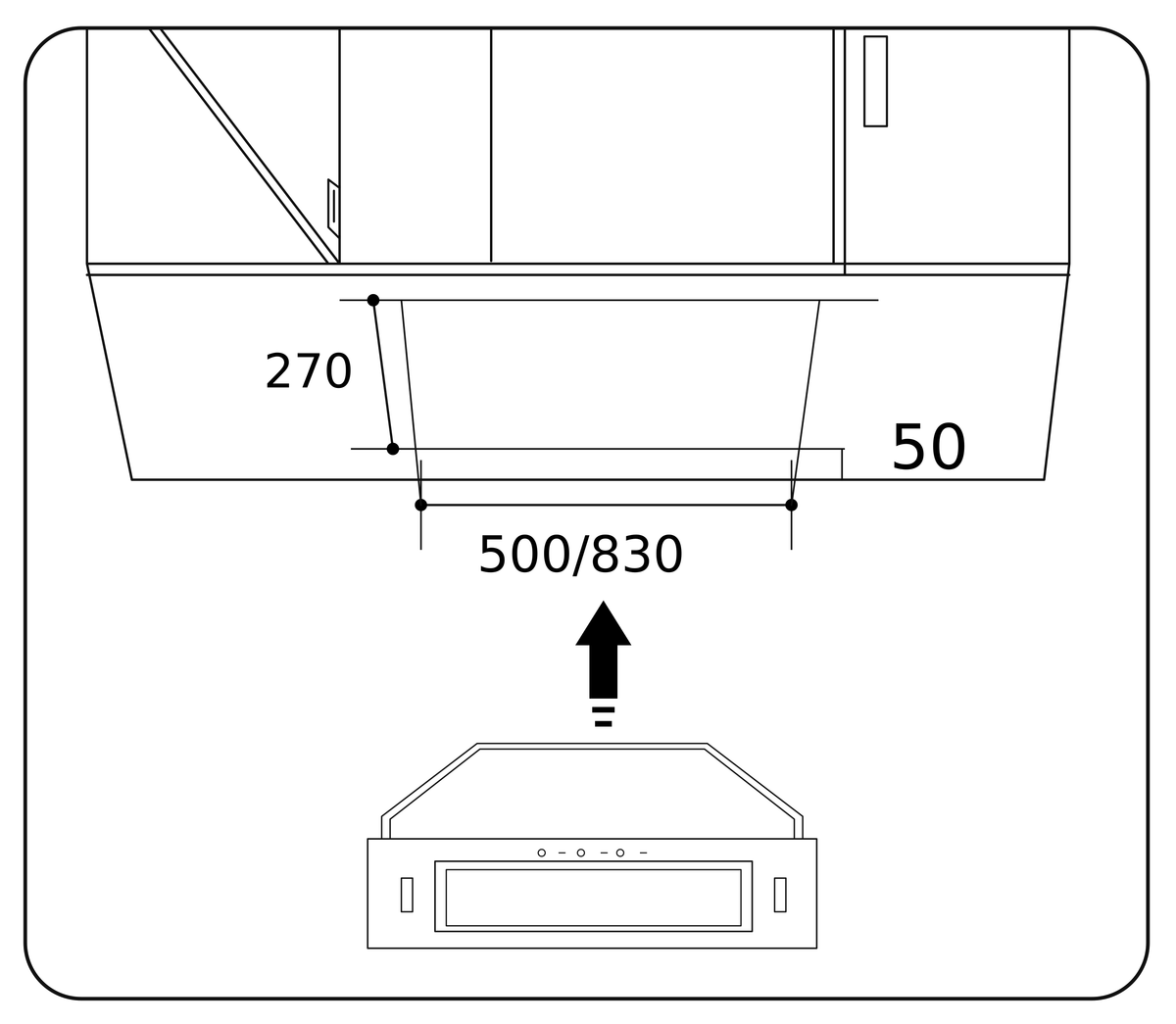

- Cabinet: Min. 270mm, with 50mm at each end of the opening

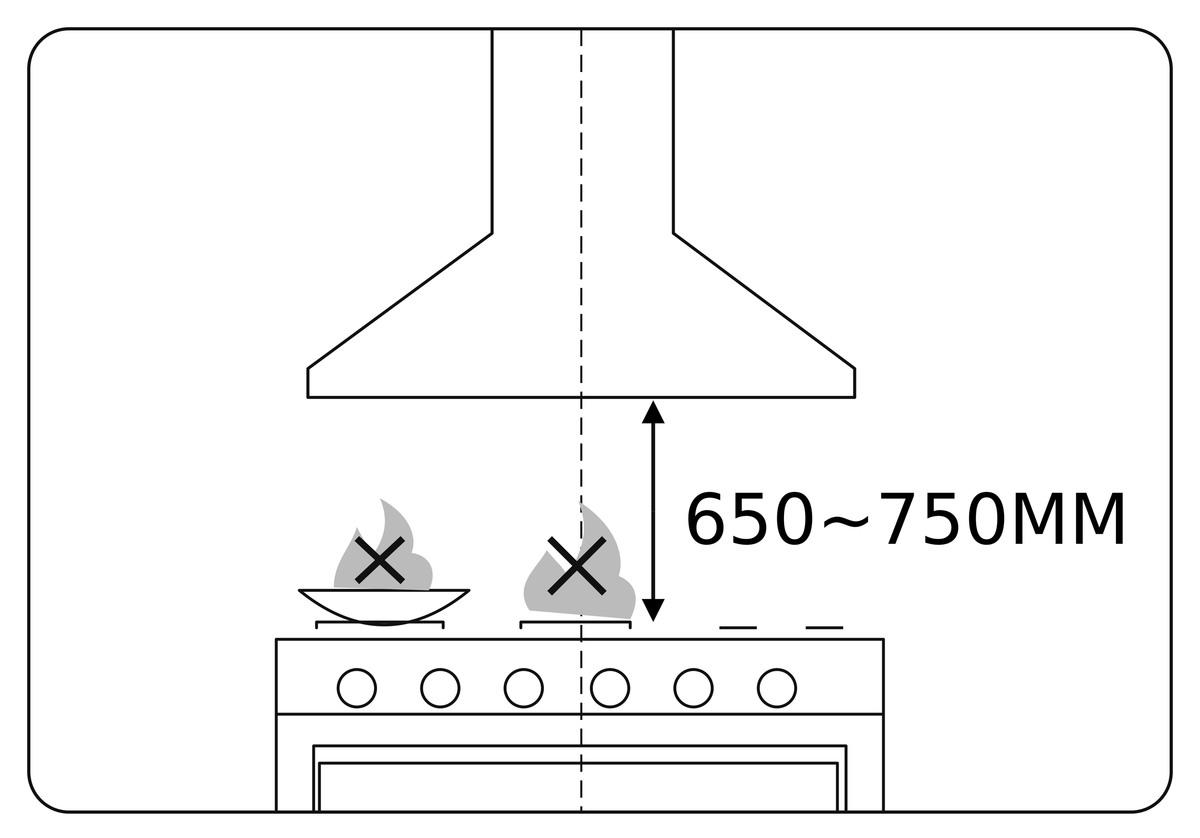

- Height Above Cooktop: 650–750mm
- Hob Limit: No more than four hob elements
- Duct: 150mm (one-way valve) or 120mm (damper and converter)
