Casa 4 Burner Built-In Gas BBQ Grill Stainless Steel 4CBBQSS
Check delivery cost to your area

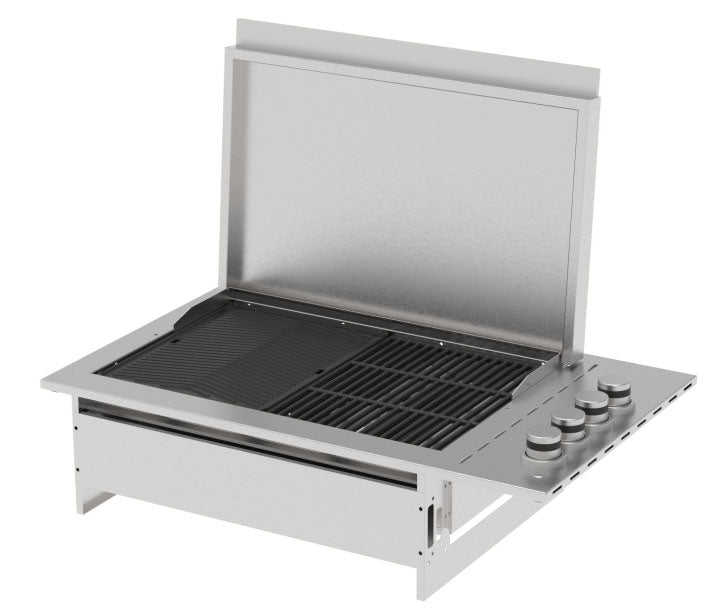

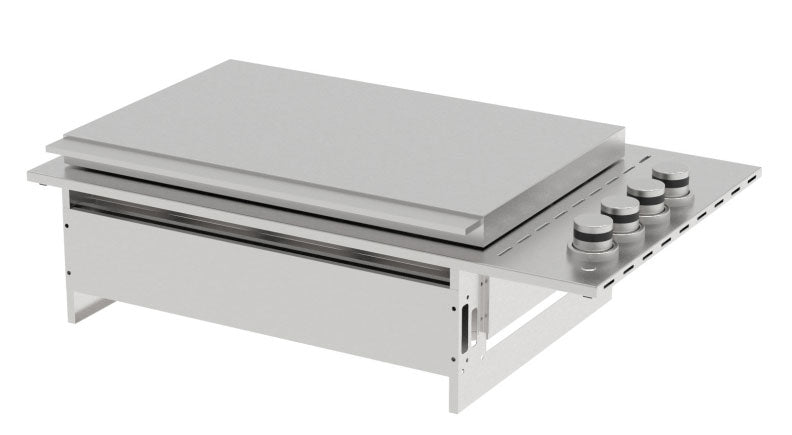

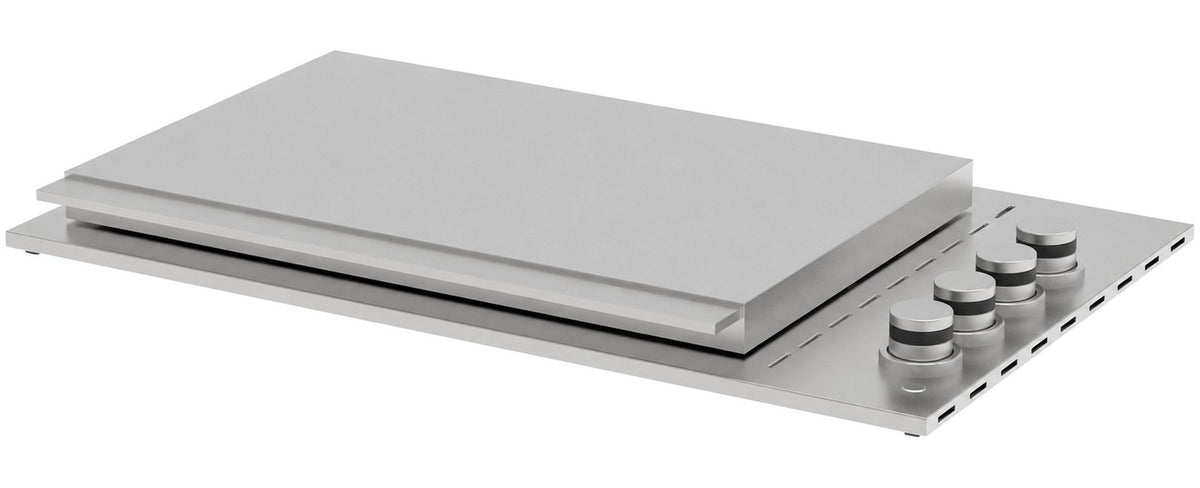

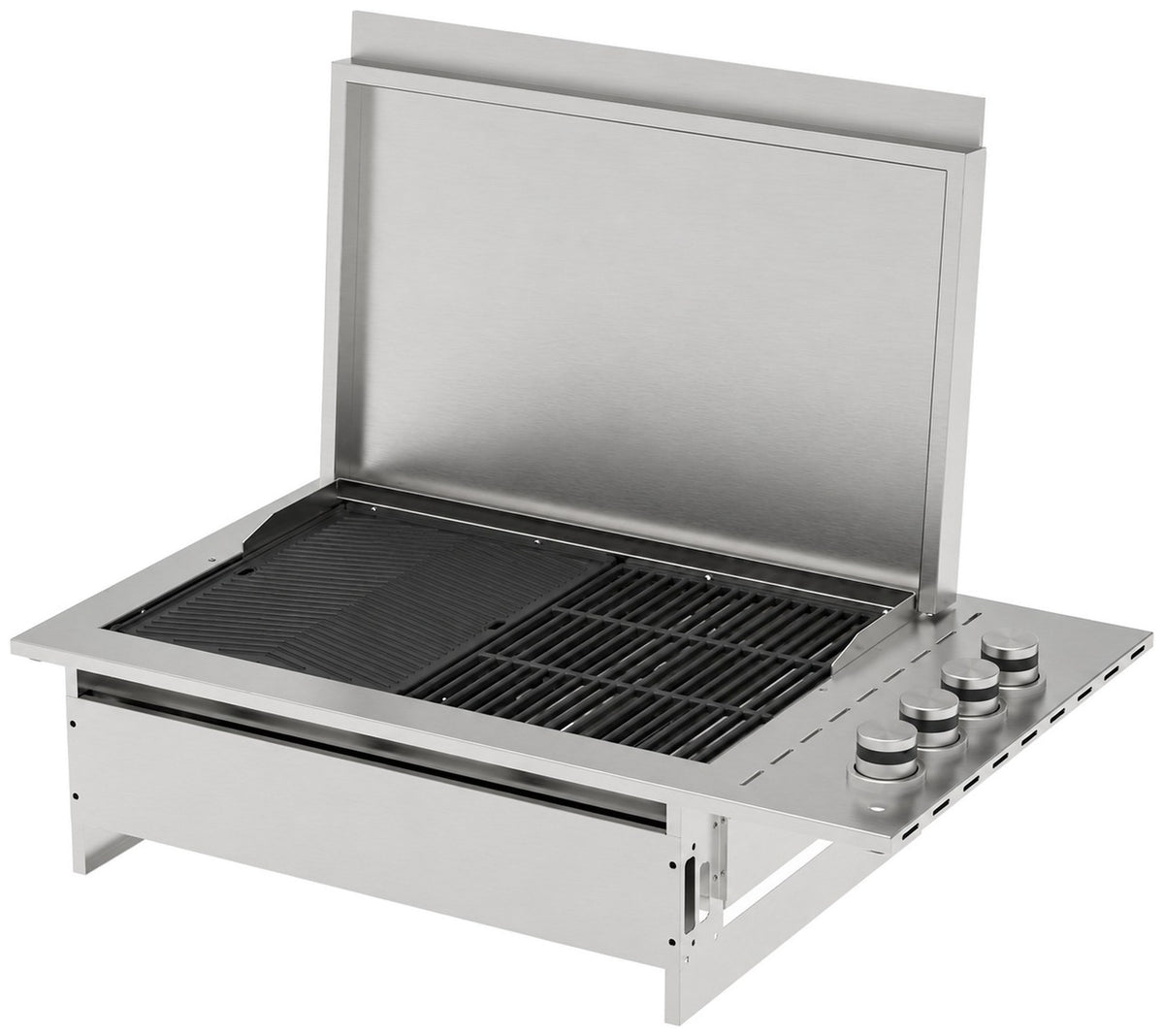

The 4CBBQSS Built-In Gas BBQ Grill delivers premium outdoor cooking performance with durable SUS304 stainless steel construction and four powerful stainless steel tube burners. It cooks across a double-sided cast iron plate and a cast iron grill grid, with individual burner controls for multi-zone cooking. A brushed stainless steel finish, sleek flat lid, illuminated zinc alloy control knobs and removable front-access fat tray make it the perfect addition to any modern outdoor entertaining area. Supplied ready for LPG and convertible to Natural Gas.
- Premium SUS304 stainless steel construction
- Four stainless steel tube burners (48MJ/h total on LPG)
- Double-sided cast iron cooking plate
- Cast iron cooking grid
- Brushed stainless steel finish
- Illuminated control knobs with on/off switch
- Push-button ignition with thermocouple flame failure safety
- Removable front-access fat tray
- Supplied for LPG, convertible to Natural Gas
- Australian gas hose and regulator included

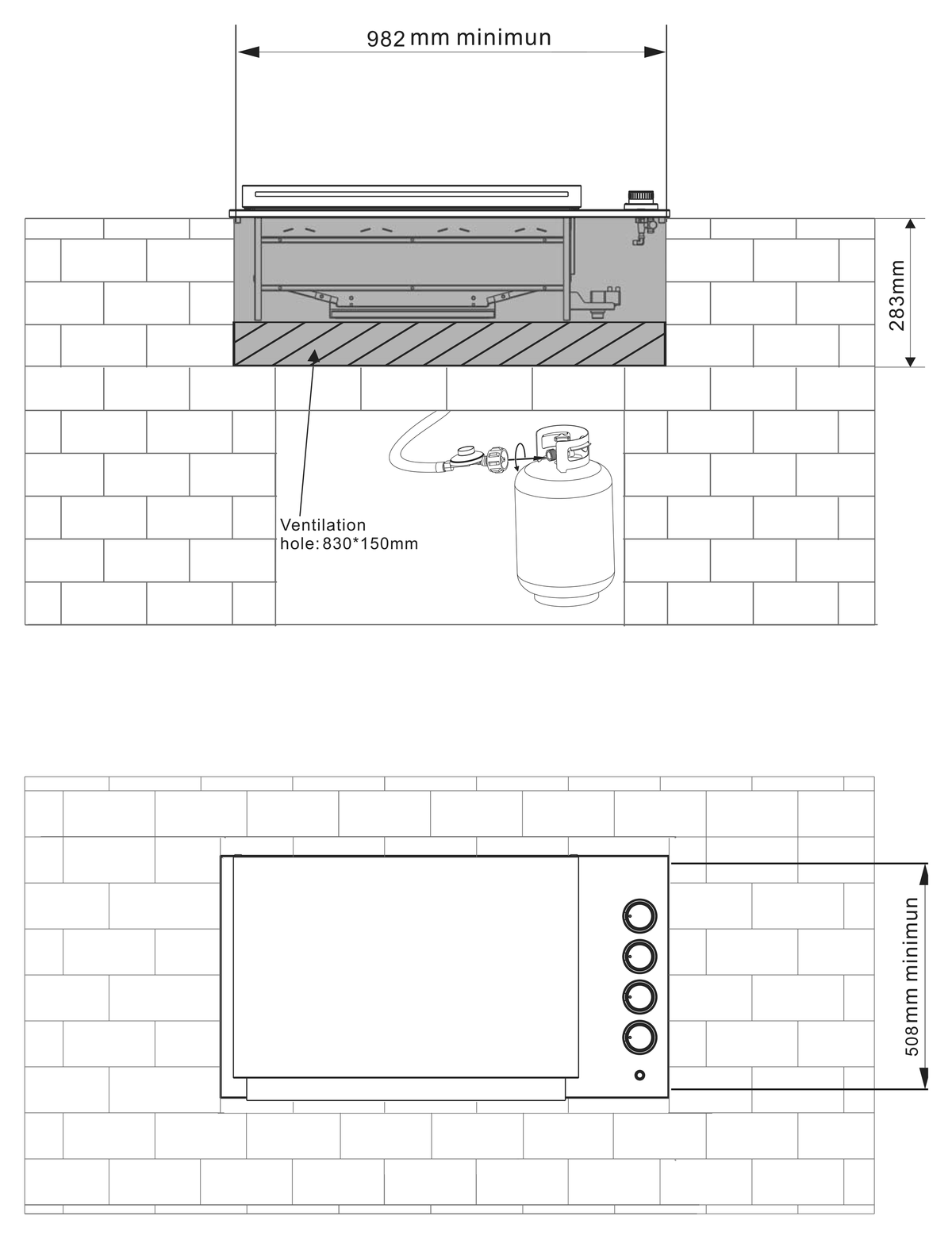

Please note: Outdoor use only. Must be installed by a licensed gasfitter on fire-resistant material. Minimum cabinet cut-out 982 x 508mm (W x D), 283mm deep, with an 830 x 150mm ventilation opening and access below for removing the fat tray. A 240V power outlet is required for the knob lights. Ignition requires 1 x AA battery (not included).
-
Height (mm)306 mm
-
Width (mm)1000 mm
-
Depth (mm)545 mm
-
Mpn4CBBQSS
-
Model number4CBBQSS
-
ColourBrushed Stainless Steel
-
Features✓ Four powerful gas burners ✓ Double-sided cast iron plate ✓ Cast iron grill grid ✓ Illuminated control knobs ✓ Brushed stainless finish ✓ LPG & NG compatible ✓ Removable fat tray
-
Manufacturer warranty2 Years
-
InstallationStandard
-
More SpecsGeneral
- Product Type: Built-In Gas BBQ Grill
- Model: 4CBBQSS
- Finish: Brushed Stainless Steel
- Main Burners: 4
- Installation: Built-In, Outdoor Use Only
- Firebox: SUS304 Stainless Steel
- Lid: Flat Lid, SUS304 Stainless Steel
- Lid Inner: SUS304 Stainless Steel
- Control Panel: SUS304 Stainless Steel
- Main Burners: 4 x SUS304 Stainless Steel Tube Burners
- Cooking Plate: Double-Sided Cast Iron
- Cooking Grid: Cast Iron
- Flame Tamers: 4 x SUS304 Stainless Steel
- Lid Handle: Aluminium
- Control Knobs: Illuminated, Silver Zinc Alloy with Black Rubber Ring
- Knob Bezels: Stainless Steel
- Fat Tray: SUS304 Stainless Steel, Removable from Front
- Gas Type: Supplied for Universal LPG, Convertible to Natural Gas
- LPG Heat Input: 12MJ/h Per Burner (48MJ/h Total)
- Natural Gas Heat Input: 11MJ/h Per Burner (44MJ/h Total)
- Gas Pressure: 2.75kPa ULPG / 1.0kPa NG
- Injector Size: 0.98mm LPG / 1.50mm NG
- Ignition: Push-Button Electronic Ignition (1 x AA Battery, Not Included)
- Flame Failure Protection: Thermocouple
- Gas Cylinder: Up to 9kg (AS 2469)
- Australian Gas Hose & Regulator: Included
- Natural Gas Conversion: By Licensed Gasfitter (Nut Driver Supplied)
- Knob Lights: 12V AC Adaptor Included
- Power Requirement: 240V Power Outlet
- AC Adaptor: Input 230-240V 50Hz, Output 12V 5000mA
- Power Cord: 250V, 10A
- Minimum Cut-Out (W x D): 982 x 508mm
- Cavity Depth Below Benchtop: 283mm
- Ventilation Opening: 830 x 150mm
- Fat Tray Access: Required Below the BBQ
- Mounting Surface: Fire-Resistant Material Only
- Clearance Above to Combustible Surface: 1500mm
- Clearance Above to Non-Combustible Surface: 600mm
- Clearance Above to Rangehood Grease Filter: 1200mm
- Clearance to Combustible Wall: 250mm Back / 350mm Side
- Cooking Area: 700 x 450mm

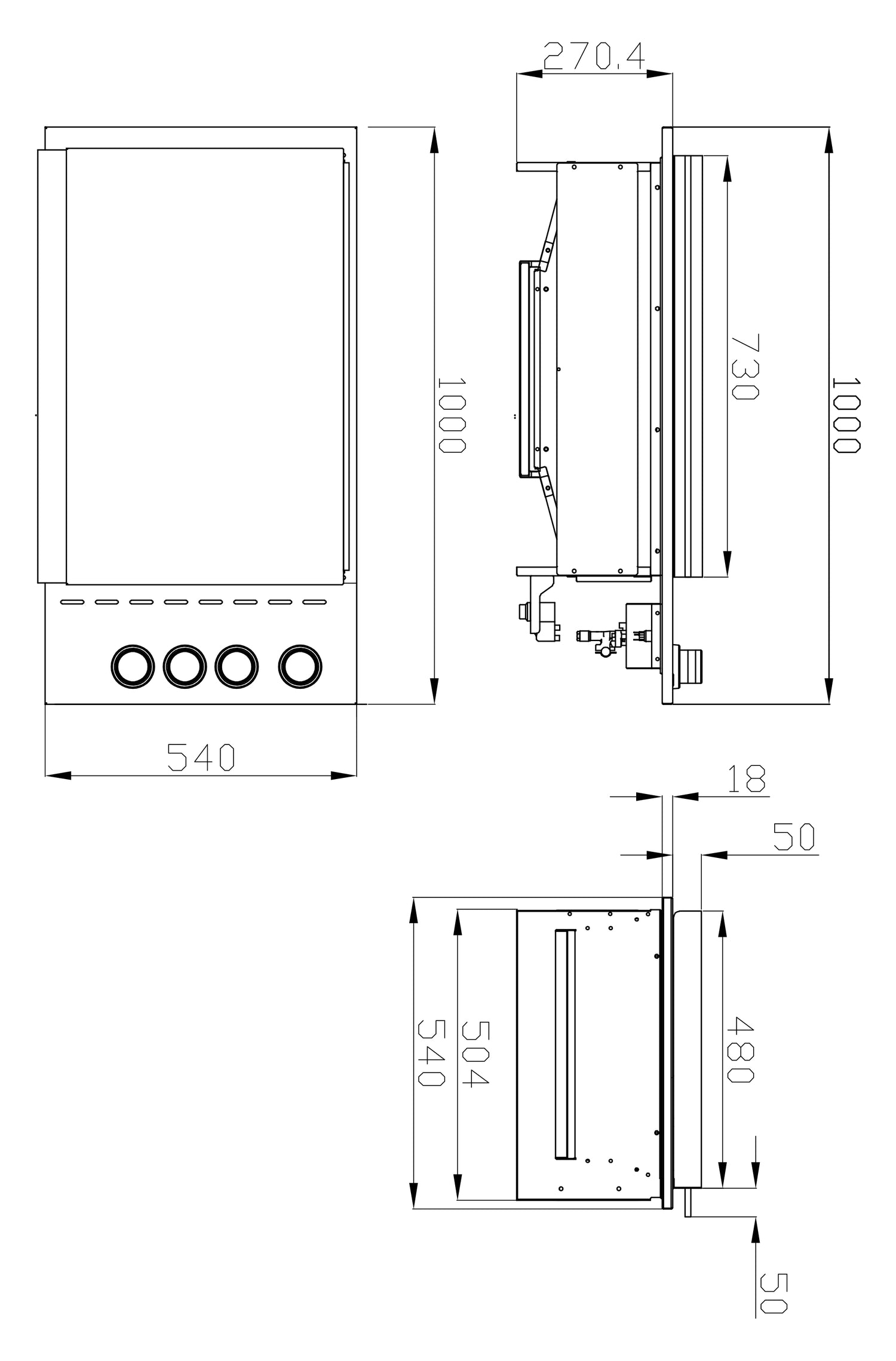

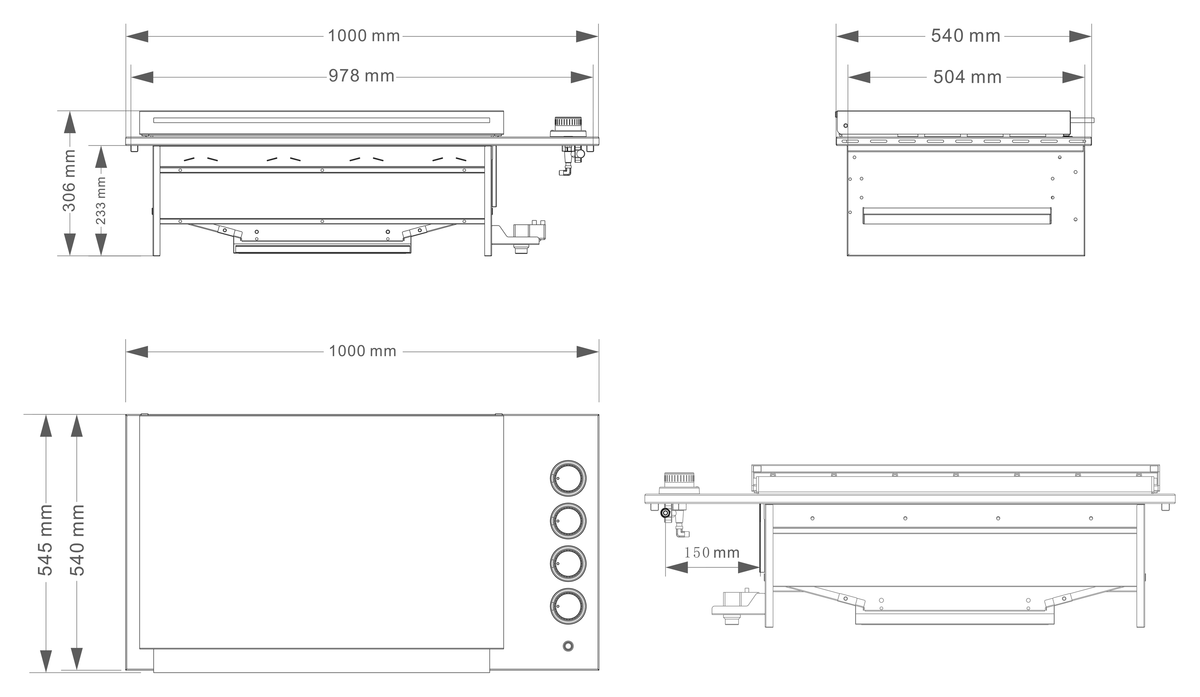

- Product Dimensions (W x D x H): 1000 x 545 x 306mm
- Depth Excluding Lid Handle: 540mm
- Under-Bench Body (W x D): 978 x 504mm
- Height Below Top Panel: 233mm
