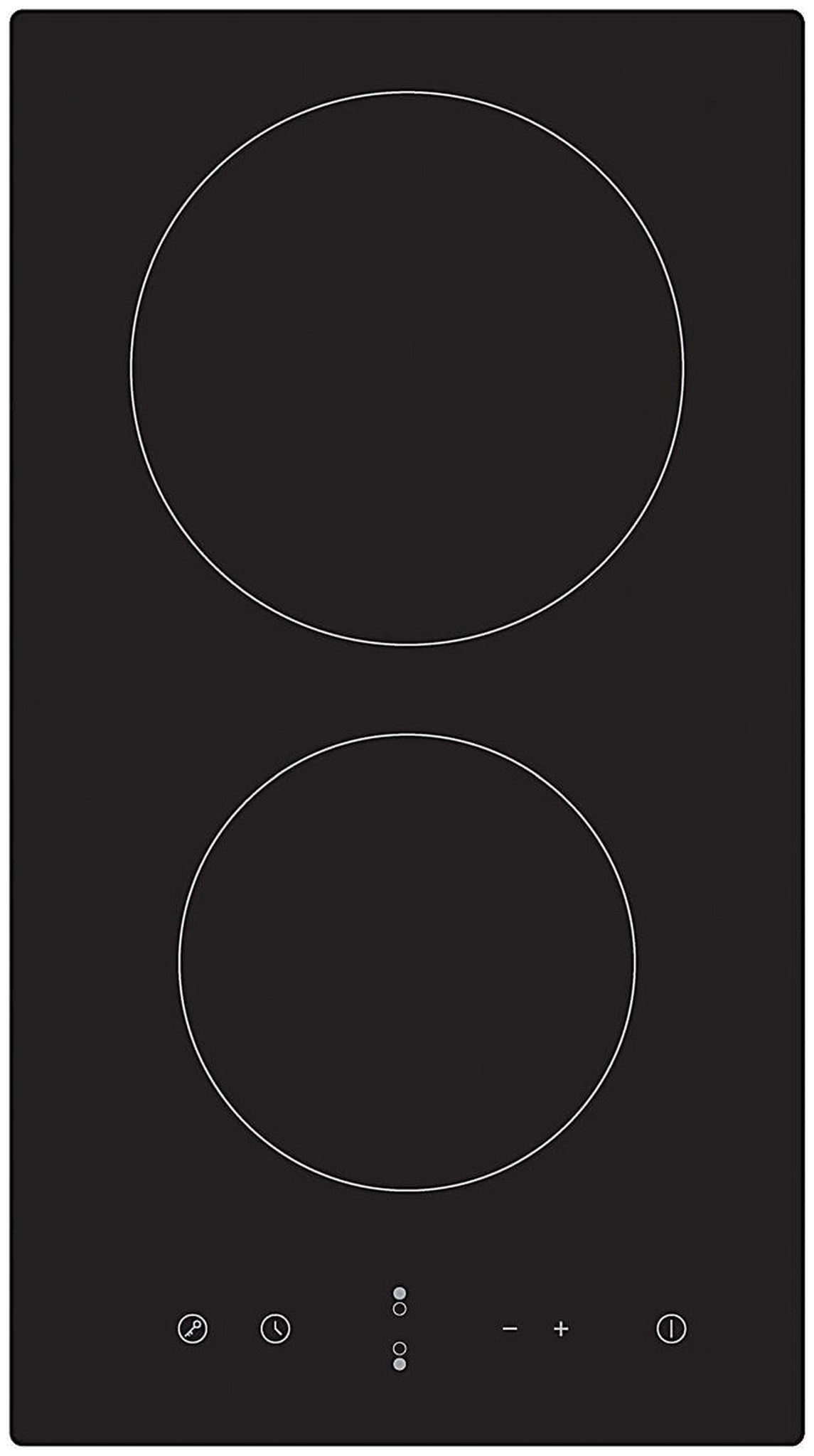

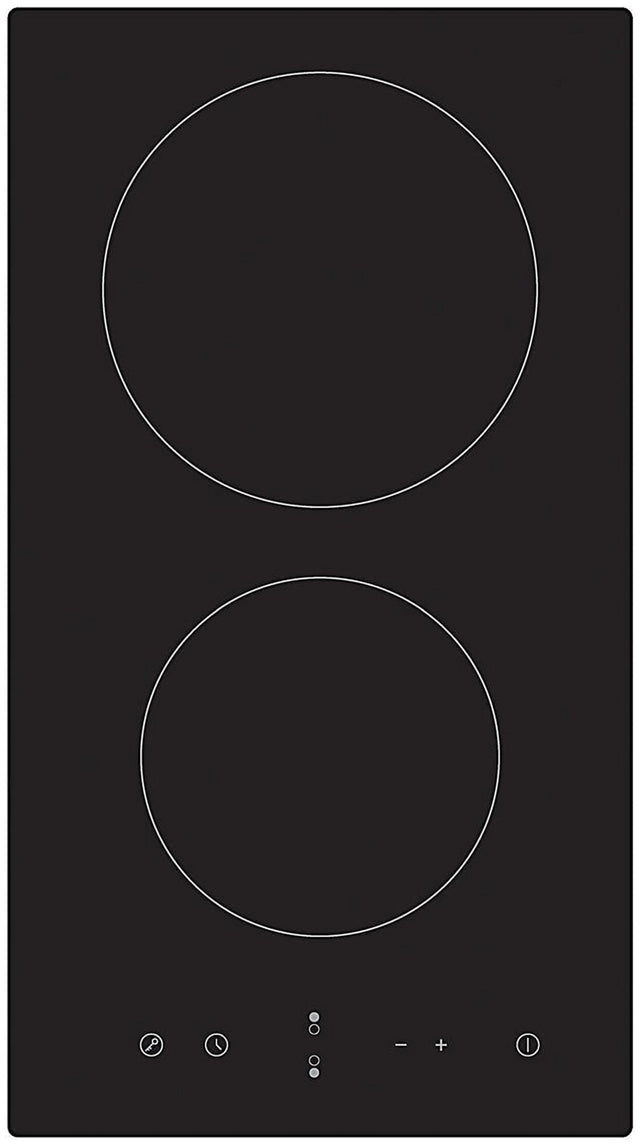

Casa 30cm 2 Zone Black Ceramic Glass Electric Cooktop CA30FEG
Check delivery cost to your area
The Casa CA30FEG is a 30cm domino ceramic cooktop with two radiant cooking zones: a 200mm, 1800W zone at the rear and a 165mm, 1200W zone at the front. At just 288mm wide, it suits smaller kitchens and compact benchtops.
Touch controls give each zone nine power levels. The 99-minute timer can switch a zone off automatically when the time is up, or run on its own as a minute minder.
The key lock prevents unwanted changes, and the residual heat indicator shows "H" while a zone is still hot. Automatic shut-off and over-temperature protection add peace of mind. It runs on a 220–240V single-phase supply and must be hard-wired by a licensed electrician.
Key Functions & Features- Compact 30cm domino design, 288mm wide
- 2 ceramic zones: 1800W rear and 1200W front
- Touch controls with 9 power levels per zone
- 99-minute timer with zone auto-off or minute minder
- Key lock (child lock)
- Residual heat indicator
- Automatic safety shut-off and over-temperature protection
- 220–240V single-phase supply, hard-wired
-
Height (mm)55 mm
-
Width (mm)288 mm
-
Depth (mm)520 mm
-
Cut Out Depth (mm)490
-
Cut Out Width (mm)268
-
MpnCA30FEG
-
Model numberCA30FEG
-
ColourBlack
-
MaterialCeramic Glass
-
Cooking zones2
-
Product fuelElectric
-
Size range30cm to 40cm
-
Features✓ 2 ceramic zones: 1800W rear and 1200W front ✓ Compact 30cm domino design, 288mm wide ✓ Touch controls with 9 power levels ✓ 99-minute timer with auto-off and minute minder ✓ Key lock to prevent unwanted changes ✓ Residual heat indicator on each zone ✓ Automatic shut-off and over-temperature protection
-
Manufacturer warranty2 Years
-
InstallationBuilt-In
-
More SpecsGeneral
- Model: CA30FEG
- Type: 30cm Domino Ceramic Electric Cooktop
- Colour: Black ceramic glass
- Cooking Zones: 2
- Controls: Touch – on/off, zone select, –/+, timer, key lock
- Power Levels: 1–9
- Rear Zone: Ø200mm, 1800W
- Front Zone: Ø165mm, 1200W
- Timer: Up to 99 minutes – zone auto-off or minute minder
- Child Lock: Yes (key lock)
- Residual Heat Indicator: Yes ("H")
- Automatic Shut-Off: 8h (levels 1-3), 4h (4-6), 2h (7-9)
- Over-Temperature Protection: Yes
- Supply: 220–240V~ 50/60Hz, single phase
- Installed Power: 2700–3300W
- Max. Current: 12.5A
- Connection: Hard-wired via all-pole isolator (3mm gap)
- Max. Supply Impedance: 0.427Ω
- Product Dimensions (W x D x H): 288 x 520 x 55mm

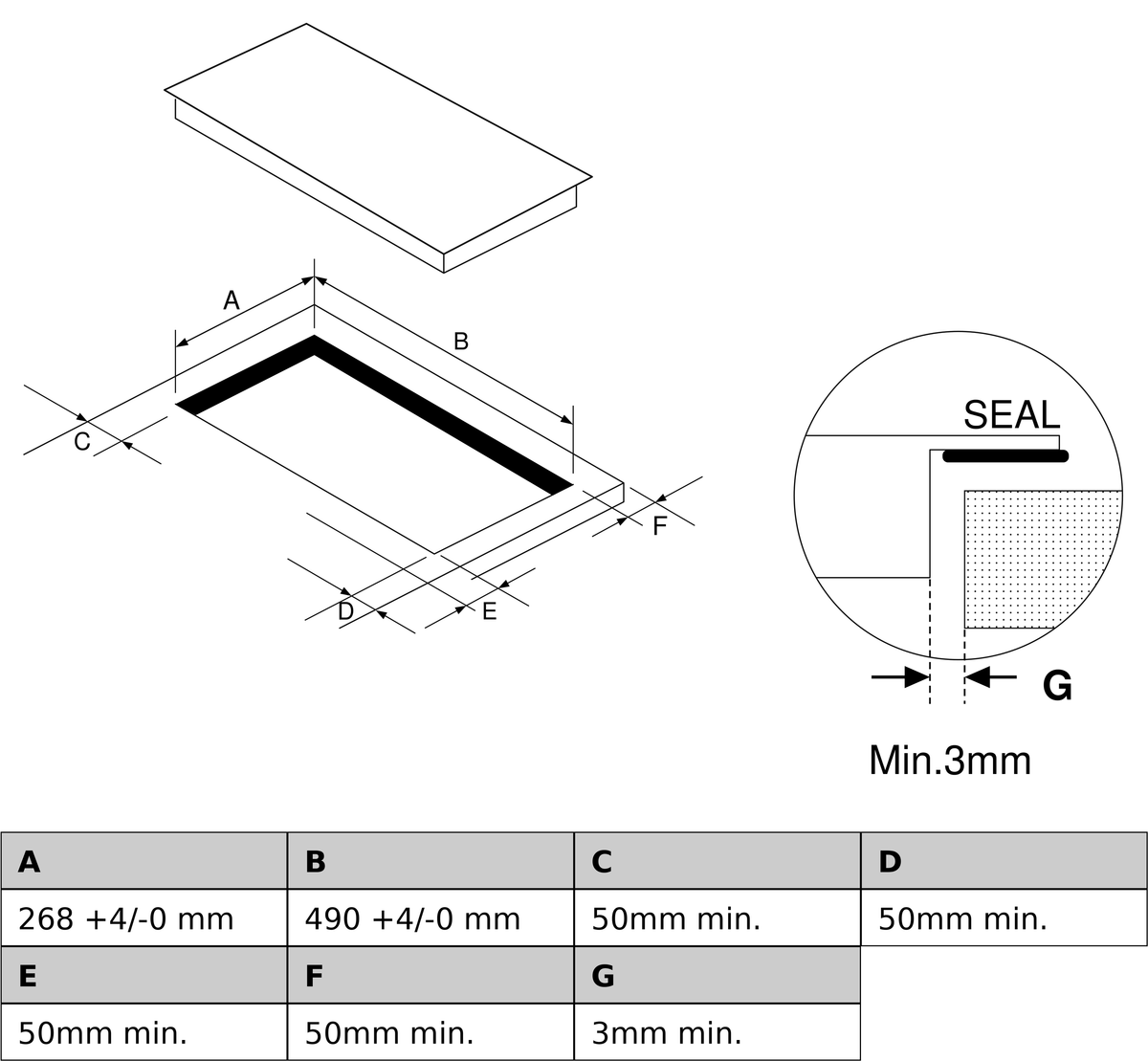

- Cut-Out (W x D): 268 x 490mm (+4/-0mm)
- Min. Worktop Thickness: 30mm
- Clearance Around Cut-Out: 50mm min.

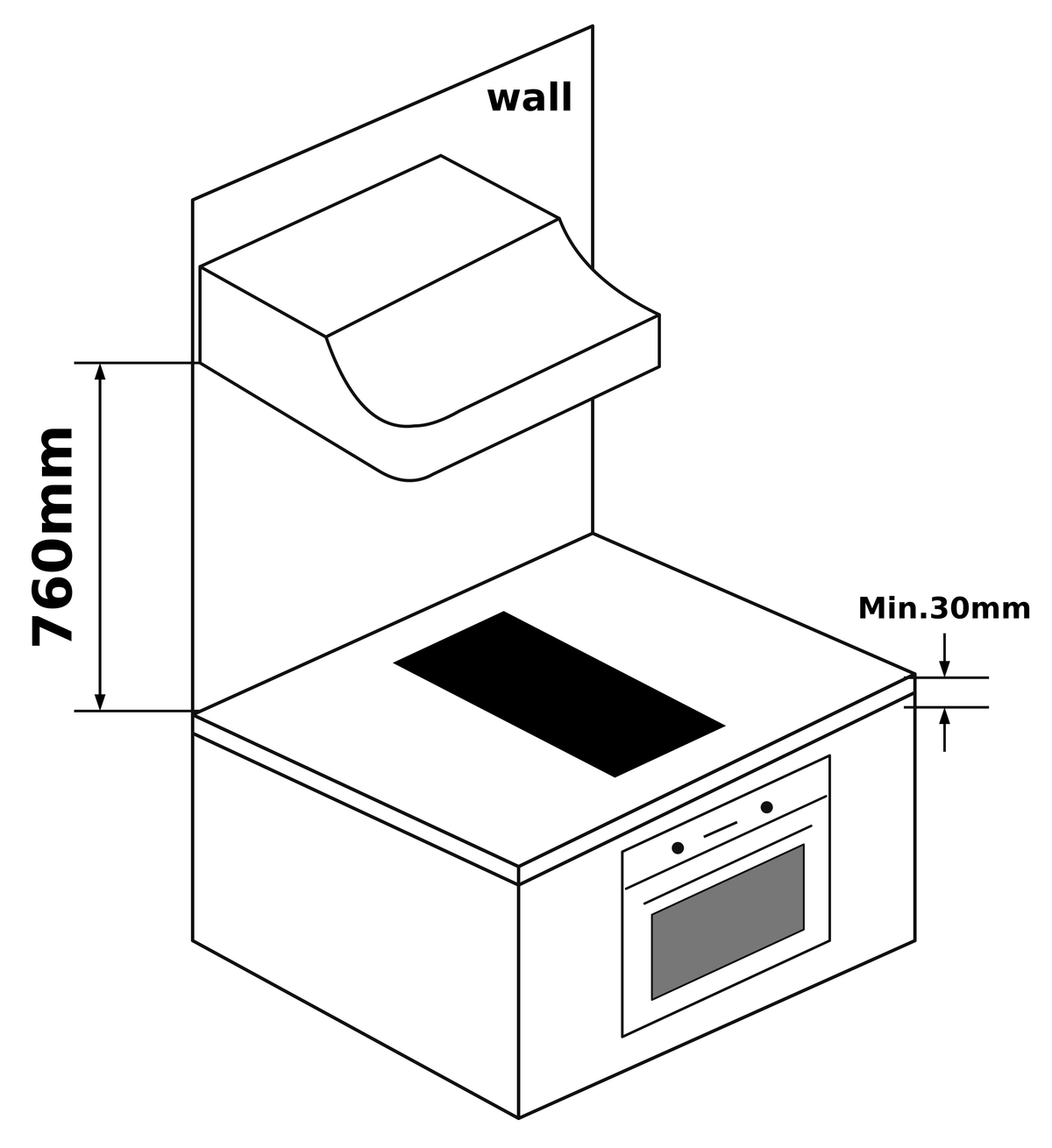

- Clearance to Cupboard Above: 760mm

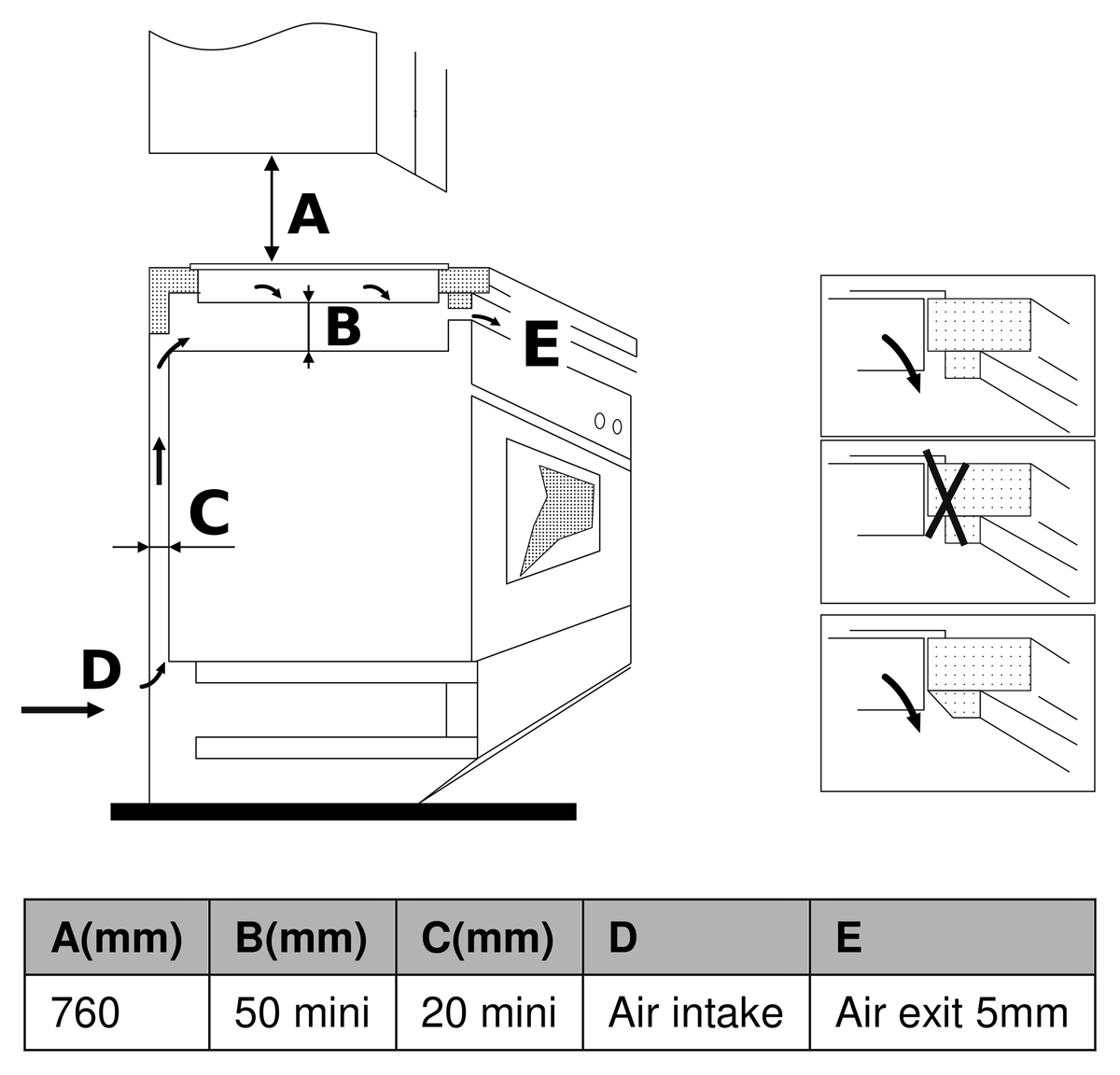

- Space Below Hob Base: 50mm min. to insert
