Light up your kitchen with a colorful glow.
We know, your kitchen isn't just a place to cook—it's where life happens! That's why our ventilation module doesn't just keep the air clean, it also adds a unique touch with its Decorative LED Illumination. Imagine preparing your favorite meal under a soft, atmospheric light that you can adjust to any color in the RGB spectrum. It's not just about light—it's about setting the mood. And with the Home Connect app , you can customize it to your liking. So, go ahead and make your kitchen more than just a kitchen. Make it a place that truly feels like home.
Breathe easy with guided air technology.
Ever noticed how steam from your cooking pots seems to have a mind of its own? It's like trying to herd cats, and it can leave your kitchen feeling stuffy and smelling like last night's dinner. But not anymore! With our Guided Air Technology, we've got you covered. Picture this - an invisible air curtain, gently guiding that wayward steam right where it needs to go - no matter where and with how many pots you are cooking. It's like a silent, unseen helping hand, making sure your kitchen stays fresh and inviting. So, go on, cook up a storm! We'll take care of the air.
Use your hob to control the hood.
Overwhelmed with too many interactions while cooking? With the smart Cooktop-based Hood Control and a connected Home Connect account you can focus on cooking. Once your hob is activated, your hood is also switched on and starts extracting the annoying steam and odour as soon as you start cooking. You need more fan speed - simply control it through your hob without touching your hood. When you’re done cooking, the hood automatically switches off after a brief run-on time, so you can be sure that unpleasant kitchen odours really do disappear. With just one set of controls, you control it all: your hob and your matching extractor hood.
Enjoy peaceful cooking.
We get it, the loud hum of the hood while you're cooking can be a real downer. That's why our Eco Silence Drive is here for you. This powerful, energy-saving motor ensures your hood works silently, letting you enjoy your cooking experience without any noise. Plus, it's energy-saving, so it's kind to both your ears and your pocket. Isn't that a breath of fresh air?
Awarded design

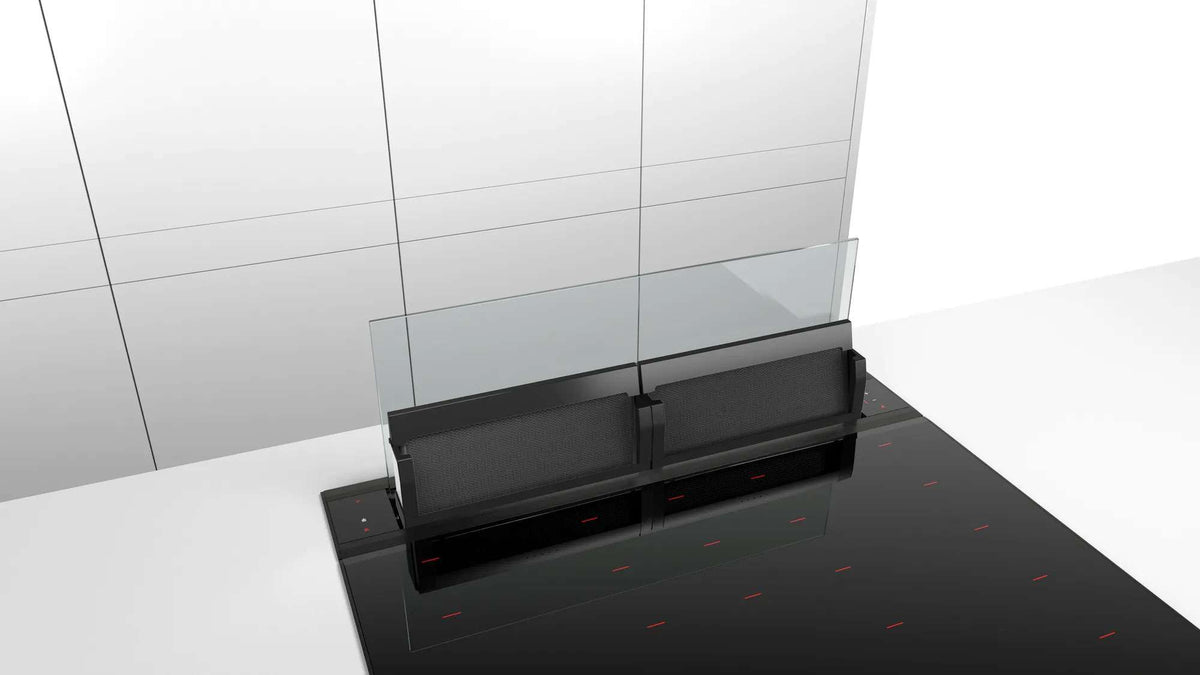

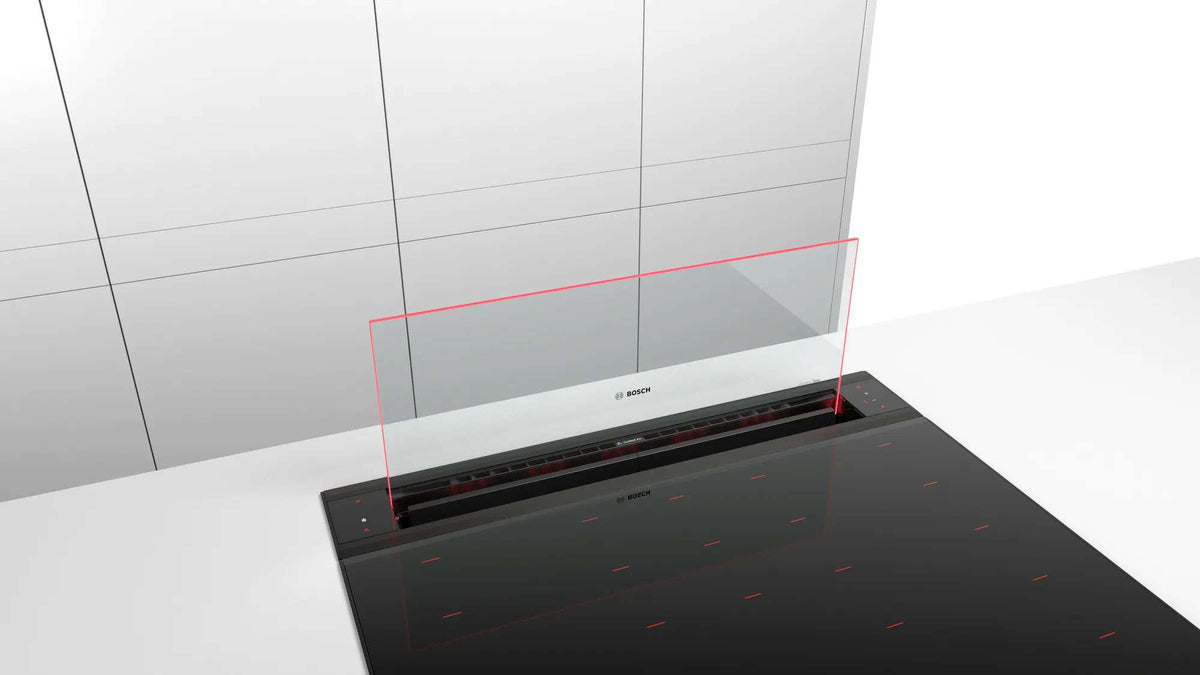

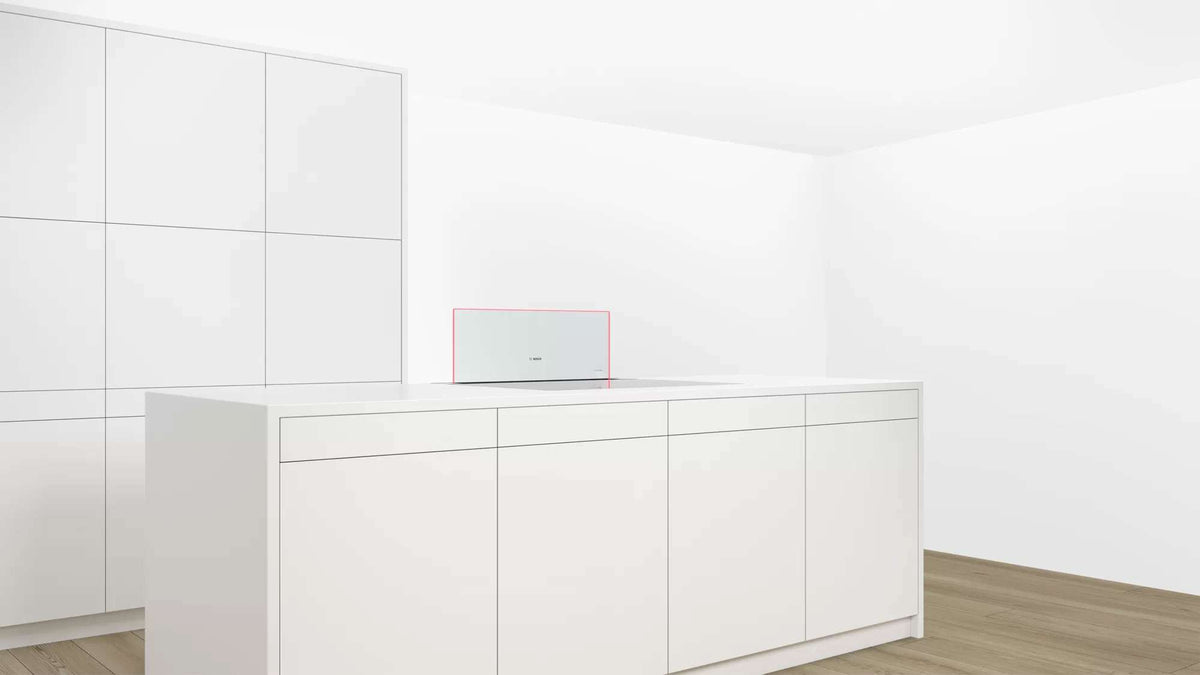

The new Glass Draft module opens up new opportunities for kitchen planning. Positioned directly behind the cooktop, steam and odours can be extracted right where they originate. The annoyance of rising steam and fogged glasses is finally a thing of the past. When not in operation, the module can be lowered into the worktop, making it almost invisible. The design of the Glass Draft is precisely coordinated with the design of our Bosch cooktops. When installed side by side, the transition between the two appliances is practically seamless. And we aren’t alone in our enthusiasm for the design – the design jury agreed. The new Glass Draft module won the 2022 iF Design Award and is a 2022 Australian Good Design Award Winner.
Hoods with smart connectivity make life easier.
Want to unlock the full potential of your hood? Just connect to your hood with your Home Connect account from anywhere you want, whenever you want, the way you want. Benefit from exiting possibilities offered by our numerous ecosystem partners. Always be informed about the status of your hood. Or personalize your hood according to your preferences and make sure to have always the best possible performance as the Home Connect app e.g. will inform you once the filters are saturated.
Ventilation made easy with flexible hood installation.
We've heard you. You need more flexibility when installing your ventilation hood. With our new ventilation module, you're in control. The motor can be placed in front, behind, or even up to 3 meters away from the hood. This not only gives you the freedom to install it the way you want, but it also frees up space in your lower cabinet. More room for your favourite kitchen essentials, whether you're a drawer or a shelf person. It's your kitchen, let's make it work for you.
The optimum air volume for kitchens of all sizes.
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be circulated 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the rangehood must be appropriate to the room volume.
-
Height (mm)709 mm
-
Width (mm)816 mm
-
Depth (mm)140 mm
-
MpnDDW88MM66
-
Model numberDDW88MM66
-
ColourBlack
-
Features✓ Decorative LED-illumination of retractable glass panel ✓ PerfectAir sensor ✓ Cook2Hood control ✓ EcoSilence Drive: the powerful, energy-saving drive for hoods ✓ Automatic run on - 10 min ✓ Dishwasher safe metal grease filters ✓ Efficient BLDC-technology
-
Manufacturer warranty2 Years
-
InstallationDucted or Recirculated
-
More SpecsDesign
- 80 cm wide
- Perfect for installation in an island or semi-island kitchen solution
- Suitable for ducted or re-circulated extraction
- For recirculated extraction Clean Air Plus recirculation kit (accessory) needed

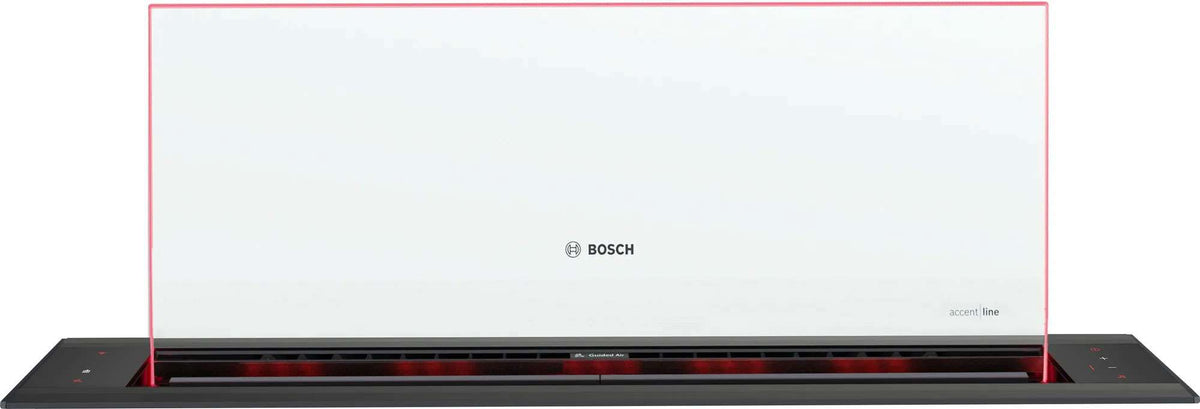

- The clear glass panel provides a glass edge lighting and is extendable via lift motor
- The appliance comes in an extraordinary glass design equipped with red edge lighting. Simply choose your favorite color via
- Top Frame suitable for seamless installation to create a unity with cooktop for a pure surface design
- Electronic metal soft-touch controls with LED indicators
- The user interface to the left provides extended functions
- The standard functions are located on the right-hand user interface
- TouchControl for power and light
- 3 power levels + 2 intensive levels
- Intensive setting with automatic switch back to previous setting
- Intensive operation automatic revert - 6min
- Automatic run on - 10 min
- Air Quality sensor
- Cooktop-based hood control (with matching cooktop)
- fully automatic rangehood
- Activate Guided Air to guarantee nearly perfect extraction, regardless of pot height and pot position on the cooktop
- Ambient Light

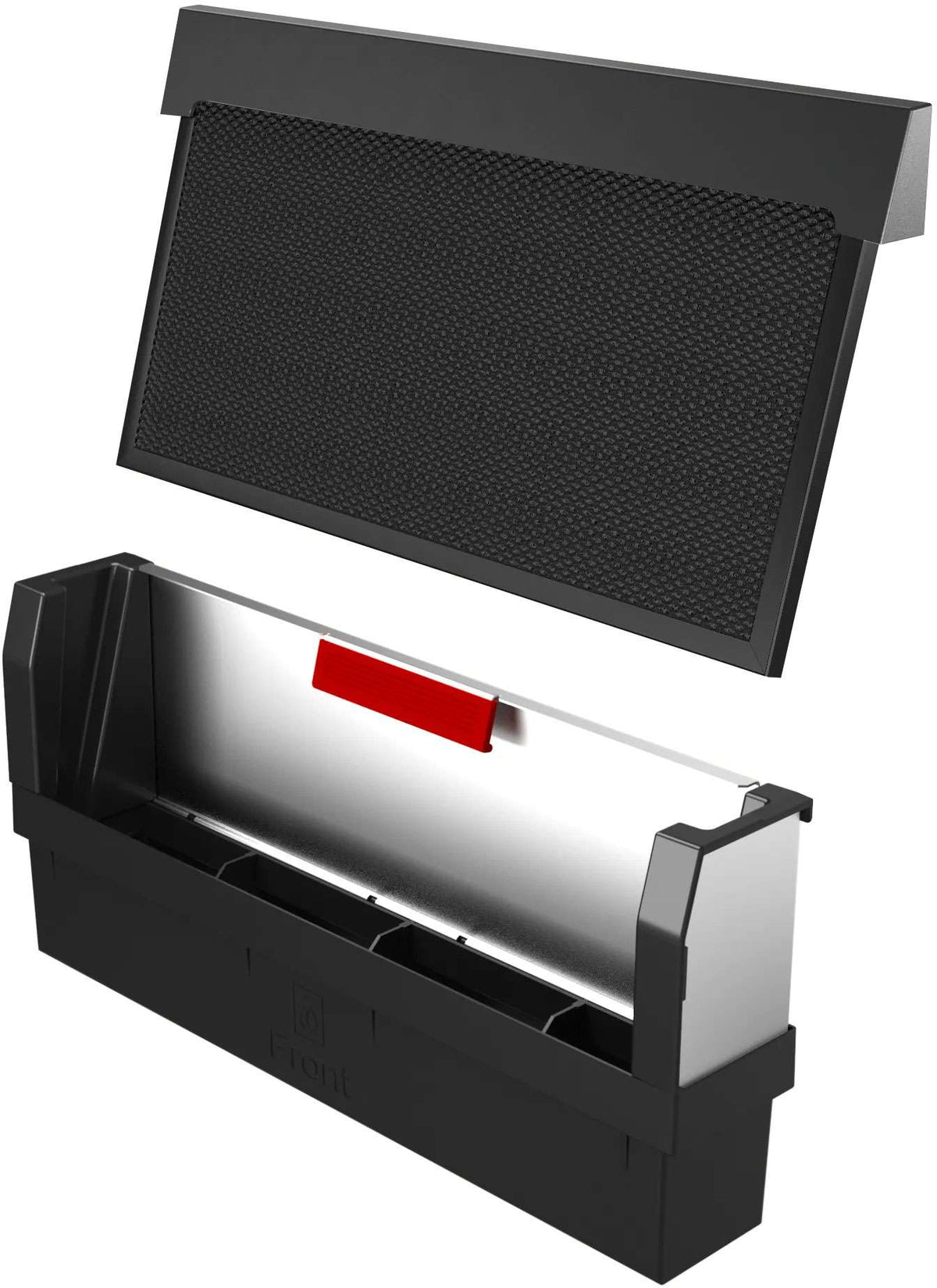

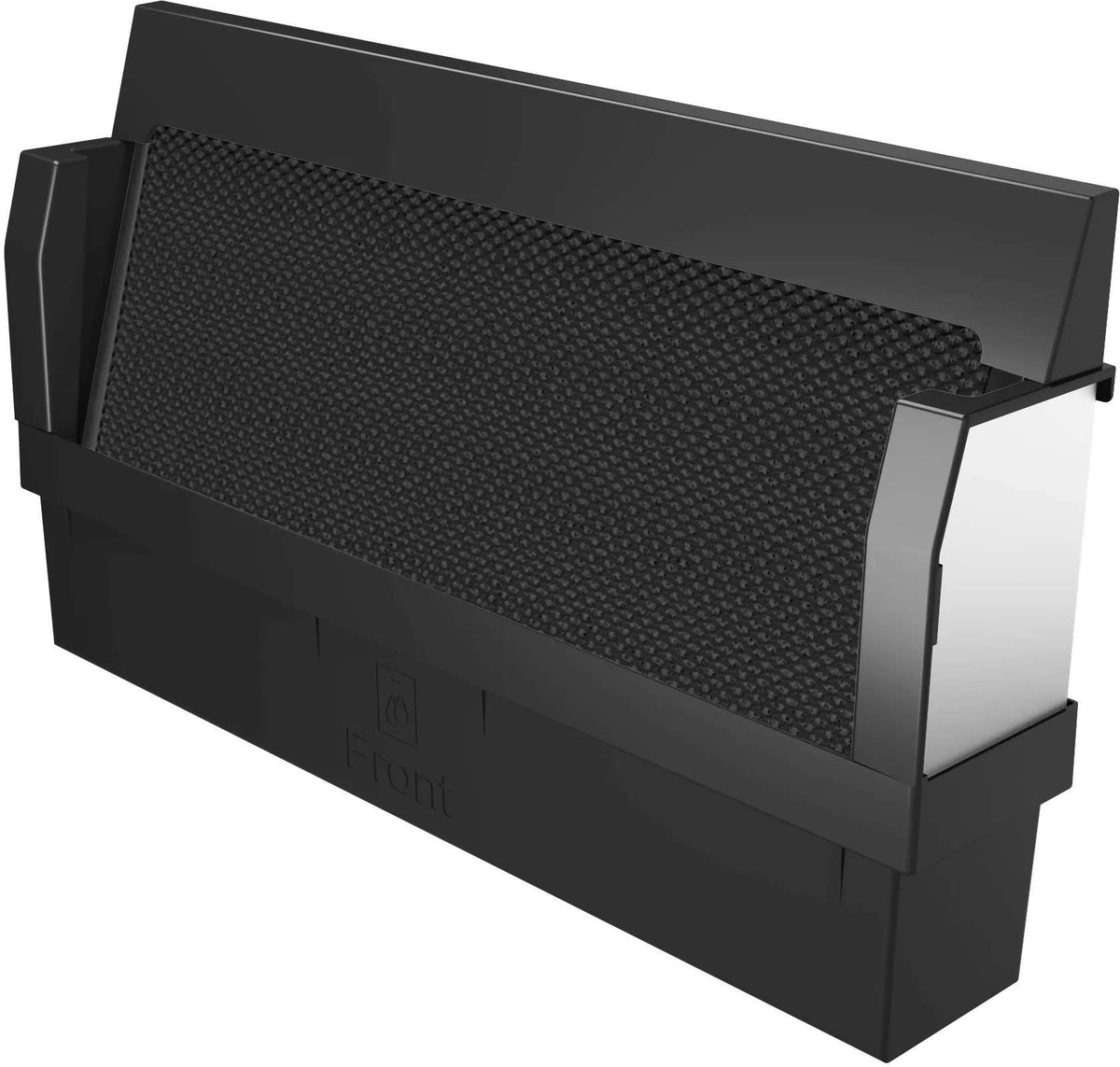

- The high quality filter cassettes with integrated metal grease filters are dishwasher safe.
- Dishwasher safe metal grease filters
- Saturation display for filters
- The filter service button automatically lifts filters into service position for easy removal
- The glass panel can be easily removed and cleaned
- Remote Monitoring and Control for connected home appliances and operation via smartphone or tablet
- The Home Connect functionality can be extended by integrating numerous applications from external cooperation partners (partnerships)
- Voice Control enabled via popular voice assistants
- Interval function: available via Home Connect
- Silence function: available via Home Connect
- Efficient BLDC-technology
- Extraction rate according to EN 61591 ø 15 cm: max. Normal use 501 m³/h. Intensive 775 m³/h
- Max. extraction rate: 775 m3/h
- Noise level according to EN 60704-3 exhaust air:
- Max. normal use:62dB(A) re 1 pW
- Intensive:70 dB(A) re 1 pW
- Noise min./max. Normal Level: 39/62 dB
- With the Clean Air Plus recirculation kit (available as accessory) your appliances reaches:
- Extraction rate in recirculation mode: Max. normal use:416m³/h
- Intensive:525m³/h
- Noise level in recirculation mode: Max. normal use:65dB(A) re 1 pW
- Intensive:70 dB(A) re 1 pW

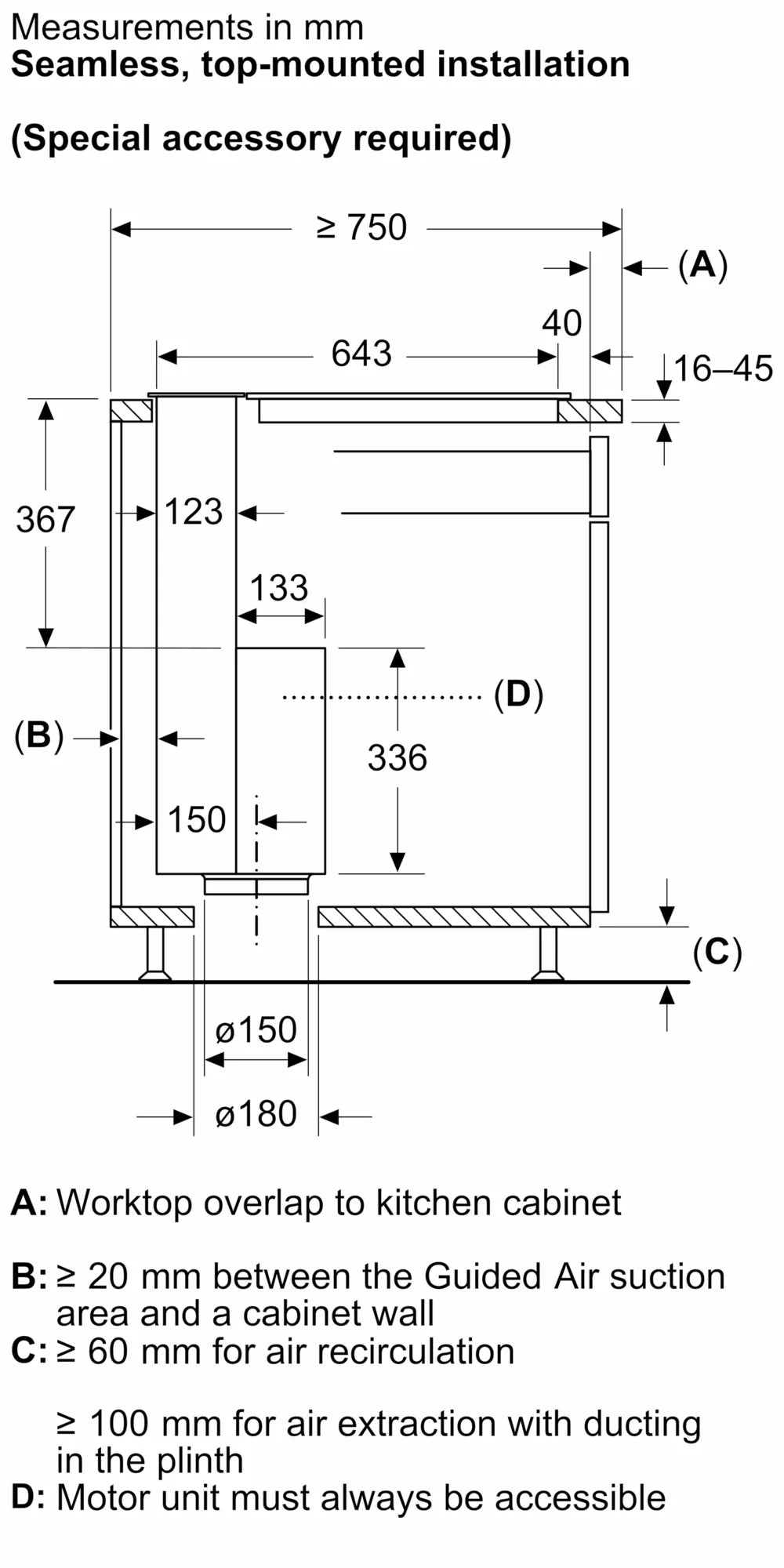

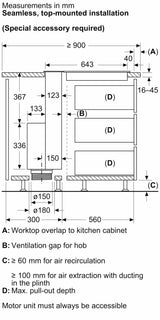

- For seamless worktop installation a special accessory is required
- Suitable for installation into 90 cm cabinet
- Extension height 250 mm

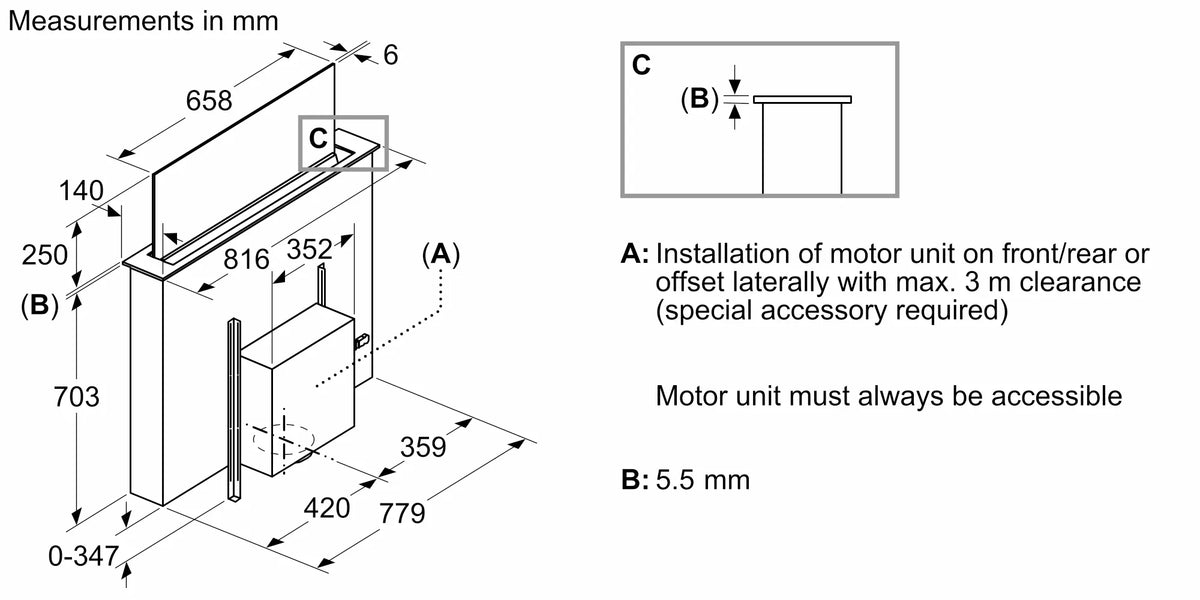

- Appliance dimensions (HxWxD): 709 x 816 x 140 mm
- Built-in dimensions (HxWxD): 703 x 781 x 123 mm
- 150 mm diameter pipe
- Electrical cable length 1.3 m
- For remote motor installation special accessory kit is needed

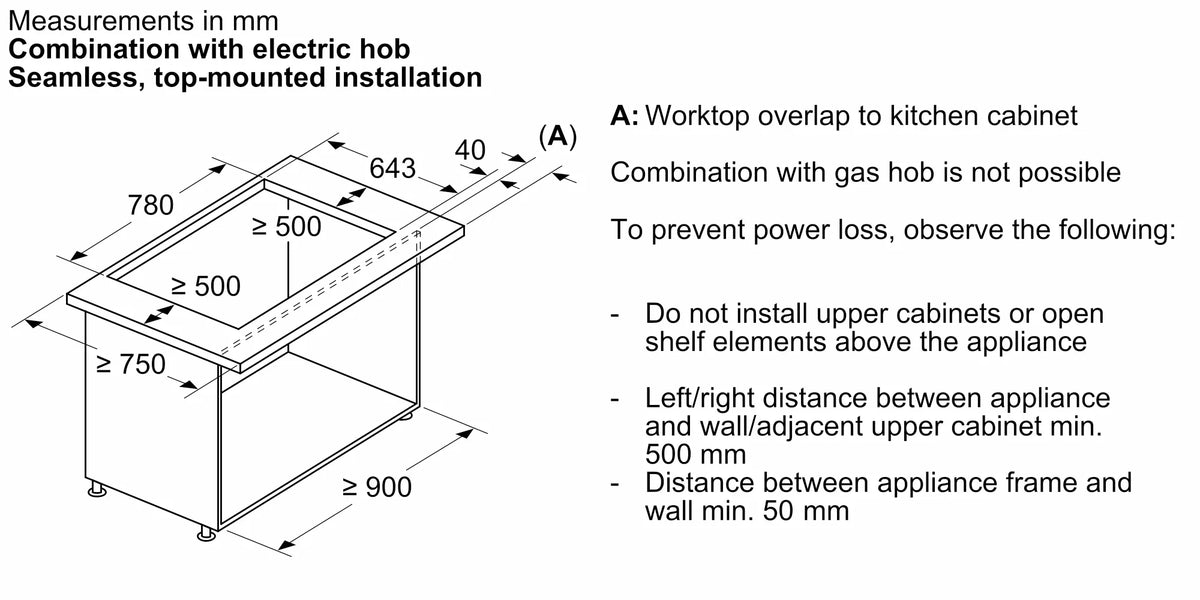

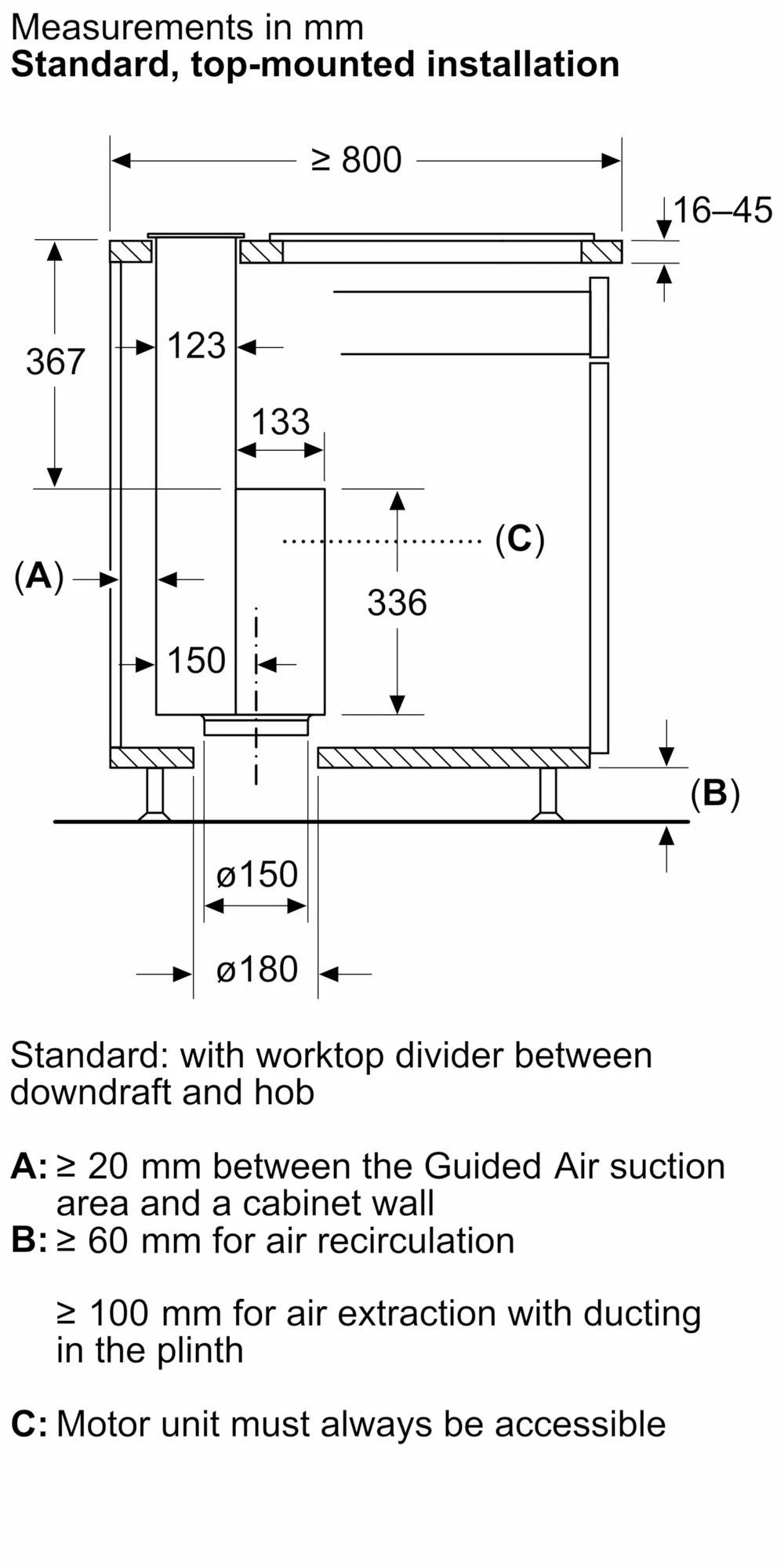

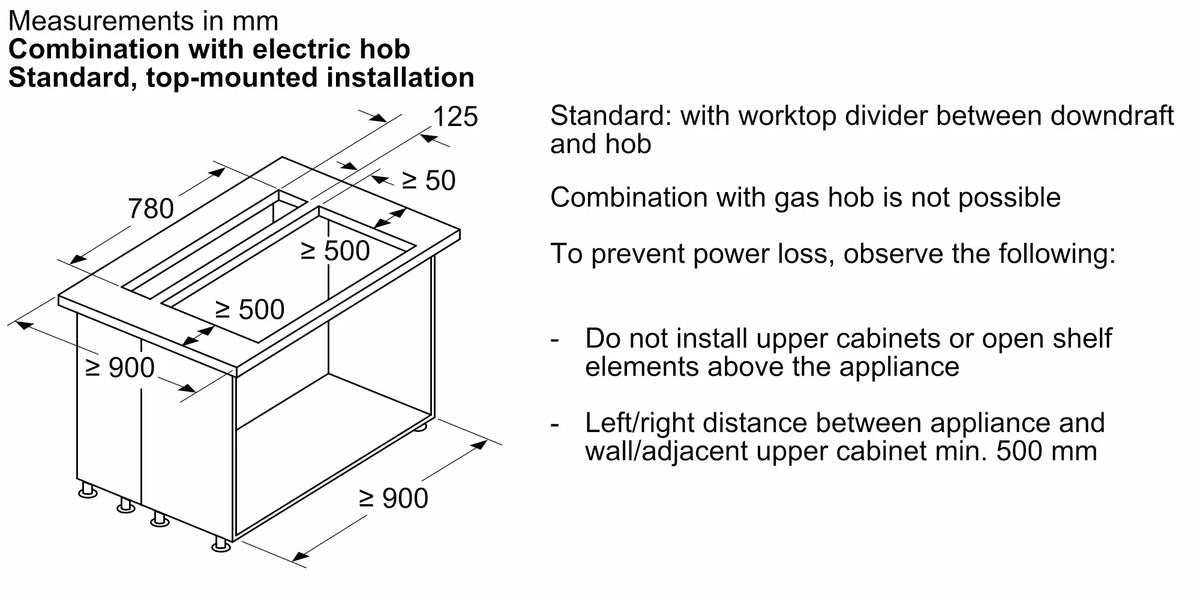

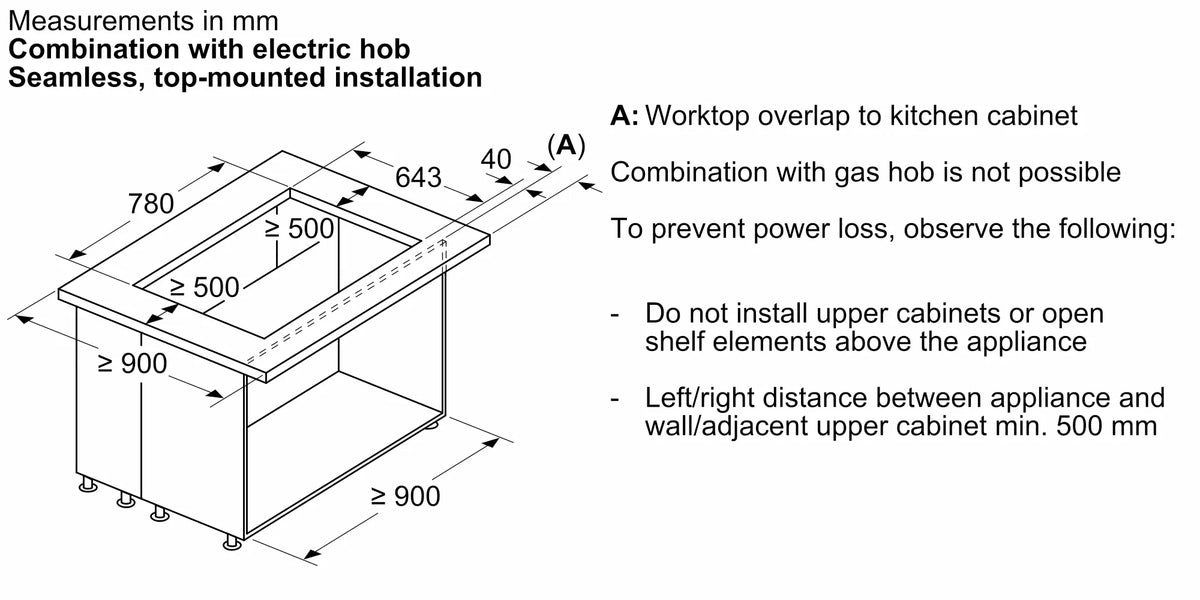

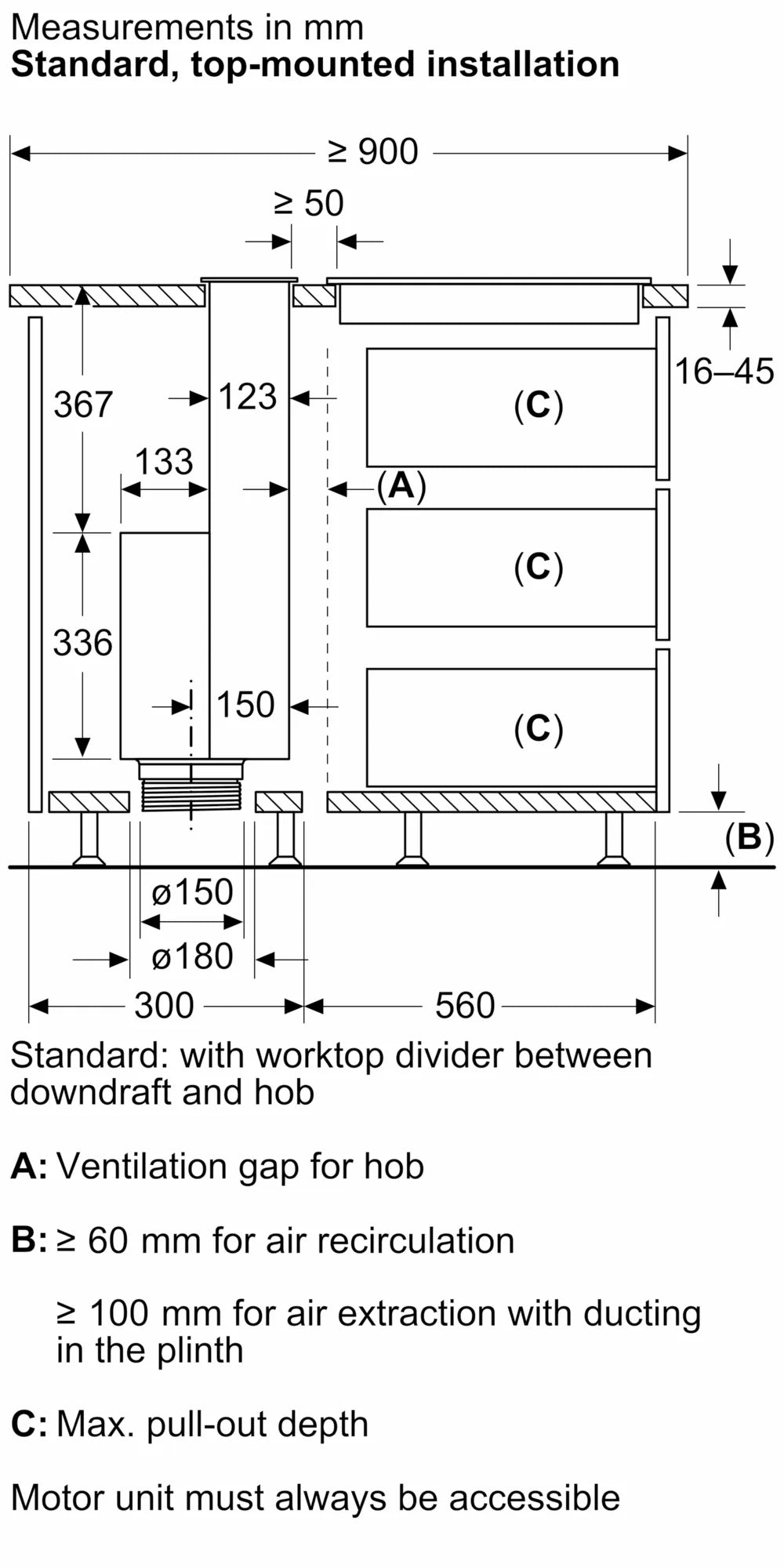

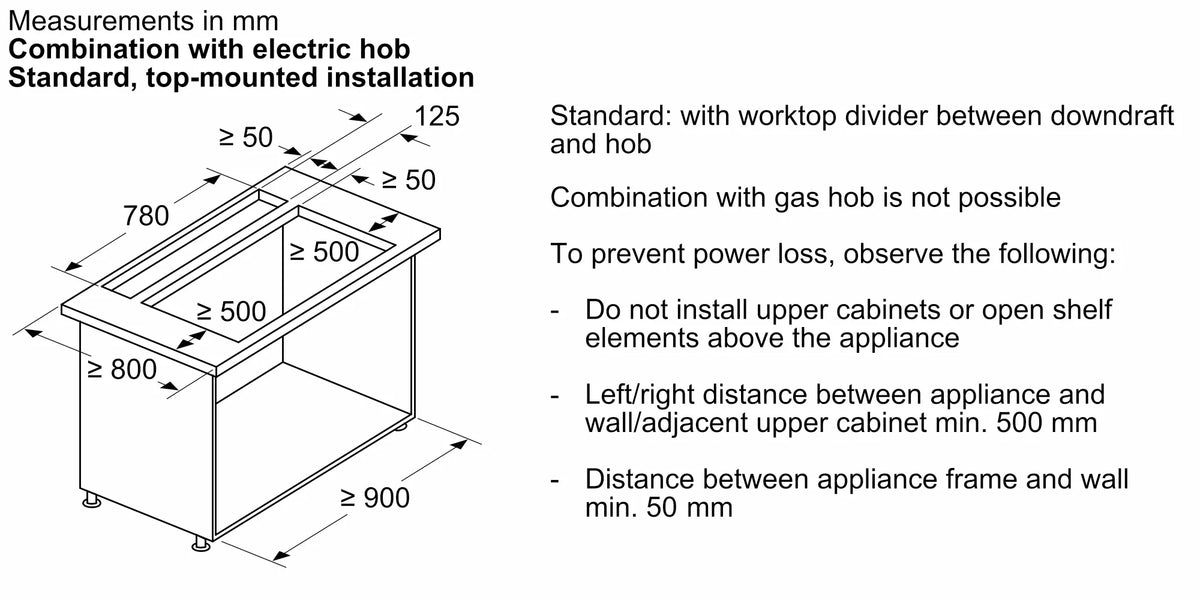

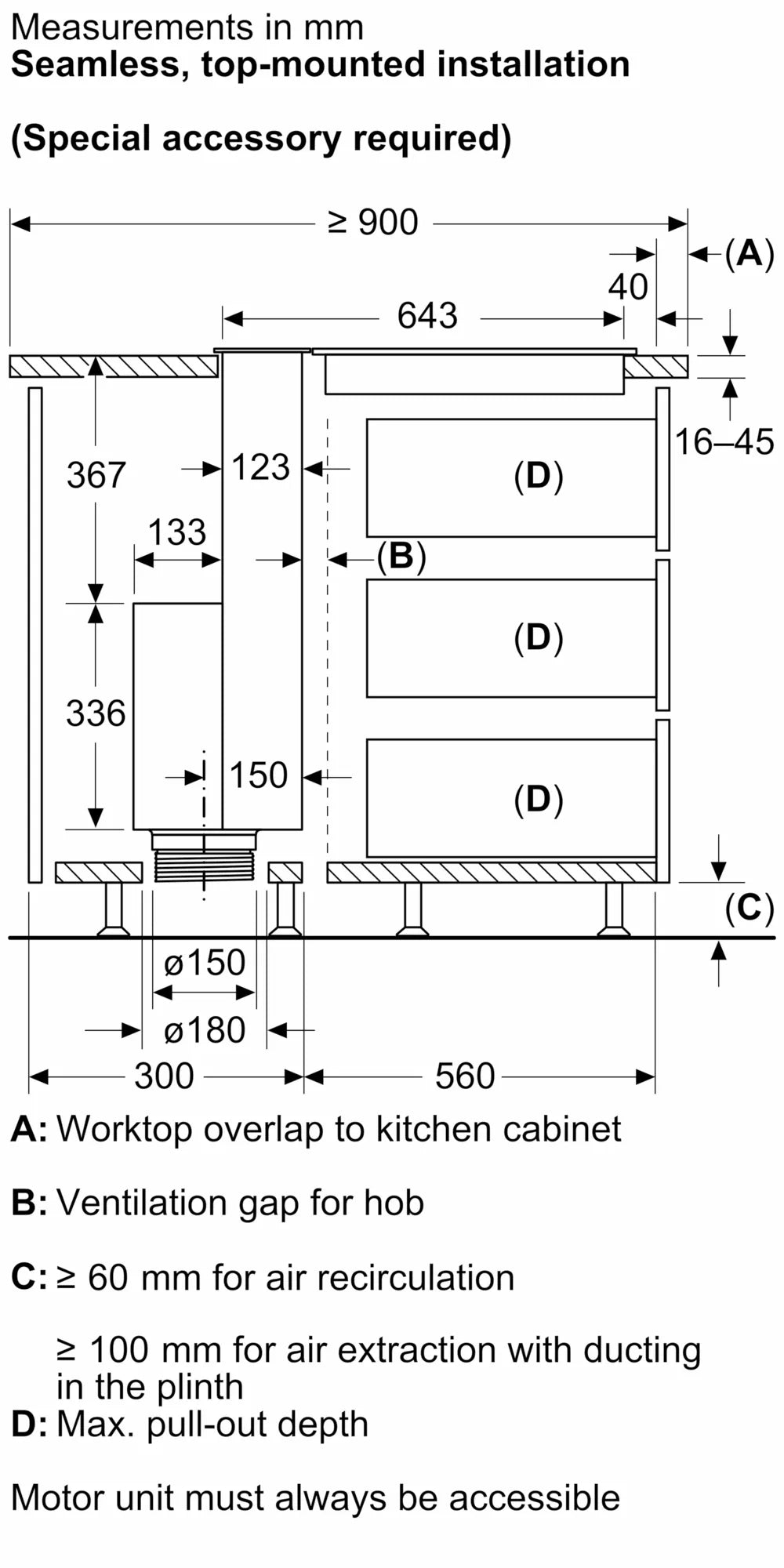

- Please reference the built-in dimensions provided in the installation drawing
- Combination with gas cooktops not allowed
- Average Energy Consumption: 36.9 kWh/year
- Power rating: 300 W
- Typology: Downdraft
- Length electrical supply cord: 130.0 cm
- Min. required niche size for installation (HxWxD): 703mm x 781.0mm x 123mm mm
- Minimum distance above an electric cooktop: 600 mm
- Net weight: 37.5 kg
- Type of control: Electronic
- Number of power settings: 3-stages + 2 intensive settings
- Max. air extraction: 501 m³/h
- Boost position output recirculating: 525 m³/h
- Max. air recirculation: 416 m³/h
- Boost position air extraction: 775 m³/h
- Noise level: 62 dB(A) re 1 pW
- Diameter of air outlet: 150 mm
- Grease filter material: Washable stainless steel
- Connection rating: 300 W
- Fuse protection: 10 A
- Voltage: 220-240 V
- Frequency: 50; 60 Hz
- Plug type: Gardy plug w/ earthing
- Installation typology: Built-in
