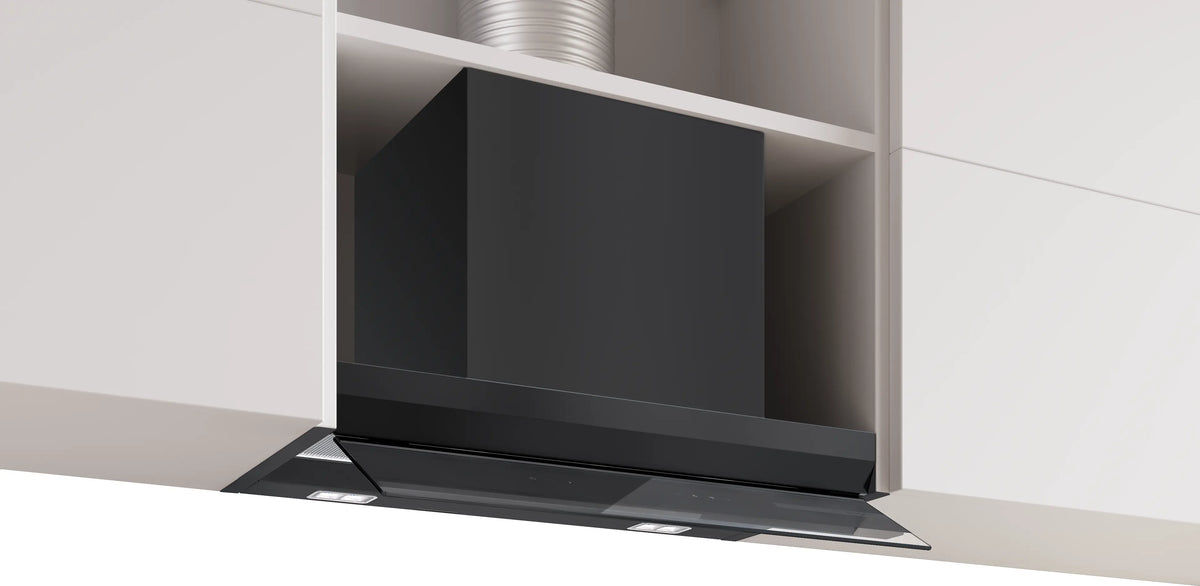

The Bosch Series 6 DBB67DP60A is a 60cm integrated design rangehood with a black-printed clear glass panel, up to 433m³/h extraction and 3 speeds plus an intensive setting. The SilentPowerDrive motor keeps it quiet, DirectSelect touch controls sit on the glass, and Smart Hood Automatic adjusts the fan to a compatible Bosch cooktop.
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |
SilentPowerDrive: The quiet and powerful motor for rangehoods.Our SilentPowerDrive keeps your kitchen filled with fresh air – even during intensive cooking. The brushless motor delivers strong extraction performance while operating at a pleasantly low noise level. This allows you to enjoy relaxed conversations while cooking. Discover the ideal combination of powerful performance and quiet operation for every culinary adventure. |

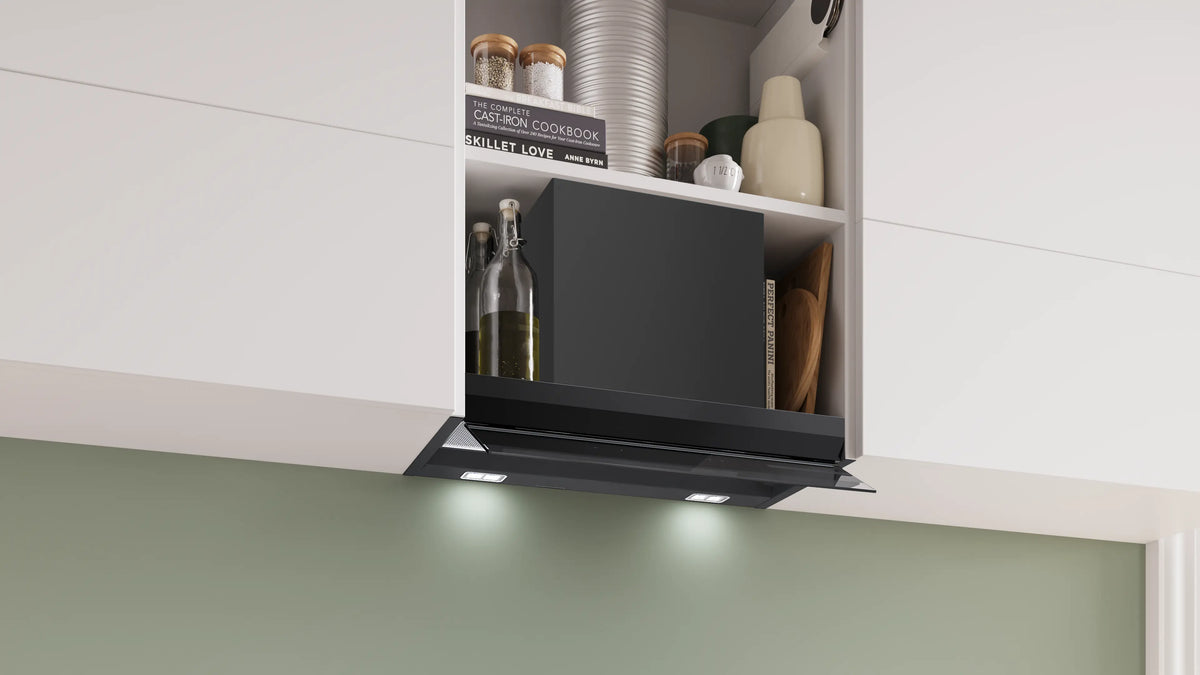

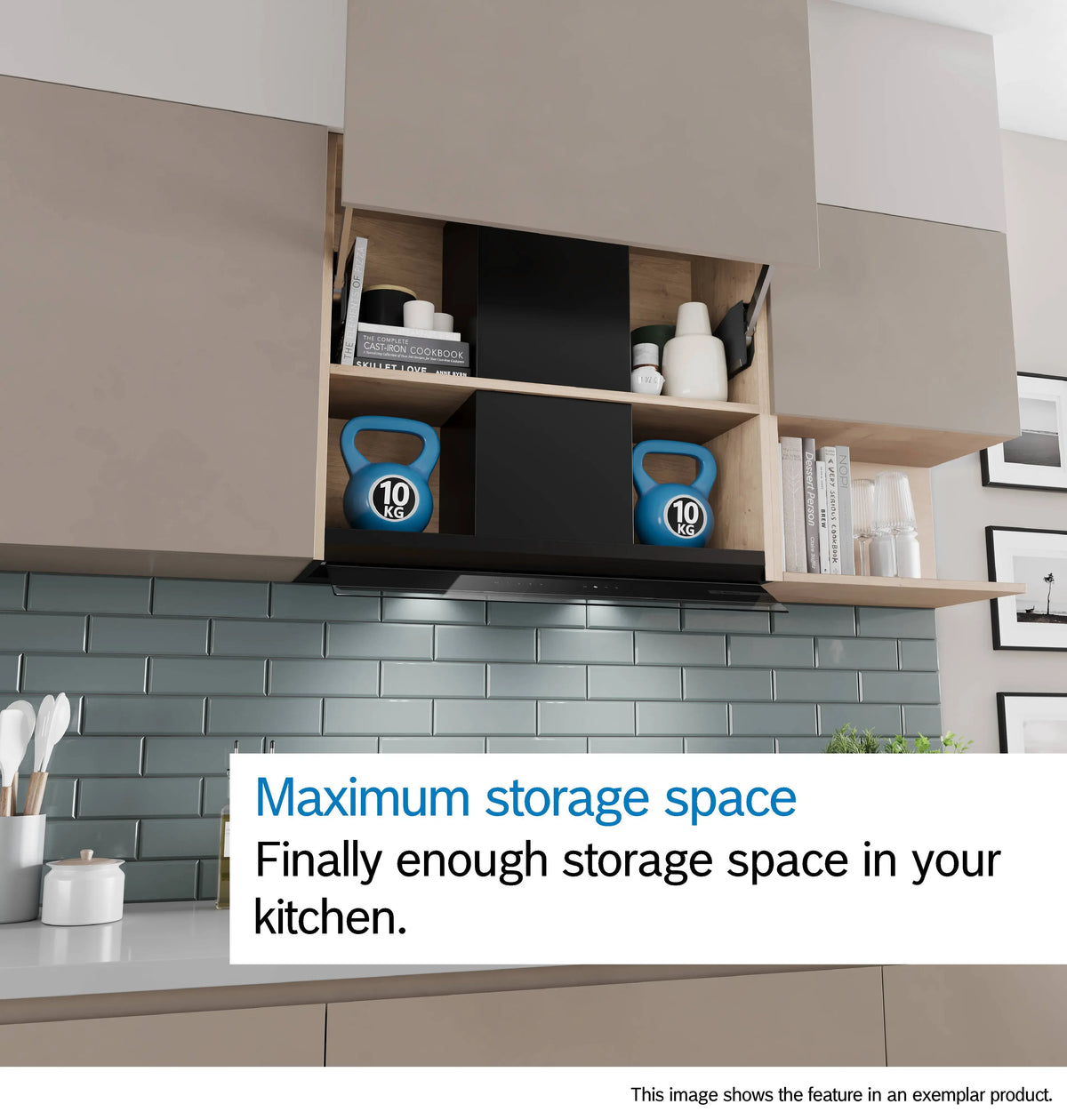

Maximum storage space: The T-shaped design offers lots of space and up to 20kg load capacity.Maximise your kitchen's potential with our Integrated Design Rangehood. Featuring a T-shaped design, it offers extra storage space for up to 20kg load capacity—10 kg on each side. Enjoy fresh air and keep your items within easy reach, without sacrificing valuable cabinet space. This smart, efficient rangehood combines functionality and convenience, making your kitchen more organised and your cooking experience even better. |
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |

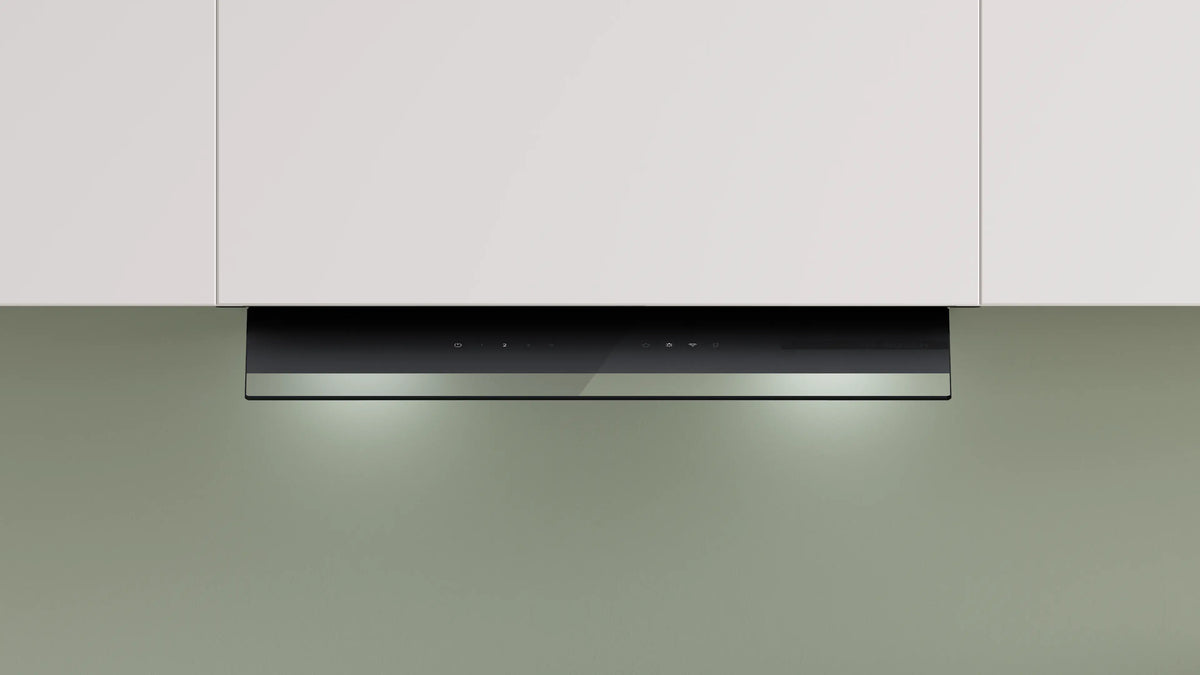

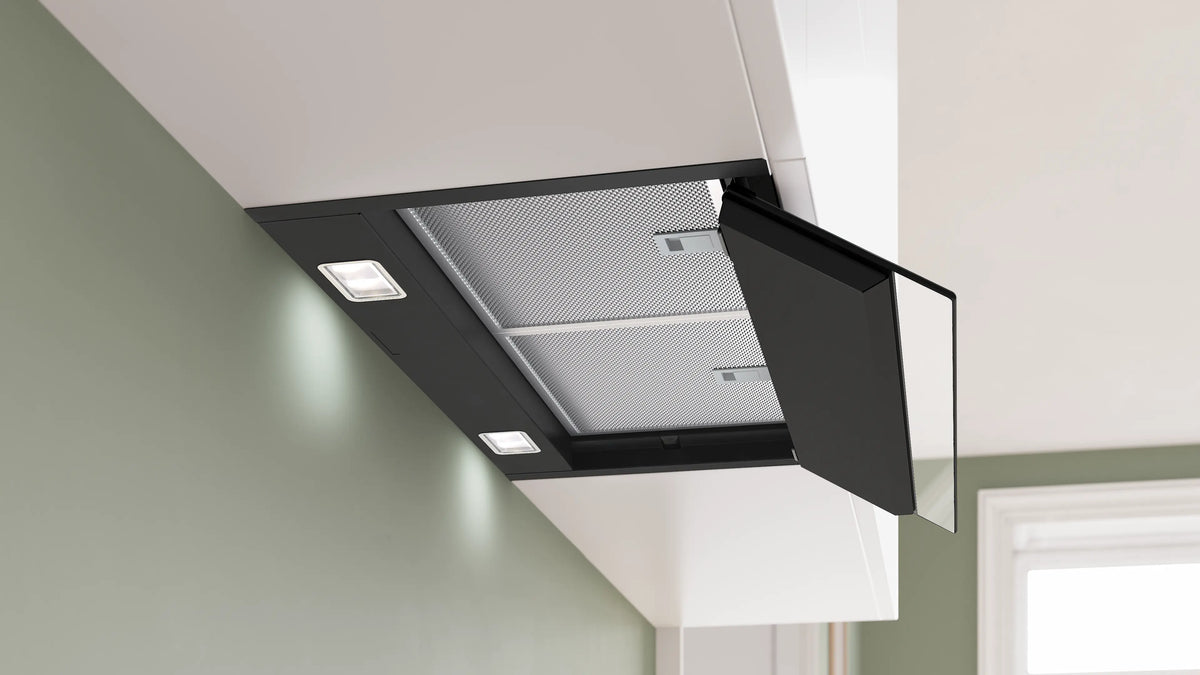

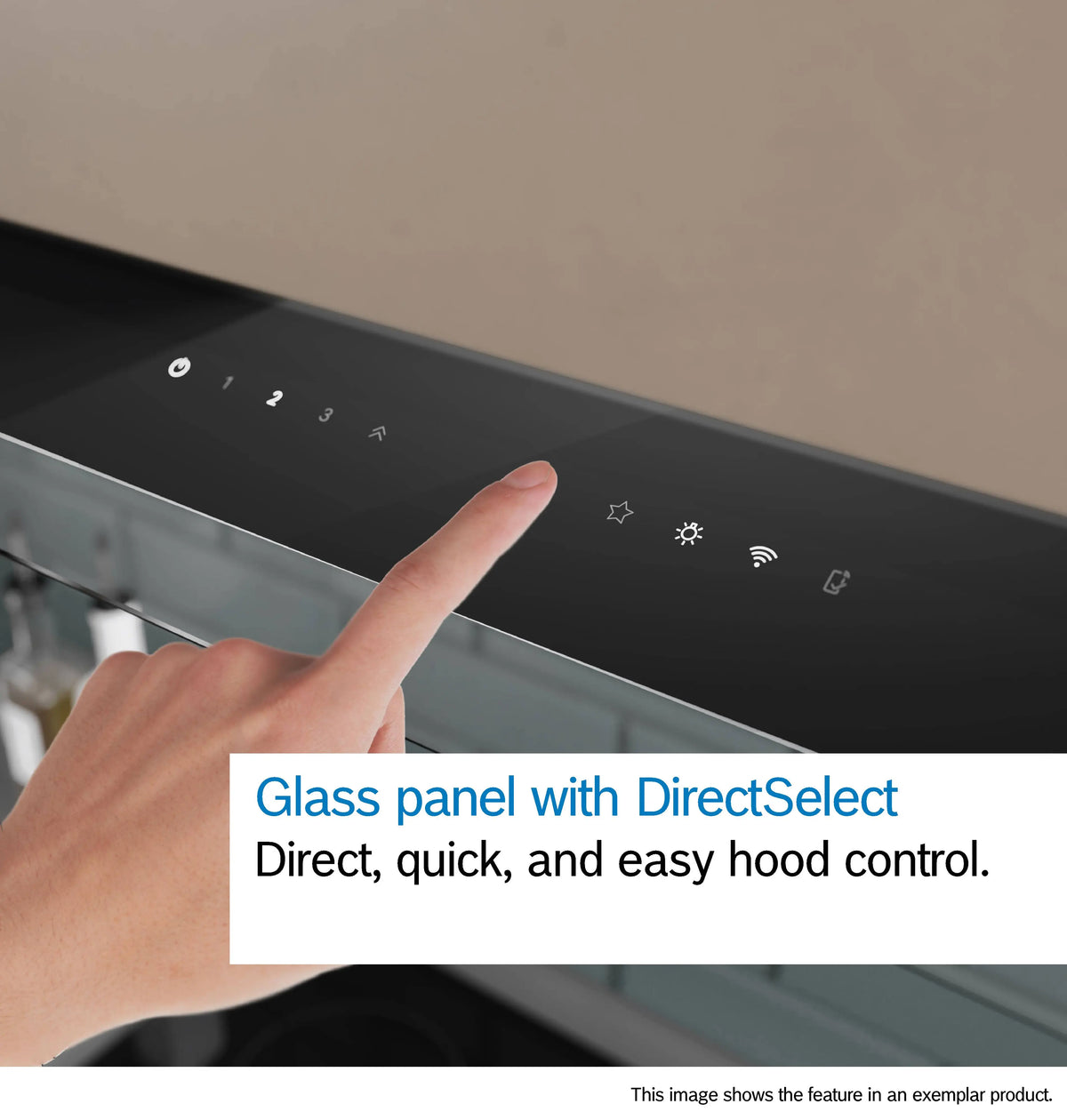

Glass panel with DirectSelect: Easy touch control and kitchen cabinet protection.Elevate your cooking experience with our sleek foldable glass panel featuring the DirectSelect touch controls. When opening the glass panel the fan and light are turned on automatically. Changing rangehood settings is as easy as changing the heat on your cooktop. Accessing controls is a breeze, thanks to position at eye level. The panel not only steers steam in the right direction but also protects your kitchen cabinetry. Discover convenience and efficiency, just direct, quick, and easy. |

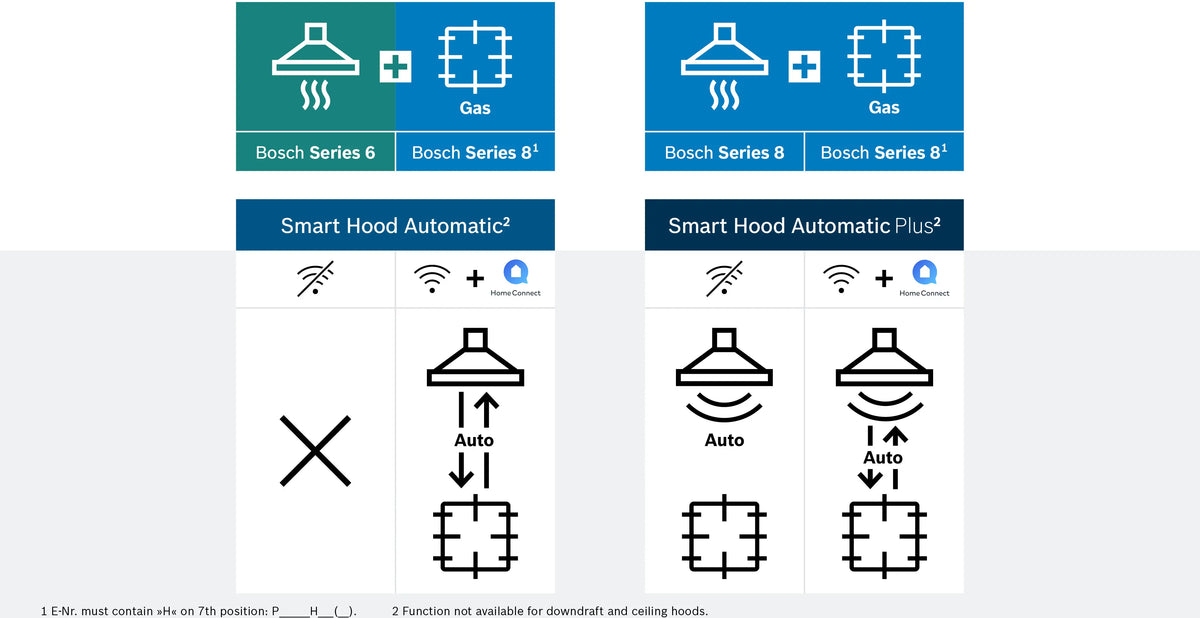

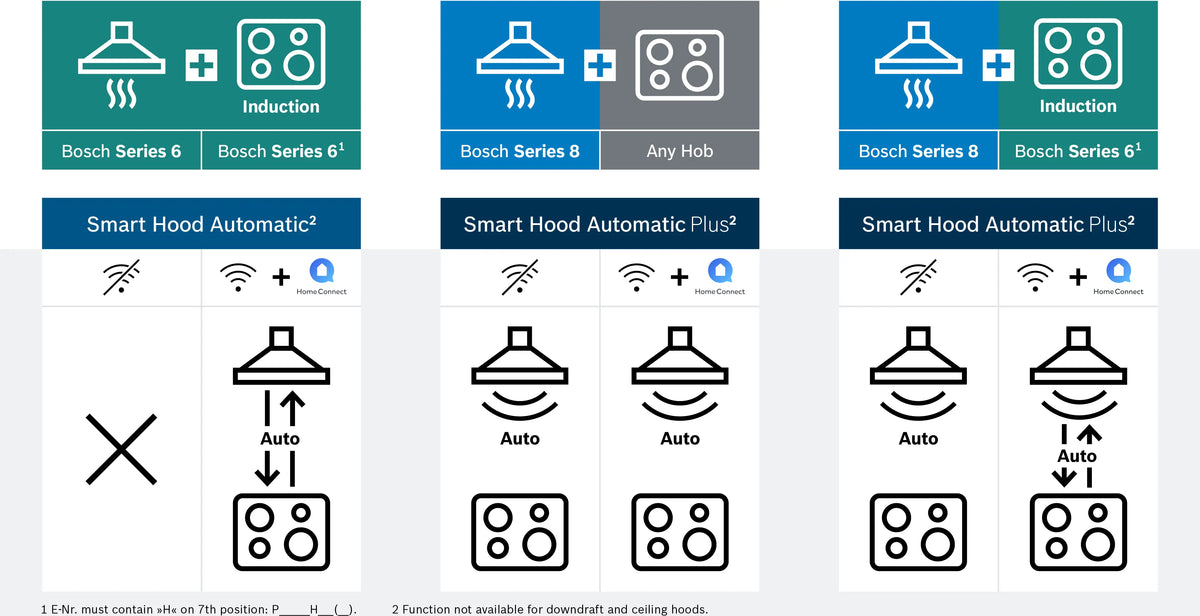

Smart Hood Automatic: Adjusts the fan speed based on cooktop* settings for stress-free cooking.Smart Hood Automatic detects when you start cooking and automatically activates the fan. It adjusts dynamically the extraction rate to match the power setting and temperature of the cooktop. It works with all Bosch induction cooktops with an E.-Nr. (printed on cooktop) with a ‘H’ in the 7th position: ‘P_____H__(_)’ and all gas cooktops with Home Connect. For other Home Connect* cooktops, the rangehood can be operated manually from the cooktop. Cooktop and rangehood must be paired via Home Connect account. |
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |

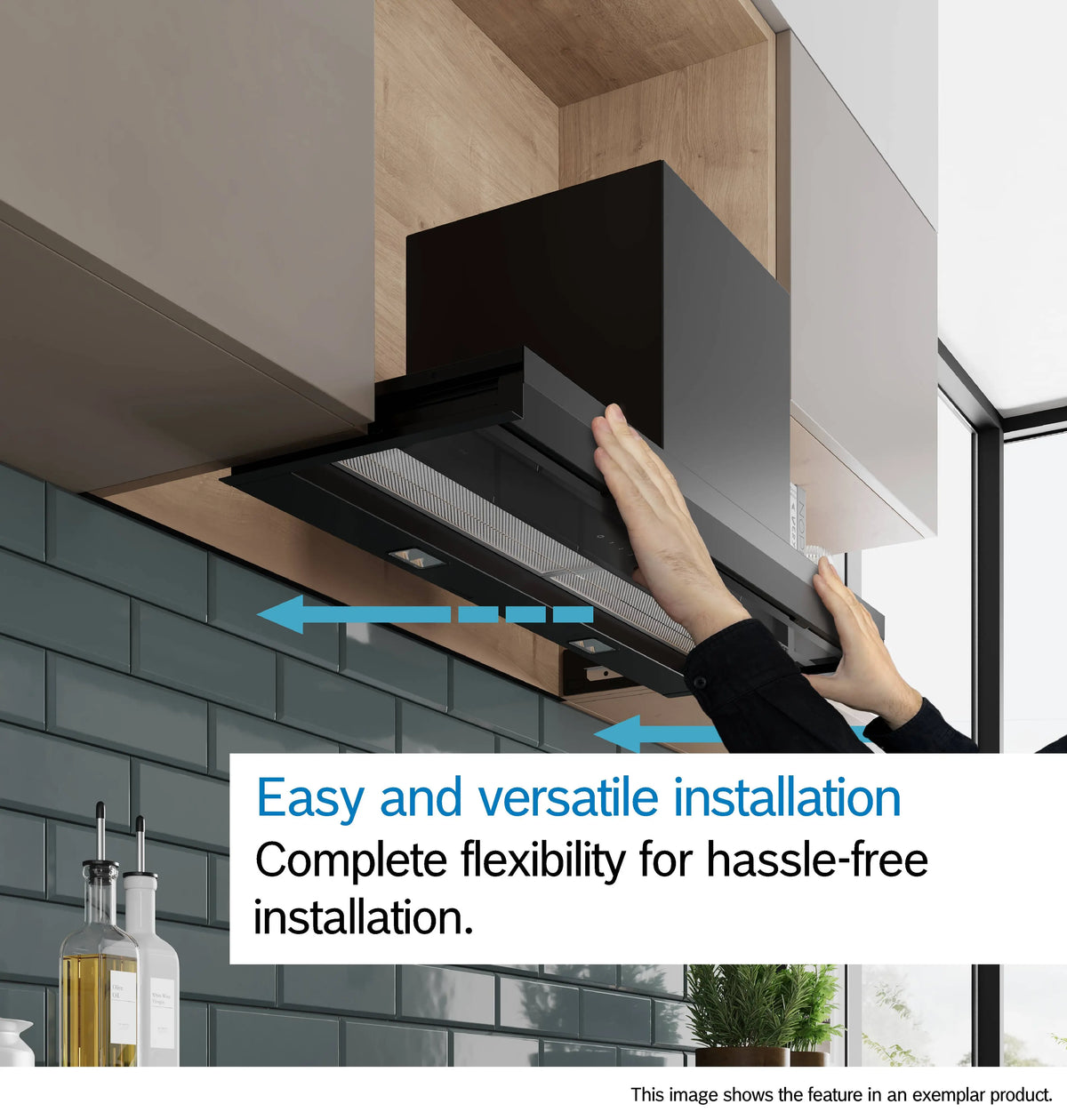

Easy and versatile installation: Easy one-person installation with many flexible layout options.The Integrated Design Rangehood is designed for an easy, one-person installation, with thoughtful construction and assistive installation aids. It offers versatile configuration options and is a perfect replacement for integrated or slide-out rangehoods. The optional chimney extension conceals technical details like the exhaust pipe, and with its adjustable height, it fits cabinets up to 90cm high. Enjoy flexibility in ensuring a tailored solution for your kitchen. |
LED lighting: Energy-efficient, bright, even cooktop illumination.
Enjoy clear, even illumination of your cooktop with long-lasting, energy-efficient LED lighting, making it easier to monitor every dish while you cook.
Key Features
- SilentPowerDrive: The quiet and powerful motor for rangehoods.
- Maximum storage space: The T-shaped design offers lots of space and up to 20kg load capacity.
- Glass panel with DirectSelect: Easy touch control and kitchen cabinet protection.
- Smart Hood Automatic: Adjusts the fan speed based on cooktop* settings for stress-free cooking.
- LED lighting: Energy-efficient, bright, even cooktop illumination.
-

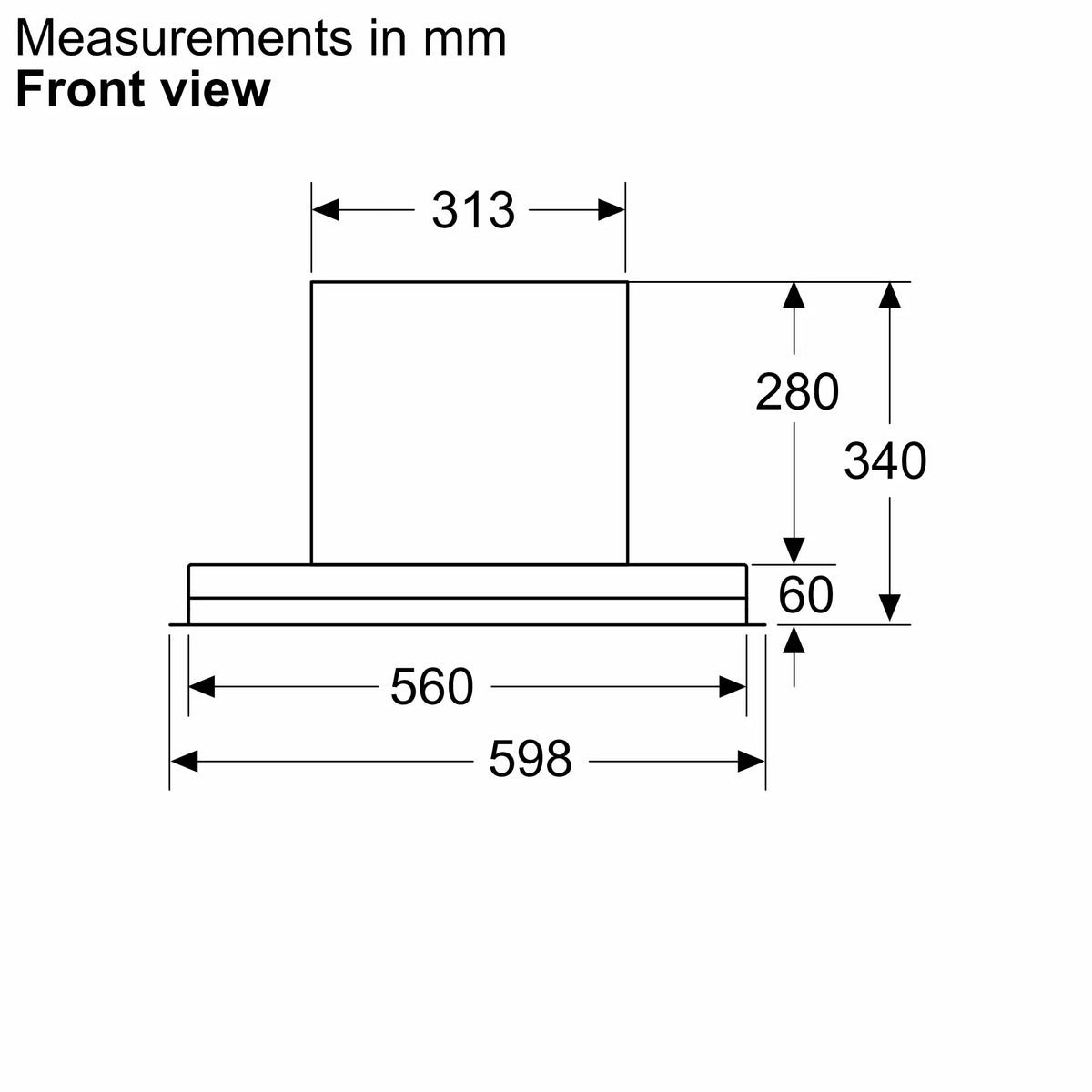

Height (mm)340 mm
-
Width (mm)598 mm
-
Depth (mm)298 mm
-
MpnDBB67DP60A
-
Model numberDBB67DP60A
-
ColourBlack
-
Lights2 x LED lights
-
Flue size150mm
-
Noise rating57 dB
-
Extraction fan433 m³/h
-
LightingLED
-
Size range60cm
-
Features✓ Up to 433 m³/h extraction ✓ SilentPowerDrive: The quiet and powerful motor for rangehoods ✓ Maximum storage space: The T-shaped design offers lots of space and up to 20kg load capacity ✓ Glass panel with DirectSelect: Easy touch control and kitchen cabinet protection ✓ Smart Hood Automatic: Adjusts the fan speed based on cooktop* settings for stress-free cooking ✓ LED lighting: Energy-efficient, bright, even cooktop illumination ✓ Easy and versatile installation: Easy one-person installation with many flexible layout options
-
Manufacturer warranty2 Years
-
InstallationUndermount
-
More SpecsGeneral
- Width: 60 cm
- Colour: Black
- Installation type: Built-in
- Operating Mode: Exhaust / Recirculation (Accessory available separately)
- Total power of the motors: 105 W
- Type of control setting and signalling devices: touch control, Via app
- Number of power settings: 3-stages + intensive setting
- Max. air extraction: 433 m³/h
- Boost position air extraction: 699 m³/h
- Sound power at max. speed: 57 dB
- Sound power boost: 68 dB
- Max. air recirculation: 413 m³/h
- Boost position output recirculating: 556.0 m³/h
- Sound power at max. speed (recirculation): 66 dB
- Sound power boost (recirculation): 72 dB

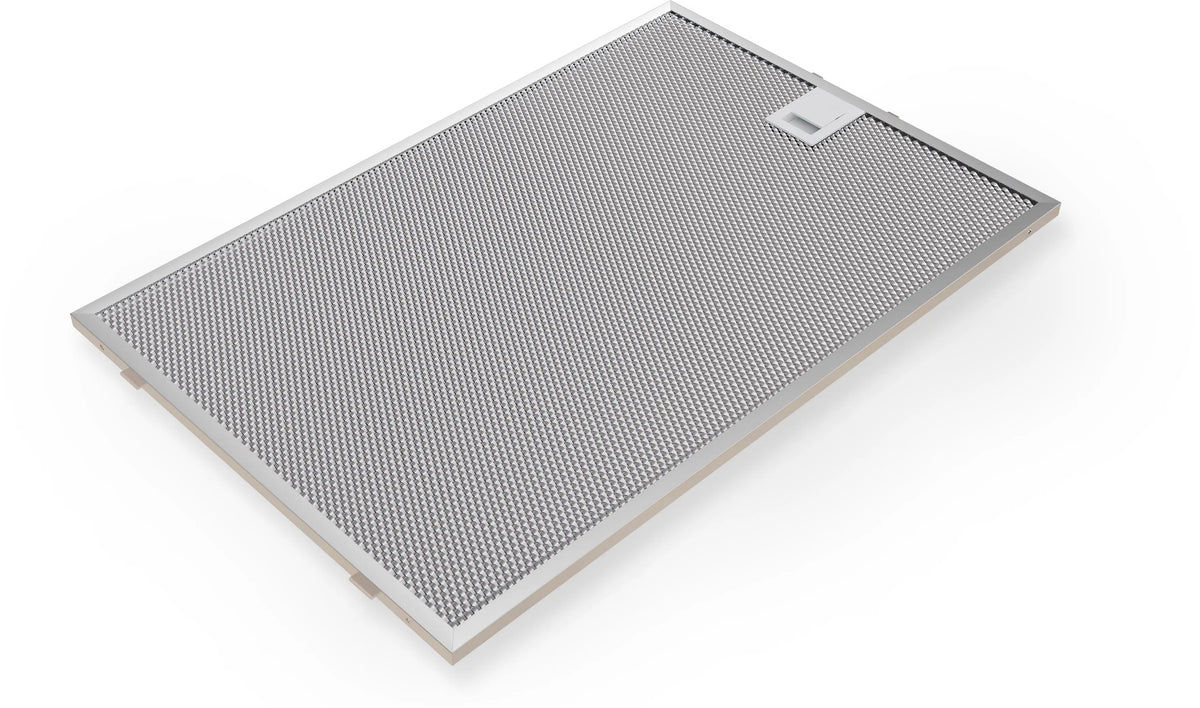

- Grease filter material: Washable stainless steel
- Voltage: 220-240 V
- Height of the appliance: 60 mm
- Width of the appliance: 598 mm
- Depth of the product: 298 mm
- Dimensions of the packed product (HxWxD): 500x580x720 mm
- Minimum distance above an electric cooktop: 600 mm
- Minimum distance above a gas cooktop: 650 mm
- Diameter of air outlet: 150 mm
- No-return airflow flap: No
- Length electrical supply cord: 130 cm
- Net weight: 9.0 kg

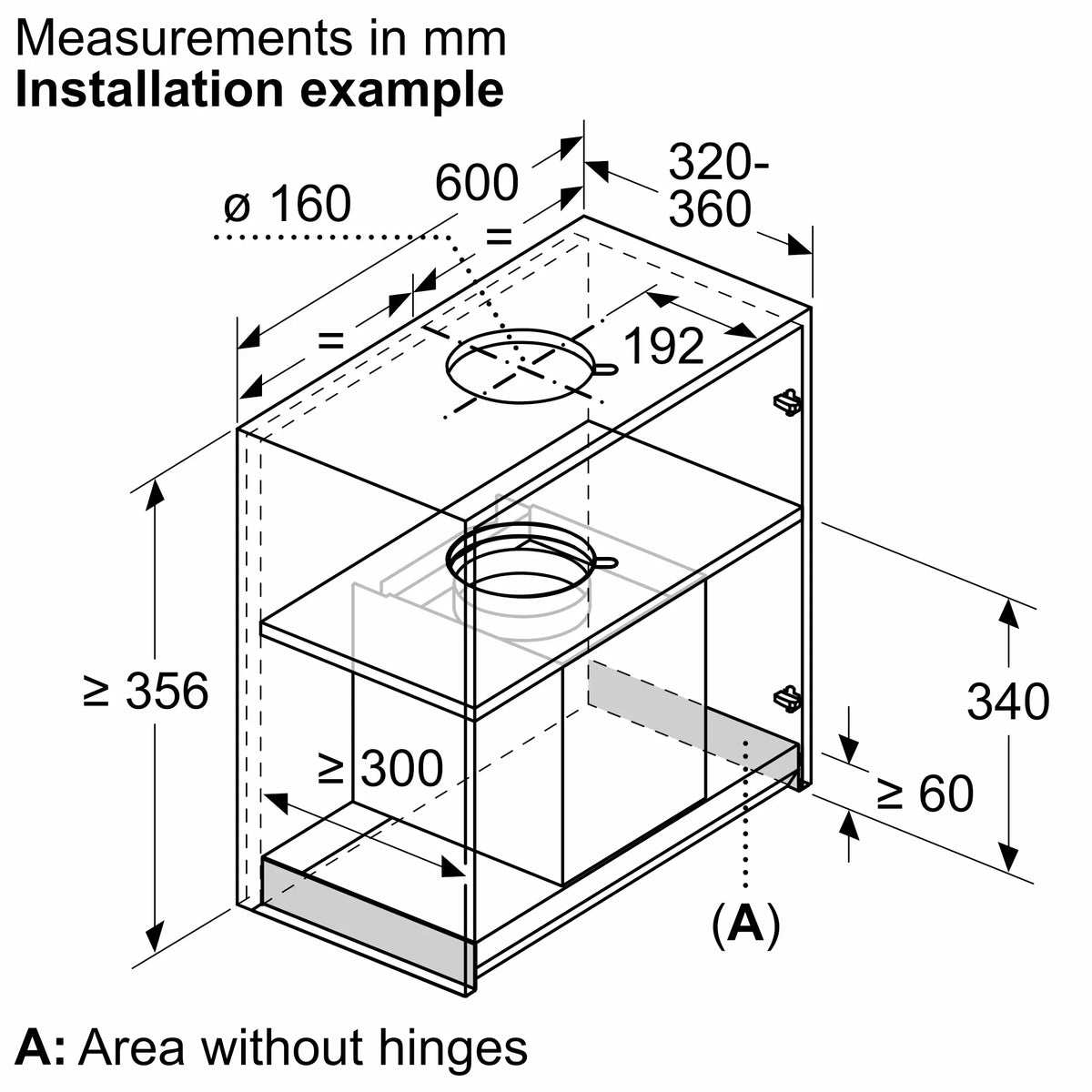

- Appliance height exhaust air max: 340 mm
- Appliance height exhaust air min: 340 mm
- Appliance height recirculating max: 340 mm
- Appliance height recirculating min: 340 mm
- Maximum width for installation: 560 mm
- Minimum width for installation: 560 mm
- Depth for installation: 300 mm
- PerfectAir sensor: No
- SilentPowerDrive motor - efficient and extra silent: Yes
- Extremely silent appliances: Yes
- Clean filter reminder: No
- Boost mode: Yes
- Delay Shut off modes: Yes
- Remote control: No
- Type of lamps used: LED
- Number of lights: 2
- Total luminance: 437 lux
- Color temperature: Neutral (3.500 K)
- Illumination type softlight: Yes
- Light colour customisable by Home Connect: Yes
- Ambient light: No
- Wi-Fi Enabled (Home Connect): Yes
- Home Connect Features: iService Remote, Remote Monitoring and Control
- Cooktop-based rangehood control: Yes
- Smart Hood Automatic: Yes, with all cooktops with same feature and connected Home Connect account
