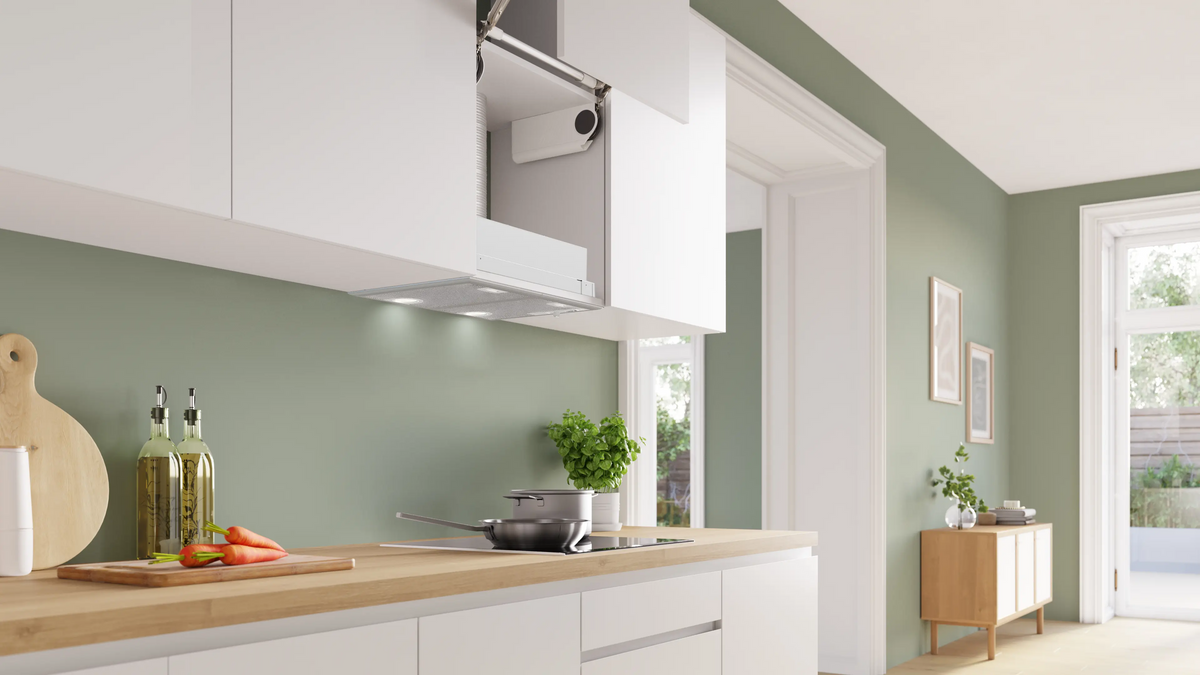

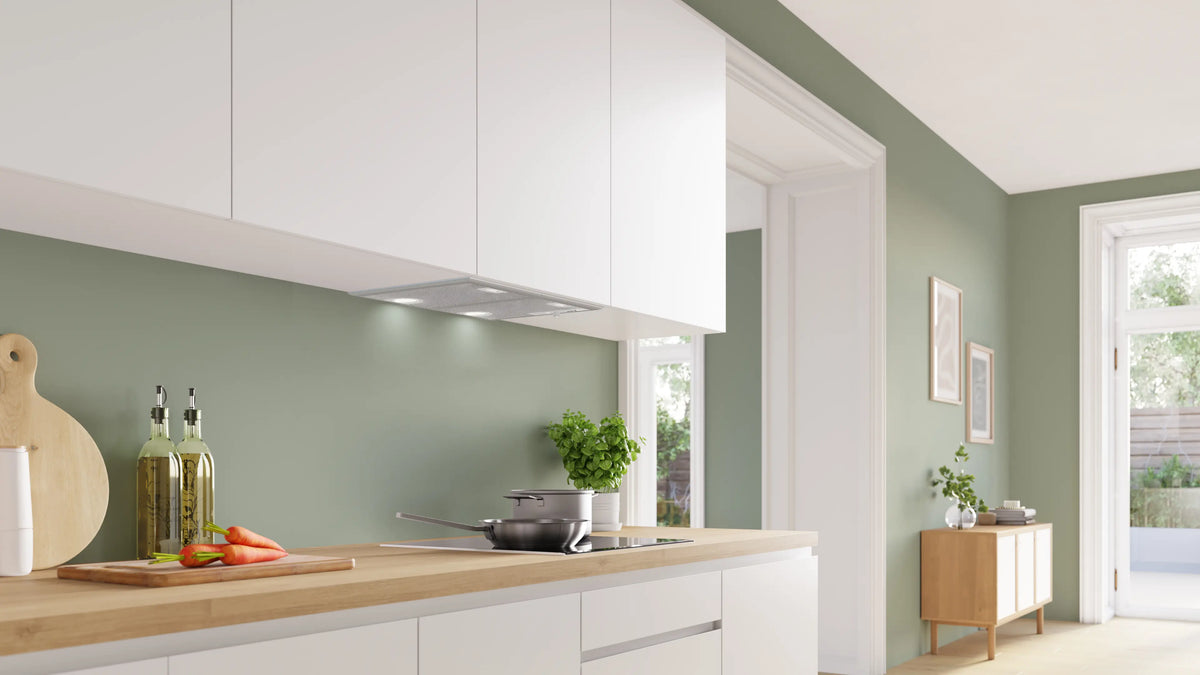

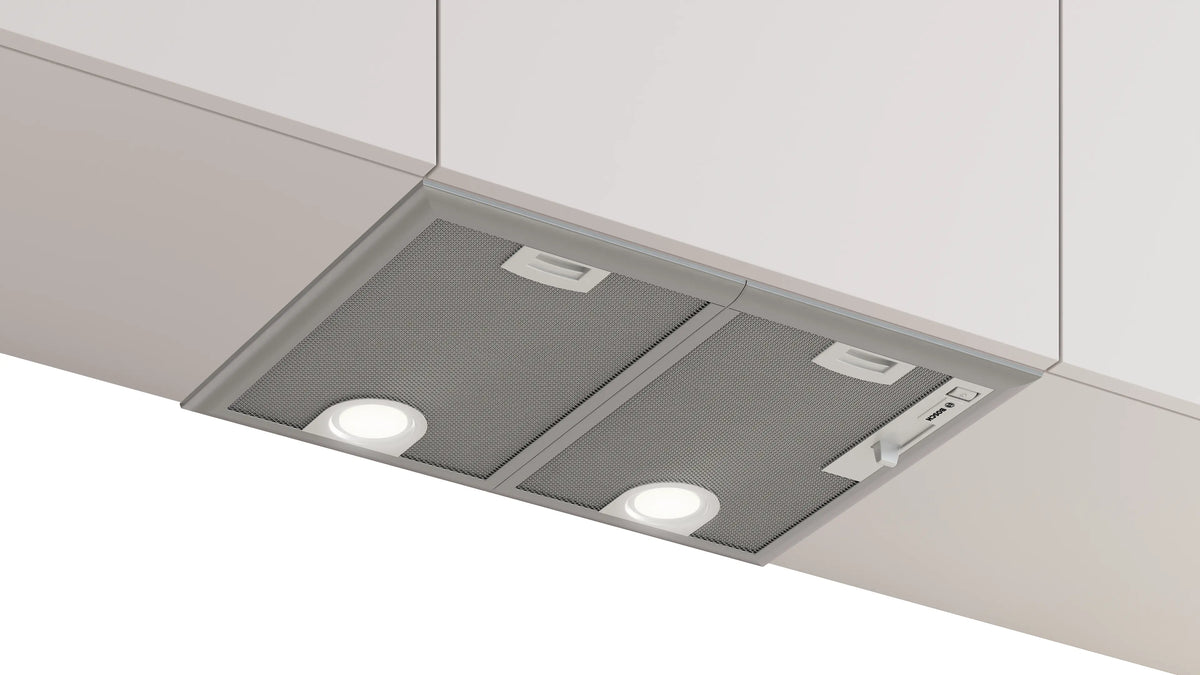

The Bosch Series 4 DHL555BMAU is a 53cm integrated rangehood in silver metallic that fits inside an upper cabinet, with up to 460m³/h extraction, 3 speeds plus an intensive setting and a simple slide switch. Dishwasher-safe metal grease filters and LED lighting round out a quiet, practical hood.
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |

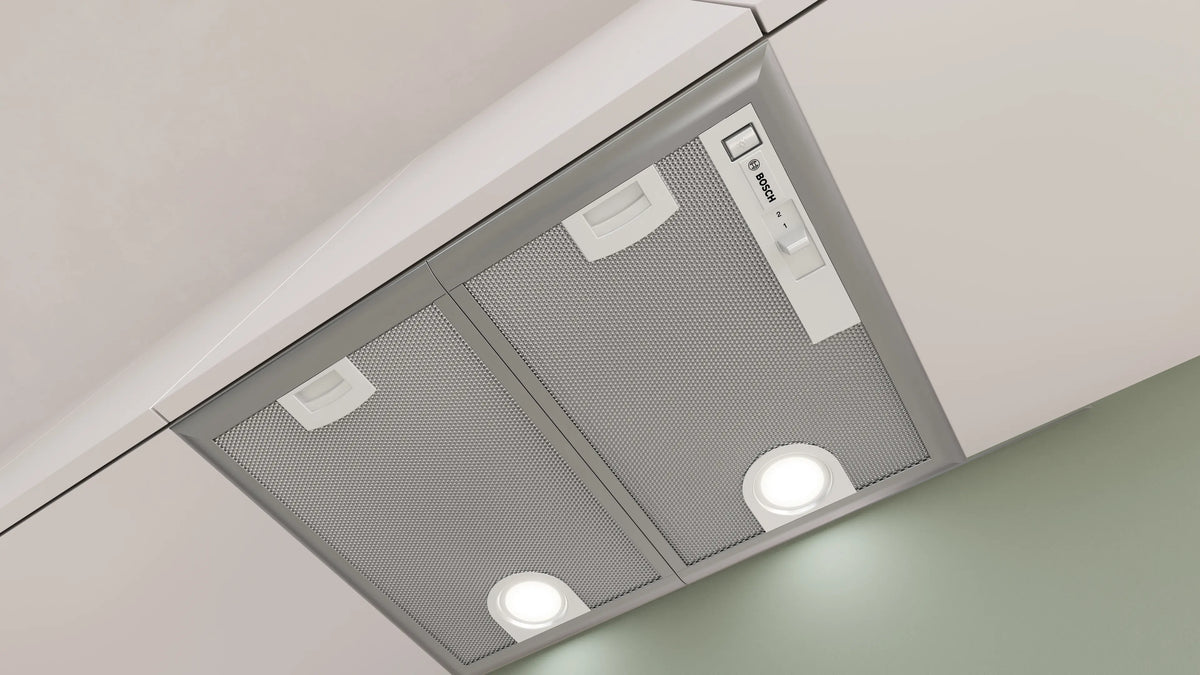

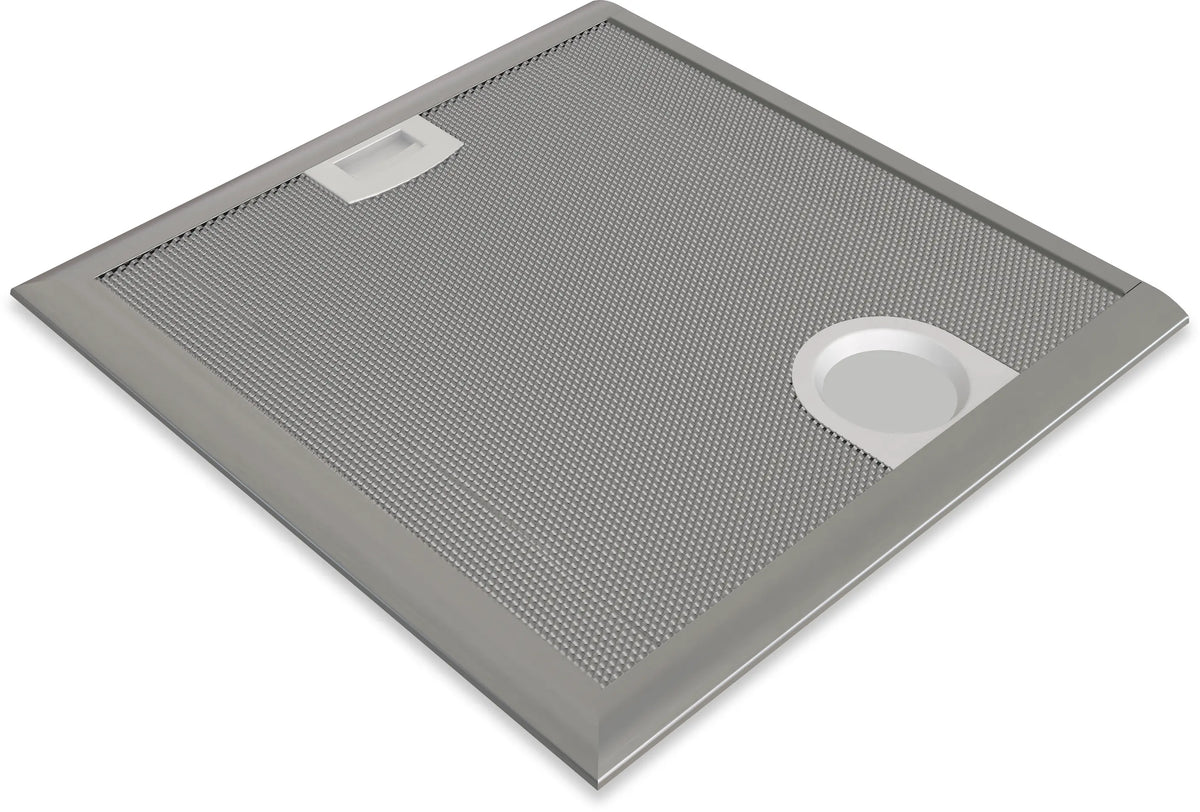

Metal grease filters: Easy to clean, dishwasher safe design for fresher kitchen air.Our high-quality metal grease filters trap airborne grease and solids, helping keep your kitchen air fresher while protecting the internal components of your rangehood. The filters are easy to maintain — just wash them by hand or place them in the dishwasher for a quick, hassle-free clean. |

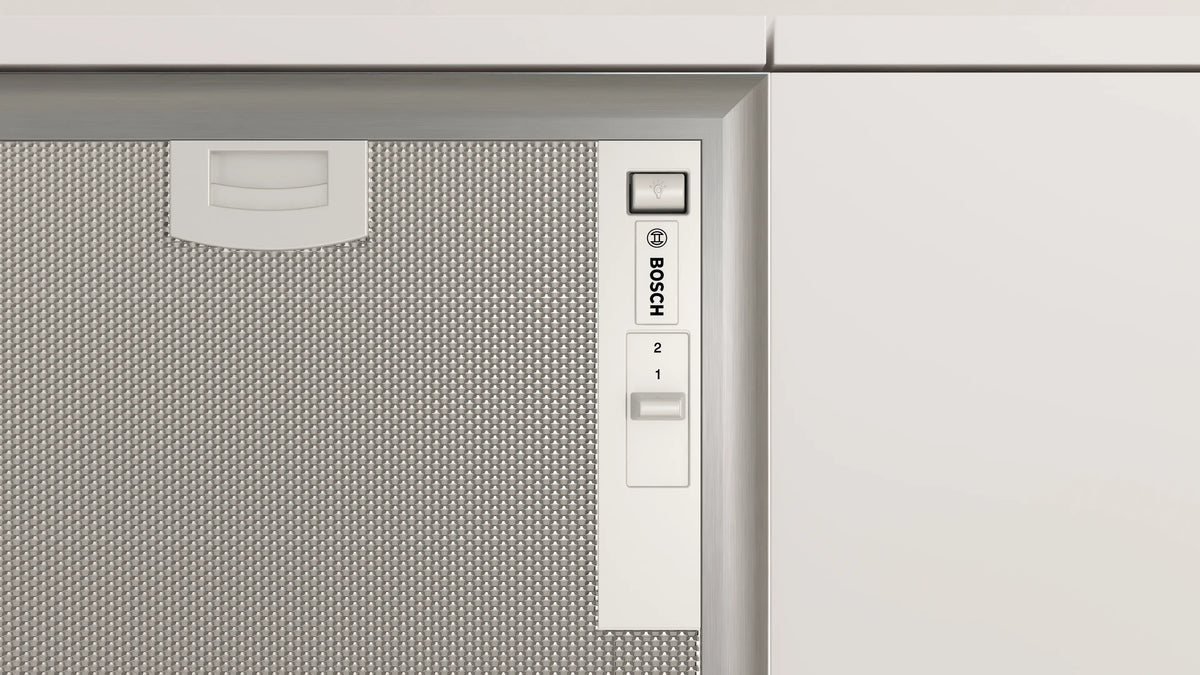

Slide switch control: Easily adjust the extraction speed with a simple sliding motion.Adjusting your rangehood has never been simpler. The Slide Switch Control lets you smoothly select your preferred extraction speed with a single motion. Designed for everyday ease, it delivers intuitive operation and reliable performance, so you can focus on cooking, not controls. |
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |
Quiet operation: High extraction performance with low noise levels.
Enjoy strong extraction without the distraction. Bosch rangehoods are designed to operate quietly, so you can focus on your cooking and conversation.
Intensive speed setting: Quickly removes steam and strong cooking odours for a fresher kitchen.
When steam or odours build up, the intensive speed setting increases extraction power to clear the air quickly. You can easily switch it on when needed and back off once the air feels fresh again, giving you full control over performance and noise levels.

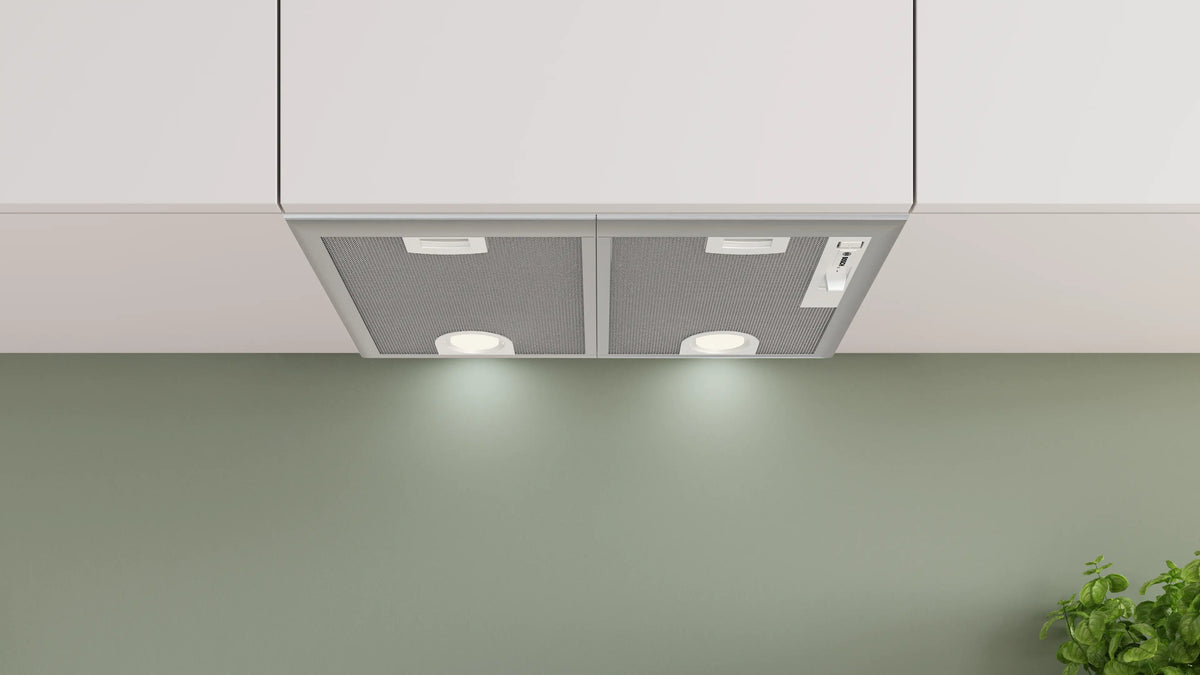

LED lighting: Energy-efficient, bright, even cooktop illumination.
Enjoy clear, even illumination of your cooktop with long-lasting, energy-efficient LED lighting, making it easier to monitor every dish while you cook.
Key Features
- Quiet operation: High extraction performance with low noise levels.
- Intensive speed setting: Quickly removes steam and strong cooking odours for a fresher kitchen.
- LED lighting: Energy-efficient, bright, even cooktop illumination.
- Metal grease filters: Easy to clean, dishwasher safe design for fresher kitchen air.
- Slide switch control: Easily adjust the extraction speed with a simple sliding motion.
Product Specification Sheet
User Manual
Installation Instruction
-
Height (mm)215 mm
-
Width (mm)530 mm
-
Depth (mm)380 mm
-
MpnDHL555BMAU
-
Model numberDHL555BMAU
-
ColourSilver
-
Lights2 x LED lights
-
Flue size150mm
-
Noise rating63 dB
-
Extraction fan460 m³/h
-
LightingLED
-
Size range52cm to 53cm
-
Features✓ Up to 460 m³/h extraction ✓ Quiet operation: High extraction performance with low noise levels ✓ Intensive speed setting: Quickly removes steam and strong cooking odours for a fresher kitchen ✓ LED lighting: Energy-efficient, bright, even cooktop illumination ✓ Metal grease filters: Easy to clean, dishwasher safe design for fresher kitchen air ✓ Slide switch control: Easily adjust the extraction speed with a simple sliding motion
-
Manufacturer warranty2 Years
-
InstallationUndermount
-
More SpecsGeneral
- Width: 53 cm
- Colour: Silver metallic
- Installation type: Built-in
- Operating Mode: Exhaust / Recirculation (Accessory available separately)
- Total power of the motors: 170 W
- Type of control setting and signalling devices: Mechanical slider
- Number of power settings: 3-stages + intensive setting
- Max. air extraction: 460 m³/h
- Boost position air extraction: 604 m³/h
- Sound power at max. speed: 63 dB
- Sound power boost: 68 dB
- Max. air recirculation: 302 m³/h
- Boost position output recirculating: 346.0 m³/h
- Sound power at max. speed (recirculation): 71 dB
- Sound power boost (recirculation): 73 dB
- Grease filter material: Washable aluminium
- Voltage: 220-240 V

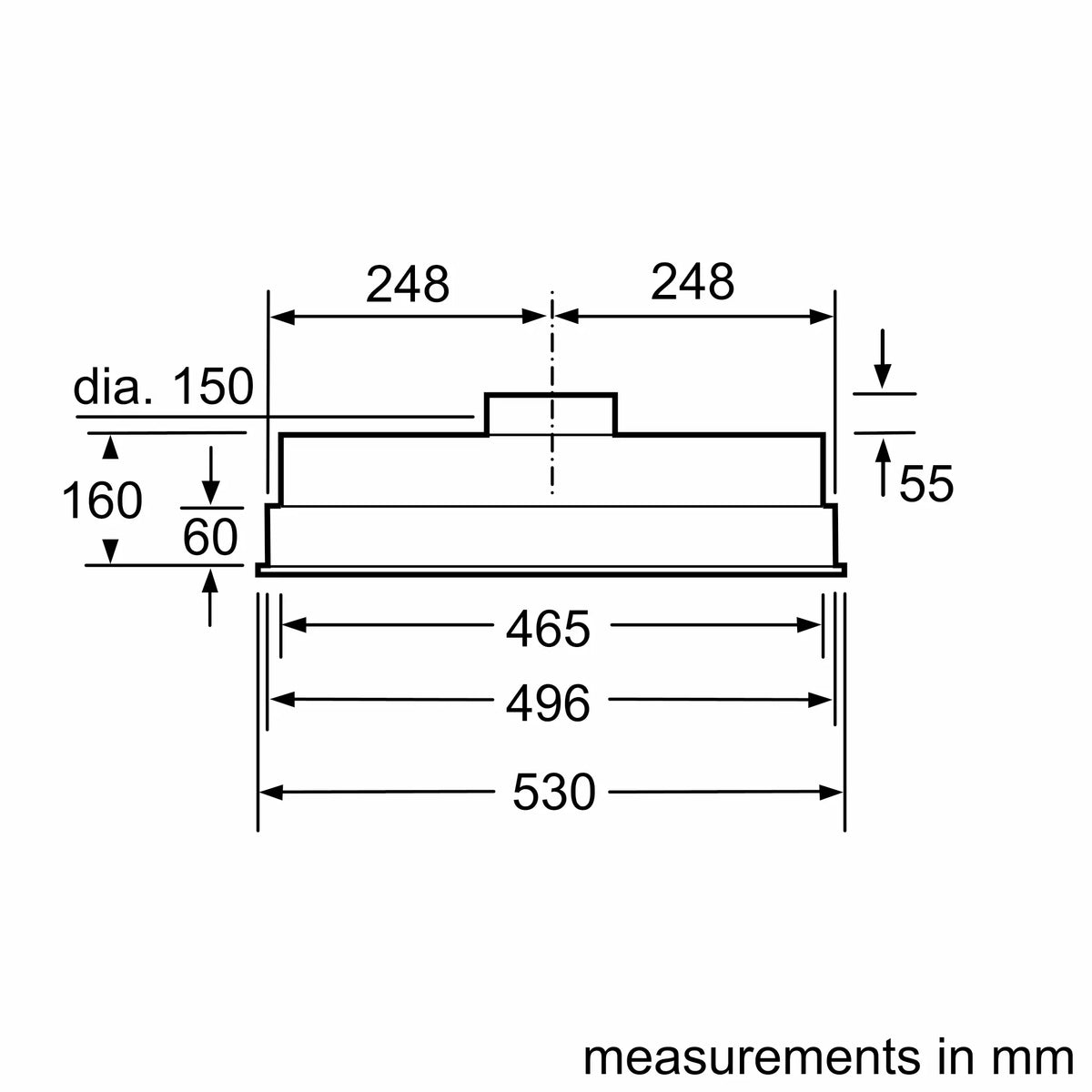

- Height of the appliance: 215 mm
- Width of the appliance: 530 mm

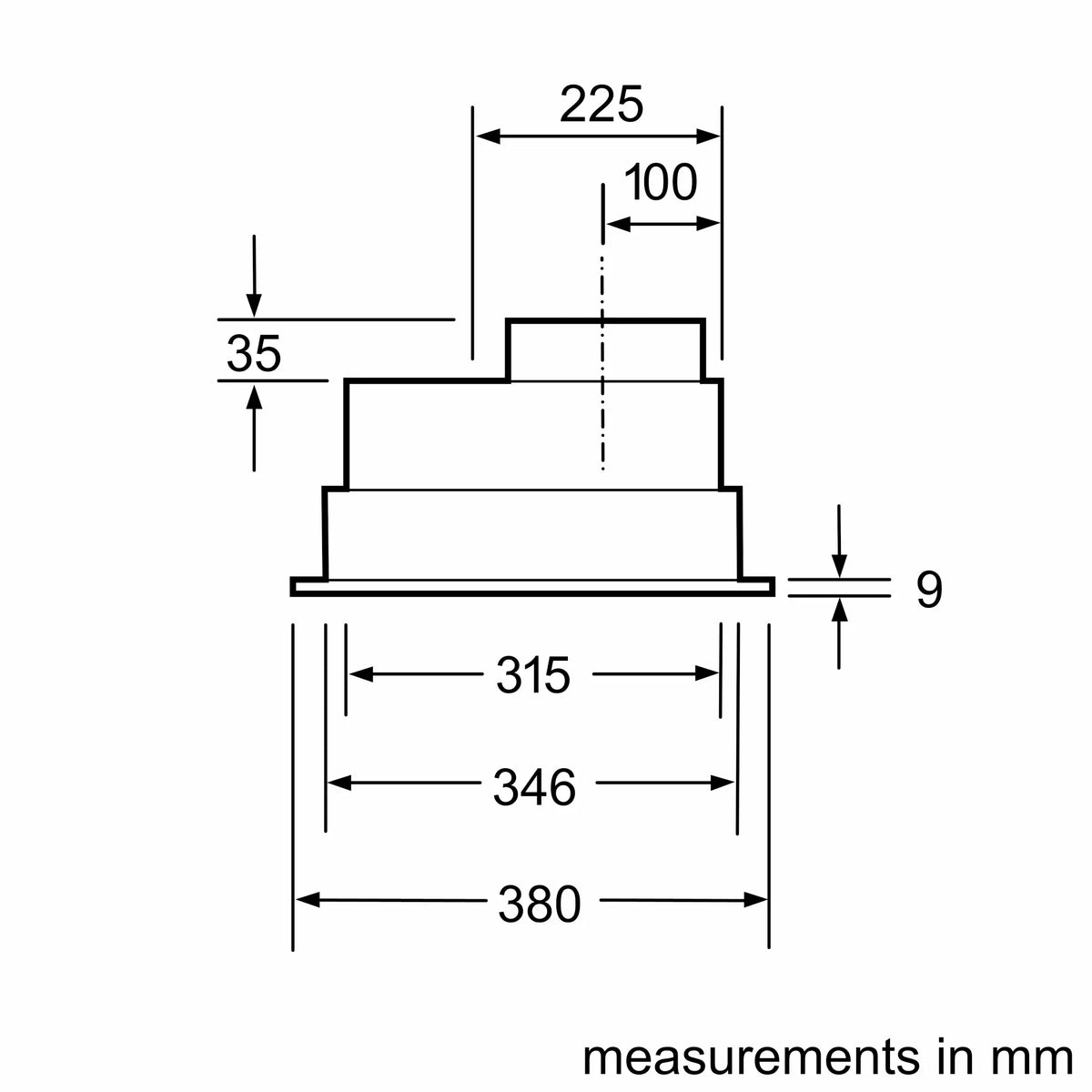

- Depth of the product: 380 mm
- Dimensions of the packed product (HxWxD): 320x470x590 mm

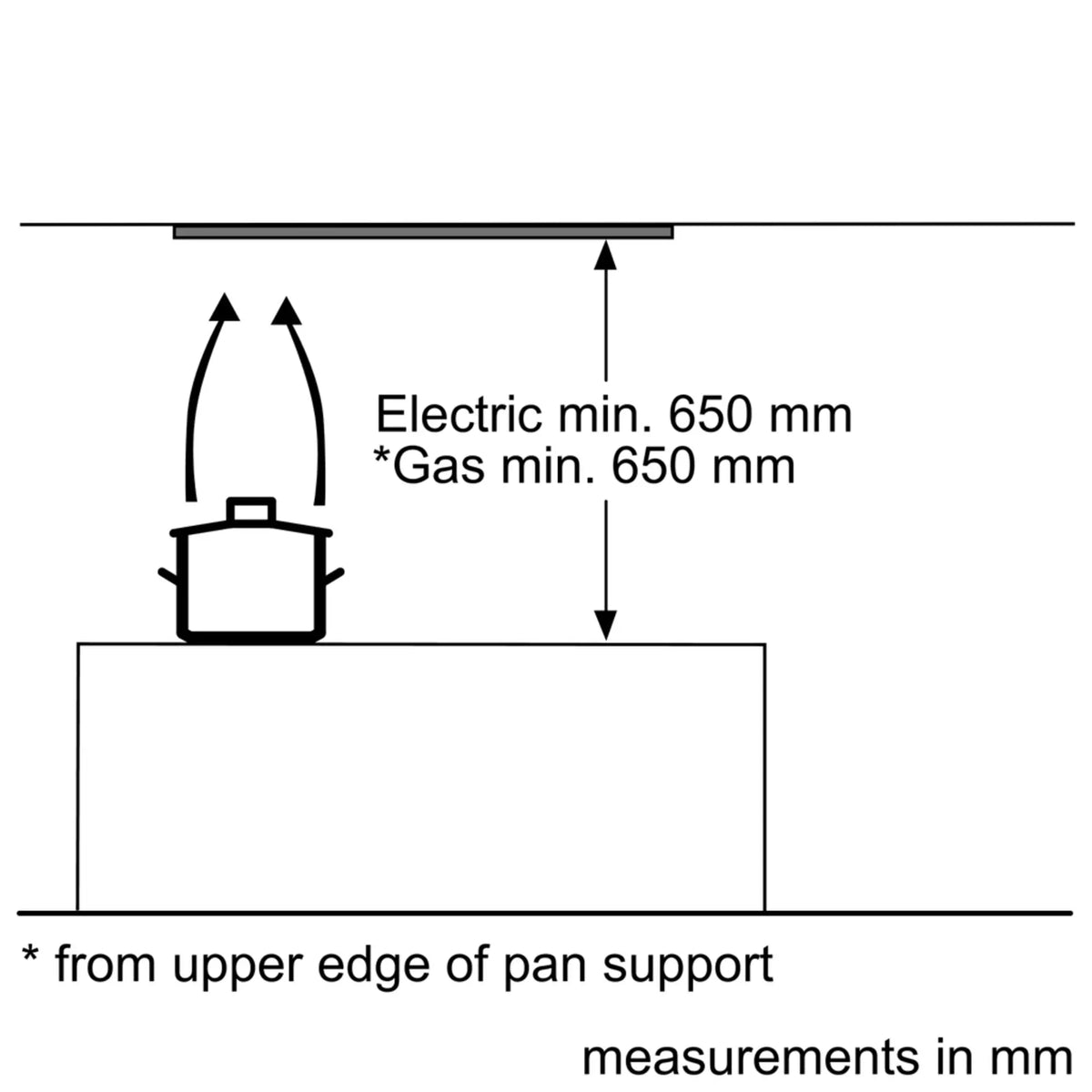

- Minimum distance above an electric cooktop: 650 mm
- Minimum distance above a gas cooktop: 650 mm
- Diameter of air outlet: 150 mm
- No-return airflow flap: No
- Length electrical supply cord: 130 cm
- Net weight: 7.8 kg
- Appliance height exhaust air max: 215 mm
- Appliance height exhaust air min: 215 mm
- Appliance height recirculating max: 215 mm
- Appliance height recirculating min: 215 mm

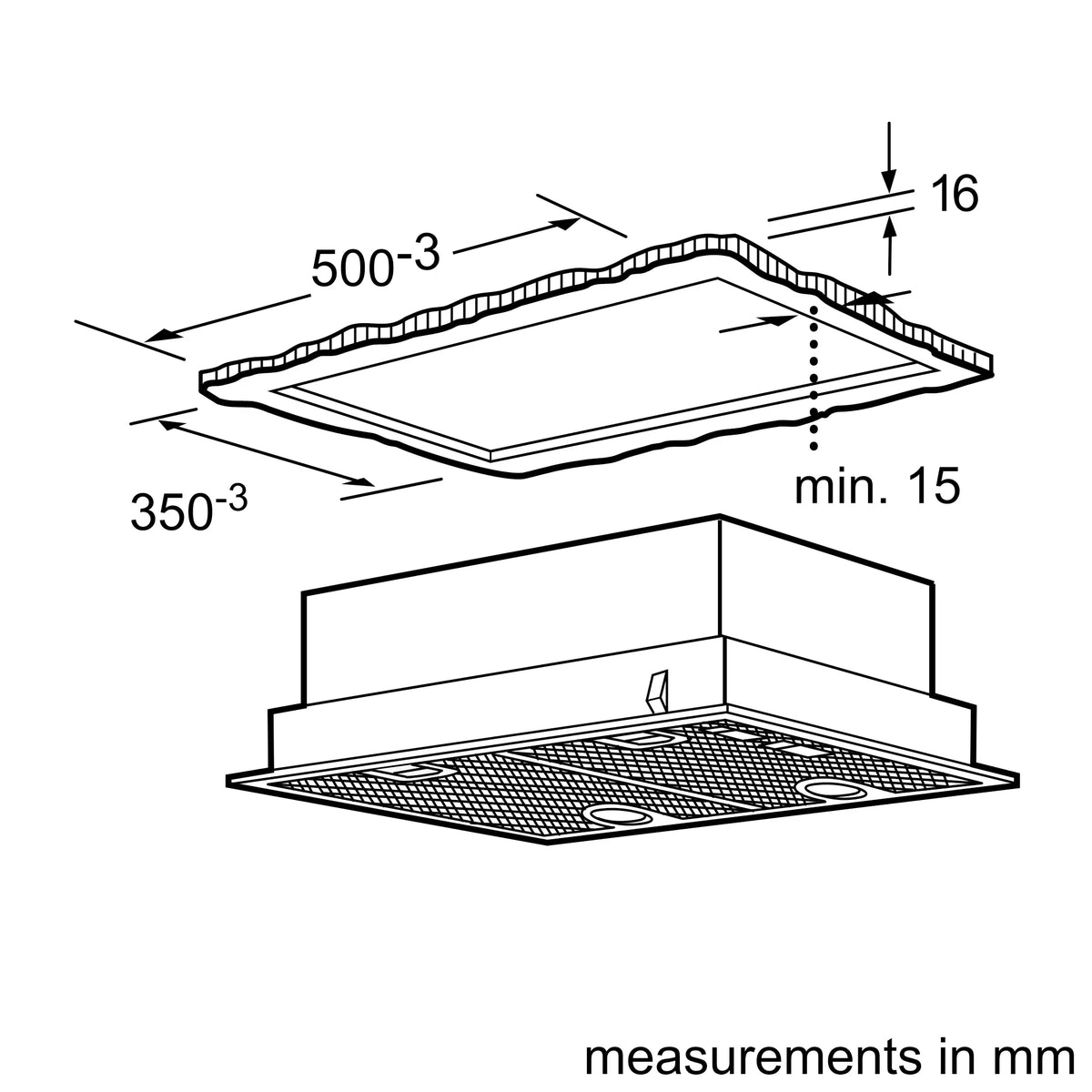

- Maximum width for installation: 500 mm
- Minimum width for installation: 500 mm
- Depth for installation: 350 mm
- PerfectAir sensor: No
- SilentPowerDrive motor - efficient and extra silent: No
- Extremely silent appliances: No
- Clean filter reminder: No
- Boost mode: No
- Delay Shut off modes: No
- Remote control: No
- Number of lights: 2
- Total power of the lamps: 6 W
- Total luminance: 438 lux
- Color temperature: Neutral (3.500 K)
- Illumination type softlight: No
- Light colour customisable by Home Connect: No
- Ambient light: No
- Wi-Fi Enabled (Home Connect): No
- Cooktop-based rangehood control: No
- Smart Hood Automatic: No
