FlameSelect: Adjust the gas flame precisely using nine defined levels.Getting the right flame intensity can be a challenge. FlameSelect makes it simple by offering nine clearly defined flame levels. You can choose exactly the heat you need, from a gentle simmer to a medium sauté or high heat for fast boiling, giving you consistent and reliable cooking results every time. |

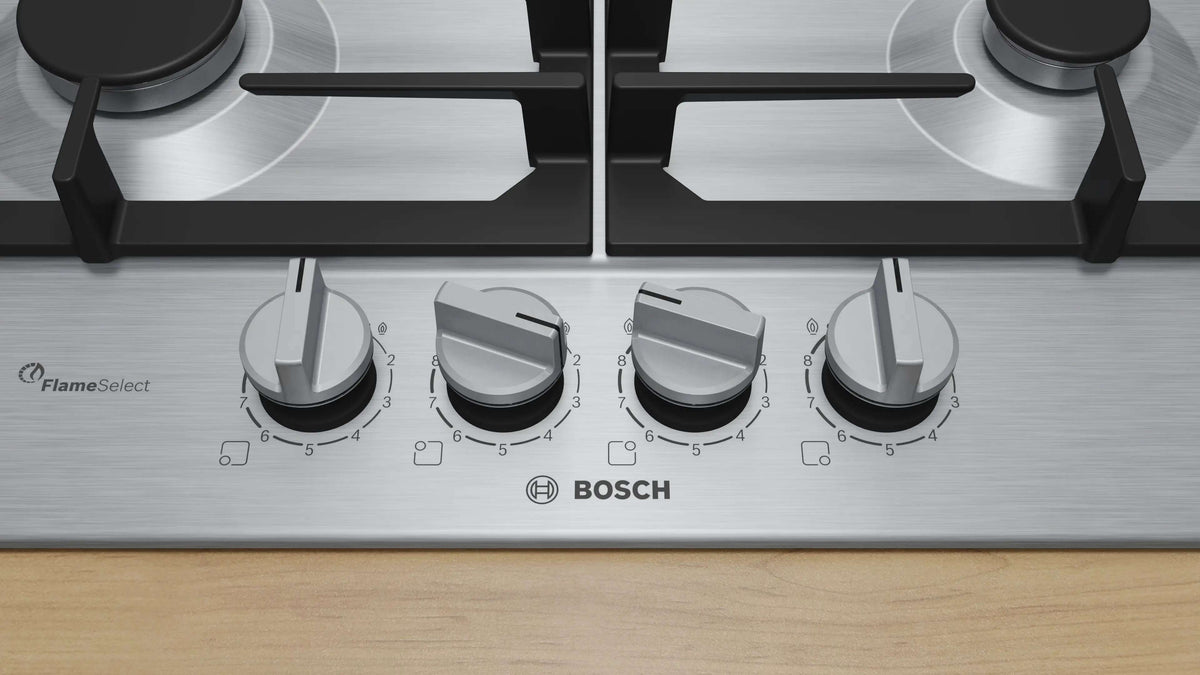

Easy cleaning: Detachable controls and dishwasher-suitable pan supports make cleaning easier.Cleaning your gas cooktop doesn’t have to be a chore. The cooktop surface has been designed for easier maintenance, with removable knobs that give you better access around the controls, and pan supports that are dishwasher-suitable for reduced manual cleaning. Together, these features make it easier to keep your cooktop looking clean with less effort. |
|
|

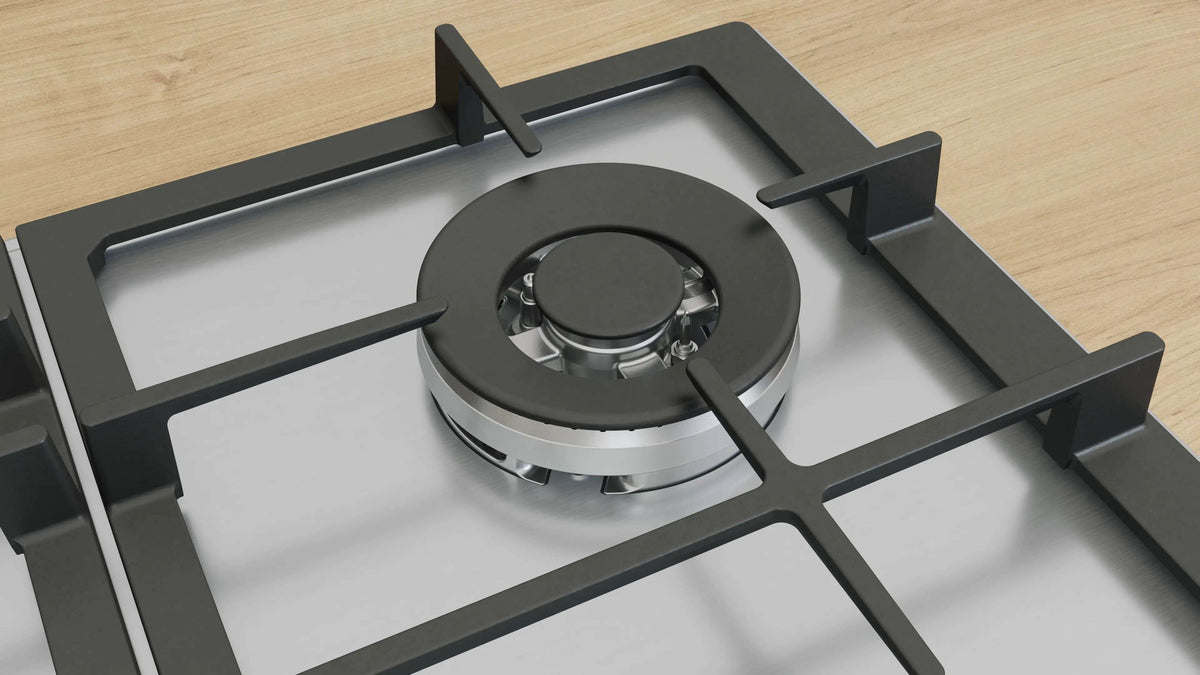

Wok burner: Delivers powerful heat for quick boiling or precise control for simmering.The wok burner gives you high heat when you need it and precise control when you don’t. Its powerful flame brings water to the boil quickly, while the adjustable settings allow gentle simmering for sauces or delicate dishes. Whether you’re stir-frying, boiling, or simmering, the wok burner provides the versatility to cook with confidence. |
Continuous cast-iron pan supports: Provide firm, stable support for your cookware.Continuous cast-iron pan supports provide a stable surface across the entire cooktop. The robust, continuous design keeps pots and pans steadier while you cook, making it easier to move cookware between burners. Built for durability and consistent performance, they offer a premium, professional feel every time you use your gas cooktop. |
|
|
Safety gas cut-off: Automatically stops the gas supply if the flame goes out.The safety gas cut-off provides added protection while you cook. If the flame goes out unexpectedly, the system detects the change and automatically stops the gas supply. This helps prevent gas from continuing to flow unnoticed and supports safer operation in everyday use. |
-
Height (mm)45 mm
-
Width (mm)582 mm
-
Depth (mm)520 mm
-
Cut Out Depth (mm)490
-
Cut Out Width (mm)560
-
MpnPCH6A5I90A
-
Model numberPCH6A5I90A
-
ColourStainless steel
-

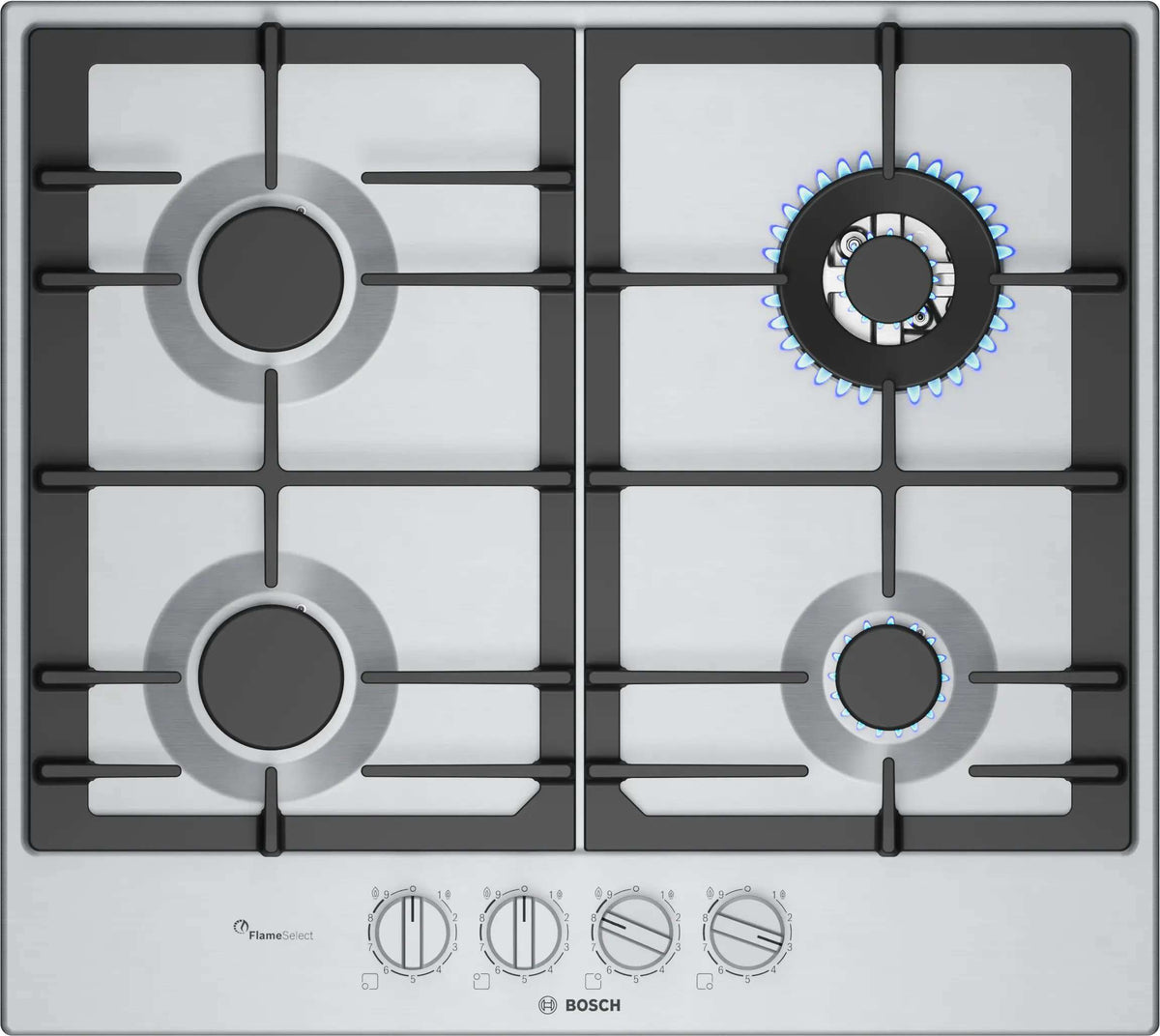

Cooking zones4
-
Cut out depth mm490
-
Size range60cm
-
Features✓ Series 6 gas cooktop ✓ Four cooking positions ✓ FlameSelect flame control ✓ Frameless stainless steel surface ✓ Cast iron pan supports ✓ Natural gas preset 10mbar ✓ Alternative LPG nozzle set
-
Manufacturer warranty2 Years
-
InstallationStandard
-
More SpecsGeneral Information
- Product name/family: gas cooktop w integrated controls
- Built-in / Free-standing: Built-in
- Energy input: Gas
- Total number of positions that can be used at the same time: 4
- Location of control panel: Front
- Length electrical supply cord: 100 cm
- Gas connection rating: 8000 W
- Fuse protection: 3 A
- Voltage: 220-240 V
- Frequency: 50; 60 Hz
- Basic surface material: Stainless steel

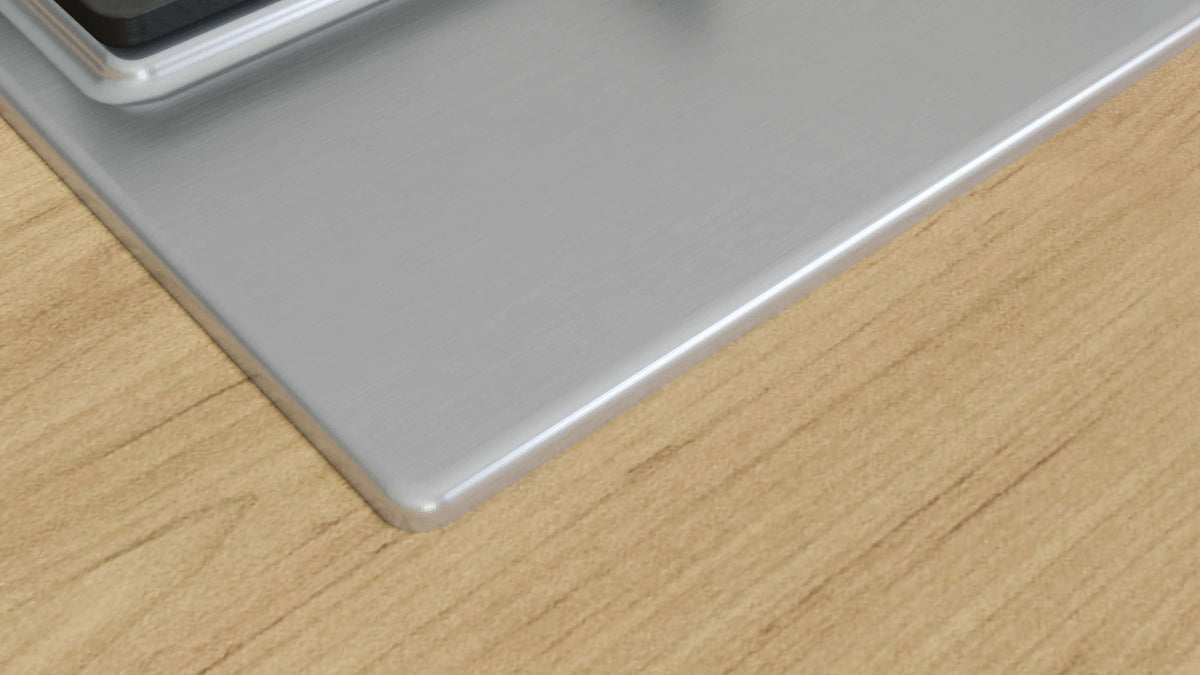

- Type of frame: Frameless
- Material of pan supports: Cast iron with rubber feet
- Knob Material: Full metal
- Enamelled cast-iron trivets with rubber feet
- Metal control dials
- Gas type preset: Nat gas 10 mbar (Australia)
- Other certified gas types: Liquid gas G30,31 28-30/37mbar
- Nozzle set included for alternative gas type: Liquid gas G30,31 28-30/37mbar
- Width: 60 cm

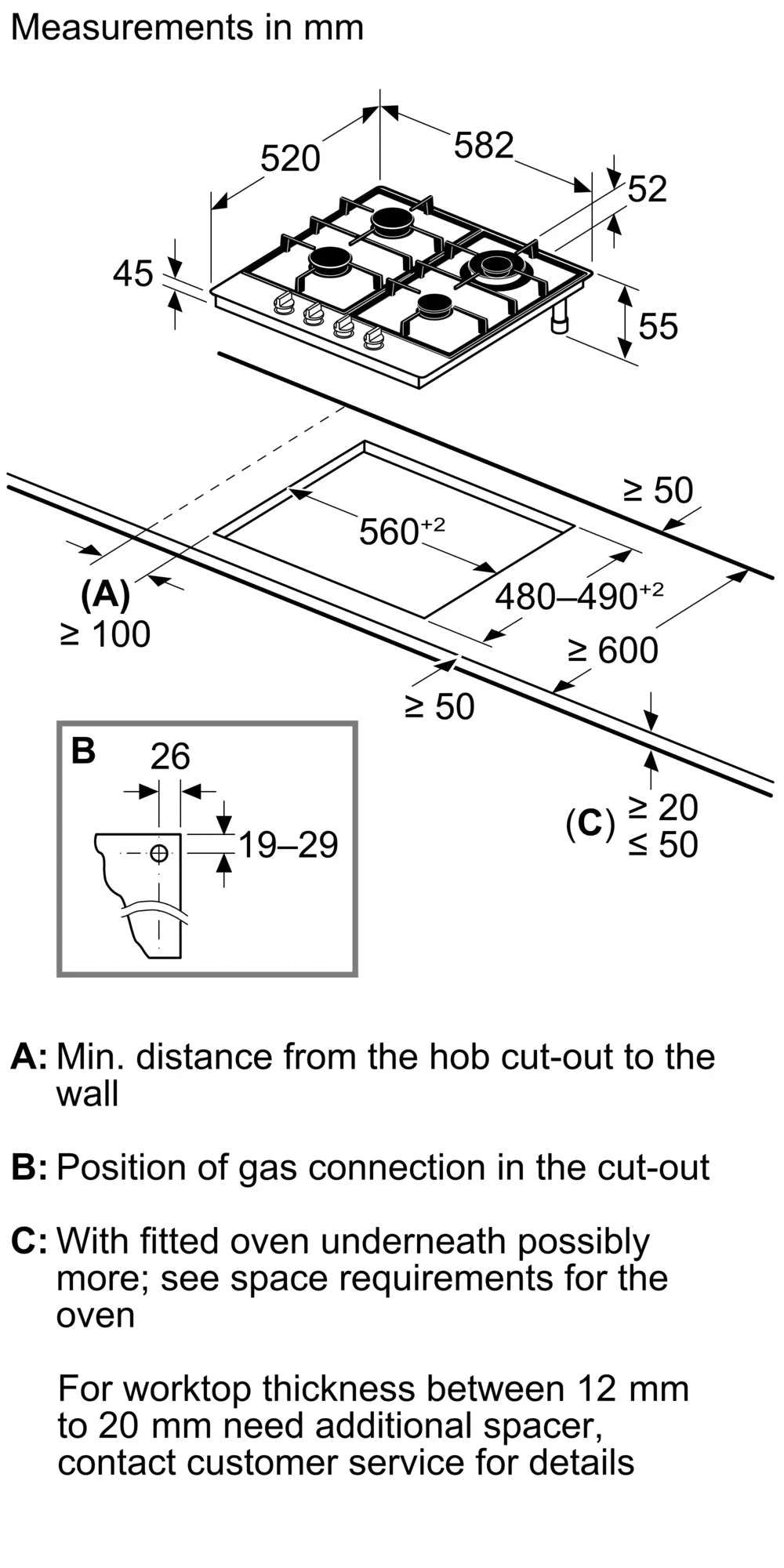

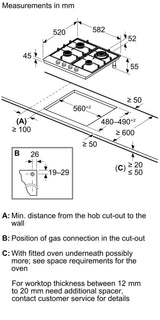

- Required niche size for installation (HxWxD): 45 x 560-560 x 480-490 mm
- Minimum worktop thickness (without spacer / with spacer, order seperately): 20 mm / 12 mm
- Plug type: Standard 10 Amp plug
- Power cord 1 m cable with plug
- Dual wok burner: No
- Type Cooking zone: Standard burner, Standard burner, Economy burner, WOK burner
- Power of heating elements: 1 x 1.0, 1 x 3.5, 2 x 1.75 kW
- Dishwasher suitable pan support: Yes
- Removable control dials for easy cleaning: Yes
- Type of control setting and signalling devices: Knob
- Cooktop ignition: Knob ignition
- Wi-Fi Enabled (Home Connect): No
- Cooktop-based rangehood control: No
- Smart Hood Automatic: No
- Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.: No
- Safety device: Flame failure safety device
- Residual heat indicator: without
- Flame failure device fitted to each individual burner: prevents unwanted gas flow when flame goes out.
- Included accessories: 1 x Wok attachment ring
