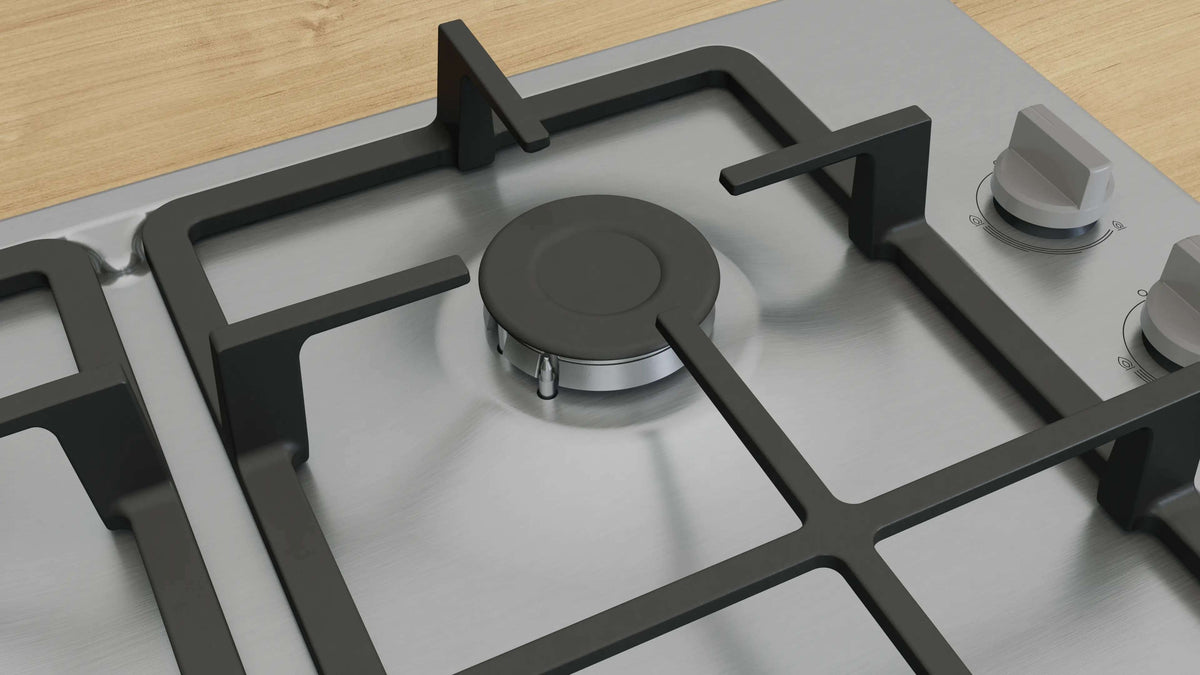

Dishwasher-suitable pan supports: Make cleaning your cooktop even easier.Take scrubbing pan supports off your to-do list. Bosch gas cooktops are easy to clean, thanks to pan supports with high-quality surfaces that are dishwasher-suitable. We’ve optimised the surface of the pan supports so that you don’t have to worry about corrosion or cracks when they’re in the dishwasher. |
Continuous cast-iron pan supports: Provide firm, stable support for your cookware.Continuous cast-iron pan supports provide a stable surface across the entire cooktop. The robust, continuous design keeps pots and pans steadier while you cook, making it easier to move cookware between burners. Built for durability and consistent performance, they offer a premium, professional feel every time you use your gas cooktop. |
|
|
Wok burner: Delivers powerful heat for quick boiling or precise control for simmering.The wok burner gives you high heat when you need it and precise control when you don’t. Its powerful flame brings water to the boil quickly, while the adjustable settings allow gentle simmering for sauces or delicate dishes. Whether you’re stir-frying, boiling, or simmering, the wok burner provides the versatility to cook with confidence. |
Safety gas cut-off: Automatically stops the gas supply if the flame goes out.The safety gas cut-off provides added protection while you cook. If the flame goes out unexpectedly, the system detects the change and automatically stops the gas supply. This helps prevent gas from continuing to flow unnoticed and supports safer operation in everyday use. |
|
|

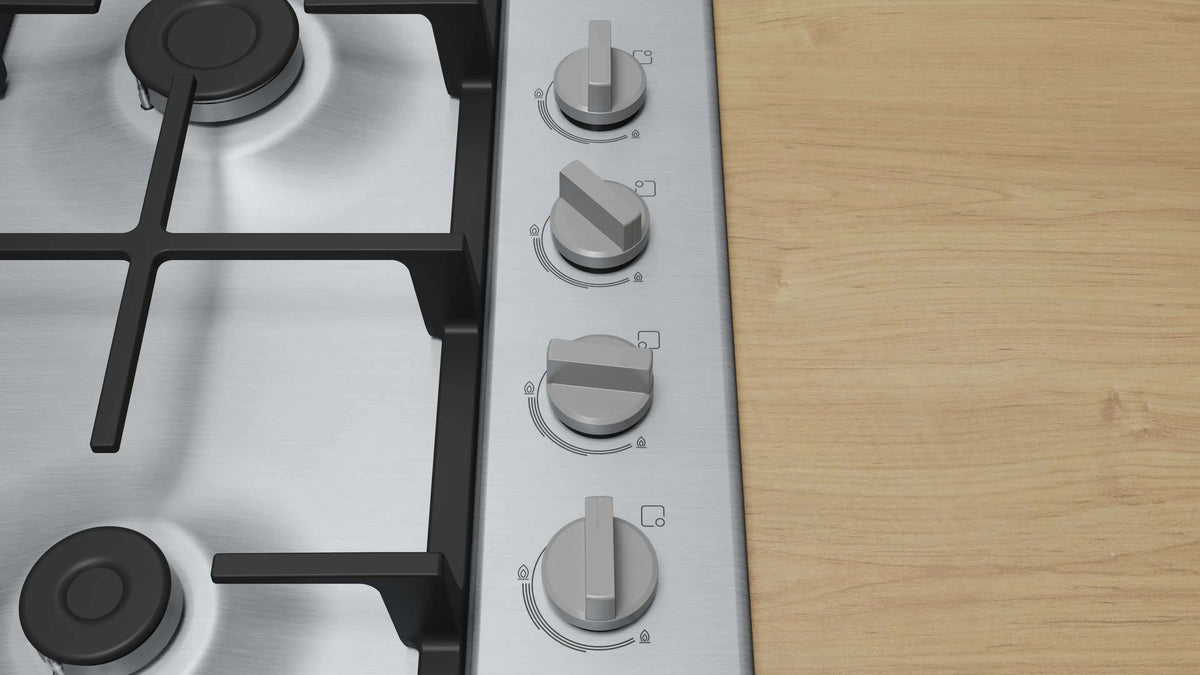

Sword controls: Provide a firmer grip for easy flame adjustment.Sword controls are designed for a firm, comfortable grip, making it easy to adjust the flame level while cooking. Their ergonomic shape supports smooth handling and clear control of each burner, helping you set the heat you need with confidence. |
Wider control spacing: Makes cleaning between the control knobs easier.Wider spacing between the control knobs makes it easier to clean the cooktop surface. The increased distance provides better access to the areas around and between the knobs, helping you remove spills and residues more easily and keep your gas cooktop looking clean with less effort. |
|
-
Height (mm)45 mm
-
Width (mm)580 mm
-
Depth (mm)510 mm
-
Cut Out Depth (mm)490
-
Cut Out Width (mm)560
-
MpnPBH6B5K90A
-
Model numberPBH6B5K90A
-
ColourStainless steel
-
Cooking zones4
-
Cut out depth mm490
-
Size range60cm
-
Features✓ Series 2 gas cooktop ✓ Four cooking positions ✓ Frameless stainless steel surface ✓ Cast iron pan supports ✓ Natural gas preset 10mbar ✓ Alternative LPG nozzle set ✓ Rubber feet for stability
-
Manufacturer warranty2 Years
-
InstallationStandard
-
More SpecsGeneral Information
- Product name/family: gas cooktop w integrated controls
- Built-in / Free-standing: Built-in
- Energy input: Gas
- Total number of positions that can be used at the same time: 4
- Residual heat indicator: without
- Location of control panel: Lateral
- Basic surface material: Stainless steel
- Length electrical supply cord: 100 cm
- Gas connection rating: 8500 W
- Fuse protection: 3 A
- Voltage: 220-240 V
- Frequency: 50; 60 Hz
- Main colour of product: Stainless steel
- Type of frame: Frameless
- Material of pan supports: Cast iron with rubber feet
- Knob Material: Plastic
- Required niche size for installation (HxWxD): 45 x 560-560 x 480-490 mm
- Minimum worktop thickness (without spacer / with spacer, order seperately): 20 mm / 12 mm
- Plug type: Standard 10 Amp plug
- Power of heating elements: 1 x 1.0, 1 x 4.0, 2 x 1.75 kW
- Type Cooking zone: Standard burner, Standard burner, Economy burner, WOK burner
- Type of control setting and signalling devices: Knob
- Cooktop ignition: Knob ignition
- Safety device: Flame failure safety device
- Residual heat indicator: without
- Included accessories: 1 x wok attachment ring
