Bosch Series 2 53cm Integrated Rangehood Grey DLN54AA70A
Select your postcode & suburb below to check delivery cost.
The DLN54AA70A is a 53cm Serie 2 Undermount Rangehood from Bosch that offers a sleek and seamless design in the kitchen with fully integrated installation.
-

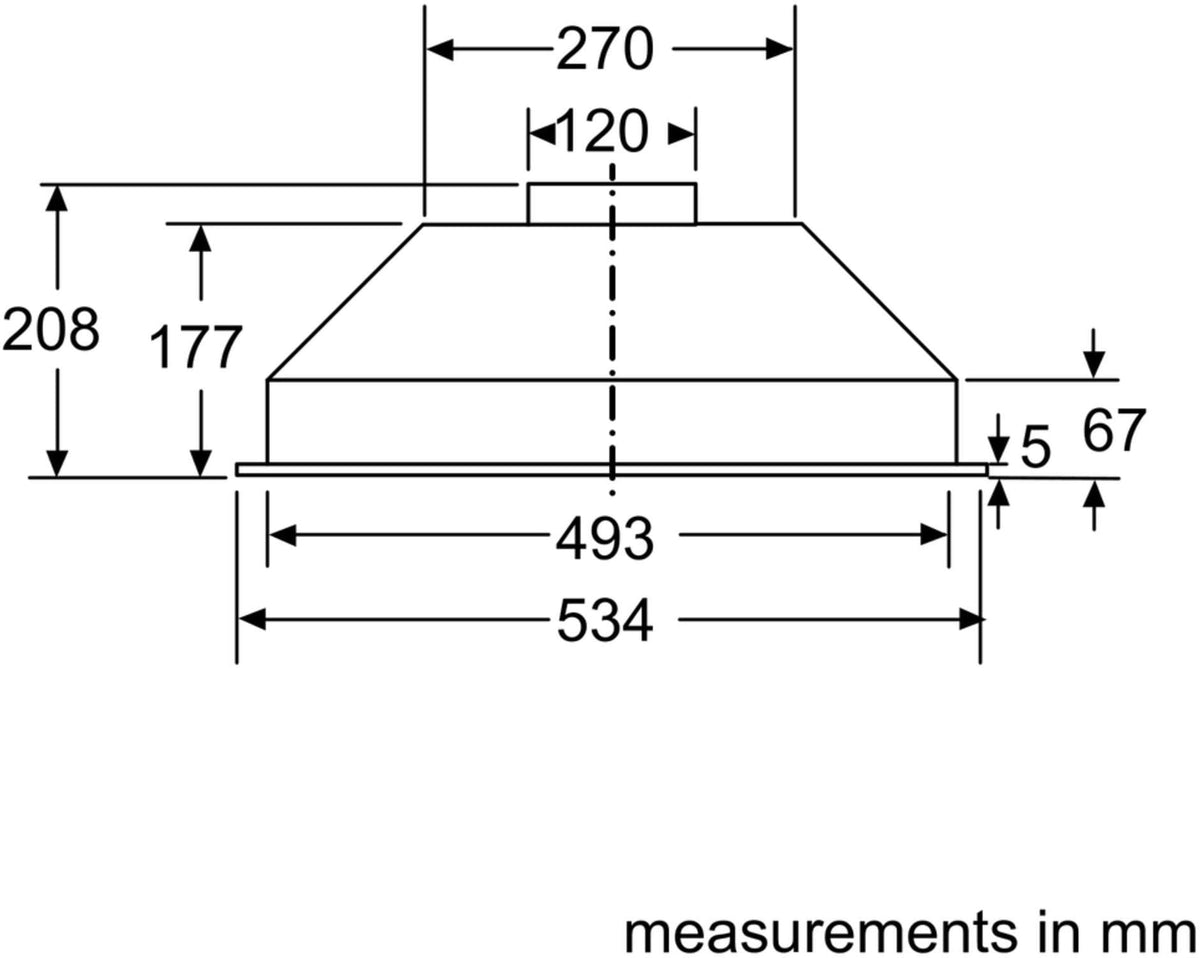

Height (mm)208 mm
-
Width (mm)534 mm
-

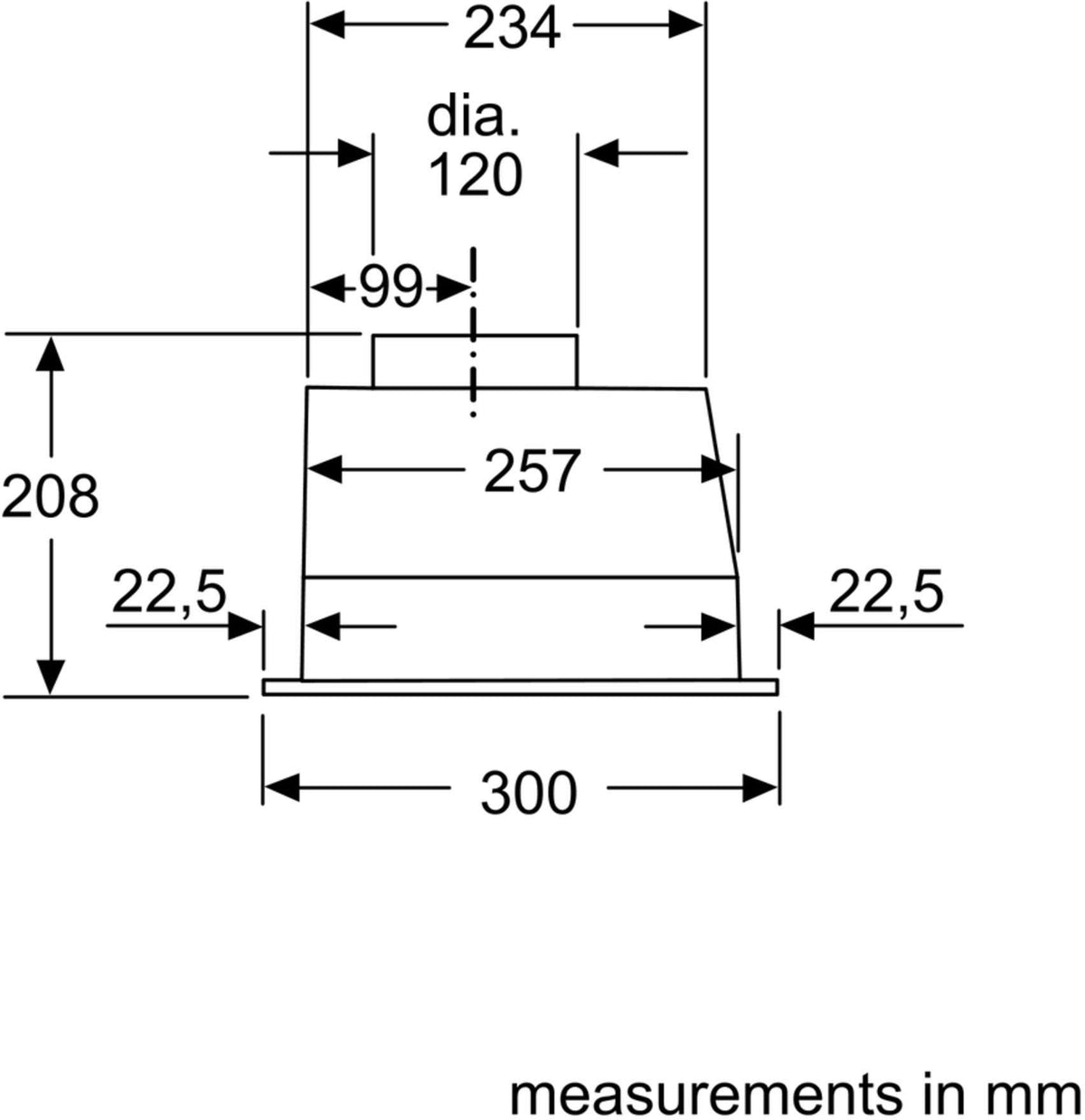

Depth (mm)300 mm
-
MpnDLN54AA70A
-
Model numberDLN54AA70A
-
ColourGrey
-
Lights2 x 3W LED lights
-
Flue size120mm
-
Noise rating55/67 dB
-
Extraction fan420 m3/hr
-
LightingLED
-
Size range52cm to 53cm
-
Features
✓ Extraction rate ✓ Especially quiet ✓ LED lighting
-
Manufacturer warranty2 Years
-
InstallationUndermount
-
More SpecsTechnical Data
- Typology : Traditional
- Approval certificates : Australia Standards
- Length electrical supply cord (cm) : 150

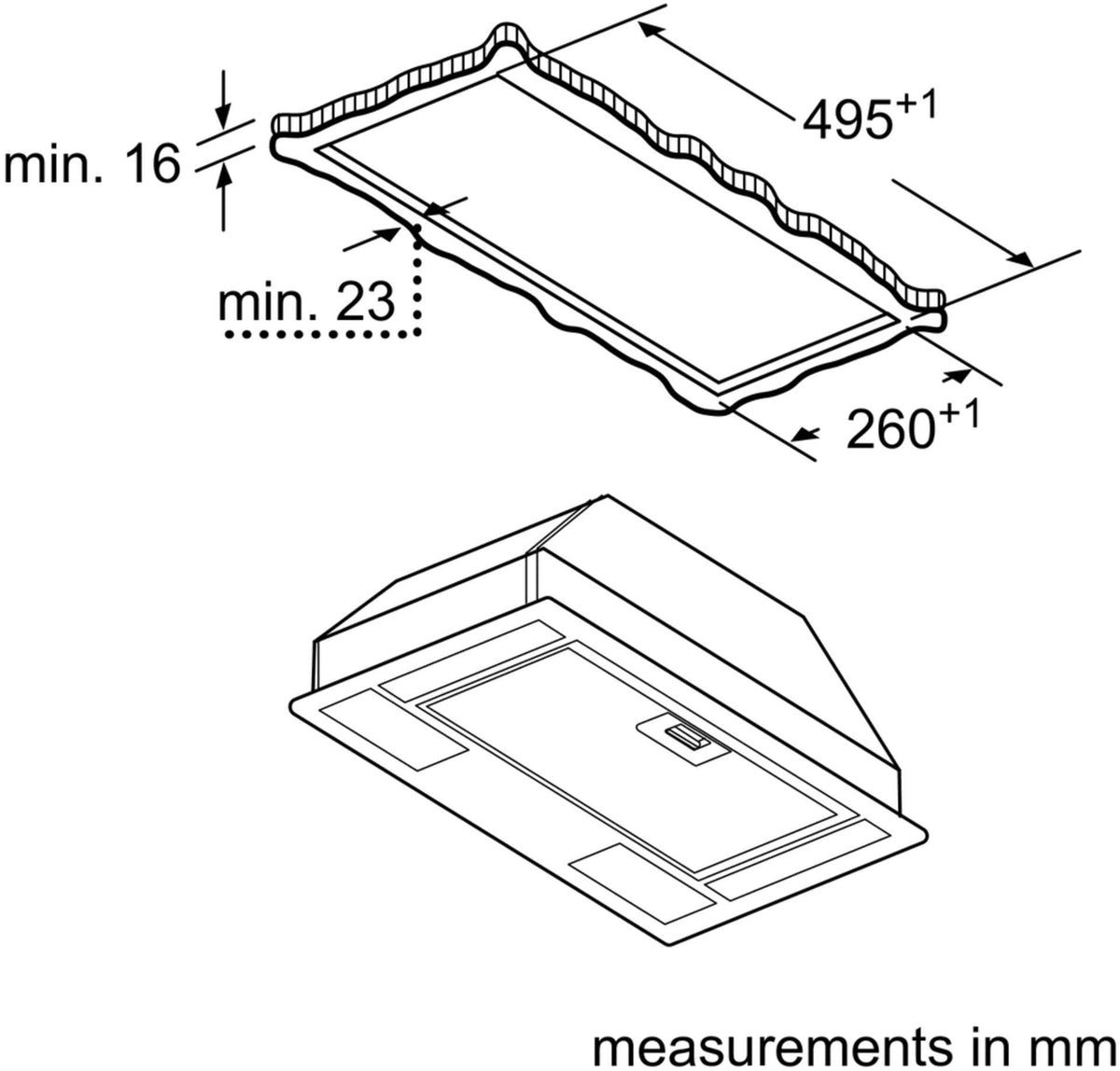

- Required niche size for installation (HxWxD):
208mm x 493mm x 257mm - Type of control : mechanical
- Number of speed settings : 3
- Maximum output air extraction (m3/h) : 420
- Maximum output recirculating air (m3/h) : 410
- Number of lights : 2
- Noise level (dB) : 67
- Diameter of air outlet (mm) : 120
- Grease filter material : Washable aluminium
- Operating Mode : Convertible
- Grease filter type : Kassette
- Connection Rating (W) : 121
- Current (A) : KSA
- Voltage (V) : 220-240
- Frequency (Hz) : 50
- Plug type : AU plug
- Installation typology : Built-in
- Material body : Lacquered
- Approval certificates : Australia Standards
- Plug type : AU plug
- Dimensions of the packed product (in) : 10.62 x 12.79 x 32.16
- Motor location : Integrated motor in hood body
- No-return airflow flap : Yes
- Length electrical supply cord (cm) : 150
- Dimensions of the product, with chimney (if exists) (mm) : x 534 x 300
- Dimensions of the packed product (HxWxD) (mm) : 270 x 325 x 817
- Diameter pipe Ø 120 mm (Ø 120 mm enclosed)
- Electrical cable length 1.5 m
- Power rating: 121 W

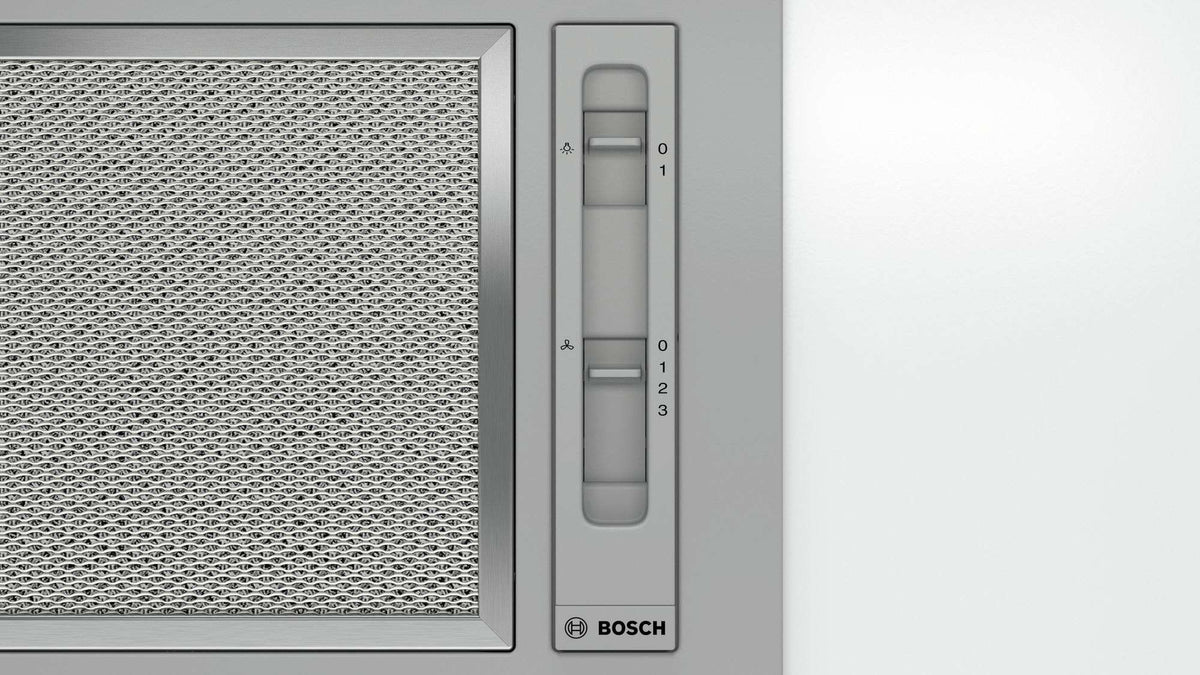

- Sliding switch control controls for power and light
- 3 power settings
- Maximum extraction 420 m3/h
- Extraction rate in recirculation mode: Max. normal use: 410 m³/h
- Ducted and recirculated-air operation
- For recirculated extraction optional recirculation kit (accessory) needed
- Noise min./max. Normal Level: 55/67 dB
- Max. normal use: 68 dB(A) re 1 pW (55 dB(A) re 20 μPa sound pressure)
- Dishwasher safe metal grease filters
- 2 x 3W LED lights
- With one-way flap: prevents outside air from entering your kitchen
