Smeg 90cm Dolce Stil NOVO Wall Mount Rangehood Copper Trim KV694R
SKU:
KV694R-A
$3,290.00
Unit price
/
Unavailable
Tax included
Smeg 90cm Dolce Stil NOVO Wall Mount Rangehood Copper Trim KV694R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
|

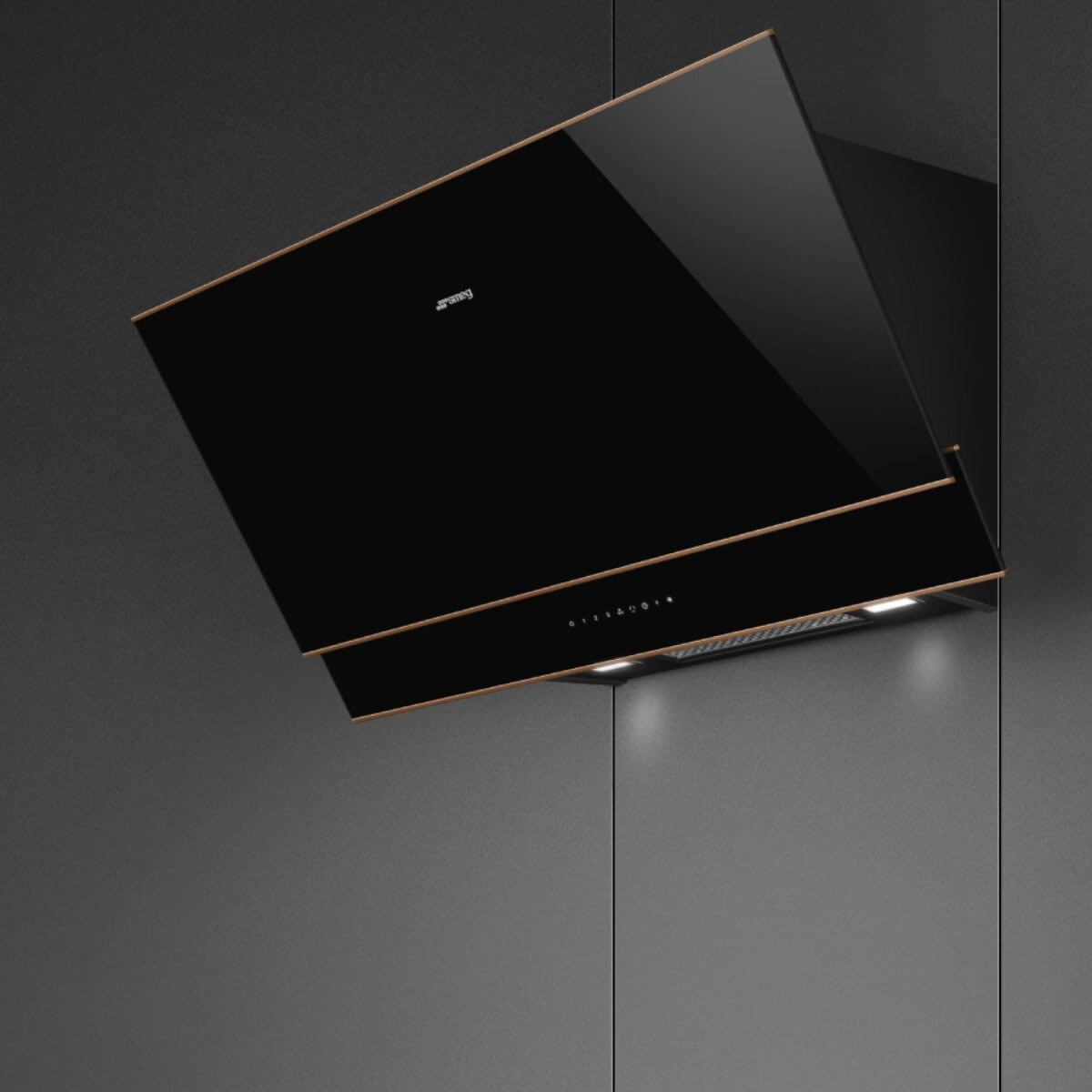

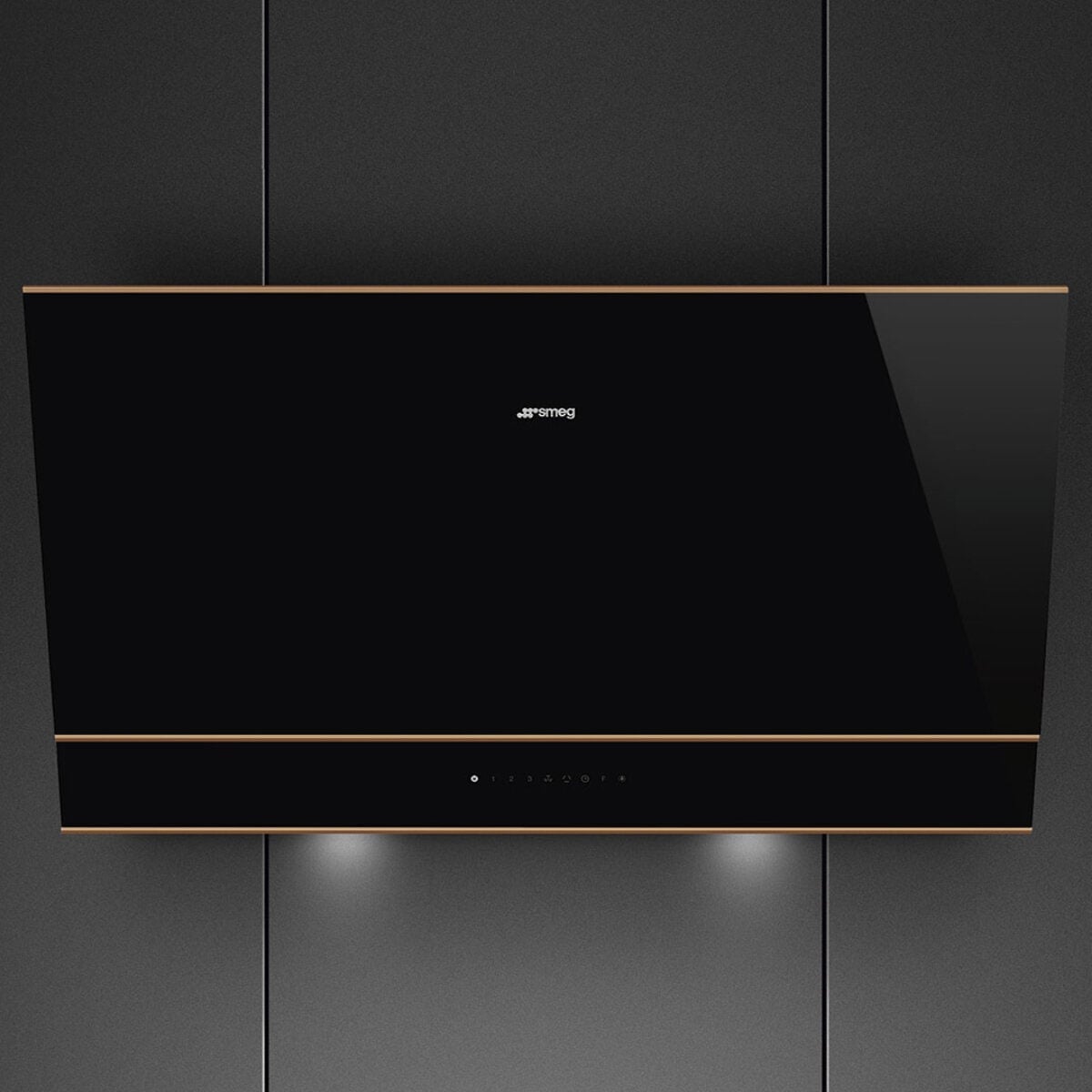

DesignThe 90 cm vertical hood in Dolce Stil Novo aesthetics is equipped with a reduced depth that ensures maximum freedom of movement in the kitchen. With an elegant black glass surface interspersed with copper inserts and backlit touch controls, it matches perfectly with other appliances in the Dolce Stil Novo aesthetic. |
SuctionThe Dolce Stil Novo vertical hood is equipped with three suction speeds as well as an intensive speed, which reaches 820 m³ / h while maintaining a noise level between 47 and 70 dB. In addition, it is also possible to install the hood with an extraction outlet on the rear wall. |
|
|
LightsThe Dolce Stil Novo vertical hood is equipped with LED lights. The light can be switched on independently of the suction fan and thus allow to illuminate the work surface. The intensity of the light is adjustable using the dimmering function, it is also possible to adjust the gradient of the light temperature from cold white to warm white. |

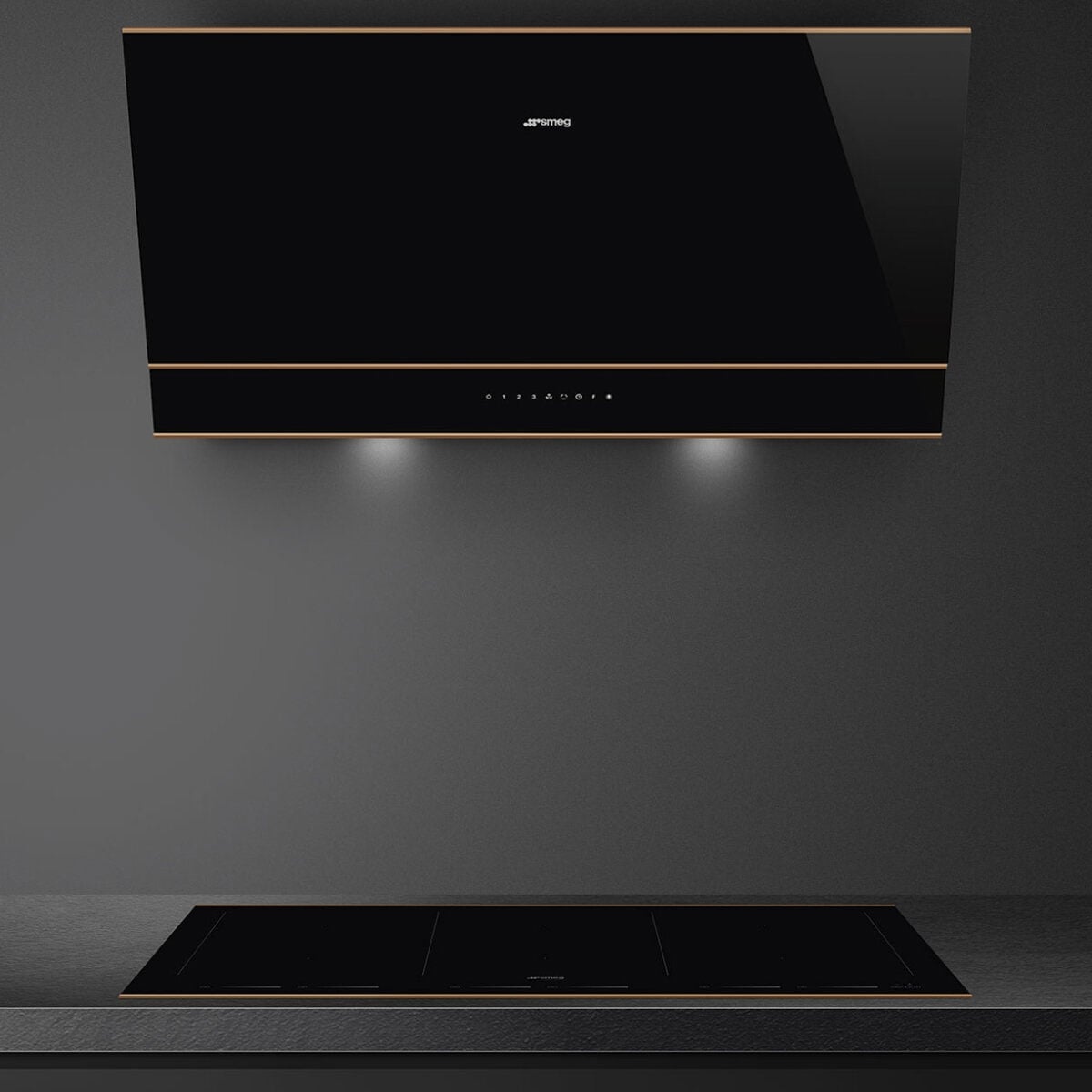

Smart ConnectionThanks to the Auto-Vent 2.0 system it is possible to connect the hob to the hood. So all that remains is to concentrate on what you are cooking and the hood will automatically activate and adjust the suction power from time to time thanks to a special function algorithm. Furthermore, it will be possible in any case to control the hood directly from the hob via a specific dedicated touch control. |
|
|

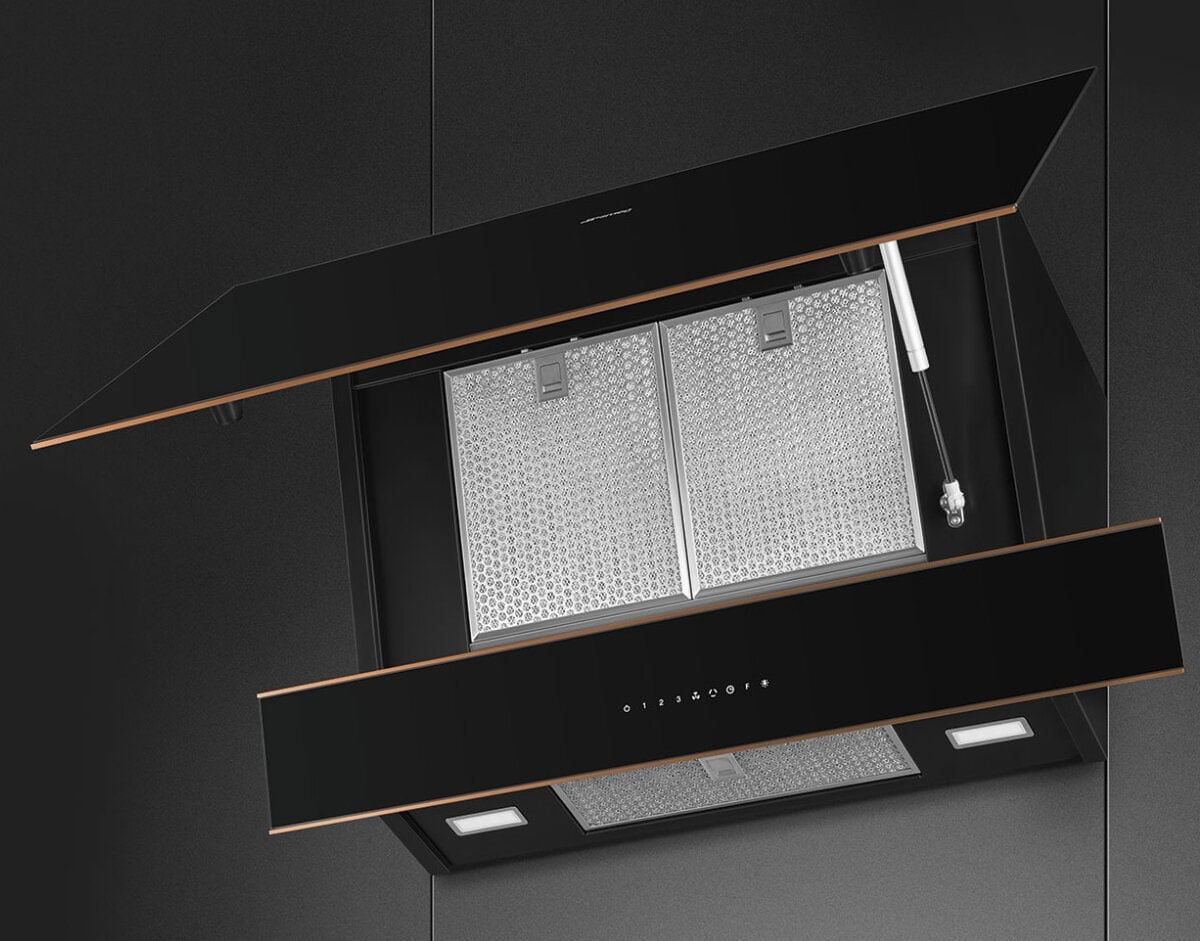

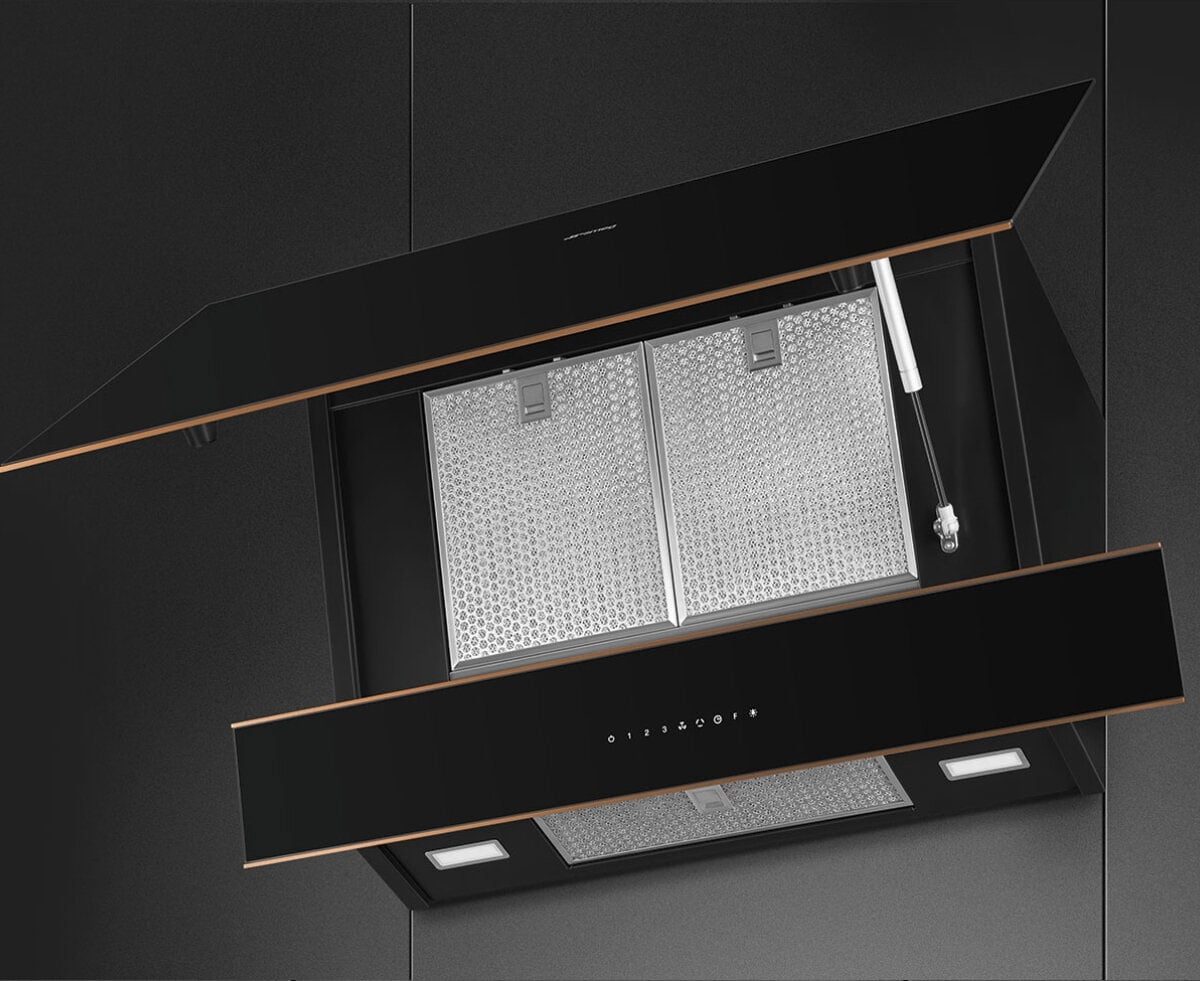

Filters CleaningThe Dolce Stil Novo vertical hood is equipped with stainless steel grease filters that purify the air from cooking fats and activated carbon filters that guarantee perfect odor elimination. By means of a light signal, the hood will signal when it is necessary to replace the filters. |
Clean AirThe 24h air exchange function makes the hood work for 10 minutes every hour at very low speed and therefore without noise for a total of 24 hours in order to purify the air of the house, with low energy impact. |
|
|

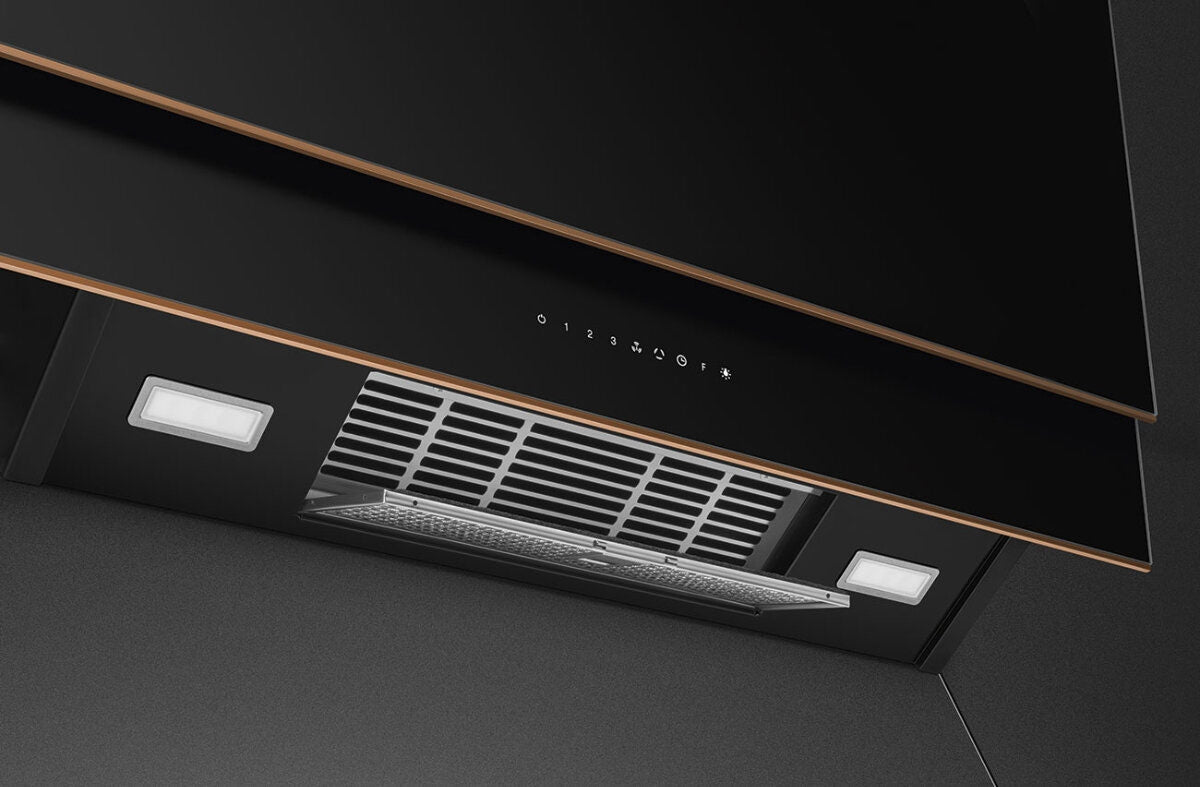

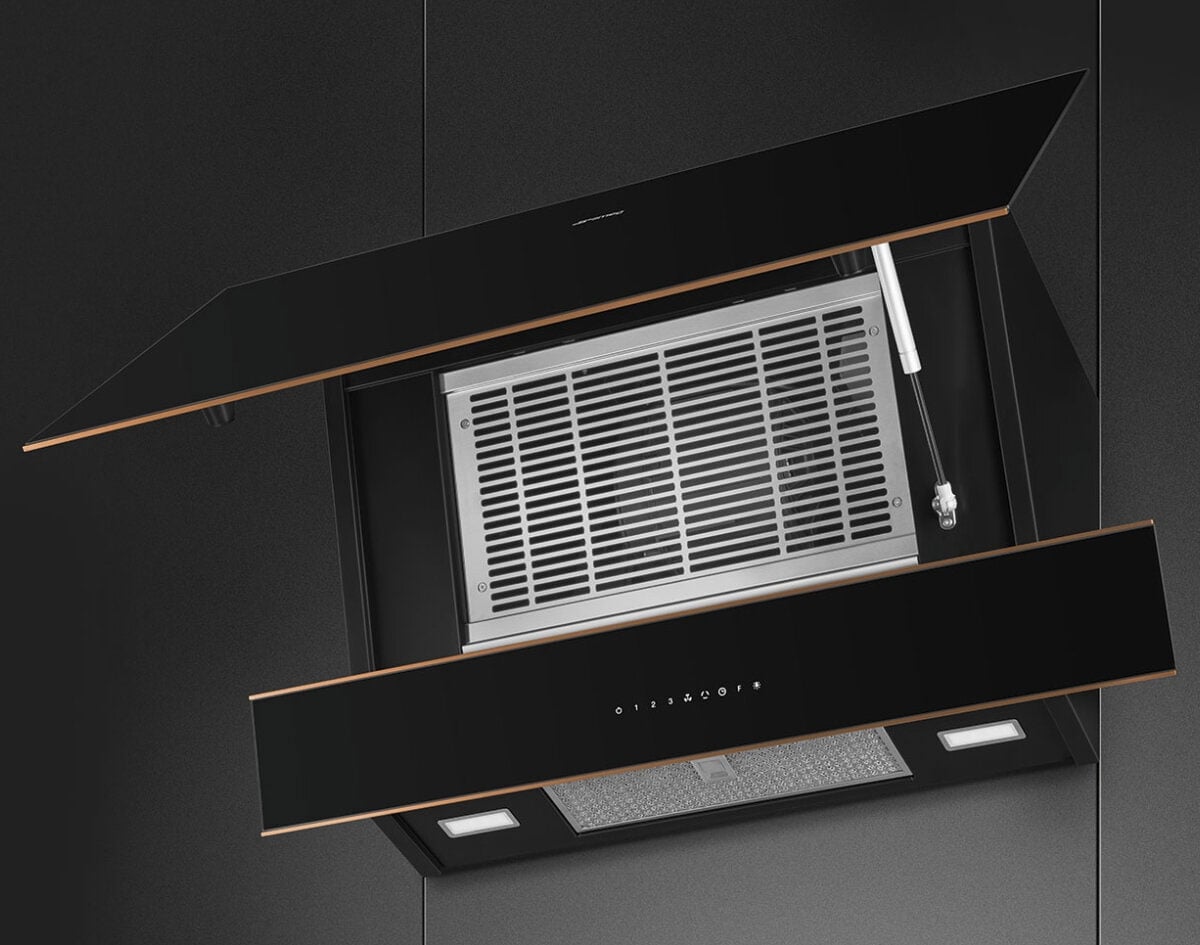

Peripheral ExtractionThe extraction of the hood is concentrated on the peripheral area, so as to allow a bigger extraction surface and offer a better level of silence, limiting the vibrations of the filters. |
Intensitive FunctionThe intensive function allows to operate the hood at maximum power, to speed up the elimination of the most persistent odors and to have a purified environment. |
|
|
Adjustable Light IntensityWith the Dimmering function it is possible to raise or lower the intensity of the hood light by holding down the light button. |
Charcoal FiltersFundamental components of the filter hood, the activated carbon filters guarantee the absorption of fats and vapors and a perfect elimination of odors. |
|
-

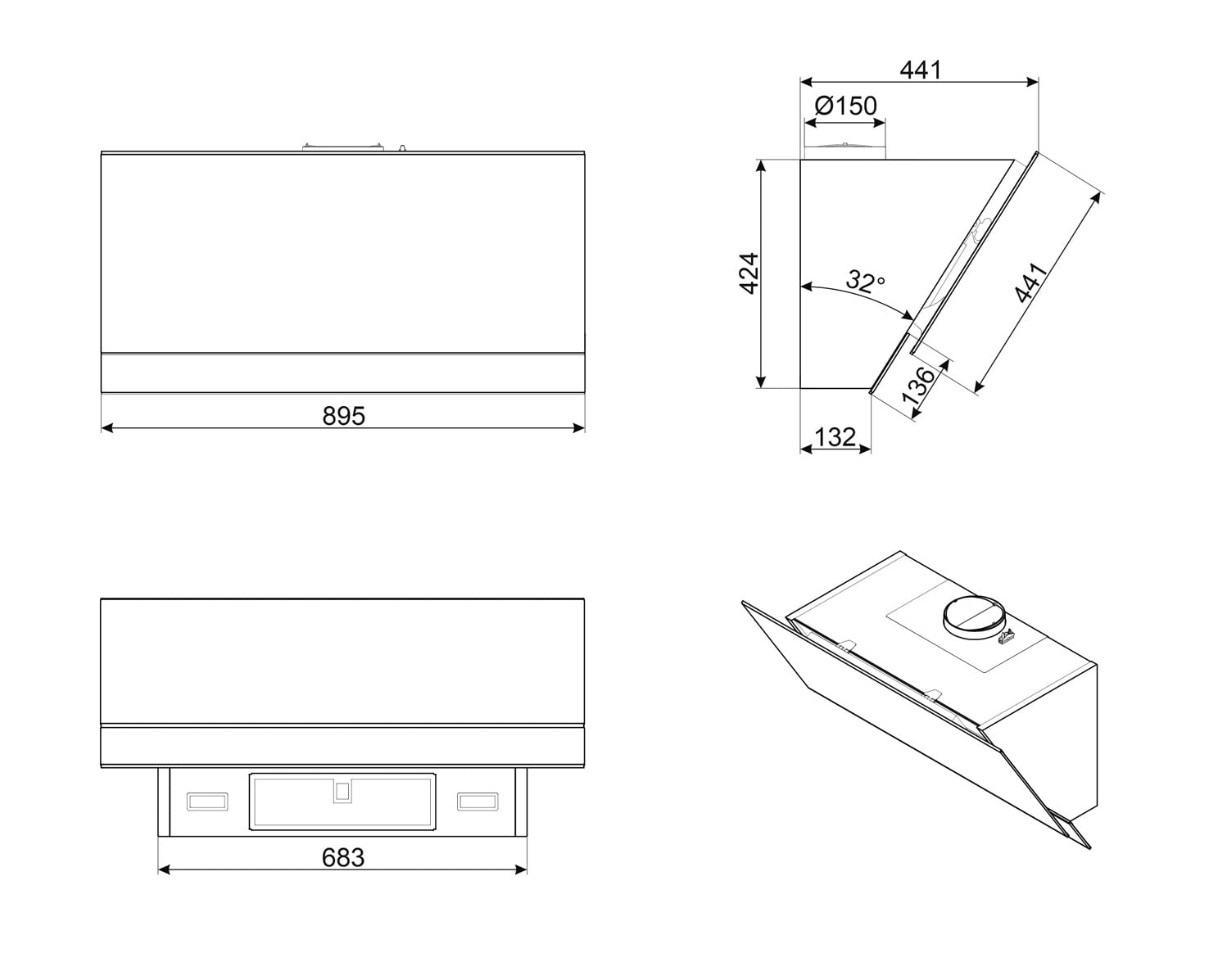

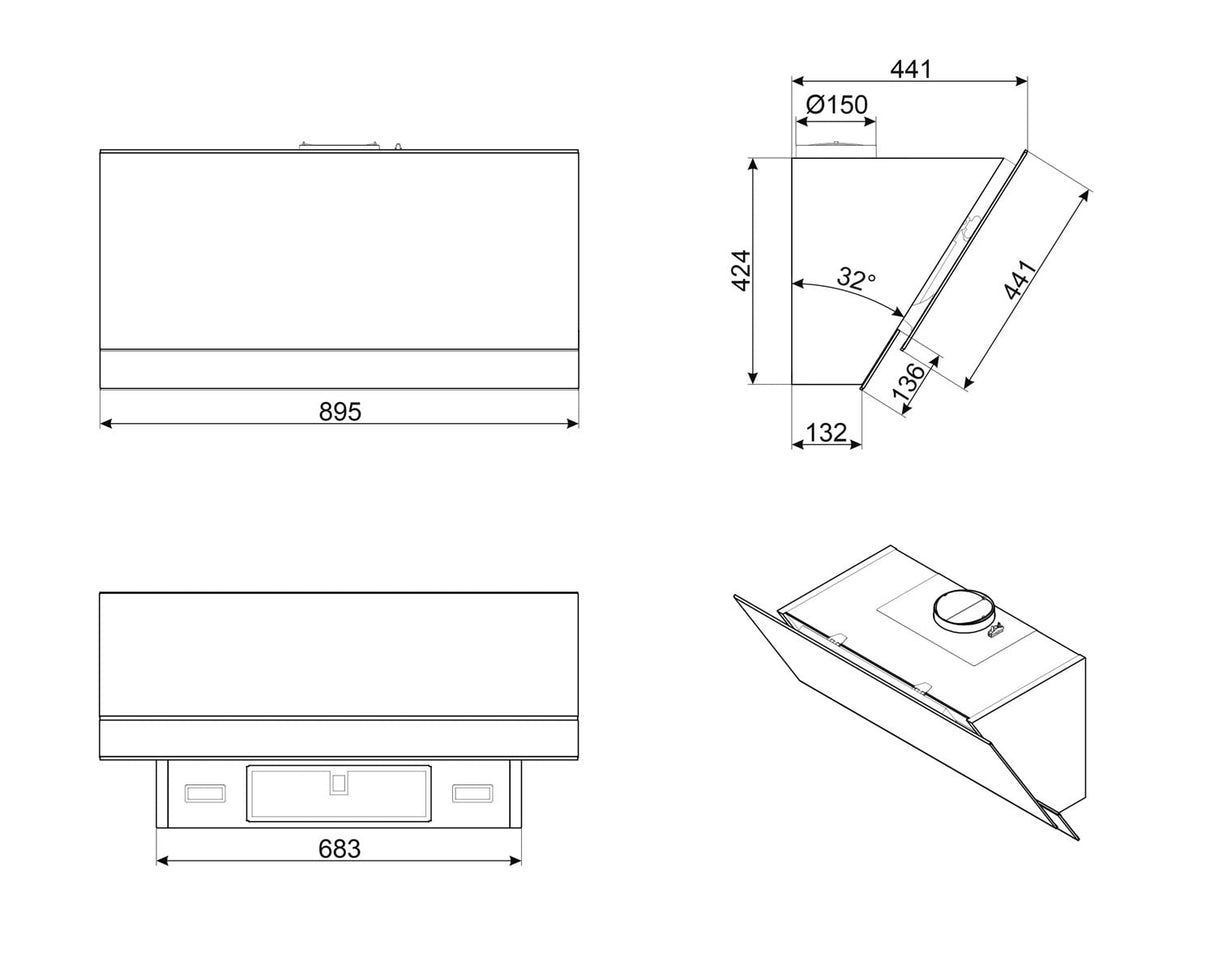

Height (mm)459 mm
-
Width (mm)895 mm
-
Depth (mm)439 mm
-
MpnKV694R
-
Model numberKV694R
-
ColourBlack
-
Optional accessories✓ KITALLFC: Accessories, Type: Charcoal filter, Hoods ✓ KITCMNKVX: Accessories, Type: Chimney extension, Hoods ✓ KITCMNKVMB: Accessories, Type: Chimney extension
-
Lights2 x 2.1W LED
-
LightingLED
-
Size range90cm
-
Features✓ Decorative wall hood ✓ Glass material ✓ Touch control back-lighted White ✓ Anti-grease filters: Stainless steel ✓ No. of speeds: 3 ✓ Aesthetic: Dolce Stil Novo ✓ 2 x 2.1W LED Light
-
Manufacturer warranty5 Years
-
InstallationWall Mount
-
More SpecsType
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Extraction
- Electronic control: Yes
- Perimeter extraction: Yes
- Finishing: Copper
- Aesthetic: Dolce Stil Novo
- Design: Angled
- Material: Glass
- Glass Type: Black
- No. of speeds: 3
- Intensive speed: Yes
- 24h air filter function: Yes
- Time-setting options: Automatic switch-off
- Auto-vent 2.0: Sì
- Control setting: Touch control back-lighted White
- Led color: White
- Dimmer mode: Yes
- Light color temperature range: 2700° - 4000° °K
- Free outlet maximum capacity: 820 m³/h
- Motor power: 275 W
- No. of filters: 2
- Anti-grease filters: Stainless steel
- Charcoal filters included: Yes
- Filter replacement indicator: Yes
- Minimum distance from GAS hob: 650 mm
- Minimum distance from ELECTRIC hob: 450 mm
- Vent outlet: 150 mm
- Non return valve: Yes
- Energy efficicency class ( EEC): A+
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): E
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 42 kWh/a
- Fluid Dynamic Efficiency (FDE): 35.6
- Lighting Efficiency (LE): 35.5 lux/W
- Grease Filtering Efficiency (GFE): 64.2 %
- Air flow at minumum speed (Qmin): 265 m³/h
- Air flow at maximum speed (Qmax): 621 m³/h
- Air flow at boost speed (Qboost): 777 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 47 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 70 dB(A)
- Power Consumption in Off mode (Po): 0.49 W
- Power consumption in stand-by mode (Ps): 0.99 W
- Time increase factor (F): 0.7
- Energy Efficiency Index: 41.3
- Measured air flow rate at best efficiency point (Qbep): 400 m³/h
- Measured air pressure at best efficiency point (Pbep): 485 Pa
- Measured electric power input at best efficiency point (Wbep): 151 W
- Nominal Power consumption of the light system (WL): 4 W
- Average illumination of the light on the cooking surface (Emiddle): 142 lux
- Sound power level at highest setting (Lwa): 67 dB(A)
- Electrical connection rating: 279 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1500 mm
- Extraction rate IEC 61591: 265 m³/h
- Noise level IEC 60704-2-13: 47 dB(A)
- Power: 160 W
- Extraction rate IEC 61591: 391 m³/h
- Noise level IEC 60704-2-13: 55 dB(A)
- Power: 212 W
- Extraction rate IEC 61591: 621 m³/h
- Noise level IEC 60704-2-13: 66 dB(A)
- Power: 248 W
- Extraction rate (IEC 61591): 777 m³/h
- Noise level IEC 60704-2-13: 70 dB(A)
- Power: 276 W
