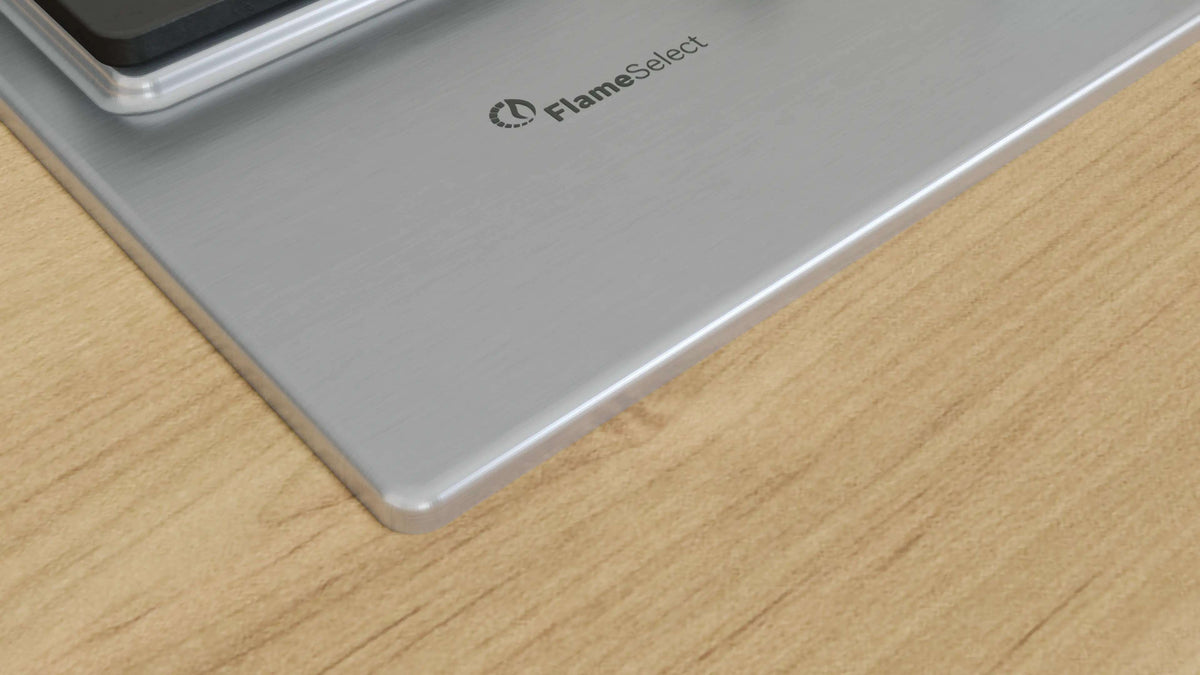

FlameSelect: Adjust the gas flame precisely using nine defined levels.Getting the right flame intensity can be a challenge. FlameSelect makes it simple by offering nine clearly defined flame levels. You can choose exactly the heat you need, from a gentle simmer to a medium sauté or high heat for fast boiling, giving you consistent and reliable cooking results every time. |

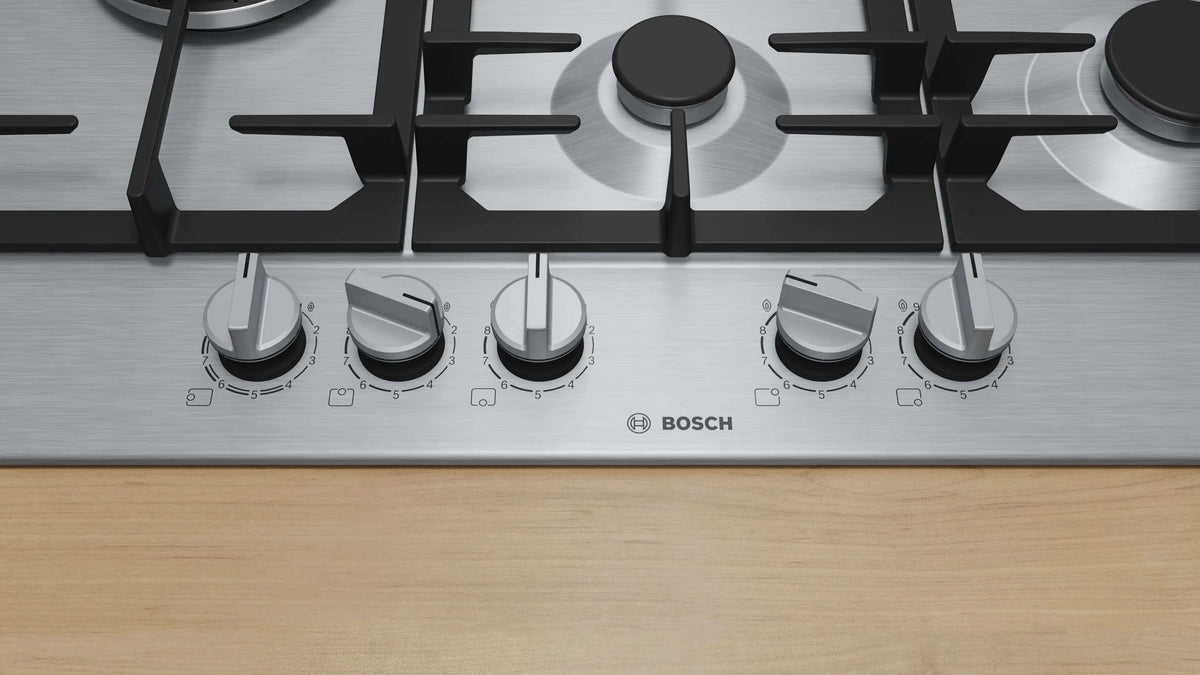

Easy cleaning: Detachable controls and dishwasher-suitable pan supports make cleaning easier.Cleaning your gas cooktop doesn’t have to be a chore. The cooktop surface has been designed for easier maintenance, with removable knobs that give you better access around the controls, and pan supports that are dishwasher-suitable for reduced manual cleaning. Together, these features make it easier to keep your cooktop looking clean with less effort. |
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |
Images and videos are for illustrative purposes only, for example to highlight a feature, and may show a different model to the model described. Please check and confirm model features and specifications. |
Safety gas cut-off: Automatically stops the gas supply if the flame goes out.The safety gas cut-off provides added protection while you cook. If the flame goes out unexpectedly, the system detects the change and automatically stops the gas supply. This helps prevent gas from continuing to flow unnoticed and supports safer operation in everyday use. |
Dual flame power burner: Delivers powerful heat for fast boiling and controlled low settings for simmering.
The dual flame power burner gives you a wide cooking range from rapid, high heat to controlled low simmering. Use the outer and inner flame together for fast boiling or high-temperature cooking, and switch to the inner flame alone for gentle heating and simmering. This versatility lets you cook everything from stir-fries to delicate sauces with confidence.

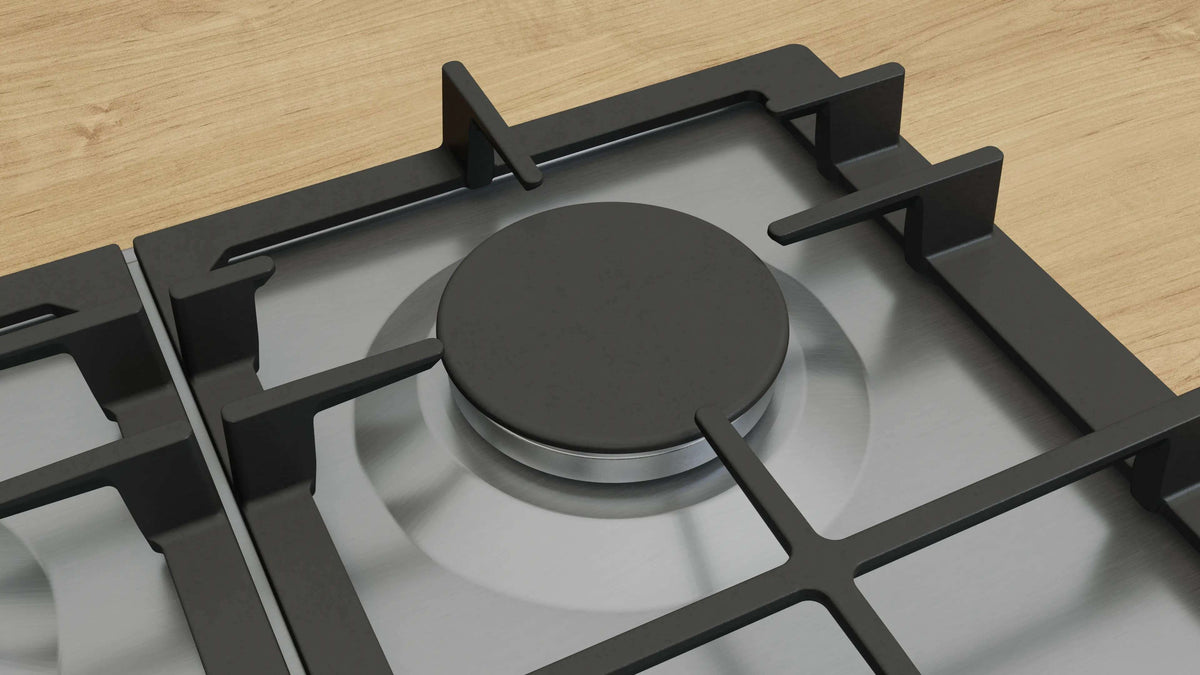

Continuous cast-iron pan supports: Provide firm, stable support for your cookware.
Continuous cast-iron pan supports provide a stable surface across the entire cooktop. The robust, continuous design keeps pots and pans steadier while you cook, making it easier to move cookware between burners. Built for durability and consistent performance, they offer a premium, professional feel every time you use your gas cooktop.
-
Height (mm)45 mm
-
Width (mm)750 mm
-
Depth (mm)520 mm
-
Cut Out Depth (mm)490
-
Cut Out Width (mm)560
-
MpnPCS7A5I90A
-
Model numberPCS7A5I90A
-
ColourStainless steel
-
Cooking zones5
-
Cut out depth mm490
-
Size range75cm
-

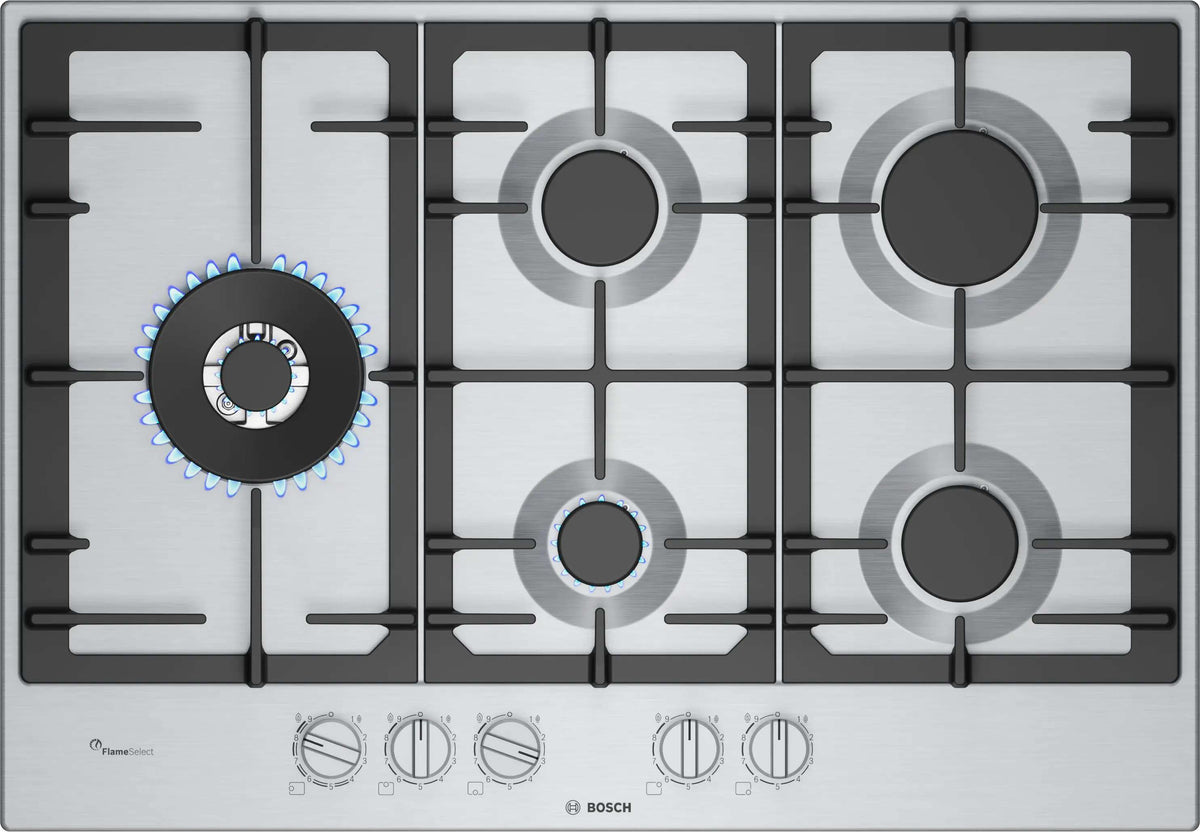

Features✓ Stainless Steel Surface
✓ Five Gas Burners
✓ Nine-Level FlameSelect Control
✓ Dual Flame Wok Burner
✓ Removable Metal Control Dials
✓ Continuous Cast-Iron Pan Supports
✓ Automatic Safety Gas Cut-Off
-
Manufacturer warranty2 Years
-
InstallationStandard
-
More SpecsGeneral Information
- Product name/family: gas cooktop w integrated controls
- Built-in / Free-standing: Built-in
- Energy input: Gas
- Location of control panel: Front
- Gas connection rating: 12500 W
- Fuse protection: 3 A
- Voltage: 220-240 V
- Frequency: 50; 60 Hz
- Type of frame: Frameless
- Gas type preset: Nat gas H/E/(L) 20 (25) mbar
- Other certified gas types: Nat gas L/LL G25/20mbar(DE), Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL), Liquid gas G30,31 28-30/37mbar, Liquid gas G30 37 mbar (PL), Liquid gas 50 mbar
- Nozzle set included for alternative gas type: Liquid gas G30,31 28-30/37mbar
- Width: 75 cm

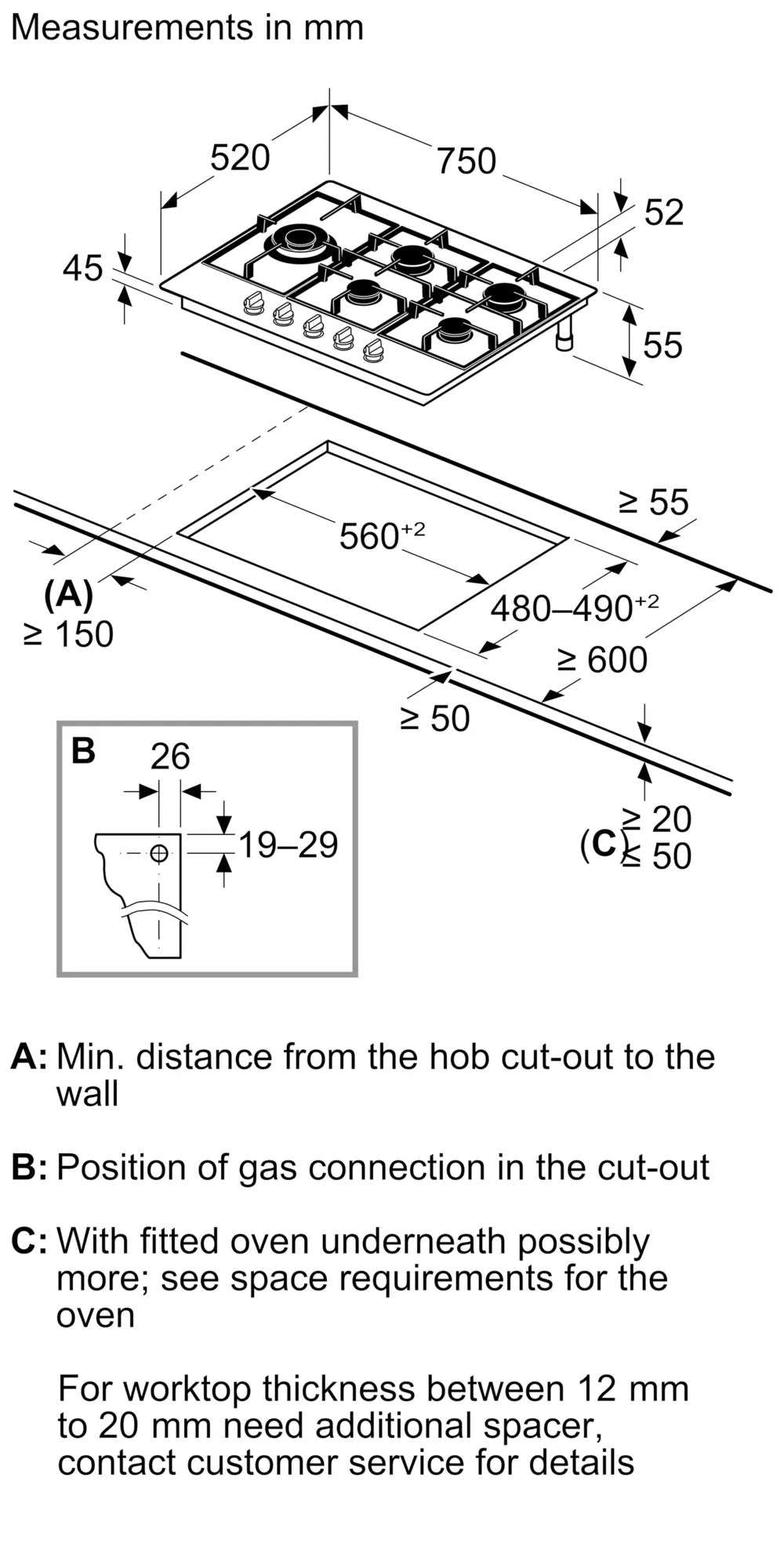

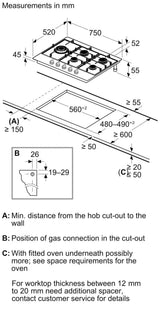

- Required niche size for installation (HxWxD): 45 x 560-560 x 480-490 mm
- Minimum worktop thickness (without spacer / with spacer, order seperately): 20 mm / 12 mm
- Length electrical supply cord: 100 cm
- Plug type: No plug (electrical connection by licensed electrician)
- Gas connection rating: 12500 W
- Power of heating elements: 1 x 1.0, 1 x 3.0, 1 x 5.0, 2 x 1.75 kW
- Type Cooking zone: Standard burner, Standard burner, Economy burner, High-speed burner, WOK burner
- Location of control panel: Front
- Type of control setting and signalling devices: Knob
- Cooktop ignition: Knob ignition
- Residual heat indicator: without
