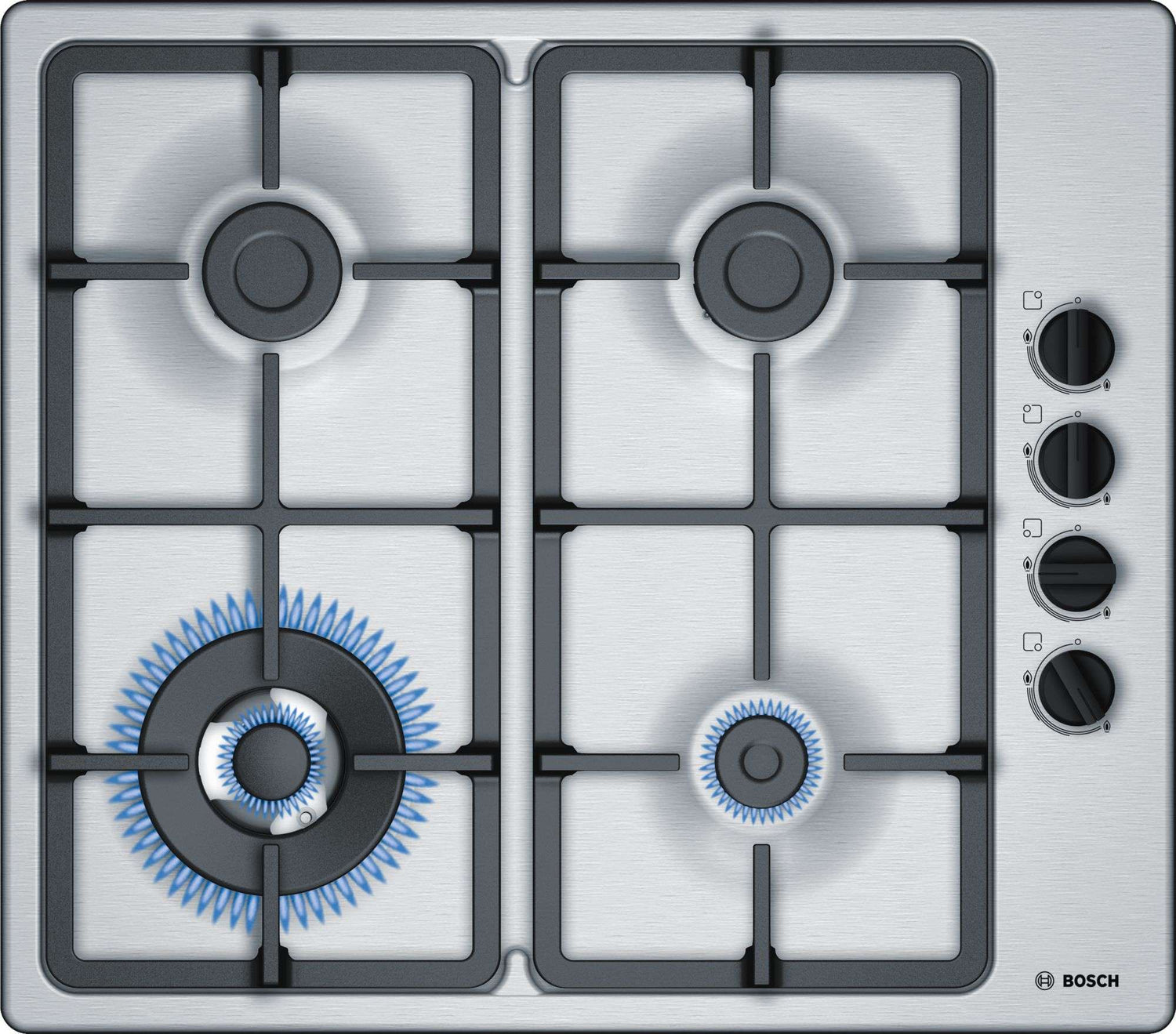

The PBH6B5B90A is a 60cm Serie 2 Gas Cooktop from Bosch that comes with side-mounted controls: the desired cooking zones can be conveniently operated from the side.
-
Height (mm)45 mm
-
Width (mm)580 mm
-
Depth (mm)510 mm
-
MpnPBH6B5B90A
-
Model numberPBH6B5B90A
-
Cooking zones4
-
Size range60cm
-
Features
✓ 4 burner brushed stainless steel gas cooktop ✓ 2 standard, 1 economy, 1 wok burner ✓ Enamelled cast-iron trivets with rubber feet ✓ Easy to use side control knobs ✓ One-hand electronic ignition via controls
-
Manufacturer warranty2 Years
-
InstallationStandard
-
More SpecsSize & Power
- Front left: Wok burner 15 Mj/h
- Rear left: Standard burner up to 6.5 Mj/h (depending on gas type)
- Rear right: Standard burner up to 6.5 Mj/h (depending on gas type)
- Front right: Economy burner up to 4 Mj/h (depending on gas type)
- Flame failure device fitted to each individual burner
- Appliance dimensions: (W x D) 580 mm x 510 mm

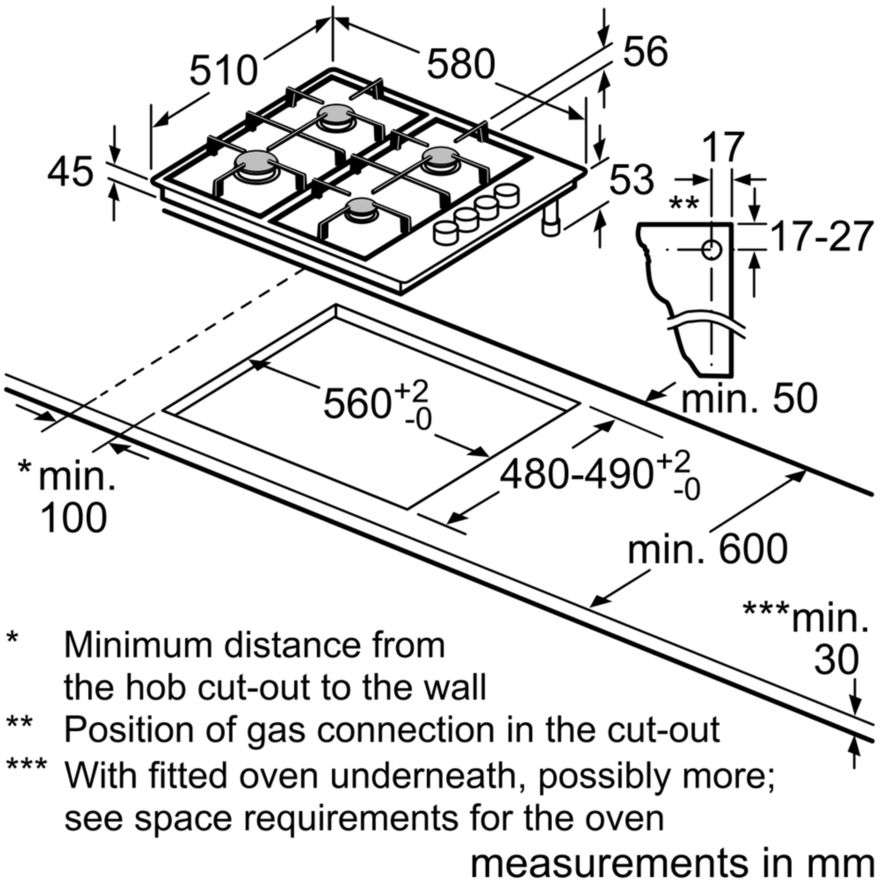

- Installation dimensions: (H x W x D) 45 mm x 560 mm x 480 mm
- Connecting cable 1 m with plug
- Preset to natural gas (10mbar)
- Energy input Gas
- Type of control setting and signalling devices sword knobs
- Features Wok burner
- Energy efficiency of hob 56.3 %
- Color of frame Stainless steel
- Color of surface Stainless steel
- Construction type Built-in
- Number of electric plates 0
- Number of electric cooking zones 0
- Number of gas burners 4
- Number of halogen plates 0
- Installation typology Built-in
- Type of pan support Elongated cast iron pan support
- Total number of positions that can be used at the same time 4
- Number of radiant plates 0
- Number of electric warming zones 0
- Net weight (kg) 9.672 kg
- Location of 1st heating element front left
- Type of heating element Gas
- Location of 2nd heating element center left
- Location of 3rd heating element back left
- Type of 3rd heating element Gas
- Location of 4th heating element middle back
- Location of 5th heating element back right
- Type of 5th heating element Gas
- Location of 6th heating element center right
- Location of 7th heating element front right
- Type of 7th heating element Gas
- Location of 8th heating element front middle / central
- Location of 9th heating element front centre/cent
- Type of safety device for gas Electromagnetic for each burner
- Residual heat indicator without
- Length electrical supply cord (cm) 100 cm
- Electrical connection rating (W) 1 W
- Energy input Gas
- Frequency (Hz) 50; 60 Hz
- Gas connection rear, right
- Gas connection rating (W) 8,400 W
