Instantaneous hot water when needed.

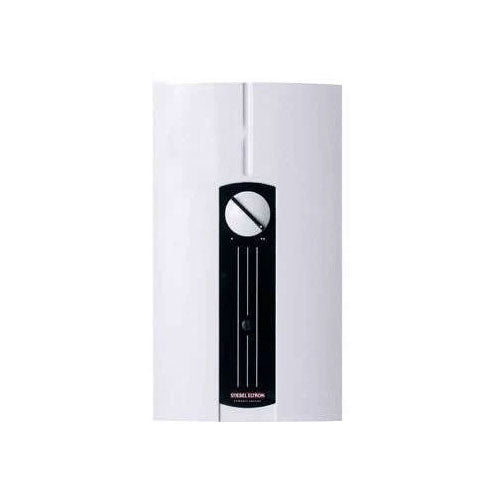

The STIEBEL ELTRON DHF C AU is a hydraulically controlled instantaneous three phase electric water heater with a two-stage temperature selection that offers maximum performance and has a compact design to be installed in the tightest of spaces. Designed as a replacement hot water system for certain types of three phase electric instantaneous water heaters in New South Wales.
High quality STIEBEL ELTRON design- Made in Germany, designed for Australian conditions
- Hydraulically controlled
- DHF incorporates a control valve that compensates automatically for most pressure fluctuations in the water supply.
- Two-stage temperature and output selection
- WaterMark approved, Lic No.WMKA00301, AS3498
- 5 year domestic warranty (*Conditions apply.)
- Compact in size for space saving installation
- No safe tray or drainage required
-

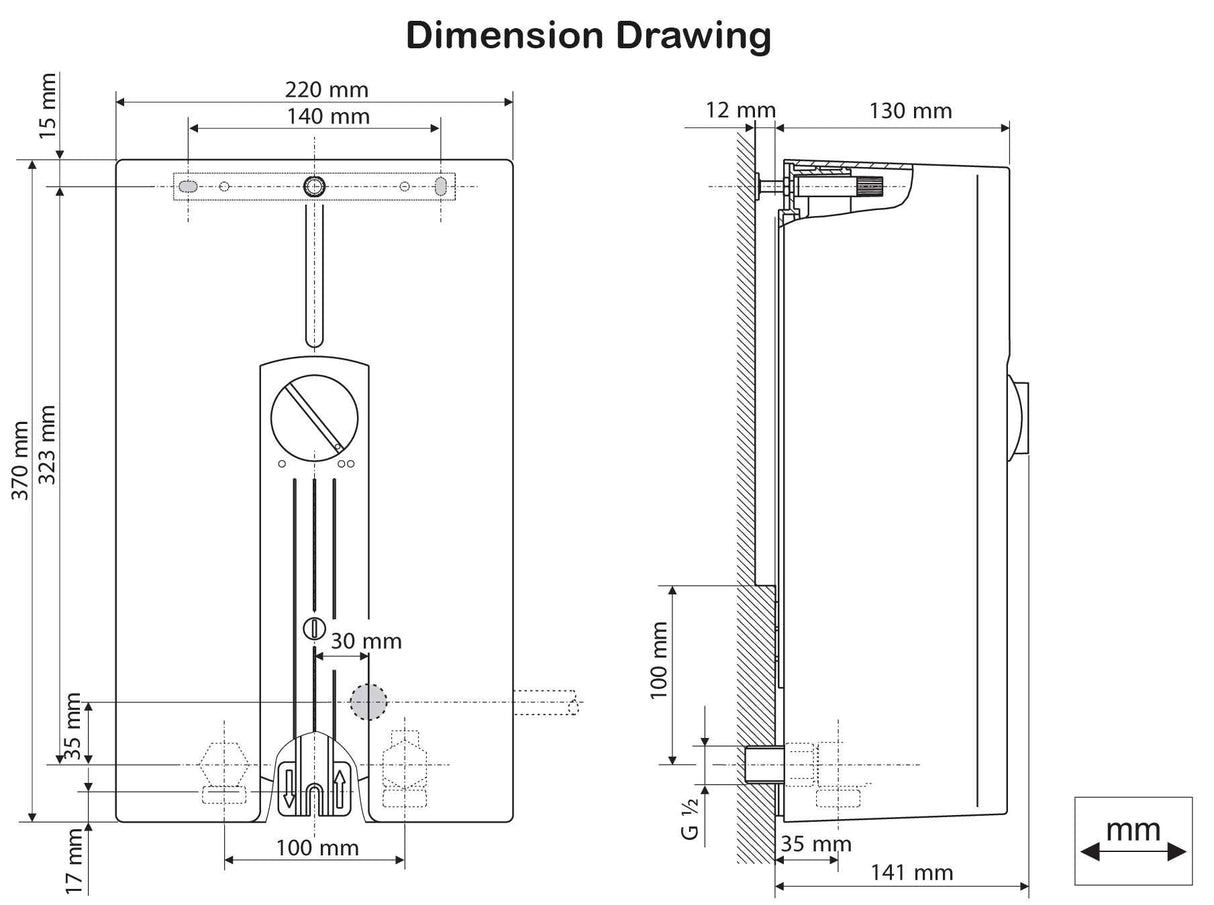

Height (mm)370 mm
-
Width (mm)220 mm
-
Depth (mm)130 mm
-
MpnDHF 15 C AU
-
Model numberDHF 15 C AU
-
ColourWhite
-
Product fuelElectric
-
Features✓ Made in Germany, designed for Australian conditions ✓ Hydraulically controlled ✓ DHF incorporates a control valve that compensates automatically for most pressure fluctuations in the water supply. ✓ Two-stage temperature and output selection ✓ WaterMark approved, Lic No.WMKA00301, AS3498 ✓ 5 year domestic warranty (*Conditions apply.)
-
Manufacturer warranty5 Years
-
InstallationInternal
-
IgnitionElectronic
-
More Specs
- Rated output (415V): 16.1kW
- Rated current (415V): 22.5Amp
- Phases: 3/P/PE
- Electrical Installation: As per AS/NZS3000
- Installation requirements: AS/NZS3500.4.2 & local requirements
- Switch on flow rate (minimum flow rate required to switch on the water heater): Half power 3.0L/min || Full power 4.5L/min
- Normal output (dial selection) 415V: Position • 8.05kW || Positon •• 16.1kW
- Permissible operating pressure: 1000kPa
- Temperature adjustment: N/A
- IP Rating: IP24
- Weight: 4kg
- Nominal capacity: 0.6L
- Approvals: WaterMark Lic No. WMKA00301, AS3498
- For one/several draw off points: Yes/Yes
- Heating system: Copper Tubular
