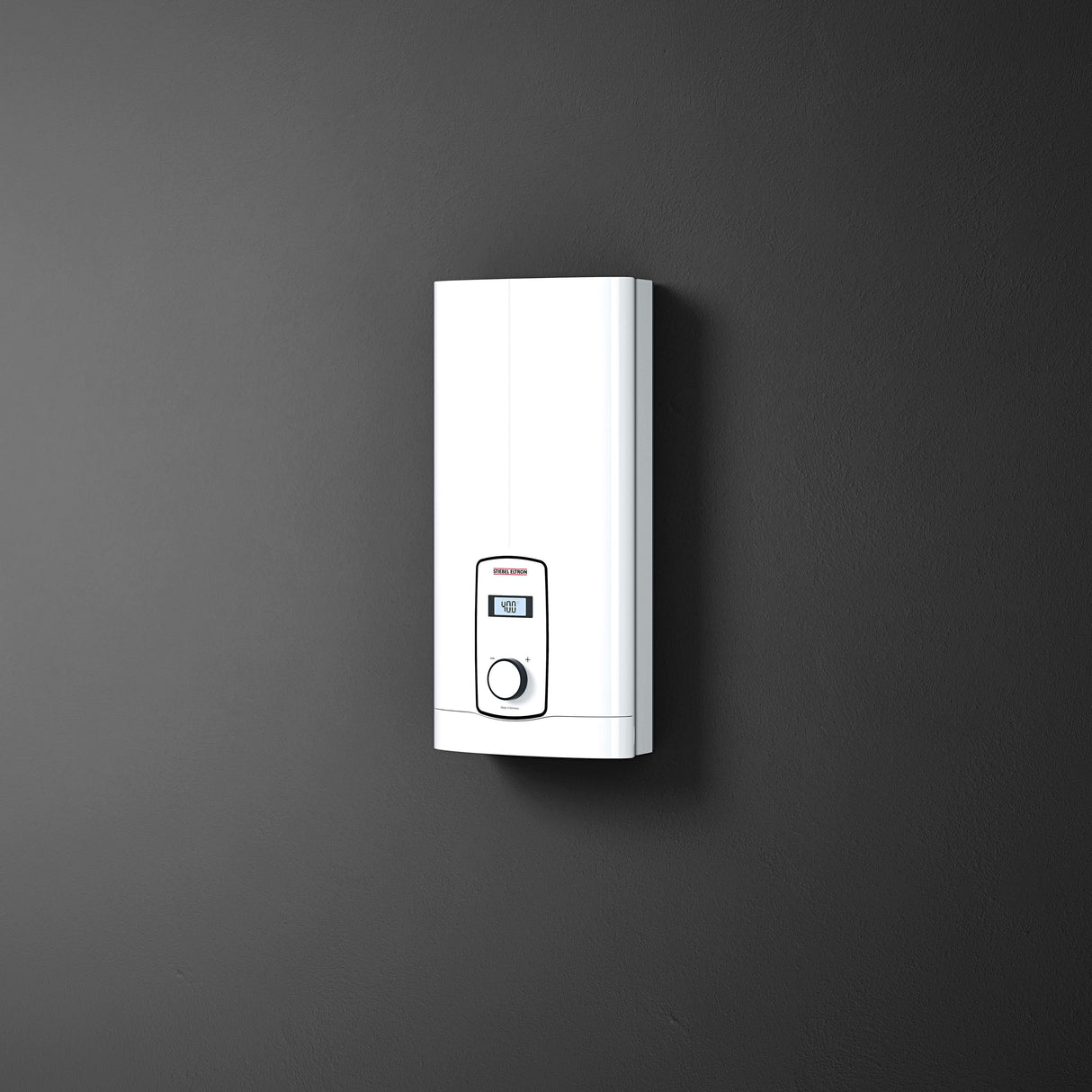

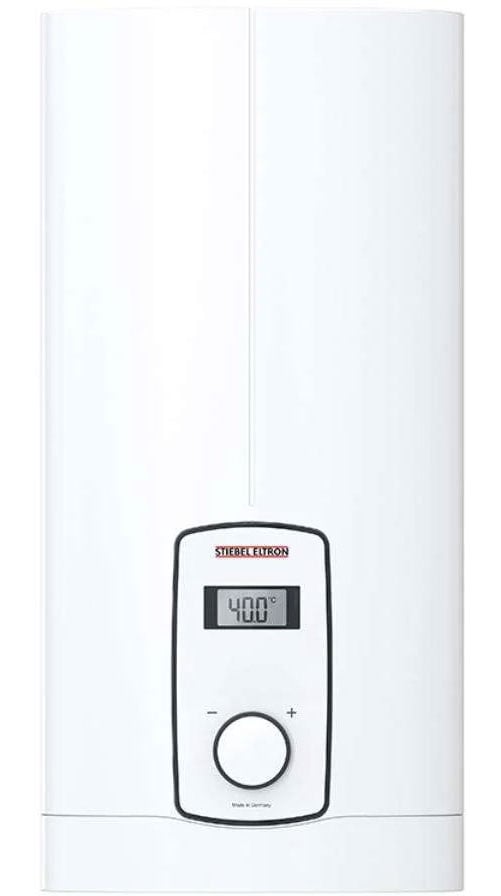

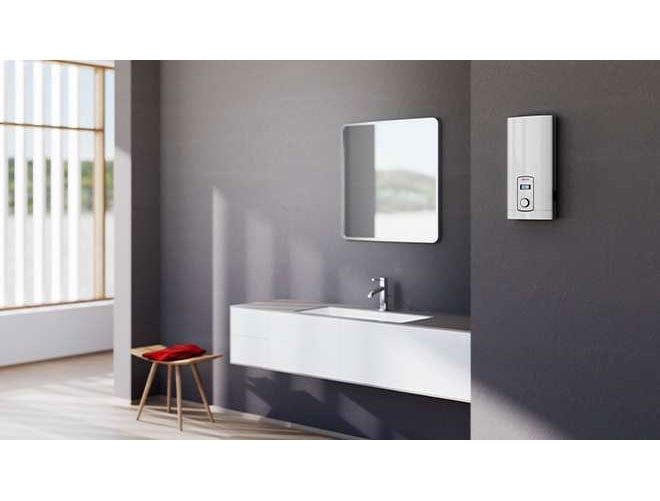

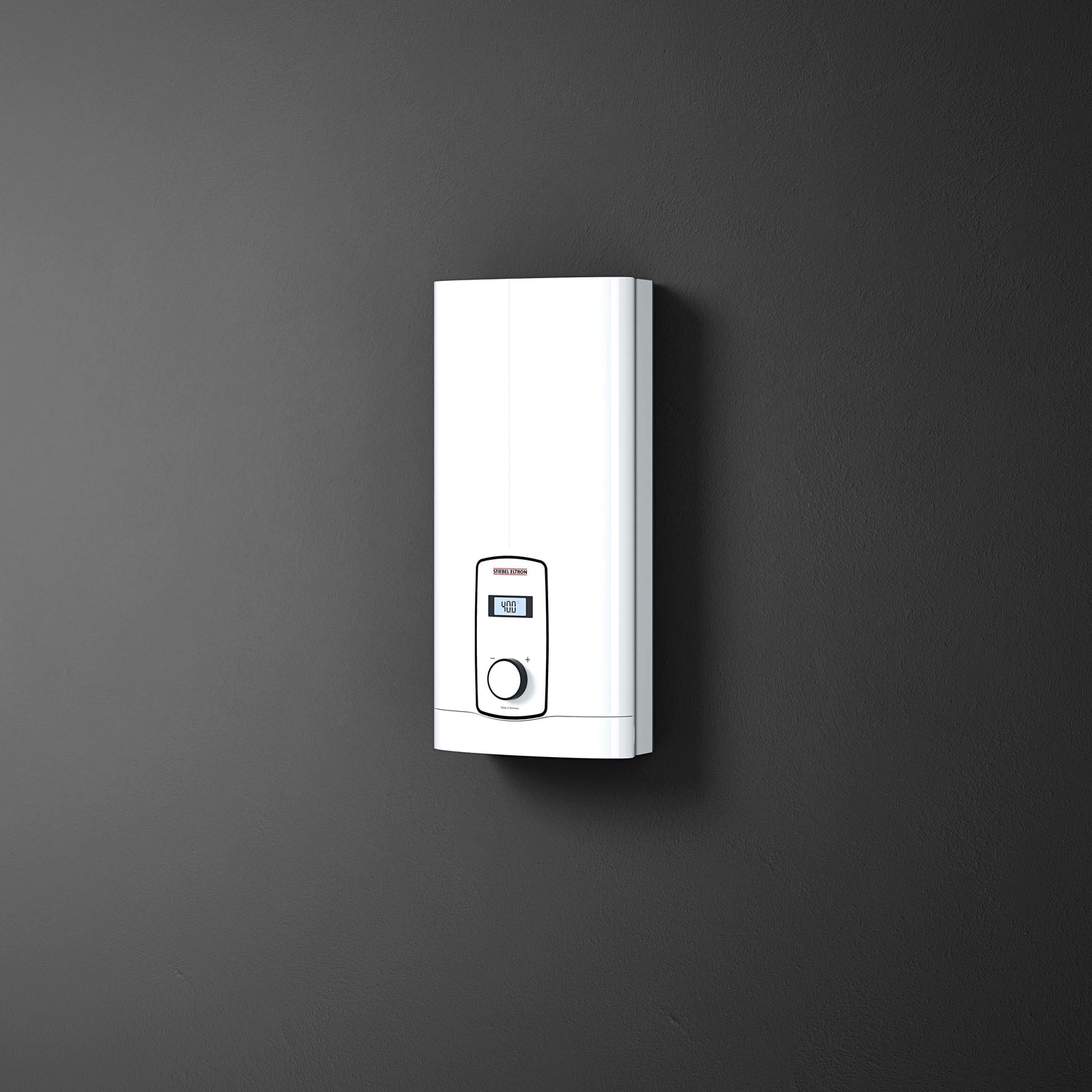

Stiebel Eltron DHBE27LCD Instantaneous 3 Phase Electric Water System DHB-E 27 LC
1
of
5
Loading...
SKU:
DHBE27LCD
$1,189.00
Was $1,546.00
Save $357
Unit price
/
Unavailable
Stiebel Eltron DHBE27LCD Instantaneous 3 Phase Electric Water System DHB-E 27 LC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
With the DHB-E LCD instantaneous water heater, accurate temperature settings are no longer a problem, thanks to the LCD controller. This allows direct accurate continuous flow temperature delivery selection between 20 and 60 °C. With 3i technology for high efficiency and output, the DHB-E LCD provides a reliable and constant supply of hot water.
High quality engineering- Made in Germany
- LCD Controller
- Bare wire element is suitable for hard and soft water areas
- WaterMark Lic No. WMKA00301, AS3498
- Electronically controlled
- Space saving design
- No safe tray or ventilation required
- Available in three electrical sizes:
DHB-E 27 LCD - 28kW, 38.9 Amps per phase, three phase 415V
Warranty*Conditions apply - refer warranty policy for full details.
-

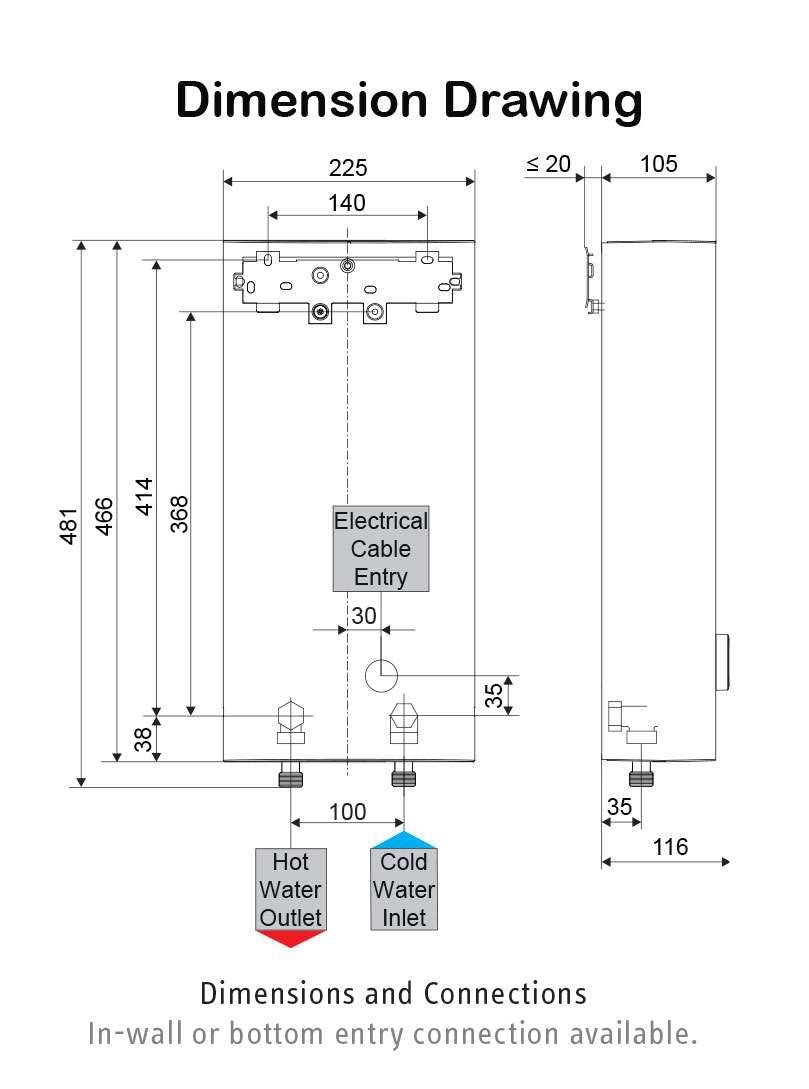

Height (mm)466 mm
-
Width (mm)225 mm
-
Depth (mm)116 mm
-
MpnDHB-E 27 LCD
-
Model numberDHB-E 27 LCD
-
ColourWhite
-
Product fuelElectric
-
Features✓ New generation DHB-E ✓ Made in Germany ✓ Electronically controlled ✓ Accurate temperature delivery selection between 20 and 60 °C ✓ Suitable for hard and soft water areas
-
Manufacturer warranty5 Years
-
InstallationExternal
-
IgnitionElectronic
-
More Specs
- Rated output (415V): 28kW
- Rated current (415V): 38.9Amp
- Phases: 3/PE
- Electrical Installation: As per AS/NZS3000
- Installation requirements: AS/NZS3500.4.2 & local requirements
- Switch on flow rate (minimum flow rate required to switch on the water heater): 2.5L/min
- Permissible operating pressure: 1000kPa
- Temperature adjustment: 20-60°C
- IP Rating: IP25 (IP24 at electrical connection finished walls)
- Weight: 2.9kg
- Nominal capacity: 0.4L
- Approvals: WaterMark Lic No. WMKA00301, AS3498
- For one/several draw off points: Yes/Yes
- Heating system: Bare wire
- Programmable temperature: No
