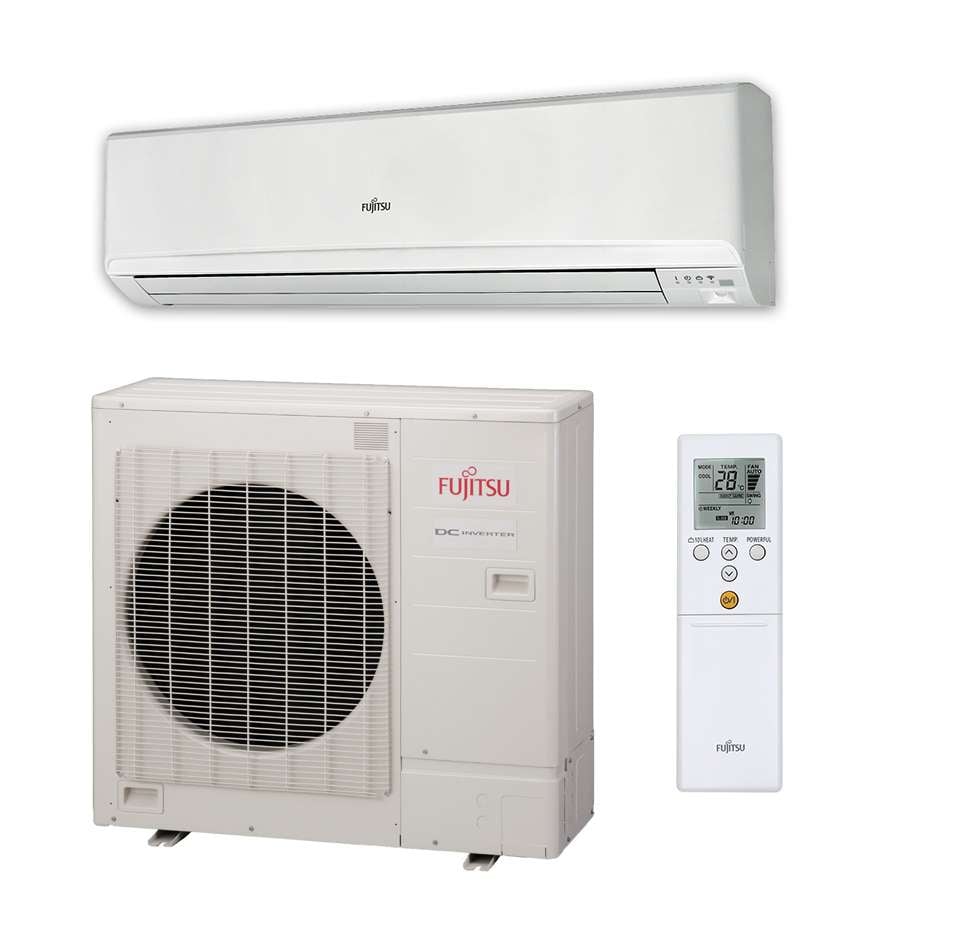

The ASTG34KMTC is a 9.40KW Cool / 10.3KW Heat Reverse Cycle Air Conditioner from Fujitsu. With energy management features including Human Sensor Control, Economy Mode and Weekly Timers, your home can be comfortable all year-round.
The up/down louvre automatically swings up and down. |
The auto shut louvres close or open automatically when the unit stops or starts. |
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored. |
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON. |
Limits the maximum operation current, and performs operation with the power consumption suppressed. |
Different on-off times can be set for up to 7 days. |
External inputs and outputs contained within the product allow on/off control, fresh air interlock connection and heater bank element connection. UTD-ECS5A* (optional parts). * Selected ducted units only.. |
With All DC, electricity loss is decreased and power consumption reduced. |
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature. |
The right/left louvre automatically swings in either direction. |
Human sensor catches movements of people in a room. |
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control. |
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature. |
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
|
Unit has a washable panel. |
Indicates the filter cleaning period by lamp.
|
ON-OFF timer can be set to operate once every 24 hours. |
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
|
Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions. |
-
Energy Star Rating (Heating)2.5
-
Energy Star Rating (Cooling)2
-
Indoor Product CodeASTG34KMTC
-
Outdoor Product CodeAOTG34KMTC
-
Indoor Unit Dimensions HxWxD (mm)340 × 1150 × 280
-
Outdoor Unit Dimensions HxWxD (mm)914 × 970 × 370
-
Moisture Removal3.5000
-
Cooling Capacity9.4kW
-
Heating Capacity10.3kW
-
MpnASTG34KMTC
-
Model numberASTG34KMTC
-
Features
✓ Automatic Air Flow Adjustment ✓ Sleep Timer ✓ Economy Mode ✓ On-off Timer ✓ Blue Fin Heat Exchanger ✓ Weekly Timer
-
Manufacturer warranty5 Years
-
InstallationWall
-
More Specs
- Reverse Cycle System: Yes
- Cooling Capacity (Watts): 9,400
- Cooling Capacity (BTU/h): 32,000
- Range (Watts): 2,900-11,200
- Range (BTU/h): 9,900-38,200
- Heating Capacity (Watts): 10,300
- Heating Capacity (BTU/h): 32,000
- Range (Watts): 2,700-11,700
- Range (BTU/h): 9,200-39,900
- Power Source (V/Ph/HZ): 240/1/50
- Power Supply Attachment: Outdoor Unit
- Plug Size (If Applicable): Not Applicable
- Running Current, Cooling (Amps): 11.7
- Running Current, Range (Amps): Max 19.5
- Running Current, Heating (Amps): 11.9
- Running Current, Range (Amps): Max 19.5
- Input, Cooling (Watts): 2,780
- Input, Range (Watts): 590-4,030
- Input, Heating (Watts): 2,840
- Input, Range (Watts): 600-4,240
- E.E.R. - Cooling: 3.38
- C.O.P. - Heating: 3.63
- Fan Speed: 4
- Air Circulation (Cooling/Heating) (I/s): 389/389
- Compressor Type: DC Twin Rotary
- Weight - Indoor Unit (kg): 18.5
- Weight - Outdoor Unit (kg): 74
- I.U. Sound Pressure Level Cooling (High/Quiet) (dBA@1mtr): 51/34
- I.U. Sound Pressure Level Heating (High/Quiet) (dBA@1mtr): 51/33
- O.U. Sound Pressure Level (Cooling/Heating) (dBA@1mtr): 50/54
- O.U. Sound Power Level (dBA): 67
- Refrigerant Type: R32
- Connection Pipe Sizes, Gas (mm): Ø 15.88
- Connection Pipe Sizes, Liquid (mm): Ø 9.52
- Pre Charged Length (Metre): 30
- Minimum Pipe Length (Metre): 5
- Maximum Pipe Length (Metre): 75
- Maximum Pipe Height (Metre): 30
- Pipe Connection Methods: Flared
- Outdoor Operating Temp, Cooling Degrees C: -10 to 46
- Outdoor Operating Temp, Heating Degrees C: -15 to 24
