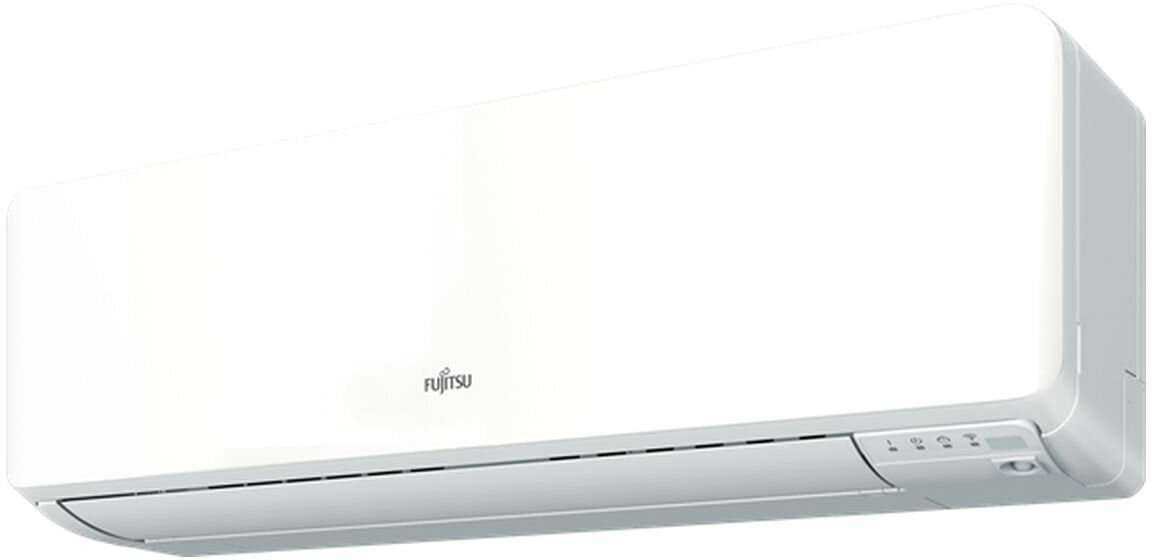

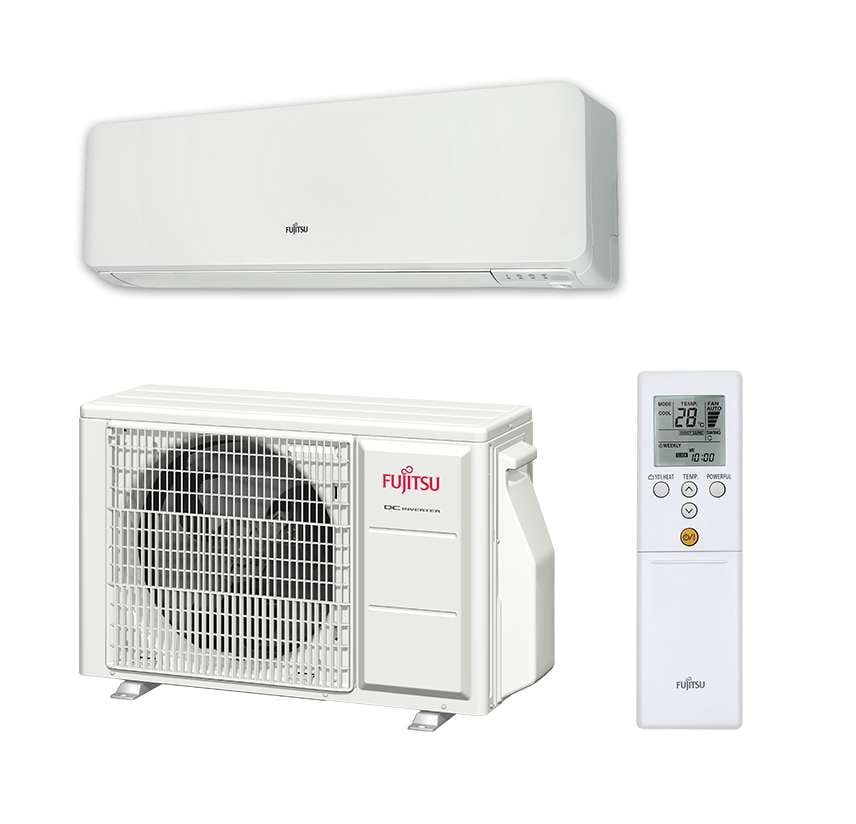

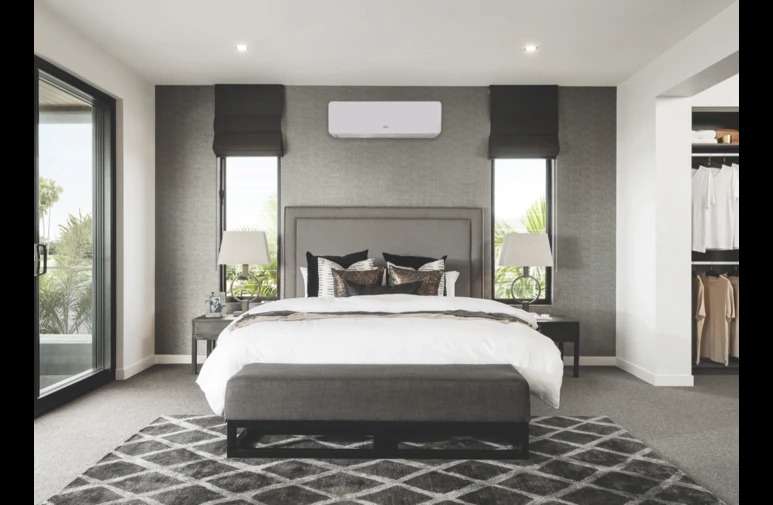

The ASTG12KMTC is a 3.5KW Cool / 3.7KW Heat Reverse Cycle Air Conditioner from Fujitsu. Designed to integrate seamlessly with the room’s interior, the ASTG12KMTC model has a matte finish and smooth edges creating a modern aesthetic to suit contemporary homes.
The up/down louvre automatically swings up and down. |
The auto shut louvres close or open automatically when the unit stops or starts. |
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored. |
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON. |
Indicates the filter cleaning period by lamp. |
With All DC, electricity loss is decreased and power consumption reduced. |
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature. |
Human sensor catches movements of people in a room. |
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control. |
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature. |
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night. |
Limits the maximum operation current, and performs operation with the power consumption suppressed. |
The filter deodorises by powerfully decomposing absorbed odours using the oxidizing filter and reducing effects of ions generated by the ultra-fine-particle ceramic.
|
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange. |
Different on-off times can be set for up to 7 days. |
Fine dust, invisible mold spores and harmful micro-organisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.
|
Unit has a washable panel. |
-
Energy Star Rating (Heating)4.5
-
Energy Star Rating (Cooling)3.5
-
Indoor Product CodeASTG12KMTC
-

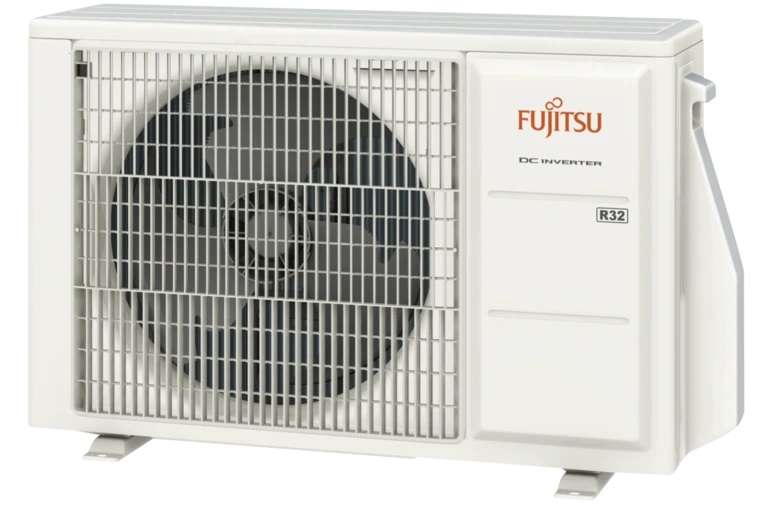

Outdoor Product CodeAOTG12KMTC
-
Indoor Unit Dimensions HxWxD (mm)270 x 834 x 222
-
Outdoor Unit Dimensions HxWxD (mm)542 x 799 x 290
-
Moisture Removal1.0000
-
Cooling Capacity3.5kW
-
Heating Capacity3.7kW
-
MpnASTG12KMTC
-
Model numberASTG12KMTC
-
Features
✓ Up/Down Swing Louvre ✓ Auto Shut Louvre ✓ Auto Restart ✓ Program Timer ✓ Filter Sign ✓ All Dc ✓ Auto-changeover ✓ Human Sensor
-
Manufacturer warranty5 Years
-
InstallationWall
-
More Specs
- Cooling Capacity (Watts): 3500
- Cooling Capacity (BTU/h): 11,942
- Range (Watts): 900-4,100
- Range (BTU/h): 3,100-13,900
- Heating Capacity (Watts): 3700
- Heating Capacity (BTU/h): 12,624
- Range (Watts): 900-6,100
- Range (BTU/h): 3,100-19,100
- Power Source (V/Ph/HZ): 240/1/50
- Power Supply Attachment: Outdoor Unit
- Plug Size (If Applicable): Not Applicable
- Running Current, Cooling (Amps): 4.2
- Running Current, Heating (Amps): 4.0
- Running Current, Range (Amps): 4.2-4.0
- Input, Cooling (Watts): 890
- Input, Range (Watts): 250-1,290
- Input, Heating (Watts): 790
- Input, Range (Watts): 250-1,890
- E.E.R. - Cooling: 3.93
- C.O.P. - Heating: 4.68
- Moisture Removal (l/hr): 1.0
- Fan Speed: 4
- Air Circulation (Cooling/Heating) (I/s): 194/214
- Compressor Type: DC Rotary
- Weight - Indoor Unit (kg): 10
- Weight - Outdoor Unit (kg): 32
- I.U. Sound Pressure Level Cooling (High/Quiet) (dBA@1mtr): 40/19
- I.U. Sound Pressure Level Heating (High/Quiet) (dBA@1mtr): 42/21
- O.U. Sound Pressure Level (Cooling/Heating) (dBA@1mtr): 49/49
- O.U. Sound Power Level (dBA): 64
- Refrigerant Type: R32
- Connection Pipe Sizes, Gas (mm): Ø 9.52
- Connection Pipe Sizes, Liquid (mm): Ø 6.35
- Pre Charged Length (Metre): 15
- Minimum Pipe Length (Metre): 3
- Maximum Pipe Length (Metre): 20
- Maximum Pipe Height (Metre): 15
- Pipe Connection Methods: Flared
- Outdoor Operating Temp, Cooling Degrees C: -10 to 46
- Outdoor Operating Temp, Heating Degrees C: -15 to 24
