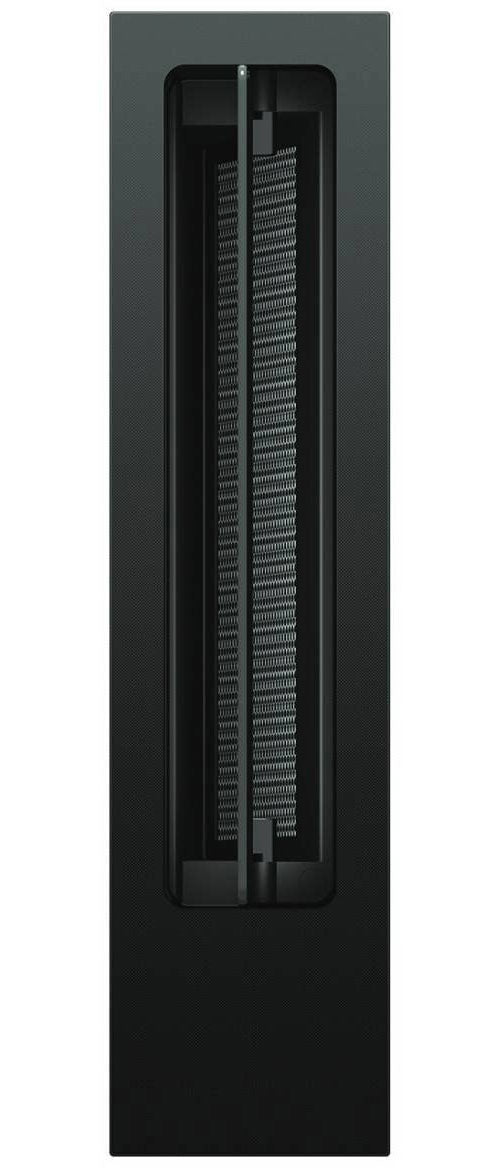

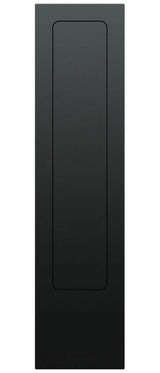

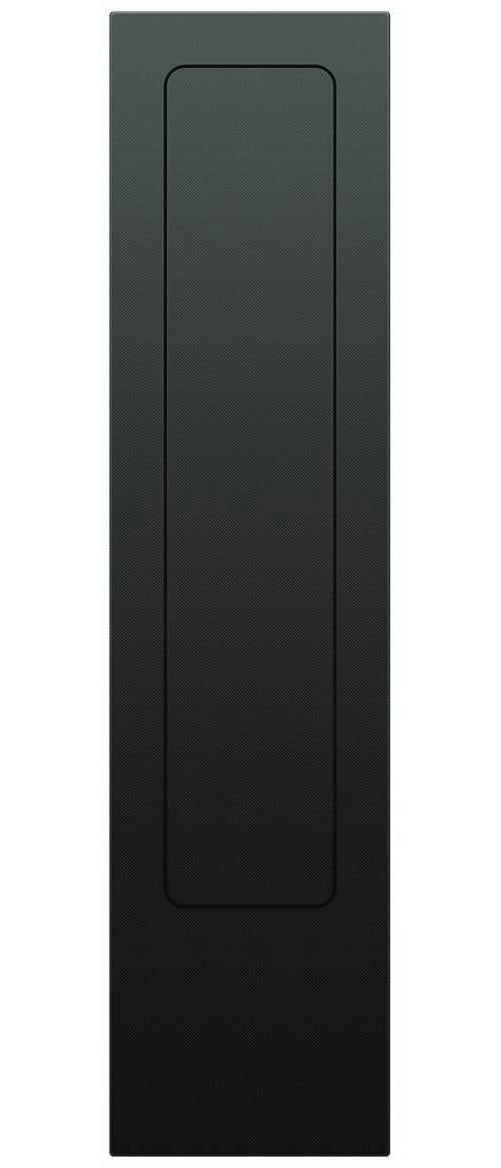

Fisher & Paykel 13cm Modular Ventilation Downdraft Rangehood Black CD13DB1
Fisher & Paykel 13cm Modular Ventilation Downdraft Rangehood Black CD13DB1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Modular Design Freedom
Enhance your cooking space with downdraft ventilation. These modules can be discreetly positioned alongside your primary cooktop and auxiliary modules, ensuring a fresh environment regardless of your chosen cooking method. Tailor your setup to reflect the way you live, cook, and entertain.
Sleek and Subtle
Redefine your kitchen's aesthetic with the downdraft ventilation module. Seamlessly integrated into the countertop and alongside cooktop modules, it allows for an open-style, social kitchen. Choose from elegant black glass or subtle grey glass finishes that complement your kitchen's design.
Design Versatility
Ideal for layouts where traditional overhead hoods pose challenges, this ventilation module pairs beautifully with island cooktops and open kitchens. Its ability to retract or hide ensures a cleaner, more open appearance, enhancing your kitchen's functionality and design.
Quiet Efficiency
The auxiliary ventilation module operates efficiently and discreetly in the background, seamlessly controlled via the primary module touchscreen. With five fan speeds plus a boost function, it quickly removes steam, odours, and grease.
Intuitive Extraction
Simply open the cover and enjoy convenient extraction with Link Mode. The fan intuitively activates, adjusting its speed according to the power levels of nearby cooktop zones, eliminating the need for manual adjustments. Even after you have finished cooking, the fan remains active to capture any remaining vapours.
Easy to Clean
The nine-layer filter effectively traps grease particles during extraction. Designed for simple removal, the filters are easy to clean and dishwasher safe.
Prolonged Freshness
A Delayed Off timer ensures that cooking smells continue to be extracted even after you've finished cooking. Additionally, the timer will automatically shut off the ventilation after a preset time, reducing energy waste if you forget to turn it off.
-
Height (mm)186 mm
-
Width (mm)130 mm
-
Depth (mm)530 mm
-
MpnCD13DB1
-
Model numberCD13DB1
-
ColourBlack
-
Features✓ 5 fan speeds and a boost function ✓ Auto-off/Run-on timer ✓ Stainless steel filter cover ✓ 9 filter effectively traps grease particles during extraction ✓ Auxiliary ventilation module operates efficiently and discreetly ✓ Ideal for layouts where traditional overhead hoods pose challenges
-
Manufacturer warranty2 Years
-
InstallationDucted or Recirculated
-
More SpecsFan Ratings
- Maximum air movement: 519m³/hr
- Maximum sound rating: 78dBA
- Speed 1 sound rating: 42dBA
- Dishwasher safe filters: 1
- Recirculation: Optional
- Stainless steel filter cover
- Extraction type: Surface
- Fan speeds: 5 + Boost
- Filter type: Mesh with Stainless Steel filter cover
- Number of filters: 1
- Supply frequency: 50Hz
- Supply voltage: 220-240V
- Total Power: 167W
- Auto-off/Run-on timer
- Parts and labour: 2 years
