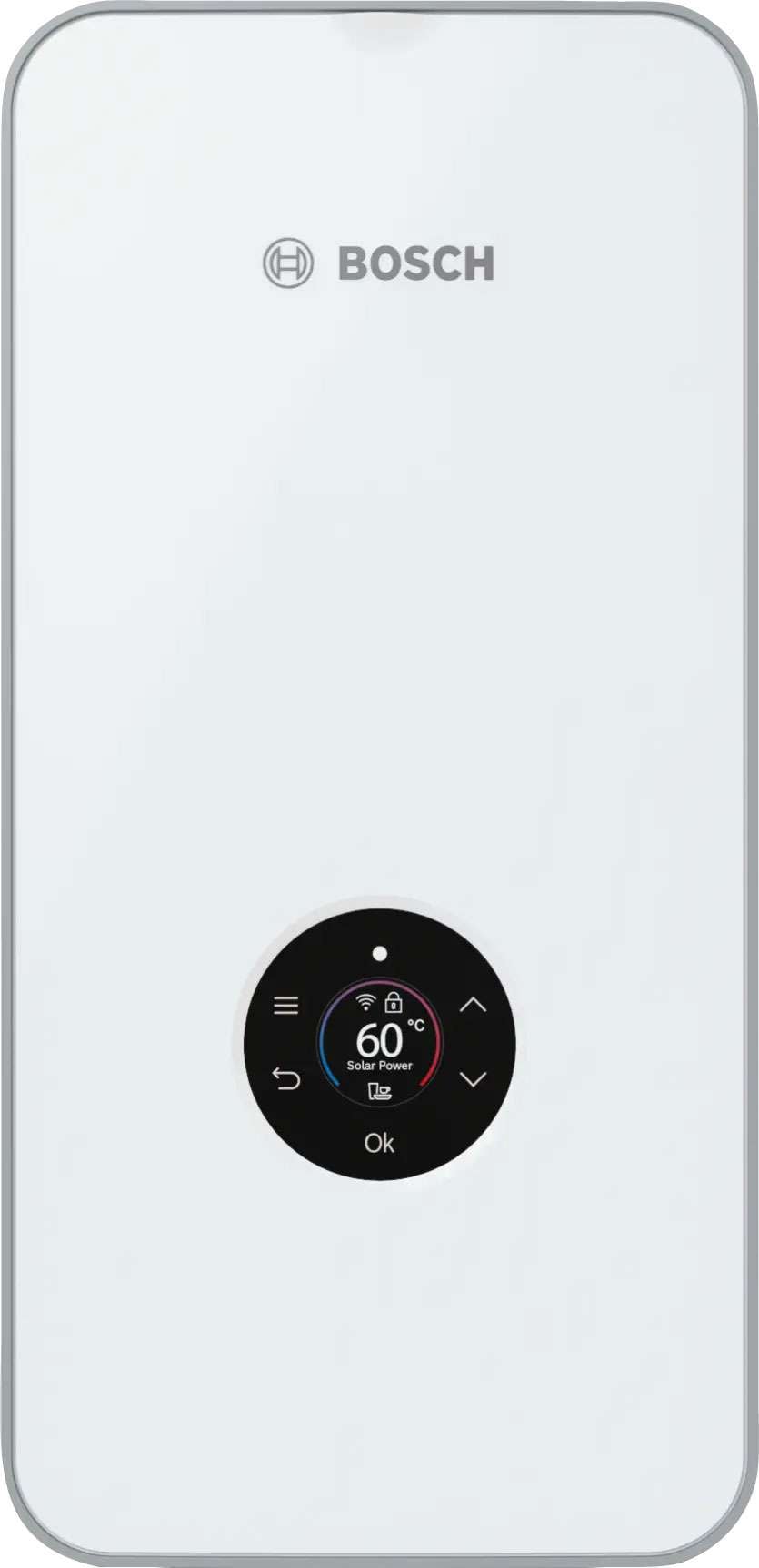

Bosch Tronic 8500i 18kW 20°C-60°C Instant 3Ph Electric Water System 7736507512
18kW 20°C to 60°C Instant 3 Phase Electric
Bosch Tronic 8500i 18kW 20°C-60°C Instant 3Ph Electric Water System 7736507512 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Tronic 8500i is Bosch’s most advanced water heater designed for maximum convenience and control. With integrated Wi-Fi, a multifunctional LED colour display, AquaStop water safety, and features like water and electricity consumption indicators, multiple temperature memory modes, and child lock, it ensures top-tier performance and safety. The 8500i also offers quick installation via three simple steps, thanks to CLICKFIX 2.0.
- Made with German engineering.
- Available in a 60°C maximum water output temperature for multiple outlet applications.
- Built-in Wi-Fi for convenient smart device control through the Bosch HomeCom Easy app.

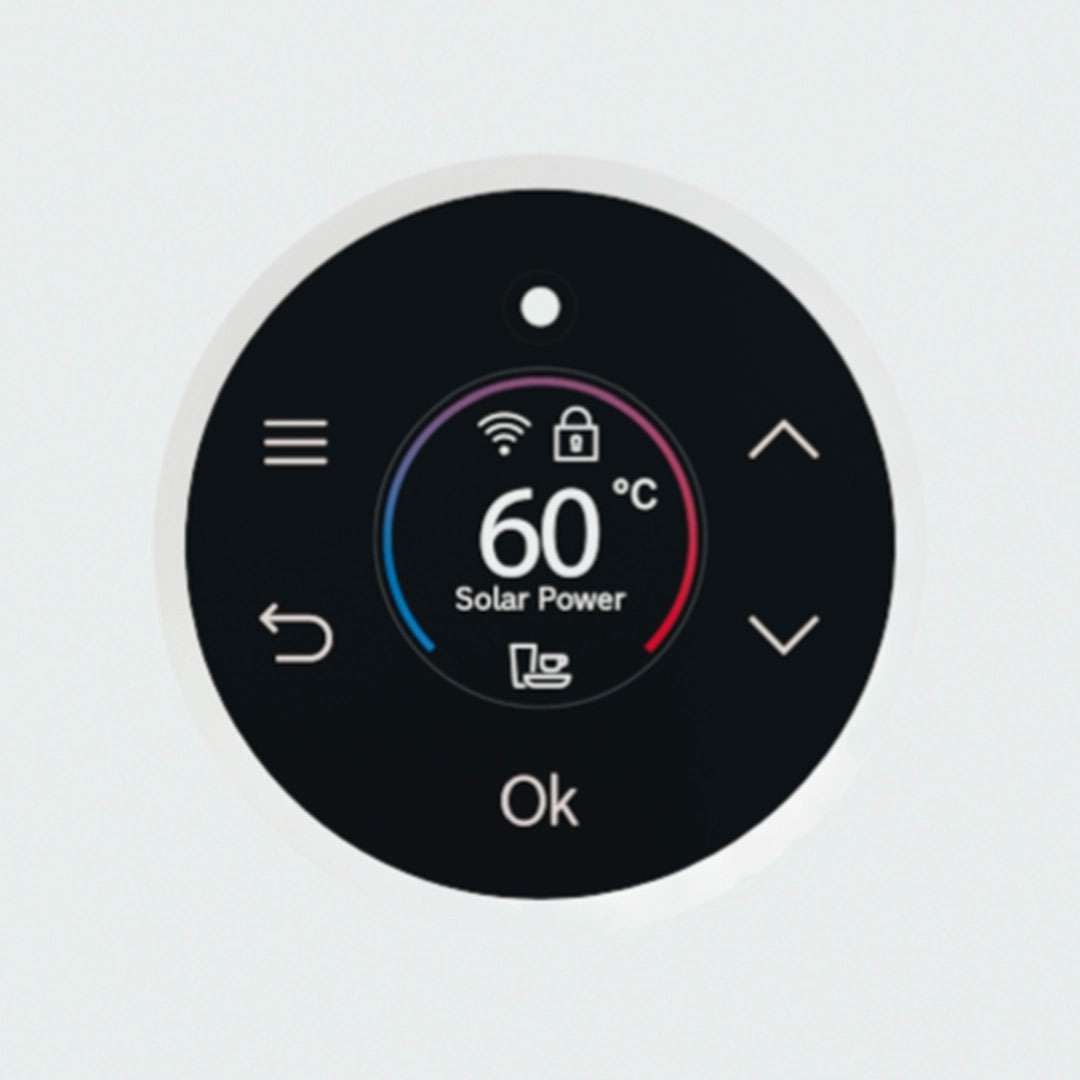

- Advanced, easy-to-use multifunctional LED colour display featuring temperature adjustment, consumption indicators for water and electricity, use-case temperature selection modes, child lock, and eco indication.

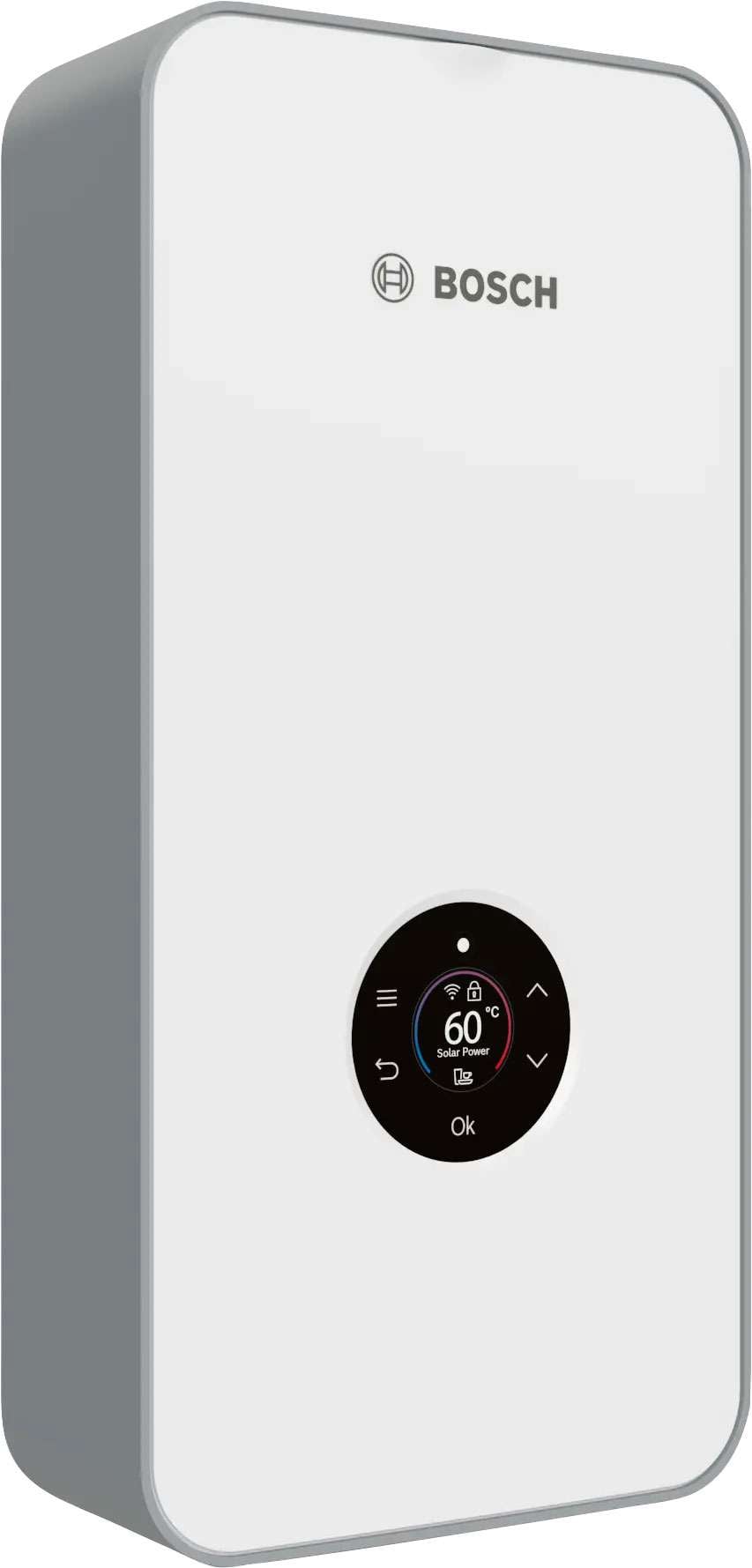

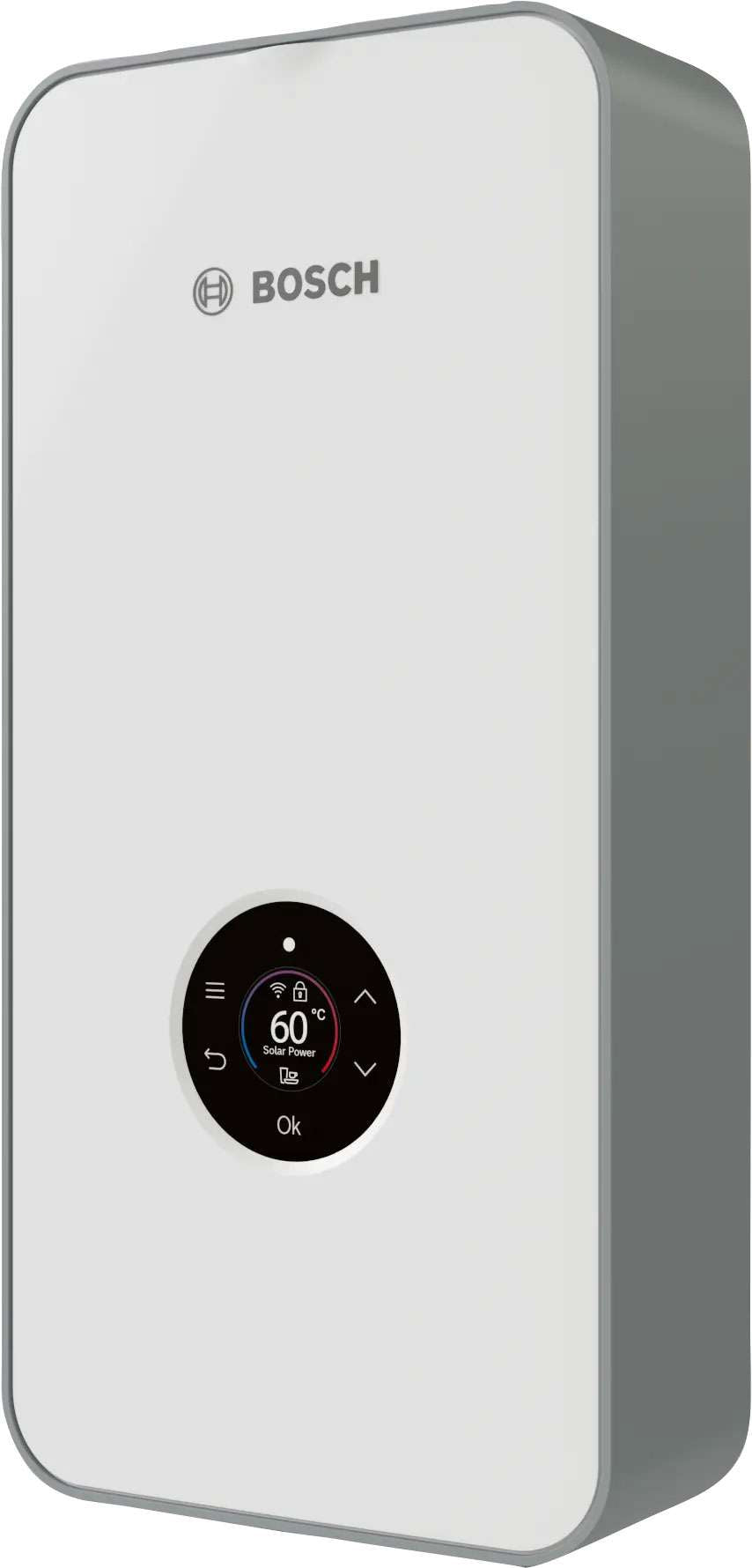

Modern Premium Designand Compact Size

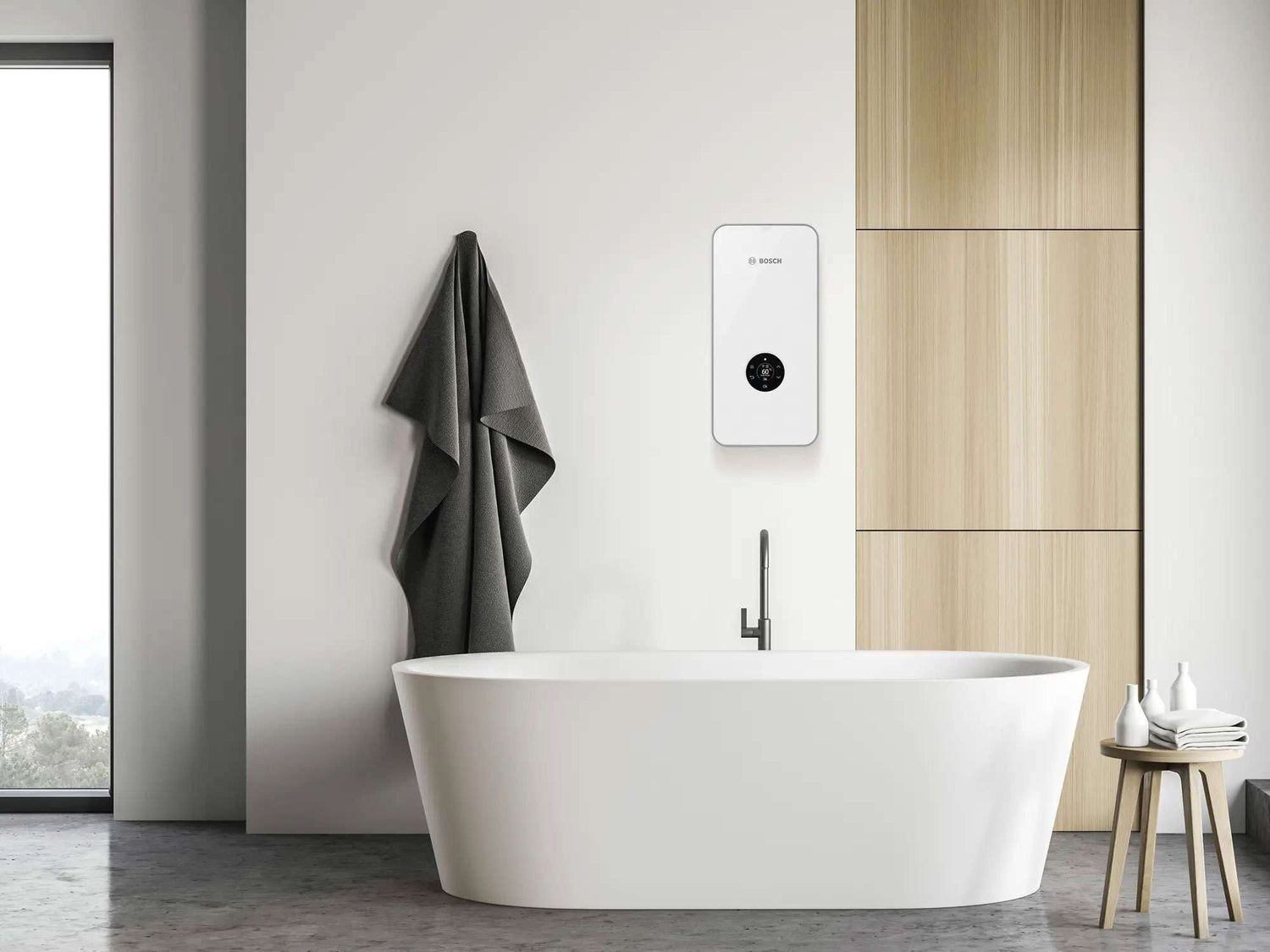

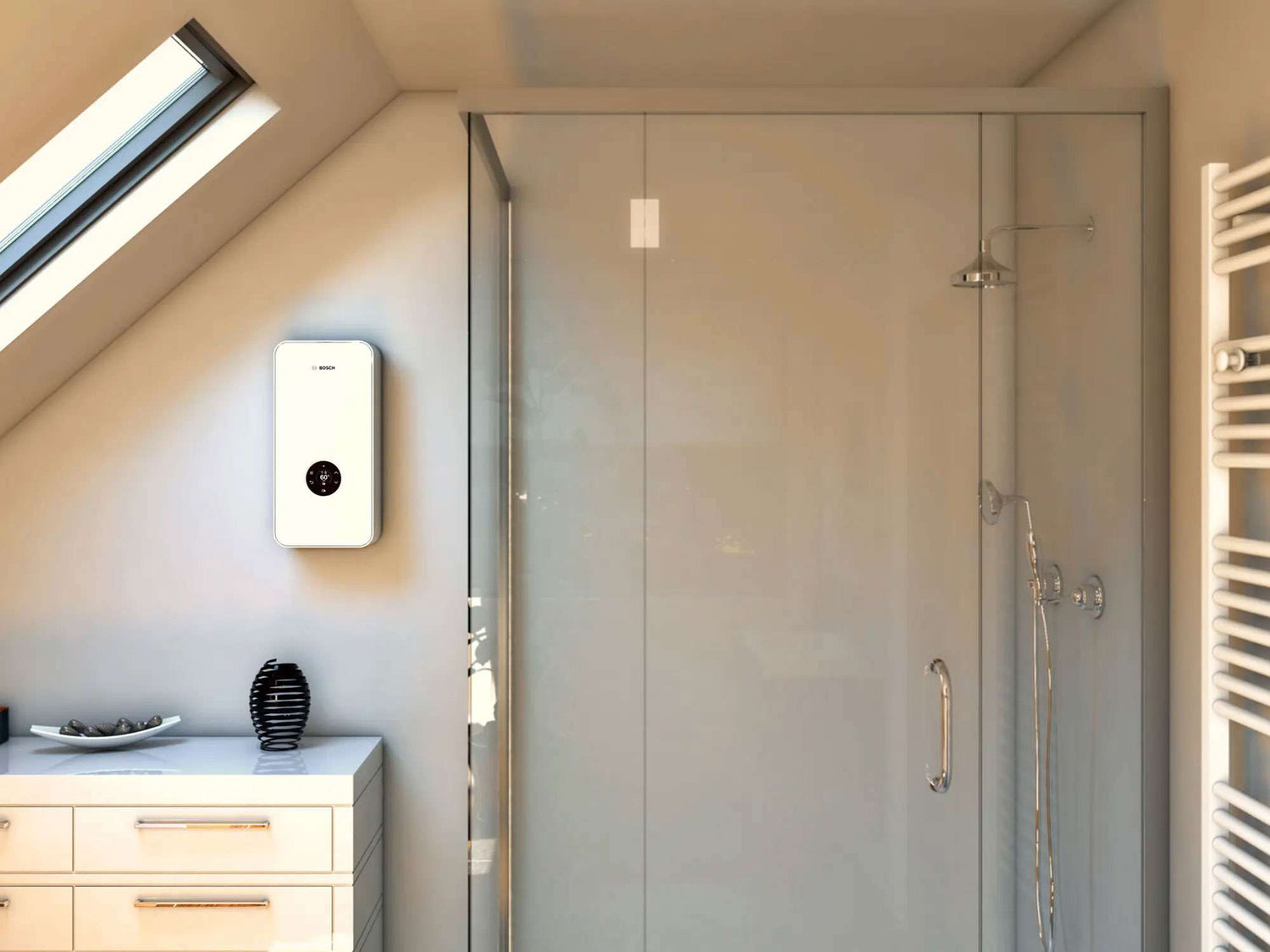

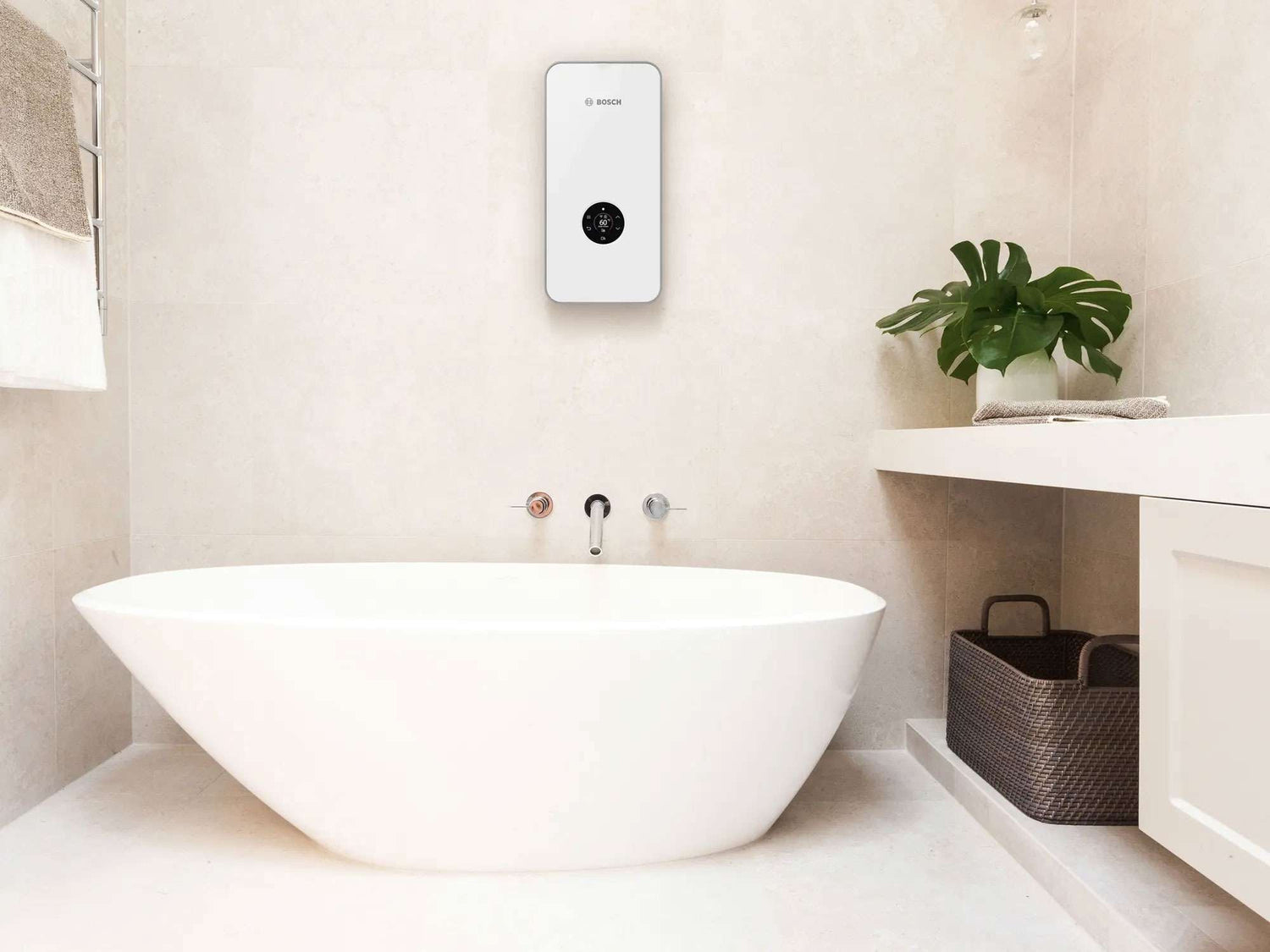

The Bosch Tronic 8500i Premium's modern and compact design complements any interior, offering high-quality materials for long-lasting durability.
Temperature Stability is Assured
Enjoy consistent and comfortable water temperatures with the Bosch Tronic 8500i. This intelligent 3-phase water heater prevents excessive water heating, ensuring energy efficiency and cost-effectiveness.
Built-in Wi-fi Gateway
A Wi-Fi Gateway Kit accessory is available for convenient smart device monitoring and control. With the HomeCom Easy app, you can manage your water heater from anywhere.
Aquastop Safety System
The AquaStop safety system protects against water damage. If a leak is detected, the cold water inlet automatically shuts off once a certain amount of water has flowed, preventing any potential damage.

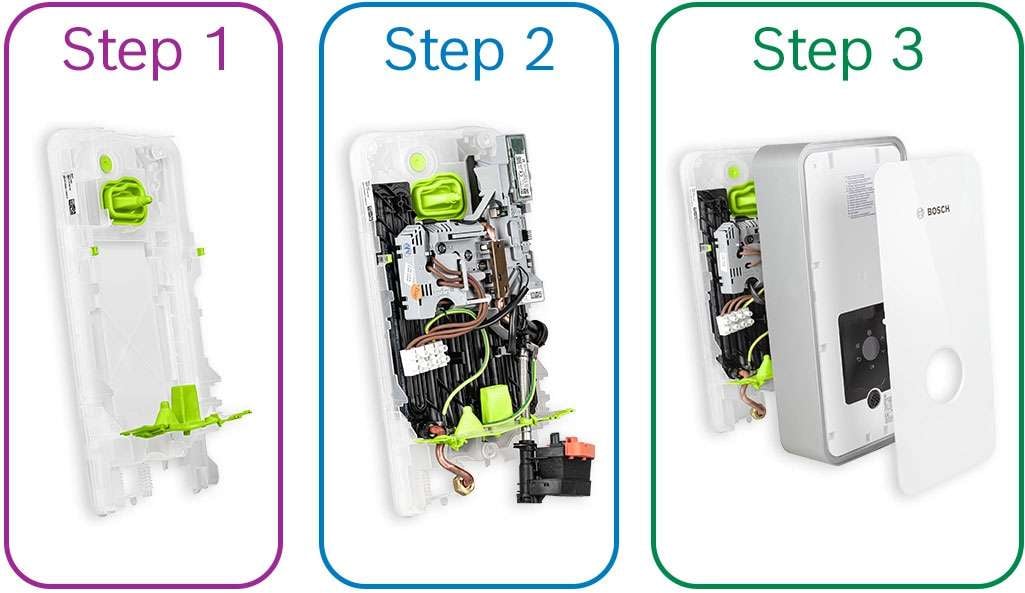

Easy Installation with Clickfix 2.0
Installing the Bosch Tronic 8500i is fast and straightforward, thanks to advanced CLICKFIX 2.0 technology. The transparent backplate allows installers to easily locate drilling holes and adjust screws to ensure a perfect fit, whether installing a new unit or replacing an old one.
Specification Sheet
Installation and Operating Instructions
Quick Install Guide EWI DNA
-
Height (mm)484 mm
-
Width (mm)236 mm
-
Depth (mm)106 mm
-
MpnTR8501I18DESOAB
-
Model number7736507512
-
ColourWhite
-
Product fuelElectric
-
Features✓ Built-in Wi-Fi for smart control via Bosch app ✓ Multifunctional LED colour display with eco mode ✓ AquaStop for enhanced water leak protection ✓ Consumption indicators for water and electricity ✓ Multiple temp memory modes with child lock ✓ Fast 3-step installation with CLICKFIX 2 ✓ Adjustable from 20°C to 60°C ✓ 18kW ✓ 3 Phase Power Required
-
Manufacturer warranty5 Years Residential / 1 Year Commercial warranty (Parts & Labour)
-
InstallationExternal
-
IgnitionElectronic
-
More Specs
- Rated Output Power (415V): 19.4 kW
- Rated Current (415V): 27 A
- Connection: 3/PE
- Fuse Protection: 32 A
- Electrical Installation: In accordance with AS/NZS3000
- Plumbing Installation: AS/NZS3500.4.2 & local requirements
- Switch on Flow Rate: 2.5 L/min
- Temperature Settings: Adjustable up to 60°C
- Water Connection: G1/2"
- Max. Permissible Pressure: 1000 kPa
- Max. Inlet Temperature for Reheating: 55°C
- IP Rating: IP25
- Weight: 3.8 kg
- Approvals: WaterMark Lic No. WMK26959. AS3498, Electrical AS/NZS 60335.2.35:2013 Inc A1-2, Electrical AS/NZS 60335.2.35:2013 Inc A1-2, AS/NZS 60335.1:2020 Inc A1-2
