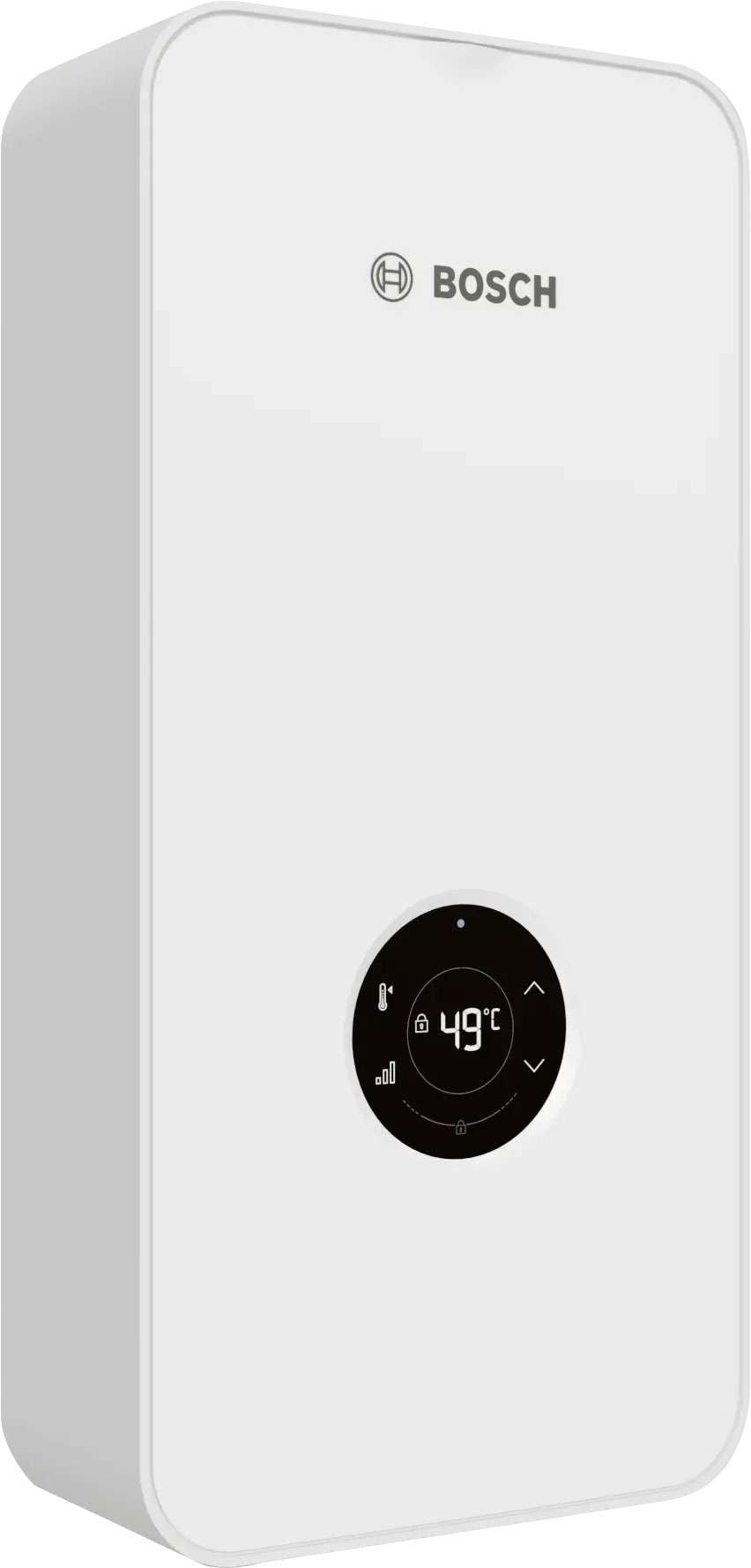

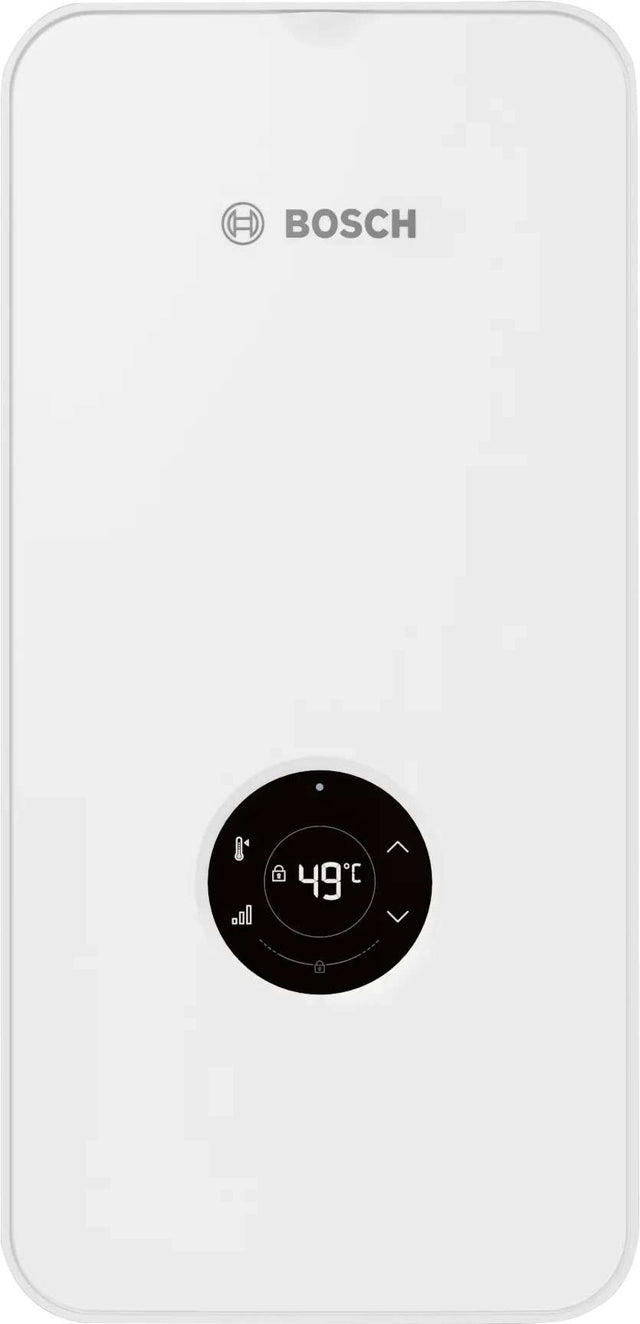

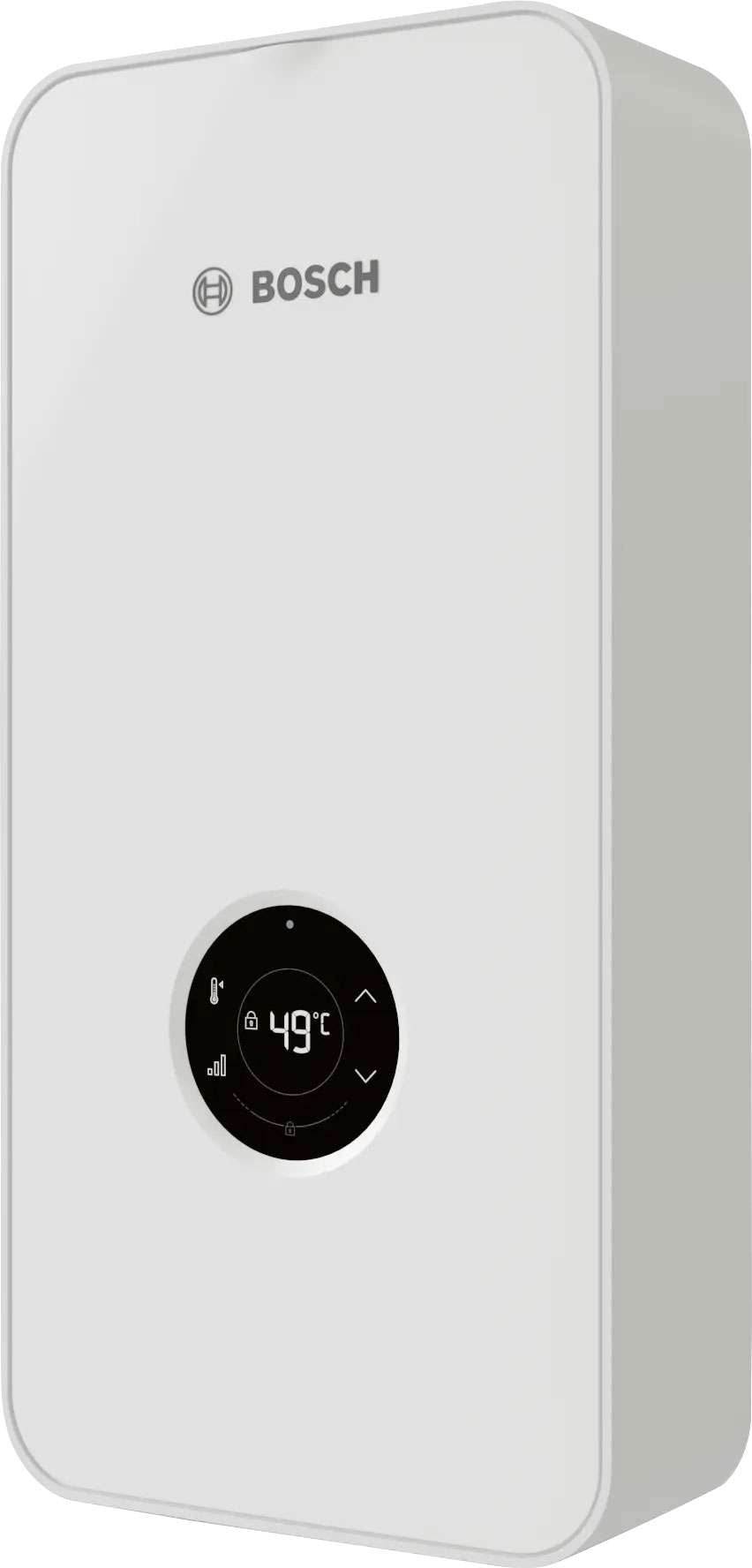

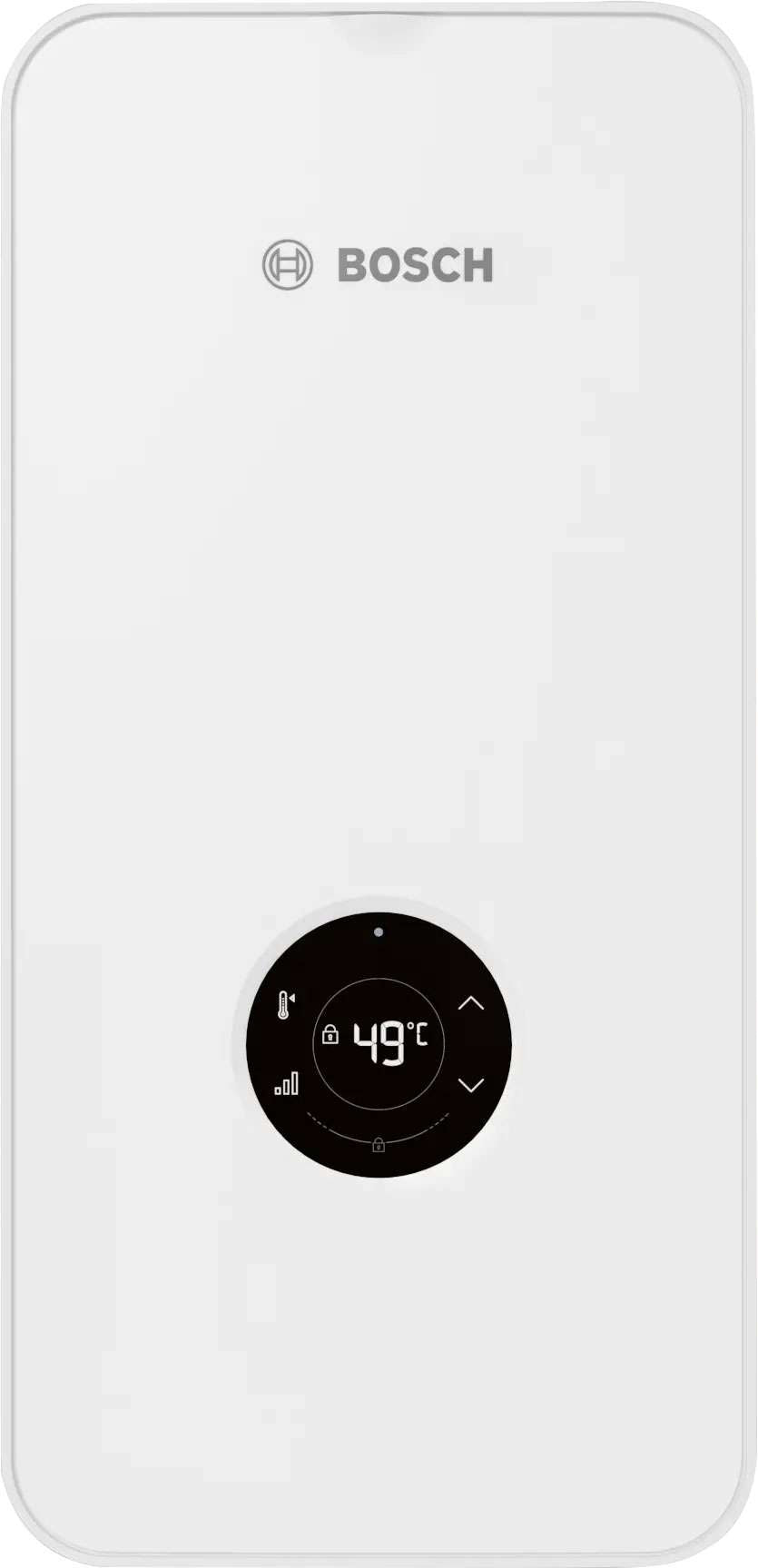

Bosch Tronic 7000 18kW 20°C-60°C Instant 3Ph Electric Water System 7736507510
18kW 20°C to 60°C Instant 3 Phase Electric
Bosch Tronic 7000 18kW 20°C-60°C Instant 3Ph Electric Water System 7736507510 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Delivering great value for money, the Bosch Tronic 7000 is an advanced water heater designed for maximum performance, efficiency, and user adjustability via its multifunctional display. Incorporating unique AquaStop water safety technology, it provides protection against water damage by automatically shutting off the cold water inlet if a leak is detected. Additionally, CLICKFIX 2.0 installation technology allows appliances to be installed quickly and easily in just three steps.
- Made with German engineering.
- Available in 50°C and 60°C maximum water output temperatures.

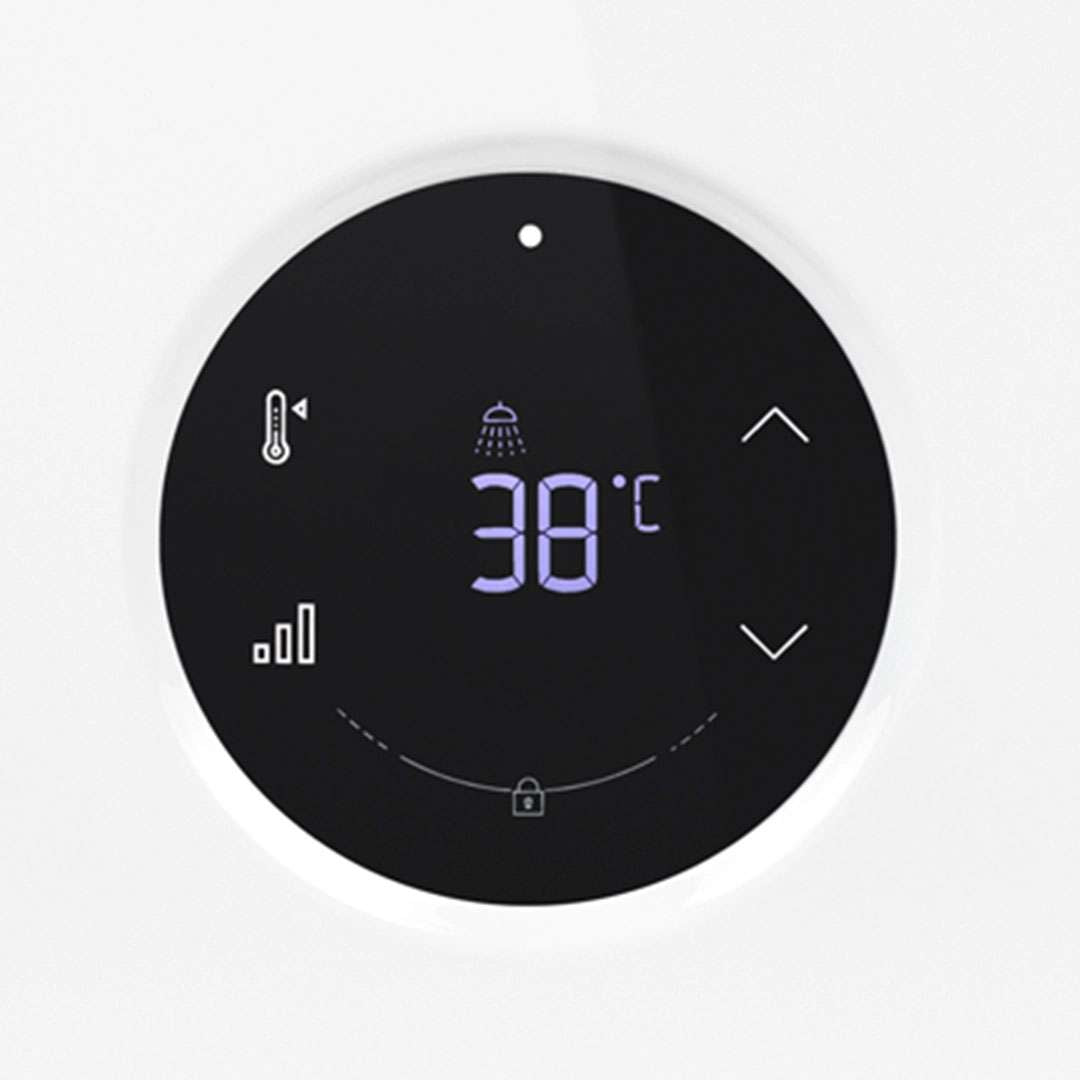

- Modern multifunctional display with temperature adjustment, consumption indicator, child lock, and four temperature memory modes.

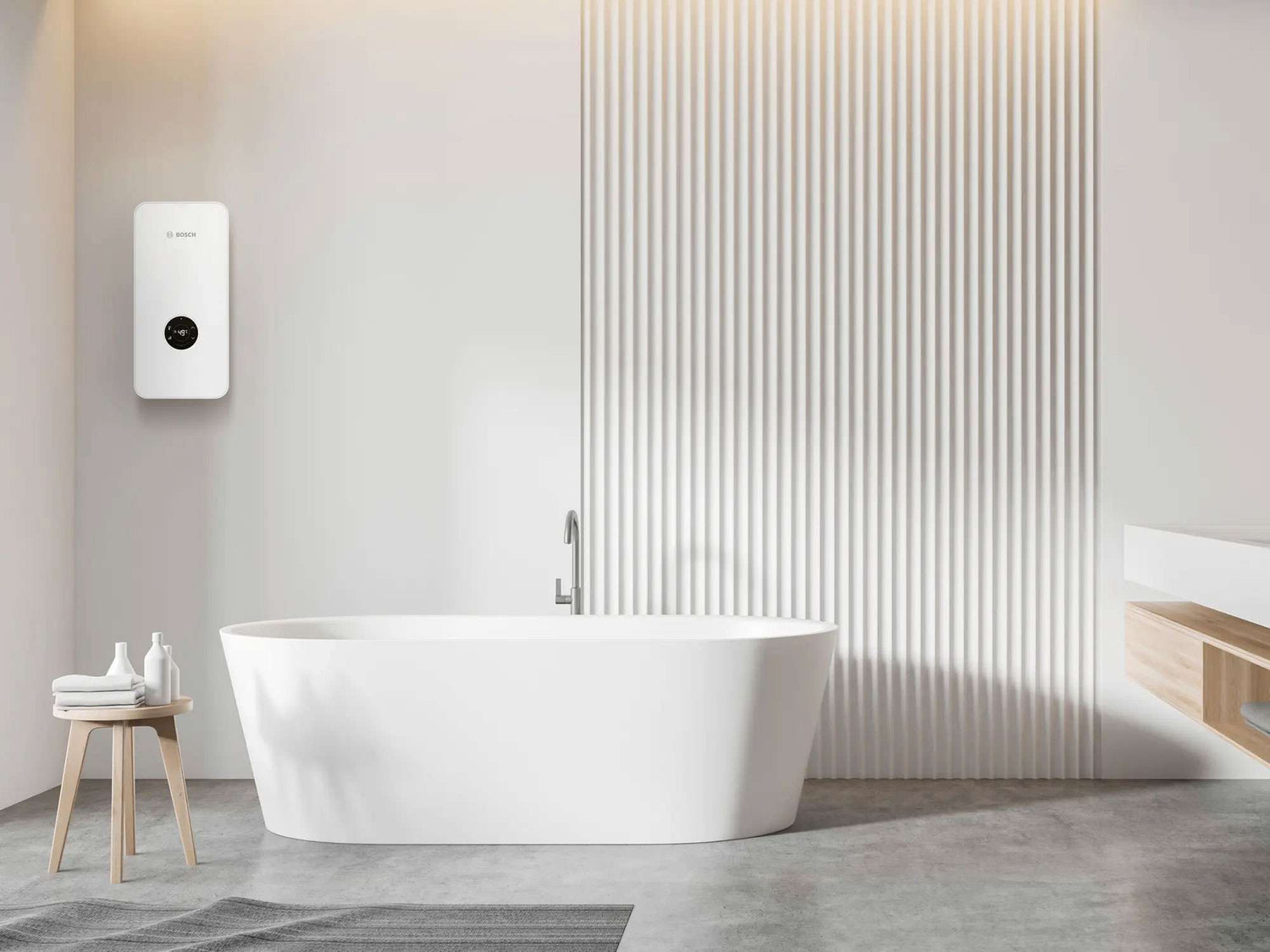

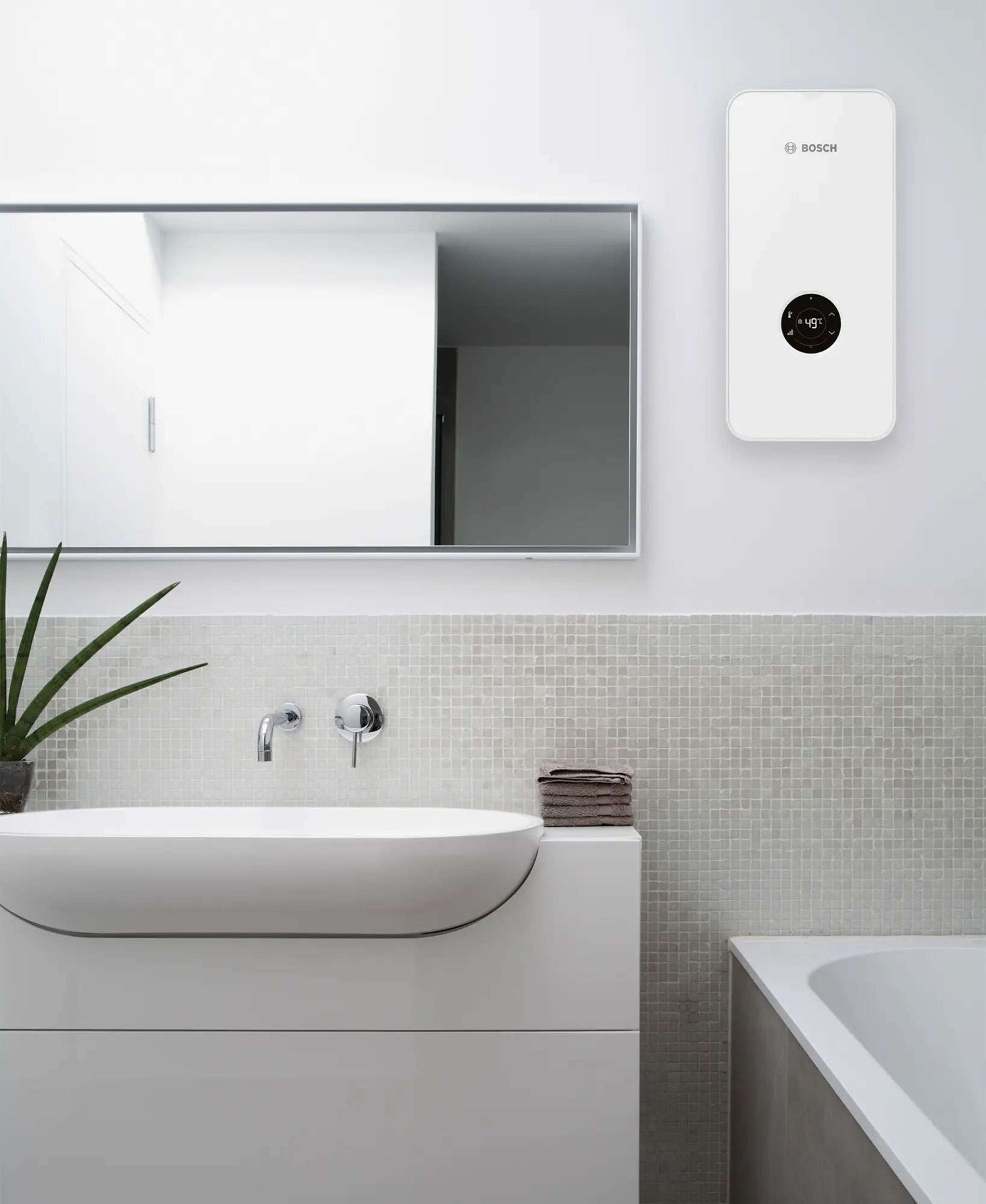

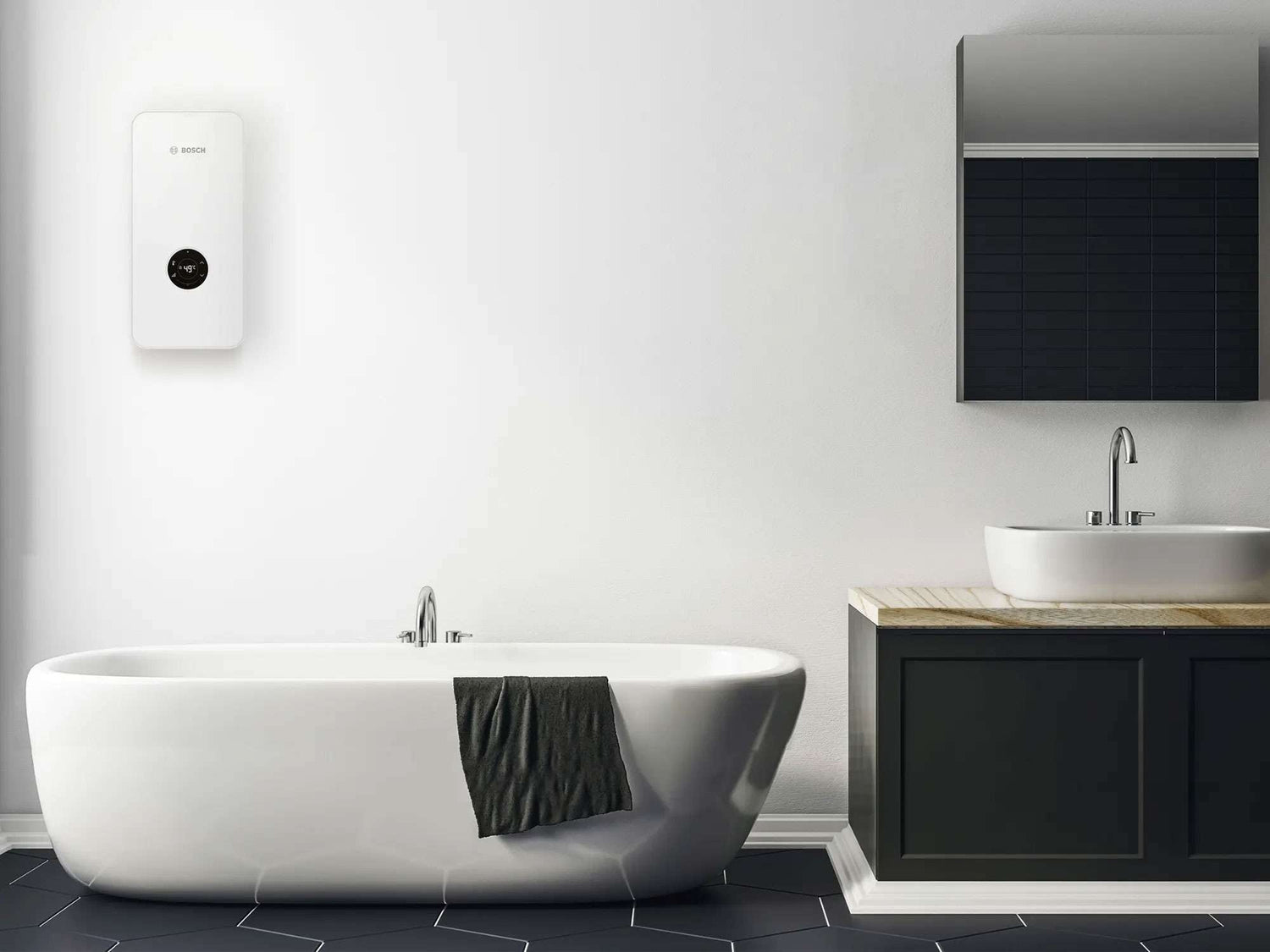

Modern Design and Compact Size
The Bosch Tronic 7000 Premium design is ideal for any interior. Compact and space-efficient, it fits seamlessly into your home, offering high-quality materials that ensure long-lasting performance.
Optional Wi-fi Gateway Kit
For smart control, the Bosch Tronic 7000 is compatible with an optional Wi-Fi gateway kit. Using the HomeCom Easy app, you can manage your water heater from anywhere, anytime.

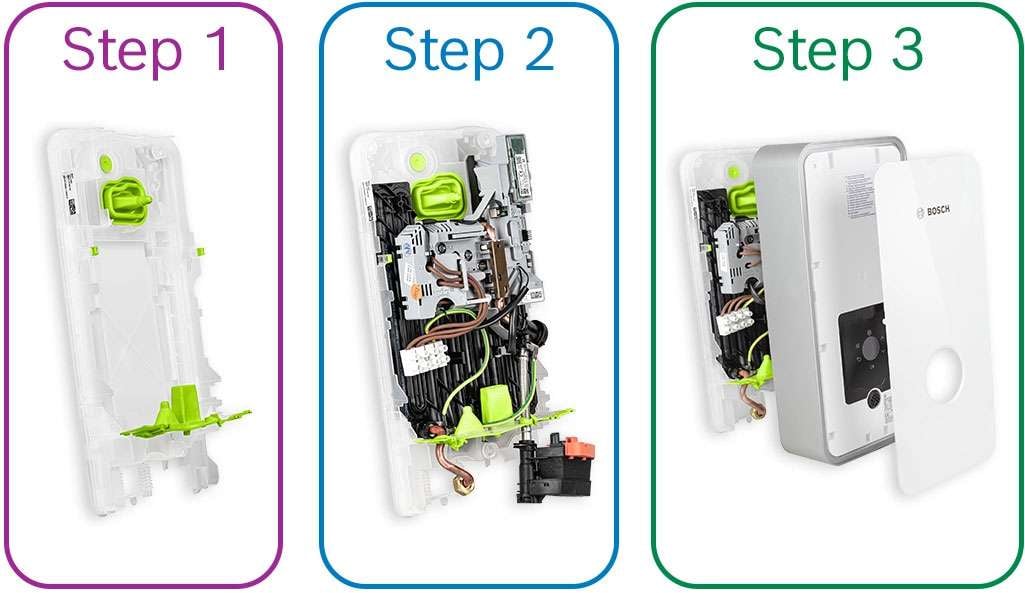

Easy Installation with Clickfix 2.0
Installing your Bosch Tronic 7000 is made simple with advanced CLICKFIX 2.0 technology. The transparent backplate allows installers to quickly locate drilling holes and adjust screws for a perfect fit, speeding up installation — whether installing a new unit or replacing an old one.
Three Options for Electrical Supply Connection
The Bosch Tronic 7000 offers three electrical supply connection options, along with a wall offset feature to ensure easy cable routing and a hassle-free installation.
Specification Sheet
Installation and Operating Instructions
Quick Install Guide EWI DNA
-
Height (mm)484 mm
-
Width (mm)236 mm
-
Depth (mm)106 mm
-
MpnTR7001I18DESOAB
-
Model number7736507510
-
ColourWhite
-
Product fuelElectric
-
Features✓ Advanced design with high performance and efficiency ✓ AquaStop technology for leak protection ✓ Multifunctional display with temp control & child lock ✓ Four programmable temperature memory modes ✓ CLICKFIX 2.0 for quick 3-step installation ✓ German-engineered reliability ✓ Adjustable from 20°C to 60°C ✓ 18kW ✓ 3 Phase Power Required
-
Manufacturer warranty5 Years Residential / 1 Year Commercial warranty (Parts & Labour)
-
InstallationExternal
-
IgnitionElectronic
-
More Specs
- Rated Output Power (415V): 19.4 kW
- Rated Current (415V): 27 A
- Connection: 3/PE
- Fuse Protection: 32 A
- Electrical Installation: In accordance with AS/NZS3000
- Installation Requirements: AS/NZS3500.4.2 & local requirements
- Switch on Flow Rate: 2.5 L/min
- Temperature Settings: Adjustable up to 60°C
- Water Connection: G1/2"
- Max. Permissible Pressure: 1000 kPa
- Max. Inlet Temperature for Reheating: 55°C
- IP Rating: IP25
- Weight: 3.8 kg
- Approvals: WaterMark Lic No. WMK26959. AS3498, Electrical AS/NZS 60335.2.35:2013 Inc A1-2, AS/NZS 60335.1:2020 Inc A1-2
