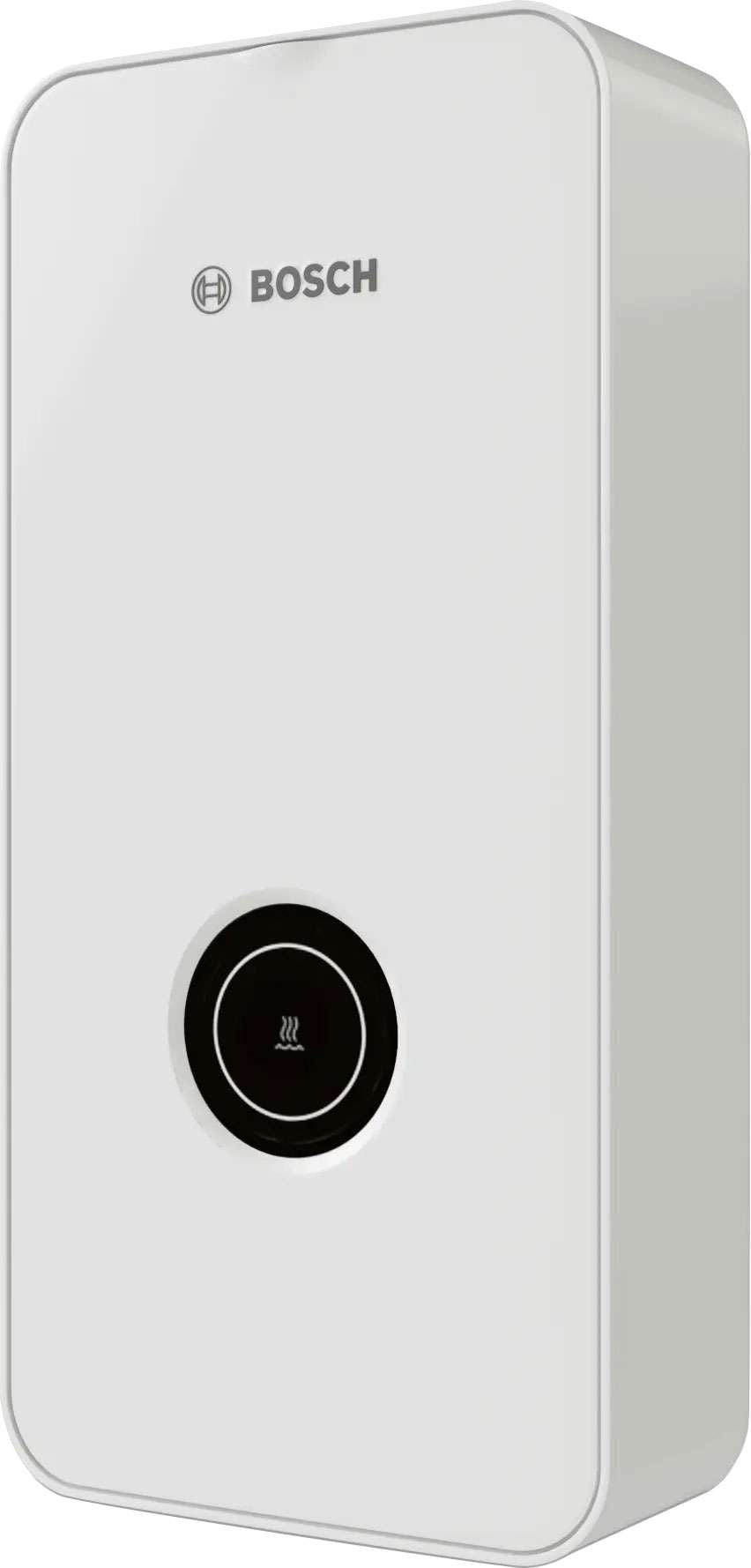

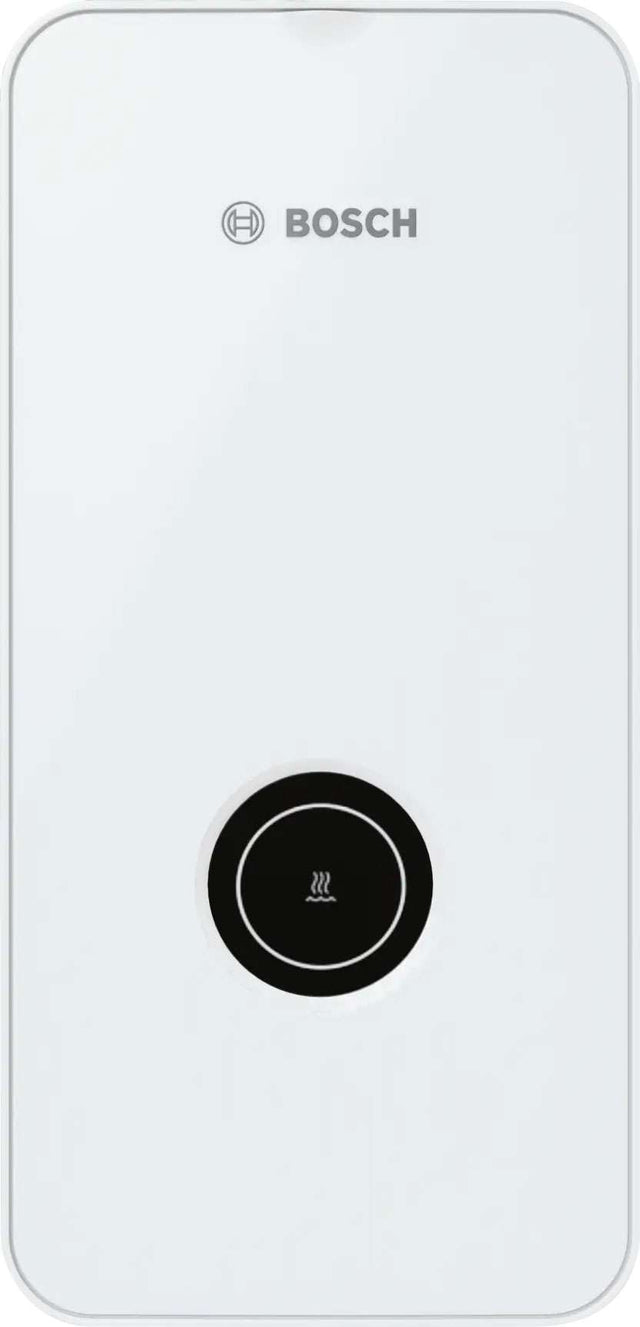

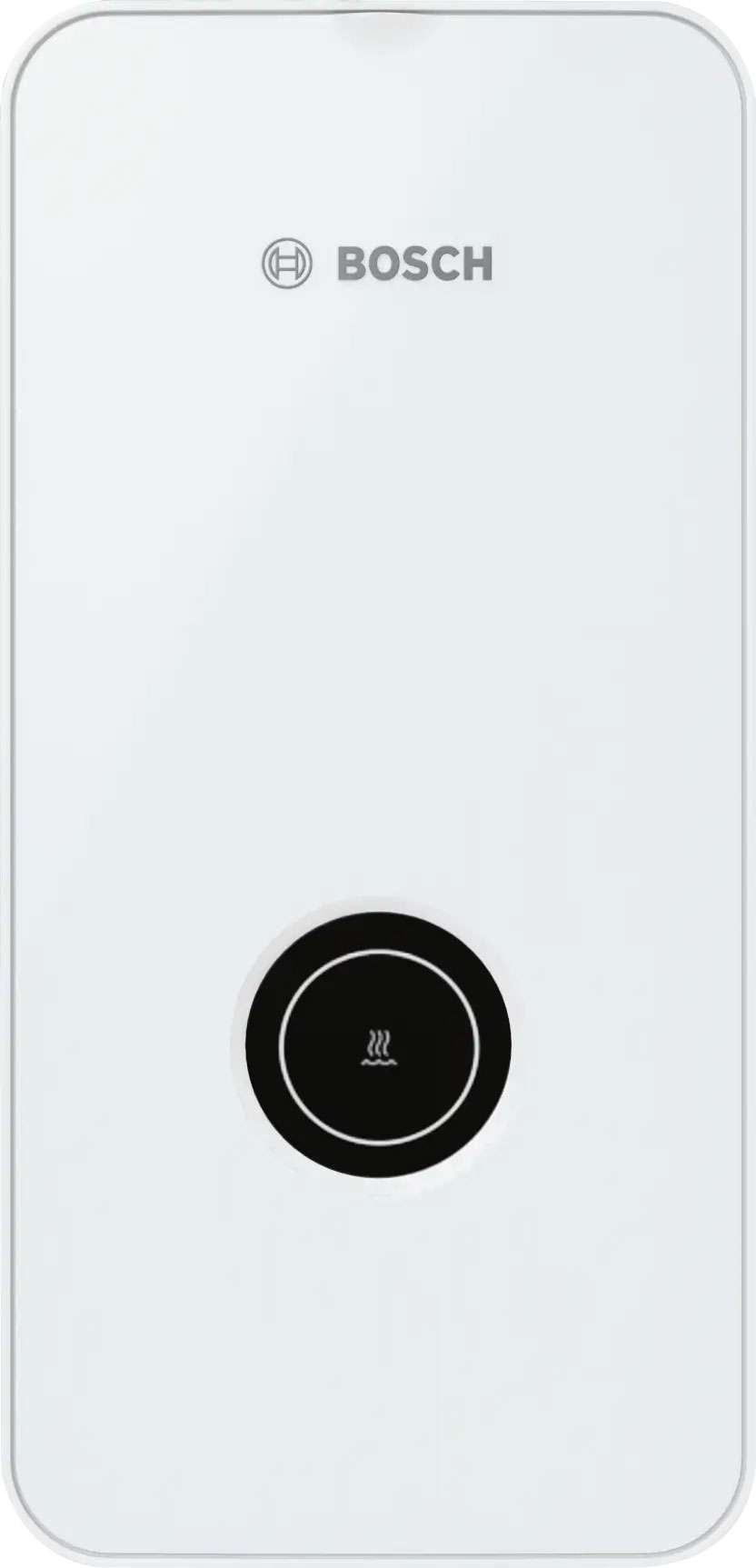

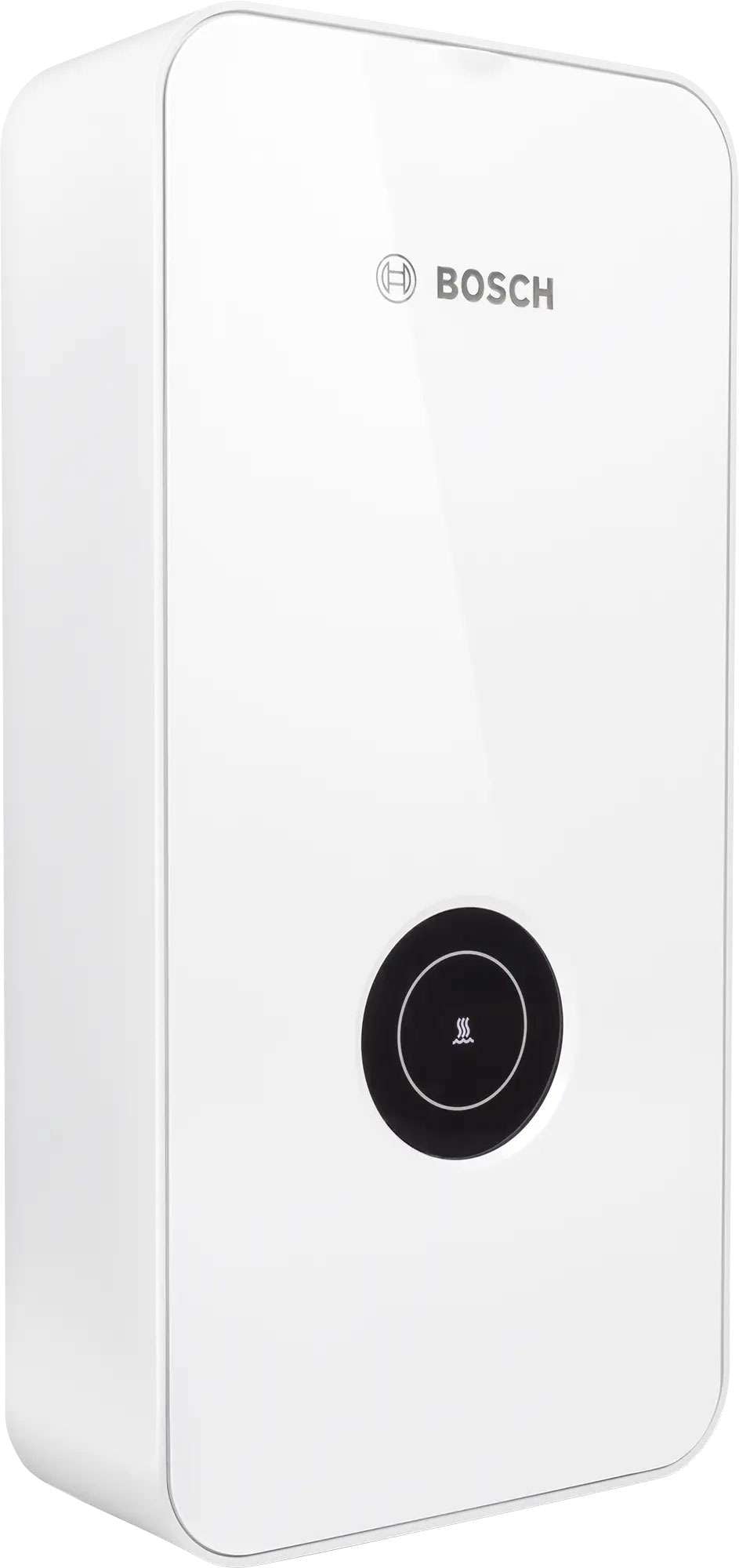

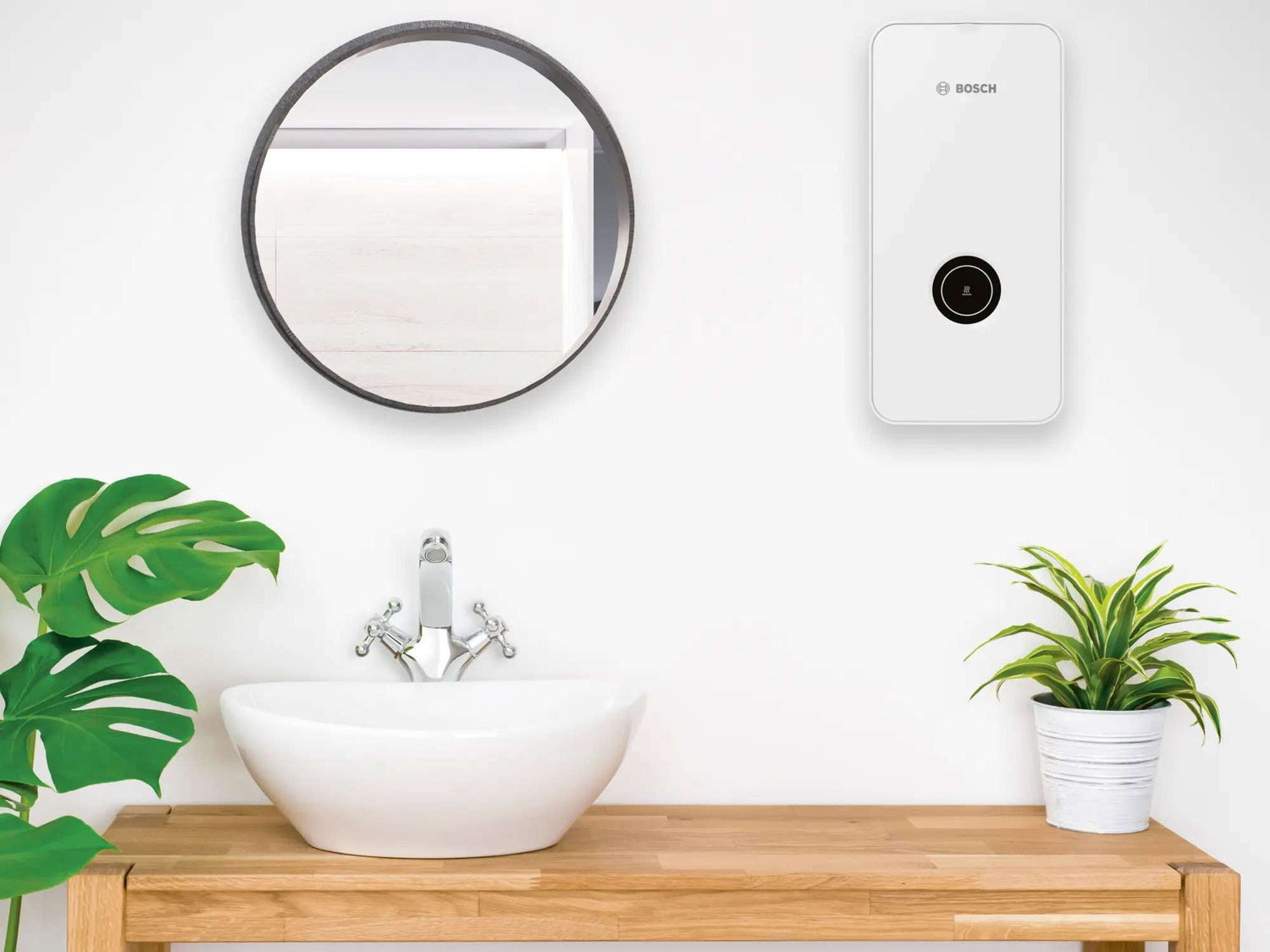

Bosch Tronic 4000 13kW 50°C Locked Instant 3Ph Electric Water System 7736507505
13kW 50°C Locked Instant 3 Phase Electric
Bosch Tronic 4000 13kW 50°C Locked Instant 3Ph Electric Water System 7736507505 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
A cost-effective water heater that reliably delivers a constant supply of hot water. Thanks to innovative CLICKFIX 2.0 installation technology, appliances can be installed quickly and easily in just three steps. Electronically controlled bare wire technology heats water faster with improved efficiency.
- Made with German engineering.
- LED digital display status light and error notification.
- Electronic air bubble detection helps prevent potential damage caused by air entering the system during installation.
- Three options for electrical supply connection location.
Temperature Stability
Comfort temperature stability is a top priority for this intelligent Bosch Tronic 3-phase water heater unit. It is cost-effective, as it prevents excessive water heating, ensuring optimal energy efficiency.

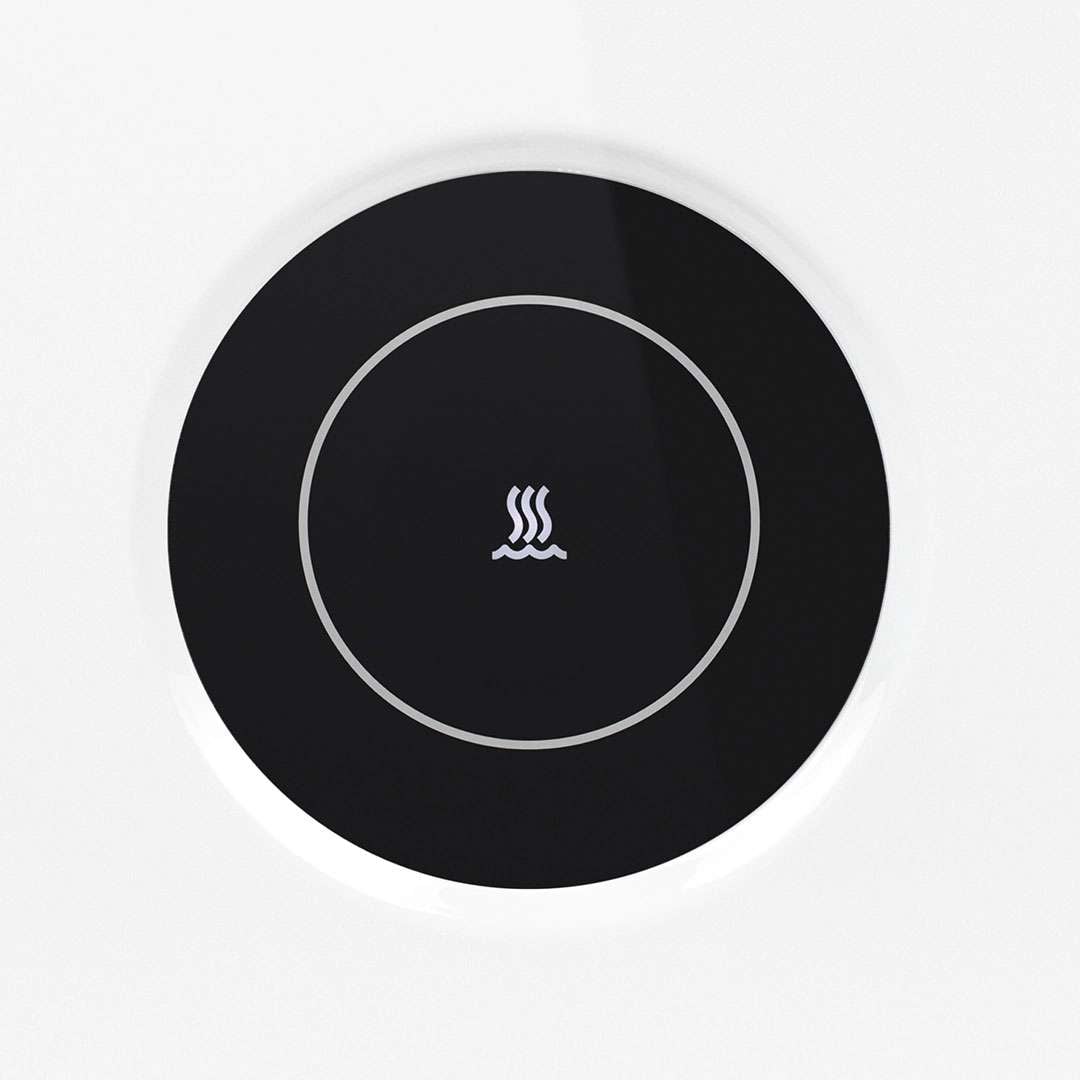

Simple Digital Led Indicator
The LED status light and error notification provide clear operational updates for both installers and consumers.

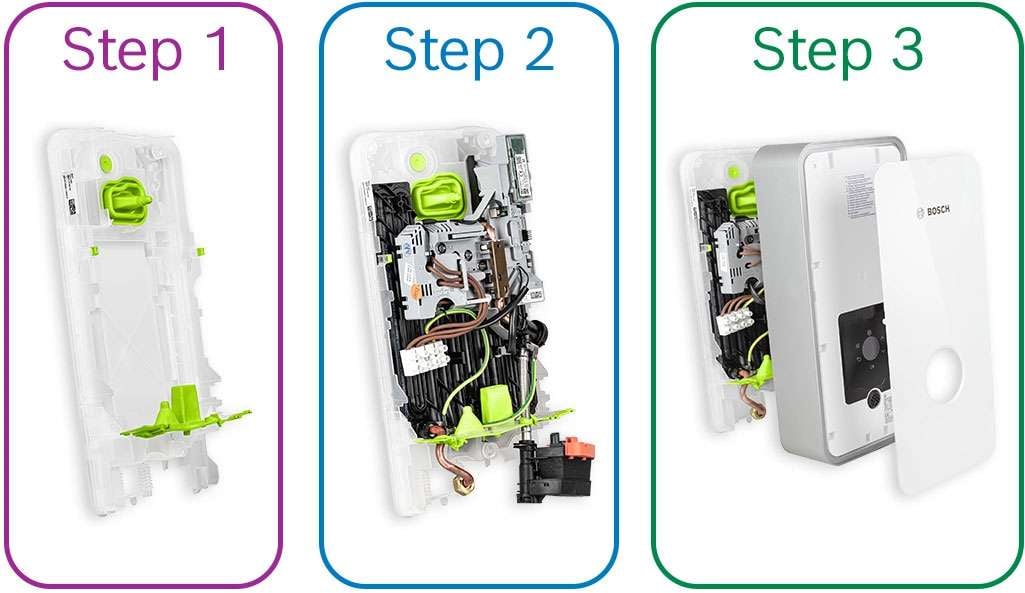

Easy Installation With Clickfix 2.0
Thanks to the advanced CLICKFIX 2.0 installation technology, the transparent backplate allows installers to easily locate drilling holes and adjust screws to ensure a perfect fit. This helps streamline the installation process, whether for a new unit or replacing an old one.
Enhanced Air Bubble Detection
Prevents potential damage caused by air entering the system during installation.
Made In Europe For Highest Quality and Durability.
Specification Sheet
Installation and Operating Instructions
Quick Install Guide EWI DNA
-
Height (mm)484 mm
-
Width (mm)236 mm
-
Depth (mm)106 mm
-
MpnTR4001L13ESOB
-
Model number7736507505
-
ColourWhite
-
Product fuelElectric
-
Features✓ Compact and cost-effective design ✓ CLICKFIX 2.0 for fast 3-step installation ✓ Bare wire tech for faster, efficient heating ✓ German-engineered build quality ✓ LED display with status and error alerts ✓ Electronic air bubble detection system ✓ Preset 50°C ✓ 13kW ✓ 3 Phase Power Required
-
Manufacturer warranty5 Years Residential / 1 Year Commercial warranty (Parts & Labour)
-
InstallationExternal
-
IgnitionElectronic
-
More Specs
- Rated Output Power: 14 kW
- Rated Current: 19.5 A
- Connection: 3/PE
- Fuse Protection: 20 A
- Electrical Installation: In accordance with AS/NZS3000
- Plumbing Installation: AS/NZS3500.4.2 & local requirements
- Switch on Flow Rate: 2.5 L/min
- Temperature Setting: Not adjustable – Locked at 50°C
- Water Connection: G1/2"
- Max. Pressure: 1000 kPa
- Max. Inlet Temperature: 50°C
- IP Rating: IP25
- Weight: 3.3 kg
- Approvals: WaterMark Lic No. WMK26959. AS3498, AS/NZS 60335.2.35:2013 Inc A1-2, AS/NZS 60335.1:2020 Inc A1-2
