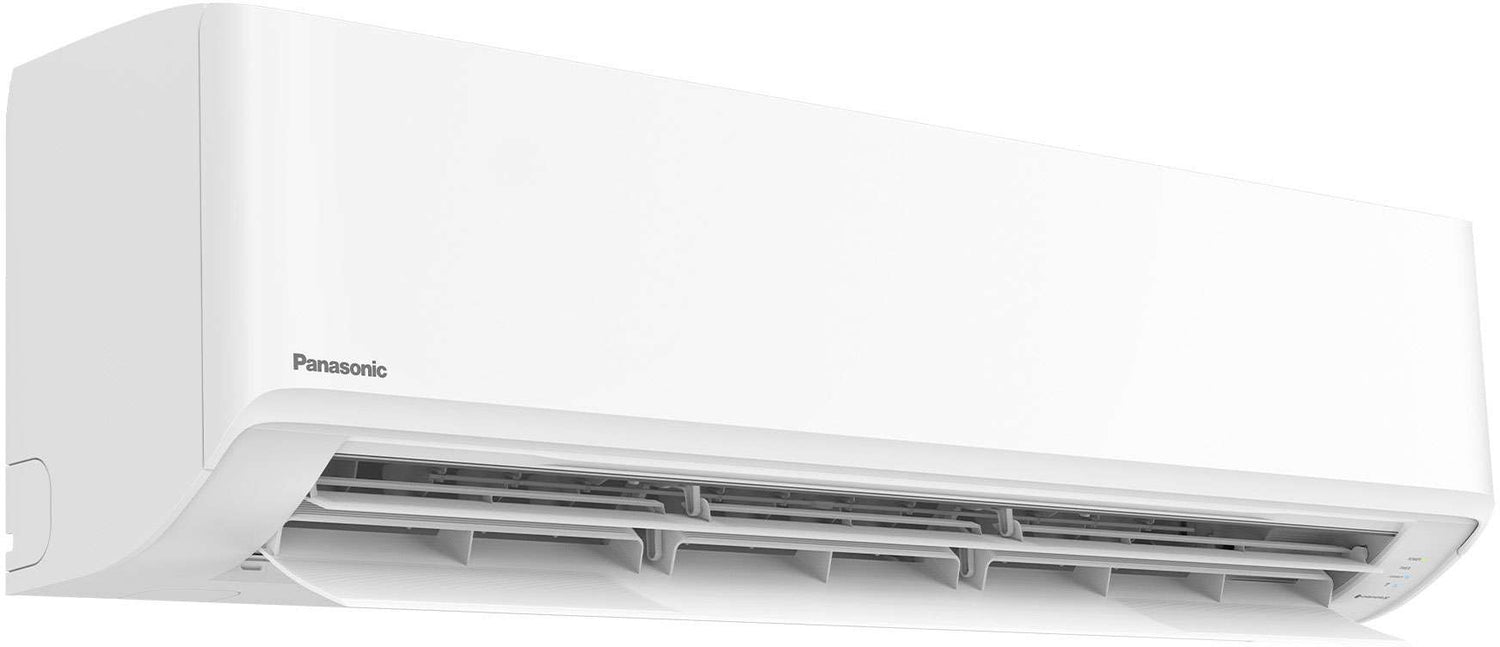

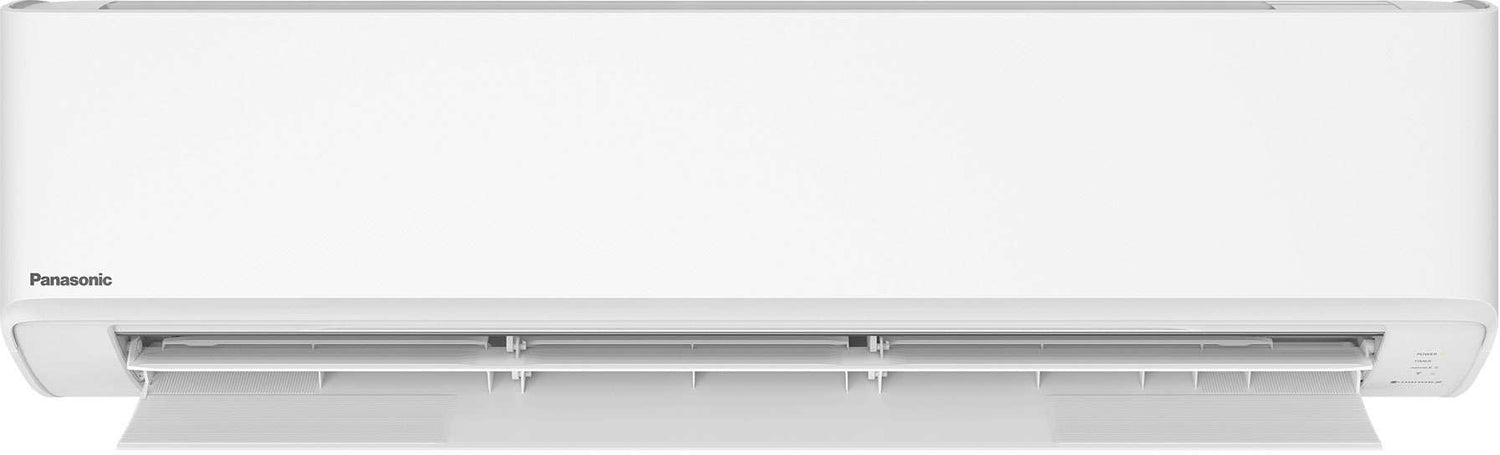

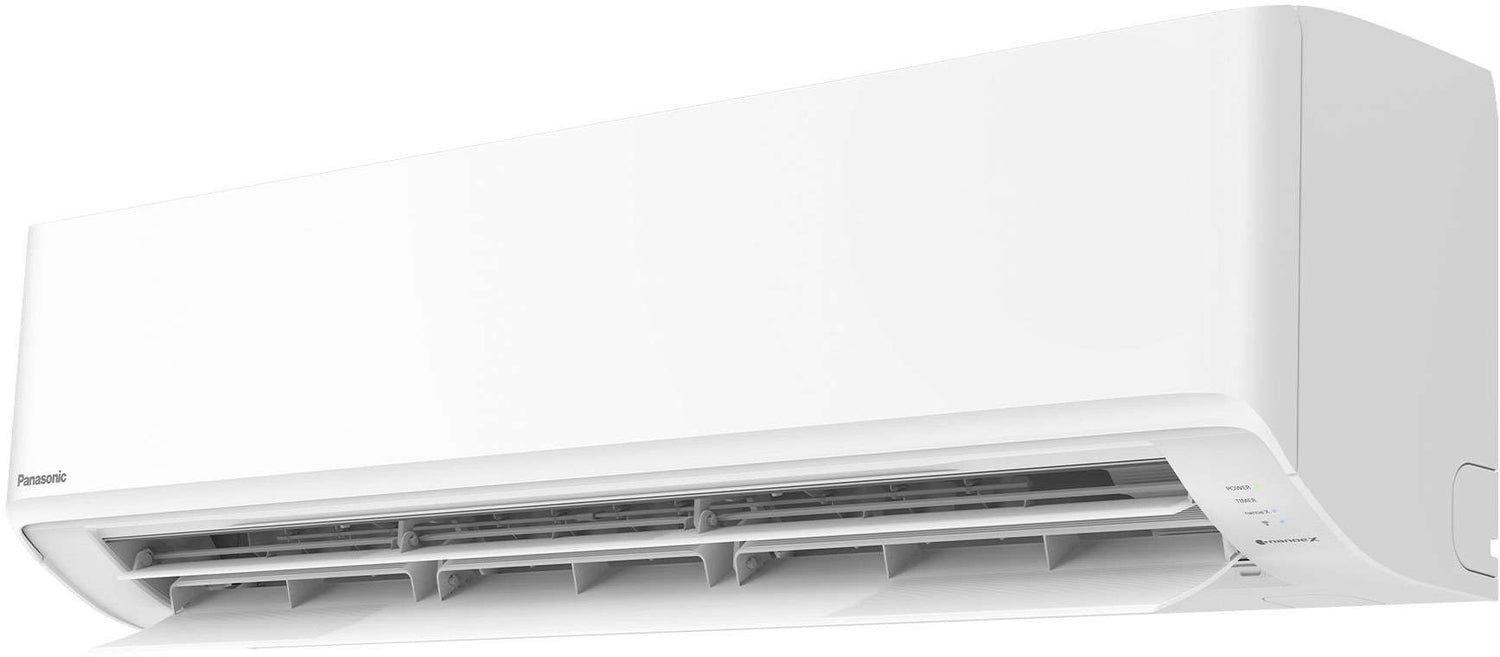

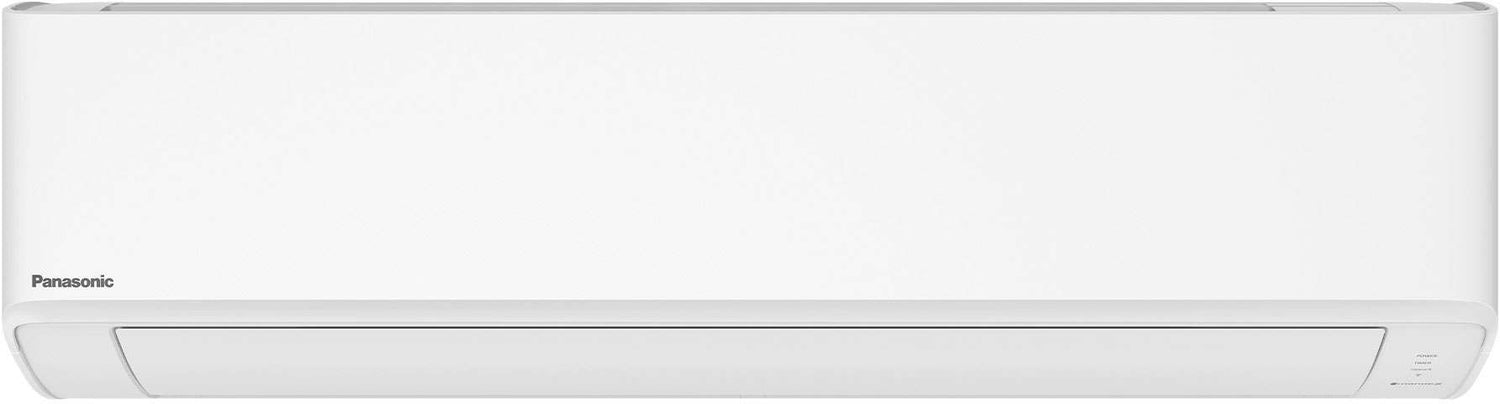

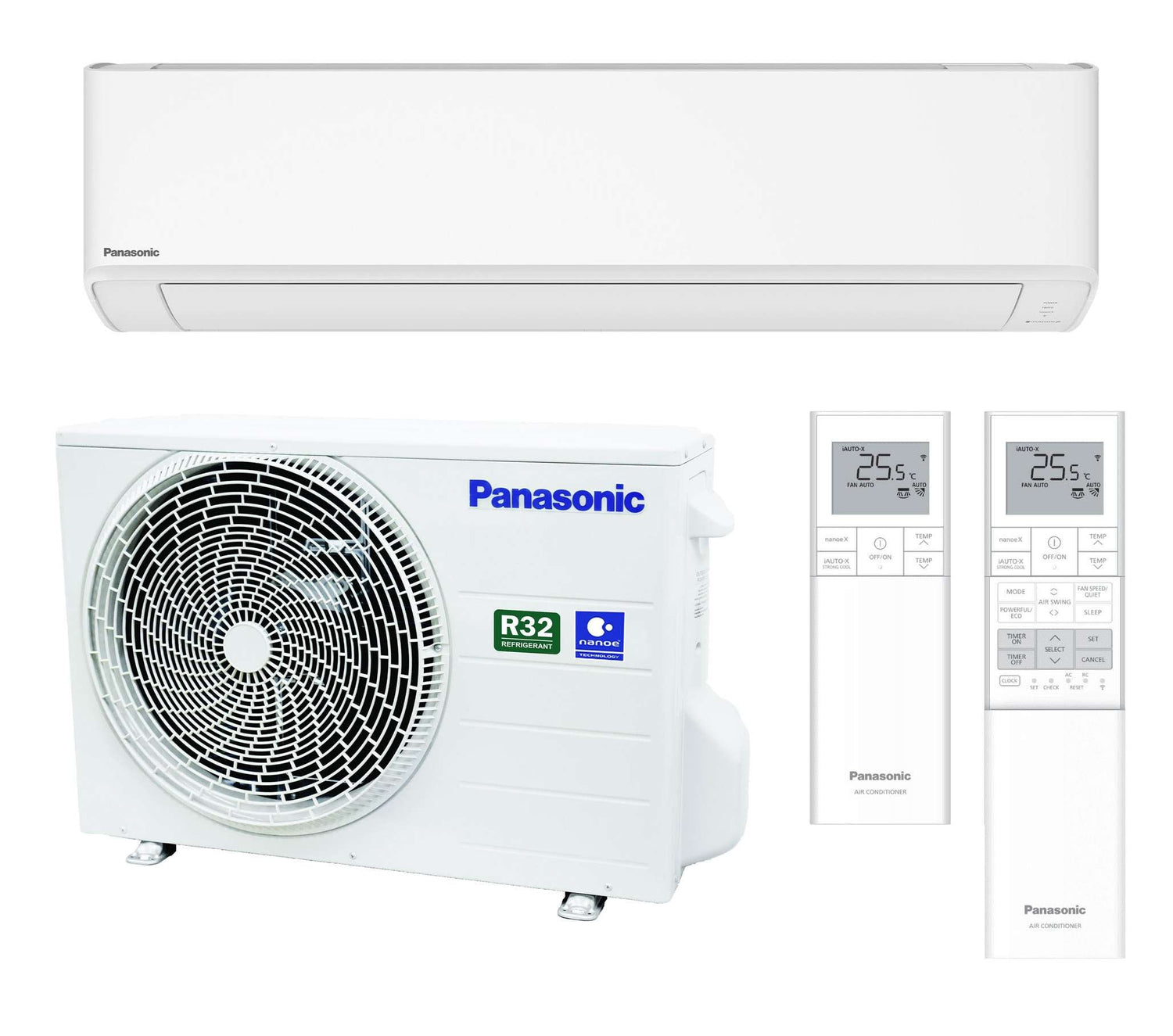

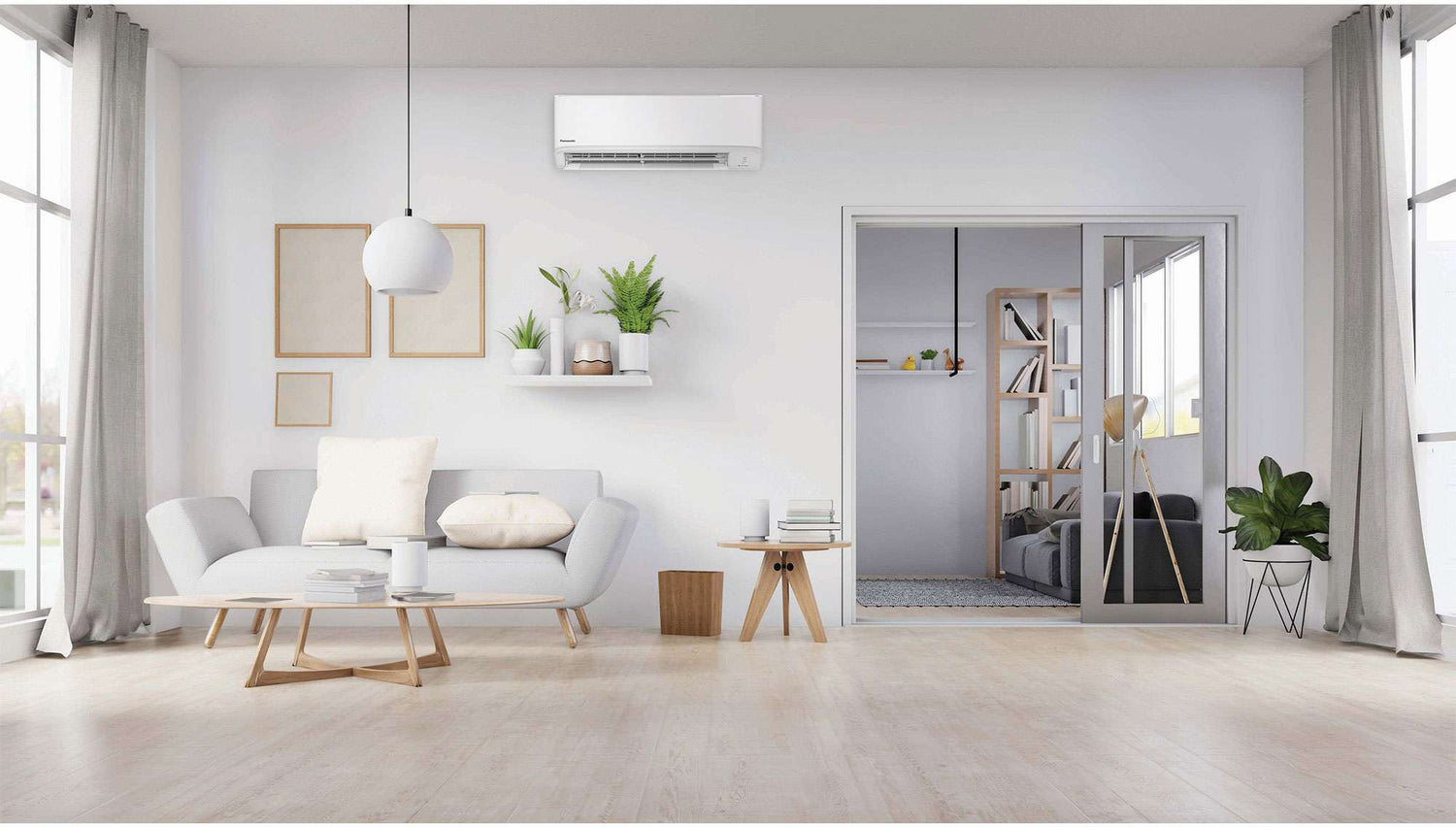

Panasonic 6.0kW Cool / 6.5kW Heat Split System Air Conditioner CS/CU-Z60XKRW
Panasonic 6.0kW Cool / 6.5kW Heat Split System Air Conditioner CS/CU-Z60XKRW is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Cooling or Heating, Air Purification, Wall Mounted Split System |
Built in Wi-Fi, A Smarter Way to Control Your AirThe Panasonic Comfort Cloud app and built in Wi-Fi function provide the convenience to control your air conditioner, even when you’re away from home.Set timers via the comfort cloud app to pre-cool or warm up your home before you arrive, or purify and clean your indoor air with the nanoe X function before coming home. Even switch off the air conditioner when you are away from home - for the times when you've left the house in a hurry. |
Intuitive Voice ControlIntroducing intuitive voice control with Google Assistant and Amazon Alexa control compatibility*. Using your existing Google assistant or Alexa devices, control your air conditioner with just your voice.*To use Google Assistant to control your air conditioner, you will need an Google Assistant device. |
Standalone Purify your Air with or without cooling or heating. Panasonic’s nanoe X Technology is a revolutionary air purification system that keeps your living space fresh and clean for you and your family. |

|
1. Active Deodorisation - Penetrating into the deepest parts of fibres, nanoeX eliminates frequently encountered odours, creating cleaner and fresher spaces. 2. Inhibition of Hazardous Substances - nanoeX has been confirmed to inhibit and breakdown common hazardous / harmful substances ensuring that the air you breathe is cleaner and safer. 3. Inhibition of Mould - Common airborne and adhered mould found inside living / working spaces are enveloped and inhibited by nanoeX. 4. Inhibition of Bacteria & Viruses - nanoeX envelops and inhibits the activity of airborne and adhered bacteria & viruses. 5. Inhibition of Pollen - nanoeX is effective in inhibiting a variety of pollens globally, all year around. 6. Inhibition of Major Allergens - nanoeX inhibits allergens such as pet dander, mite faeces / carcasses, and airborne mould, as well as other major allergens. 7. Moisturises and Hydrates - nanoeX combines with natural sebum (natural skin oils) to coat the skin, leading to a smoother, well-hydrated complexion. |
Complete Air Purification Wherever You AreKeep nanoeX mode running while you’re away, or simply use the Panasonic Comfort Cloud App to return to a fresh smelling home every time. Ensure the air that you breathe is cleaner and safer by keeping nanoeX mode running 24 hrs. With a low energy consumption of 35W/hr for a single unit, Panasonic delivers non-stop Quality Air.Step 1: Turn ON your air conditioner with Panasonic’s Comfort Cloud App Step 2: Select nanoeTM mode from ‘Mode Selection’. nanoeTM mode is displayed on screen. *1 Functionality may vary by model |
Smaller Size, Greater VersatilityWith capacities ranging from 2.5kw (an average bedroom size) to 8.0kW (large lounge room), Panasonic Z series air conditioners have a solution perfectly suited to every home.The Z series now have smaller widths compared to the previous generation, making it easier and more versatile than ever to install into tight spaces. |
High Energy EfficiencyOne of Panasonic’s guiding principles is environmental sustainability. With this in mind, our Wall Split System uses the R32 refrigerant which reduces environmental impact and also delivers better energy efficiency. |

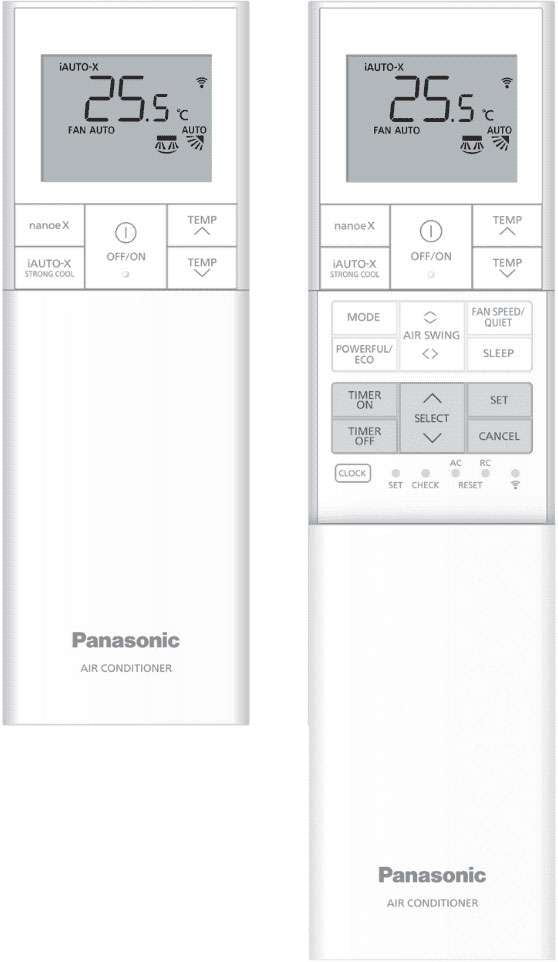

Leading Control OptionsPanasonic Air Conditioning systems allow flexible control options. Individual product control and Wi-Fi control are all possible. Please consult with your installer for advice as to which control system best suits your individual requirements.*Functionality may vary depending on models. |

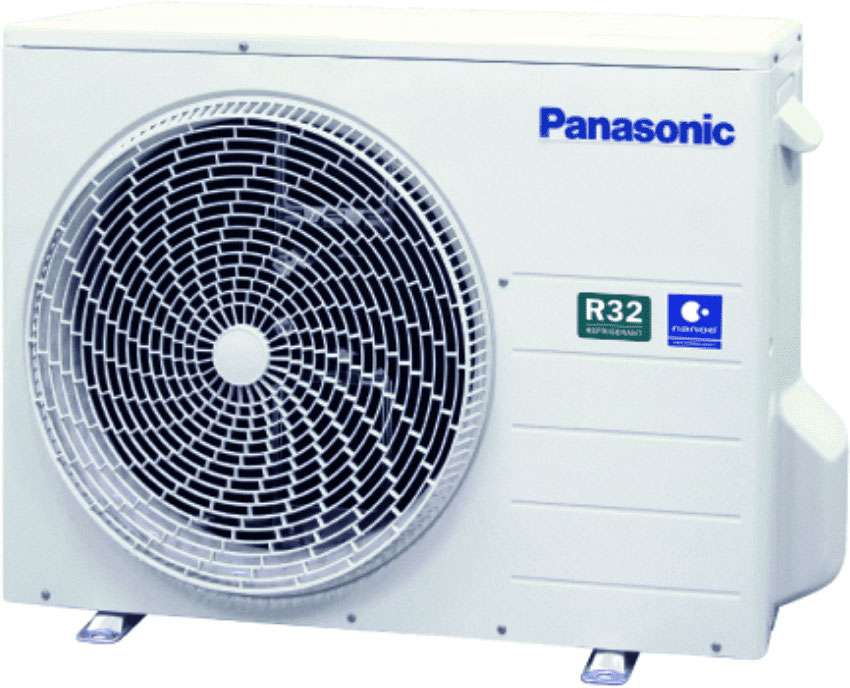

Compact Outdoor UnitsPanasonic Air Conditioning systems feature the most compact and unobtrusive outdoors units available within the market. With impressively small dimensions, the outdoor unit has been ingeniously designed, allowing prodigiously powerful performance to be installed in even the tightest of spaces. |
Anti CorrosionAll heat exchangers feature our Blue Fin technology, which increases resistance to corrosion compared to non-Blue Fin models.* Refer to the installation instructions for further details. |

Designed for AustraliaExperience an outstanding operating temperature range. Cooling is possible even at an outside temperature of 46ºC and heating possible even at a freezing -15ºC. |
Built Tough to LastOur outdoor units are built to last in the harsh Australian environment. Internal components are built to withstand the damaging effects of salty air, dust, wind and rain. |
Count on PanasonicPanasonic air conditioners are manufactured to ensure years of comfort. We even back our reliability by offering a full 5 year parts and labour warranty for both residential and commercial use. |
Quiet OperationPanasonic Air Conditioning is amongst the quietest in the world. Both our indoor and outdoor units have been engineered to ensure you get a peaceful night’s sleep. |
Quality Air for LifeWe care about the food we eat, and the water that we drink; But what about the air that we breathe?Indoor Air Quality (IAQ) is an increasingly prevalent concern in a world faced with rising levels of pollution, temperatures and climate change. At Panasonic, we’re committed to delivering more than just cooling and heating solutions, we consistently strive to help you make positive choices, bringing you Quality Air, for Life. |
View Technical Sheet
View Operating Instructions
View Cooling & Heating Brochure
-
Height (mm)295 mm
-
Width (mm)1040 mm
-
Depth (mm)244 mm
-
Indoor Product CodeCS-Z60XKRW
-
Outdoor Product CodeCU-Z60XKR
-
Indoor Unit Dimensions HxWxD (mm)295 x 1,040 x 244
-
Outdoor Unit Dimensions HxWxD (mm)619 x 824 x 299
-
Cooling Capacity6.0kW
-
Heating Capacity6.5kW
-
MpnCS/CU-Z60XKRW
-
Model numberCS/CU-Z60XKRW
-
ColourWhite
-
Features✓ 6.0kW cooling / 6.5kW heating keeps your home comfortable ✓ iAUTO-X cooling technology ✓ Demand Response Enabling Device (DRED) ✓ 24-hour Dual On & Off Real Setting Timer ✓ Odour-removing Function ✓ Manual Horizontal Airflow Direction Control ✓ Auto Changeover (Inverter)
-
Manufacturer warranty5 Years
-
InstallationWall
-
More SpecsCapacity
- Cooling Capacity(Kw): 6.00 [1.25-6.90] (min-max)
- Heating Capacity(Kw): 6.50 [0.98-8.20] (min-max)
- Cooling Capacity(Btu/h): 20,500 [4,260-23,500] (min-max)
- Heating Capacity(Btu/h): 22,200 [3,340-28,000] (min-max)
- Indoor(Cooling/Heating): 328/339 L/s
- Running Current: 7.90/8.00 A
- Max Current: 11.6 A
- Power Input (min-max): 1.85 (0.35-2.20)/1.89 (0.26-2.64) Kw
- Hot Climate (Cooling/Heating): 3.5/3.5
- Average Climate (Cooling/Heating): 3.5/3.0
- Cold Climate (Cooling/Heating): 3.5/2.0
- Hot Climate (TCSPF|HSPF): 5.40/6.19|5.41/5.45
- Average Climate (TCSPF|HSPF): 5.09/7.15|4.52/4.92
- Cold Climate (TCSPF|HSPF): 5.46/8.76|3.91/4.35
- Indoor (H / L / Q-Lo): 47/36/33|48/36/33
- Outdoor (H / Q-Lo): 49/44|51/46
- Indoor (H / L / Q-Lo): 63/52/49|64/52/49
- Outdoor (H / Q-Lo): 64/59|66/61
- Indoor (Outdoor): 12 (35) Kg
- Liquid Side: ø 6.35(1/4) mm/(inch)
- Gas Side: ø 12.70(1/2) mm/(inch)
- Pipe Extension Length: 3~30 min-max (m)
- Maximum Elevation Length: 15 m
- Pipe Length For Additional Gas: 10 m
- Additional Gas Amount: 15 g/m
- Dehumid: 3.3 L/h
- AEER / EER: 3.23/3.24 W/W
- ACOP / COP: 3.42/3.44 W/W
- Cooling: -10 ~ +46 Degree °C
- Heating: -15 ~ +24 Degree °C
*1 Indoor temperature display and some special function are not available through the App for all models.
*2 Sound pressure level specification is measured according to JIS C9612.
All models have outdoor power supply and use R32 refrigerant.
All TCSPF and HSPF are two decimal rounding numbers
